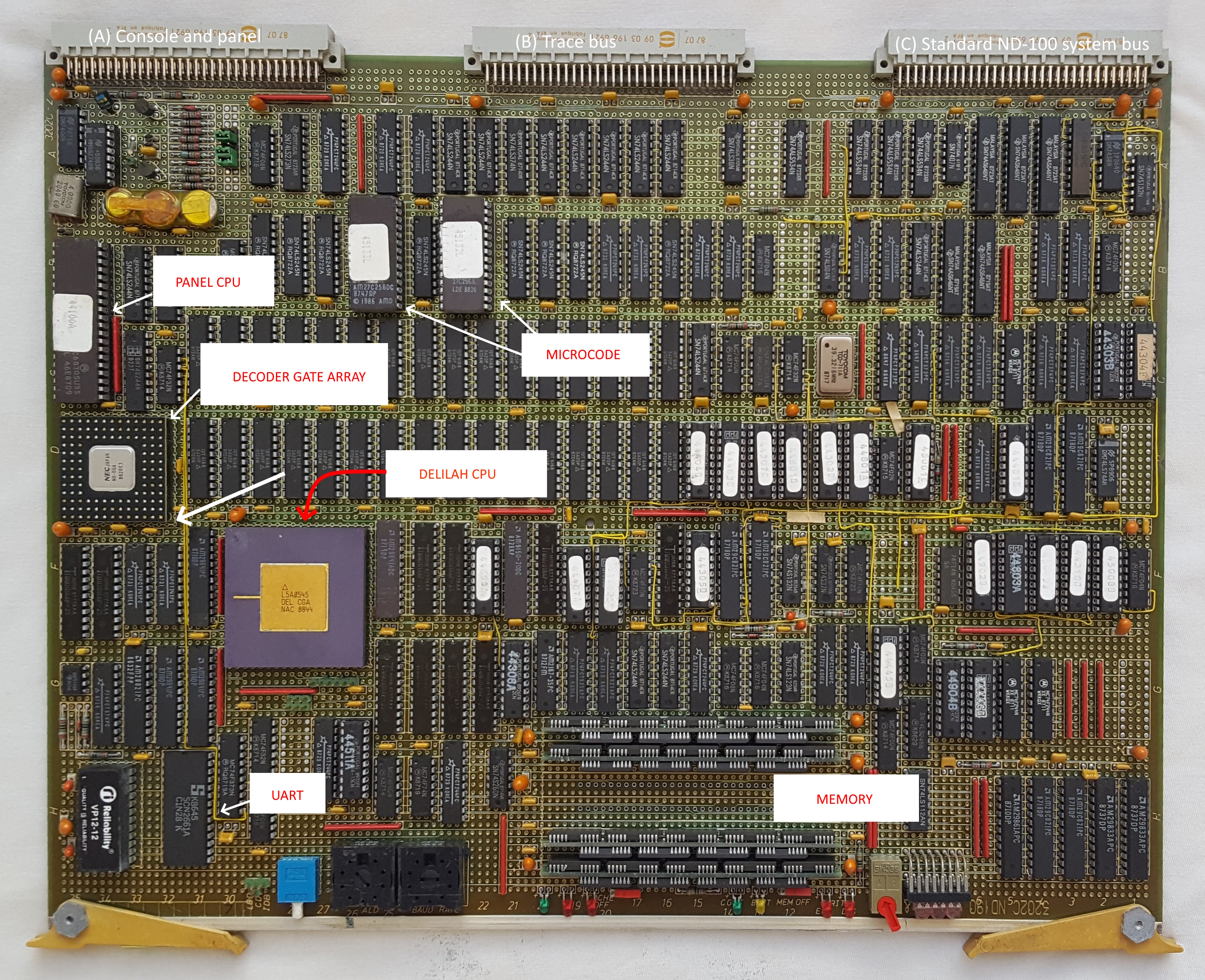

3202D CPU Board for ND-120 CPU¶
The 3202D CPU Board is described in the design documents in a PDF spanning 50 pages.
3202D Circuits¶
All logisim files has been created. Simulation doesnt works as there is to many components that needs to be created directly in Verilog
Status of Logisim drawings from 3202D Schematics PDF¶
| Page name | PDF page number(s) | Area | Status | Comment | |
|---|---|---|---|---|---|
| Main PCB | |||||
| DELILAH TOP LEVEL | BLOCK DIAGRAM | 1 | D3202 | Complete. Need signal fix in Verilog | Combines CYC + CPU + BIF + IO + MEM |
| DELILAH TOP LEVEL | A PLUG | 2 | D3202 | Partially (enough for Verilog) | |
| DELILAH TOP LEVEL | B PLUG | 3 | D3202 | Nothing (but its enough for Verilog) | |
| DELILAH TOP LEVEL | C PLUG | 4 | D3202 | Partially (enough for Verilog) | |
| Bus interface | |||||
| BIF | BUS IF | 5 | BIF | Complete | |
| BIF/BCTL | BIF CONTROL | 6 | BIF | Complete. Need fix in Verilog | PAL 44801, 44401, 45001 |
| BIF/BCTL/BDRV | BUS DRIVERS | 7 | BIF | Complete | |
| BIF/DPATH | BIF SYNC | 8 | BIF | Complete | |
| BIF DATA PATH | BIF SYNC | 9 | BIF | Complete. Need fix in Verilog | |
| BIF/DPATH/BDLBD | BIF BD TO LBD | 10 | BIF | Complete | |
| BIF/DPATH/CDLBD | BIF CD TO LBD | 11 | BIF | Complete | |
| BIF/DPATH/LBCTL | LBD CONTROL | 12 | BIF | Complete. Need fix in Verilog | PAL 44302, 44303, 44304 |
| BIF/DPATH/PESPEA | BIF PES & PEA | 13 | BIF | Complete. Need fix in Verilog | |
| BIF/DPATH/PPNLBD | BIF PPN to LBD | 14 | BIF | Complete | |
| CPU | |||||
| CPU | TOP LEVEL | 15 | CPU | Complete. Need signal fix in Verilog | |
| CPU/CS | CONTROL STORE | 16 | CPU | Complete. Need 1 fix in Verilog | |
| CPU/CS/ACAL | MICRO ADDR CALC | 17 | CPU | Complete | |
| CPU/CS/CTL | CS CONTROL | 18 | CPU | Complete. Need 1 fix in verilog | |
| CPU/CS/PROM | CS PROMS | 19 | CPU | Complete | Microcode EPROMS |
| CPU/CS/TCV | CS TRANSCIEVERS | 20 | CPU | Complete. Need 8 fixes in Verilog | |
| CPU/CS/WCS | Register file | 21-22 | CPU | Complete | |
| CPU/LAPA | LA TO PPN BUFF | 23 | CPU | Complete | |
| CPU/MMU | MMU TOP LEVEL | 24 | CPU | Complete. Need 4 fixes in Verilog | PAL 44306 |
| CPU/MMU/CACHE | CACHE | 25 | CPU | Complete. Need signal fix in Verilog | 4x TMM2018D_25(16K Static RAM) and 1x AM9150_20 (1024 x 4 High-Speed Static R/W RAM) |
| CPU/MMU/CSR | CACHE STATUS REG | 26 | CPU | Complete | |
| CPU/MMU/HIT | HIT DETECTION | 27 | CPU | Complete | |
| CPU/MMU/PPNX | PPN TO IDB | 28 | CPU | Complete | Uses 2x SNx4LS245 Octal Bus Transceivers With 3-State Outputs + 74LS244 |
| CPU/MMU/PT | PAGE TABLES | 29 | CPU | Complete | 4x TMM2018D_25 (16K Static RAM) and 1x IMS1403_25 (16K x 1 Static RAM) |
| CPU/MMU/PTIDB | PT TO IDB | 30 | CPU | Complete | Uses 2x SNx4LS245 Octal Bus Transceivers With 3-State Outputs |
| CPU/MMU/WCA | PPN TO CPN | 31 | CPU | Complete | |
| CPU/PROC | PROCESSOR TOP LEVEL | 32 | CPU | Complete. Need signal fix in Verilog | 2x TMM2018D_25 (16K Static RAM). Validate chip 25F (Clock signal) |
| CPU/PROC/CGA | CPU GATE ARRAY | 33 | CPU | Partially! Finish in Verilog | DELILAH Circuits plugin |
| CPU/PROC/CMDDEC | COMMANDS & IDB DECODE | 34 | CPU | Complete. Need signal fix in Verilog | PAL 44407, 44608, 44511 |
| CPU/STOC | IDB TO CD | 35 | CPU | Complete | |
| Cycle control | |||||
| CYC | CYCLE CONTROL | 36 | CYC | Complete. Need signal fix in Verilog | PAL 44404, 44403, 44601/44611, 44307 |
| IO | |||||
| IO | IO TOP LEVEL | 37 | IO | Complete. Need signal fix in Verilog | |
| IO/DCD | IO DECODING | 38 | IO | Complete. Need signal fix in Verilog | |
| IO/DCD/DGA | DECODE GATE ARRAY | 39 | IO | Complete. Need signal fix in Verilog | DECODE GATE ARRAY (DGA) Plugin |
| IO/PANCAL | PANEL PROC & CALENDAR | 40 | IO | Partially. Missing RTC and 68705 CPU | PANEL CPU |
| IO/REG | IOC, ALD & INR REGS | 41 | IO | Complete | ALD register has also STRAP 5-9info in IDB11-IDB8 (For reading ECO level) IDB4-6 has "Print level", 0b100 for version D. IDB7 has info on CX, 0=Enabled |
| IO/UART | UART AND IOR REG | 42 | IO | Complete. Need signal fix in Verilog. | UART CHIP must be made directly in Verilog. |
| Memory | |||||
| MEM | MEMORY TOP LEVEL | 43 | MEM | Complete. Need signal fix in Verilog | |
| MEM/ADDR | MEM ADDR MUX | 44 | MEM | Complete. Need signal fix in Verilog | |
| MEM/ADEC | ADDRESS DECODER | 45 | MEM | Complete. Need signal fix in Verilog | PAL 44425/44445/44465, 44426/44446/44466, 44904 |
| MEM/DATA | DATA & PARITY TCV | 46 | MEM | Complete. Need signal fix in Verilog | PAL 45008 |
| MEM/ERROR | LOCAL PES & PEA | 47 | MEM | Complete | PAL 45009 |
| MEM/LBDIF | LOCAL BD CONTROL | 48 | MEM | Complete. Need signal fix in Verilog | PAL 44310 |
| MEM/RAM | LOCAL RAM | 49 | MEM | Complete. Need Memory Chip SIP1M9 designed | 3 Banks with 1 MegaWord RAM = 6MB |
| MEM/RAMC | LOCAL RAM CONTROL | 50 | MEM | Complete | PAL 44803,44902 |
