Verilog code for CPU BOARD 3202D

Verilog file per schematic sheet

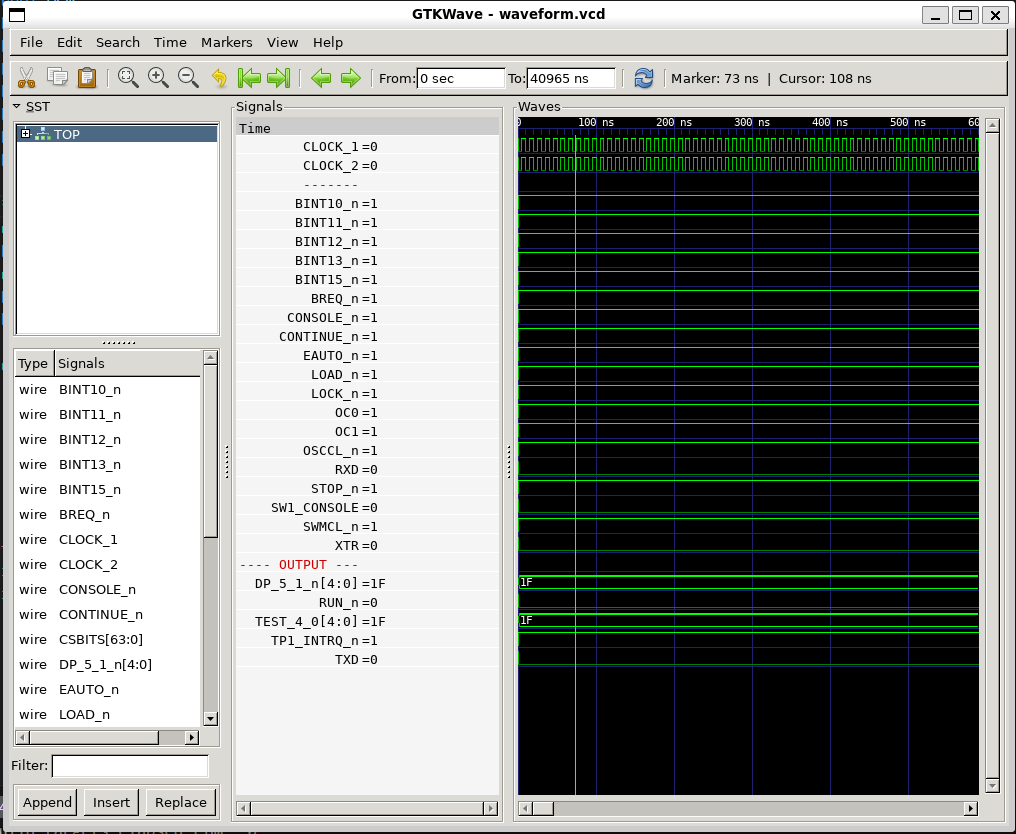

circuit/ holds one Verilog file per sheet. Testbenches are in circuit/sim/ (<file>_tb.v) or in a per-sheet folder (circuit/<SHEET>/); the ones that check themselves are registered in Verilog/tests/run_all_tests.sh.

Page name		Sheet	Area	Verilog	Notes
Main PCB
DELILAH TOP LEVEL	BLOCK DIAGRAM	1	D3202	ND3202D.v	Test
DELILAH TOP LEVEL	A PLUG	2	D3202
DELILAH TOP LEVEL	B PLUG	3	D3202
DELILAH TOP LEVEL	C PLUG	4	D3202
Bus interface
BIF	BUS IF	5	BIF	BIF_5.v
BIF/BCTL	BIF CONTROL	6	BIF	BIF_BCTL_6.v
BIF/BCTL/BDRV	BUS DRIVERS	7	BIF	BIF_BCTL_BDRV_7.v
BIF/DPATH	BIF SYNC	8	BIF	BIF_BCTL_SYNC_8.v	sim/BIF_BCTL_SYNC_8_tb.v
BIF DATA PATH	BIF SYNC	9	BIF	BIF_DPATH_9.v
BIF/DPATH/BDLBD	BIF BD TO LBD	10	BIF	BIF_DPATH_BDLBD_10.v	sim/BIF_DPATH_BDLBD_10_tb.v
BIF/DPATH/CDLBD	BIF CD TO LBD	11	BIF	BIF_DPATH_CDLBD_11.v	sim/BIF_DPATH_CDLBD_11_tb.v
BIF/DPATH/LBCTL	LBD CONTROL	12	BIF	BIF_DPATH_LDBCTL_12.v	sim/BIF_DPATH_LDBCTL_12_tb.v
BIF/DPATH/PESPEA	BIF PES & PEA	13	BIF	BIF_DPATH_PESPEA_13.v	sim/BIF_DPATH_PESPEA_13_tb.v
BIF/DPATH/PPNLBD	BIF PPN to LBD	14	BIF	BIF_DPATH_PPNLBD_14.v
CPU
CPU	TOP LEVEL	15	CPU	CPU_15.v	Test
CPU/CS	CONTROL STORE	16	CPU	CPU_CS_16.v	Test
CPU/CS/ACAL	MICRO ADDR CALC	17	CPU	CPU_CS_ACAL_17.v	Test
CPU/CS/CTL	CS CONTROL	18	CPU	CPU_CS_CTL_18.v	Test
CPU/CS/PROM	CS PROMS	19	CPU	CPU_CS_PROM_19.v	Test. CPU_CS_PROM_19_ORG.v is the original Logisim-generated version.
CPU/CS/TCV	CS TRANSCIEVERS	20	CPU	CPU_CS_TCV_20.v	Test
CPU/CS/WCS	WRITABLE CTRL STORE	21-22	CPU	CPU_CS_WCS_21_22.v	Test
CPU/LAPA	LA TO PPN BUFF	23	CPU	none	One line of code in CPU_15.v
CPU/MMU	MMU TOP LEVEL	24	CPU	CPU_MMU_24.v	sim/CPU_MMU_24_*_tb.v
CPU/MMU/CACHE	CACHE	25	CPU	CPU_MMU_CACHE_25.v	sim/CPU_MMU_CACHE_25*_tb.v
CPU/MMU/CSR	CACHE STATUS REG	26	CPU	CPU_MMU_CSR_26.v	Test
CPU/MMU/HIT	HIT DETECTION	27	CPU	CPU_MMU_HIT_27.v
CPU/MMU/PPNX	PPN TO IDB	28	CPU	CPU_MMU_PPNX_28.v	Test
CPU/MMU/PT	PAGE TABLES	29	CPU	CPU_MMU_PT_29.v	Test, sim/CPU_MMU_PT_29*_tb.v
CPU/MMU/PTIDB	PT TO IDB	30	CPU	CPU_MMU_PTIDB_30.v	Test (2024 note, not re-checked: bidirectional bus not working correctly in Verilator)
CPU/MMU/WCA	PPN TO CPN	31	CPU	CPU_MMU_WCA_31.v	Test
CPU/PROC	PROCESSOR TOP LEVEL	32	CPU	CPU_PROC_32.v	Test
CPU/PROC/CGA	CPU GATE ARRAY	33	CPU	CPU_PROC_CGA_33.v	Test
CPU/PROC/CMDDEC	COMMANDS & IDB DECODE	34	CPU	CPU_PROC_CMDDEC_34.v	Test
CPU/STOC	IDB TO CD	35	CPU	CPU_STOC_35.v	Not used by the board: CPU_15.v does it in one line. The file and sim/CPU_STOC_35_tb.v remain.
Cycle control
CYC	CYCLE CONTROL	36	CYC	CYC_36.v	Test. CYC_CC_D.v and CYC_TERM_D.v copy the next-state logic of PAL_44601B so CYC_36 can make sysclk clock enables.
IO
IO	IO TOP LEVEL	37	IO	IO_37.v	Test
IO/DCD	IO DECODING	38	IO	IO_DCD_38.v	Test. Connects the DGA.
IO/DCD/DGA	DECODE GATE ARRAY	39	IO	none	Directly integrated in sheet 38.
IO/PANCAL	PANEL PROC & CALENDAR	40	IO	IO_PANCAL_40.v	sim/IO_PANCAL_40*_tb.v. PANCAL_68705_CLOCK.v stands in for the MC68705U3 + MM58274 clock path (Verilog/docs/panel-clock-68705.md).
IO/REG	IOC, ALD & INR REGS	41	IO	IO_REG_41.v	Test
IO/UART	UART AND IOR REG	42	IO	IO_UART_42.v	Test
Memory
MEM	MEMORY TOP LEVEL	43	MEM	MEM_43.v	sim/MEM_CHAIN*_tb.v
MEM/ADDR	MEM ADDR MUX	44	MEM	MEM_ADDR_44.v	sim/MEM_ADDR_44_tb.v
MEM/ADEC	ADDRESS DECODER	45	MEM	MEM_ADEC_45.v	sim/MEM_ADEC_45_tb.v
MEM/DATA	DATA & PARITY TCV	46	MEM	MEM_DATA_46.v	sim/MEM_DATA_46_tb.v
MEM/ERROR	LOCAL PES & PEA	47	MEM	MEM_ERROR_47.v	sim/MEM_ERROR_47_tb.v
MEM/LBDIF	LOCAL BD CONTROL	48	MEM	MEM_LBDIF_48.v	sim/MEM_LBDIF_48_tb.v
MEM/RAM	LOCAL RAM	49	MEM	MEM_RAM_49.v	Back ends: MEM_RAM_49_SIM.v (Verilator), MEM_RAM_49_BLOCKRAM.v (FPGA block RAM). sim/MEM_RAM_49_*_tb.v
MEM/RAMC	LOCAL RAM CONTROL	50	MEM	MEM_RAMC_50.v	sim/MEM_RAMC_50_tb.v

PAL_44445B_D.v and PAL_44446B_D.v are sysclk-domain copies of the PALs 44445B (UCADEC) and 44446B (UBADEC): same equations, registers sampled on sysclk with an enable instead of the original clock net.
