m65_keys_to_ps2¶
Source: Verilog/fpga/mega65/rtl/m65_keys_to_ps2.v
Where it sits (MEGA65 R6): nd120_mega65_machine > nd120_console_mega65 > m65_keys_to_ps2
- instance path: CONSOLE.KEYS
Used in: nd120_console_mega65 (MEGA65 R6, MEGA65 R3)
Contains: no other modules.
Module hierarchy - All modules

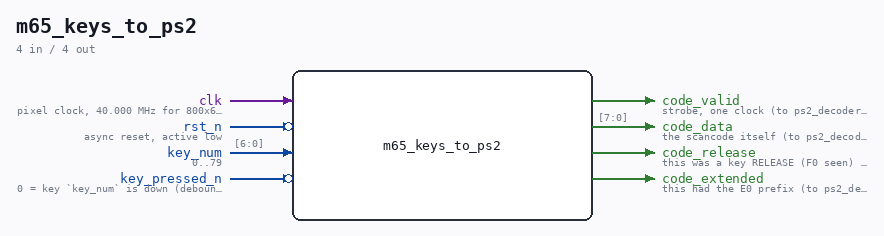

Schematic¶
Drawn from the Verilog: the yosys netlist of the MEGA65 R4 R5 R6 build, instance CONSOLE.KEYS. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk |
pixel clock, 40.000 MHz for 800x600@60 (from nd120_console_mega65.clk) |
| input | 1 |
rst_n (active low) |
async reset, active low |
| input | [6:0] |
key_num |
0..79 |
| input | 1 |
key_pressed_n (active low) |
0 = key key_num is down (debounced) |
| output | 1 |
code_valid |
strobe, one clock (to ps2_decoder_tdv.code_valid) |
| output | [7:0] |
code_data |
the scancode itself (to ps2_decoder_tdv.code_data) |
| output | 1 |
code_release |
this was a key RELEASE (F0 seen) (to ps2_decoder_tdv.code_release) |
| output | 1 |
code_extended |
this had the E0 prefix (to ps2_decoder_tdv.code_extended) |
Verilog source¶
Verilog/fpga/mega65/rtl/m65_keys_to_ps2.v on GitHub.
Show the Verilog of m65_keys_to_ps2 (350 lines)
//============================================================================
//! MEGA65 keyboard scan -> PS/2 set-2 key events for the shared terminal
//! decoder.
//!
//! Full path: Verilog/fpga/mega65/rtl/m65_keys_to_ps2.v
//!
//! WHAT THE FRAMEWORK GIVES US. MiSTer2MEGA65 hands the core a scan, not
//! events: `key_num` cycles 0..79 at 1 kHz (matrix_to_keynum.vhdl,
//! scan_frequency 1000 - each key is presented for clock/(72*1000) cycles,
//! ~555 clocks at 40 MHz) and `key_pressed_n` says, debounced and active
//! low, whether THAT key is down right now. The key numbers are the
//! MEGA65's own (CORE/vhdl/keyboard.vhd in the framework template lists all
//! 76 of them; 0 = INST/DEL ... 75 = RESTORE).
//!
//! WHAT THE TERMINAL WANTS. The shared decoder ps2_decoder_tdv.v takes PS/2
//! scancode-set-2 events: {code, release, extended}, and does everything
//! that is hard about a keyboard - shift, control, caps, Alt markers, the
//! TDV function/cursor keys, the ESC[nn_ family. None of that should exist
//! twice. So this module translates the MEGA65's keys INTO PS/2 events and
//! the decoder is reused unchanged, exactly as the MiSTer glue reuses it on
//! hps_io's events.
//!
//! THE ONE REAL PROBLEM: THE KEYCAPS. The MEGA65 keyboard is a C64 layout.
//! Its symbol pairs are not the PS/2 US pairs the decoder's table knows:
//! shift-2 is `"` (PS/2: `@`), shift-6 is `&` (PS/2: `^`), shift-7 is `'`,
//! shift-8 is `(`, shift-9 is `)`, and `:` `;` `@` `*` `+` `-` `=` are
//! keys of their own with `[` `]` on the shifted `:` `;`. A plain
//! key-to-code table would type what the PS/2 keycap says, not what the
//! MEGA65 keycap says, and the person testing this is looking at the
//! MEGA65 keycaps.
//!
//! So every key carries TWO targets, one per MEGA65 keycap legend
//! (unshifted / shifted), and each target says which PS/2 code produces
//! that character AND what the decoder's shift state must be while it does.
//! Where the decoder's shift state must differ from what the user is
//! physically holding, a synthetic LEFT-SHIFT press or release is sent
//! first, then the key, then the real state is restored. Example: the `:`
//! key unshifted must type `:`, which on PS/2 is shift+`;` (0x4C) - so
//! this sends SHIFT-down, 0x4C, SHIFT-up. Shift+`:` must type `[`, PS/2
//! 0x54 UNshifted - so with the user holding shift this sends SHIFT-up,
//! 0x54, SHIFT-down. Letters, digits with matching pairs, `,` `.` `/`
//! `1` `3` `4` `5` simply pass the user's shift state through, so caps lock
//! and shift behave inside the decoder as they always did.
//!
//! RELEASES. ps2_decoder_tdv acts on releases ONLY for the modifier keys
//! (shift, ctrl, alt); for every other key a release is ignored. So this
//! module sends releases for modifiers and nothing for the rest - fewer
//! events, and no per-key memory of which code was sent at press time.
//!
//! CAPS LOCK is a mechanically LATCHING key on the MEGA65: `key_pressed_n`
//! is low for as long as it is locked. The decoder TOGGLES its caps state
//! on every caps PRESS and ignores the release. So a press event is sent on
//! BOTH transitions of the key - lock and unlock each toggle once - and the
//! decoder's caps state tracks the physical latch.
//!
//! NOT DONE (02-SEP-2026): key repeat. PS/2 keyboards repeat by themselves
//! (typematic); the MEGA65 scan does not, so holding a key types it once.
//! Fine for a console; write it here if it is ever wanted.
//!
//! RUN/STOP is EXIT (04-SEP-2026, Ronny): the TDV2200's SLUTT key, ESC[48_,
//! the way out of a SINTRAN program - sent as the PC End key, which the
//! shared table already maps to SLUTT. The C64 keycap that means "stop this
//! program" is the right one for it; the framework only claims RUN/STOP
//! while its menu is open (m2m_keyb.vhd enable_core_i), and then the core
//! sees no keys at all. Alt+X reaches SLUTT too, through the decoder's Alt
//! map - proven on this path by the testbench.
//!
//! Keys with no terminal meaning (MEGA, NO SCROLL, RESTORE, F13,
//! shifted CLR/HOME) send nothing. Choices that are ours, not a standard,
//! are marked "(choice)" in the table.
//!
//! Written 02-SEP-2026.
//============================================================================
`default_nettype none
module m65_keys_to_ps2 (
input wire clk, //! pixel clock, 40.000 MHz for 800x600@60 (from nd120_console_mega65.clk)
input wire rst_n, //! async reset, active low
//! The framework's scan, in this clock domain.
input wire [6:0] key_num, //! 0..79
input wire key_pressed_n, //! 0 = key `key_num` is down (debounced)
//! To ps2_decoder_tdv. One event per clock at most.
output reg code_valid, //! strobe, one clock (to ps2_decoder_tdv.code_valid)
output reg [7:0] code_data, //! the scancode itself (to ps2_decoder_tdv.code_data)
output reg code_release, //! this was a key RELEASE (F0 seen) (to ps2_decoder_tdv.code_release)
output reg code_extended //! this had the E0 prefix (to ps2_decoder_tdv.code_extended)
);
//--------------------------------------------------------------------------
// PS/2 set-2 codes the decoder recognises (ps2_decoder_tdv.v localparams)
//--------------------------------------------------------------------------
localparam [7:0] SC_LSHIFT = 8'h12;
localparam [7:0] SC_CTRL = 8'h14;
localparam [7:0] SC_CAPS = 8'h58;
localparam [7:0] SC_ALT = 8'h11;
// MEGA65 key numbers that are modifiers here
localparam [6:0] K_LSHIFT = 7'd15;
localparam [6:0] K_RSHIFT = 7'd52;
localparam [6:0] K_CTRL = 7'd58;
localparam [6:0] K_ALT = 7'd66;
localparam [6:0] K_CAPS = 7'd72;
// Shift requirement of a target: what the decoder's shift state must be
// while the code is delivered.
localparam [1:0] SH_OFF = 2'b00; // force the decoder's shift OFF
localparam [1:0] SH_ON = 2'b01; // force it ON
localparam [1:0] SH_PASS = 2'b10; // whatever the user is holding
//--------------------------------------------------------------------------
// The keycap table. One entry per MEGA65 key, two targets each:
// {code[7:0], extended, shift_req[1:0]} for the unshifted legend,
// the same for the shifted legend. code 0x00 = this legend sends nothing.
//--------------------------------------------------------------------------
function [21:0] keymap;
input [6:0] k;
reg [10:0] u; // unshifted target
reg [10:0] s; // shifted target
begin
u = {8'h00, 1'b0, SH_PASS};
s = {8'h00, 1'b0, SH_PASS};
case (k)
// --- top row ---------------------------------------------------
7'd57: begin u = {8'h4E, 1'b0, SH_ON}; s = u; end // left-arrow key -> '_' (choice)
7'd56: begin u = {8'h16, 1'b0, SH_PASS}; s = u; end // 1 !
7'd59: begin u = {8'h1E, 1'b0, SH_OFF}; s = {8'h52, 1'b0, SH_ON}; end // 2 "
7'd8: begin u = {8'h26, 1'b0, SH_PASS}; s = u; end // 3 #
7'd11: begin u = {8'h25, 1'b0, SH_PASS}; s = u; end // 4 $
7'd16: begin u = {8'h2E, 1'b0, SH_PASS}; s = u; end // 5 %
7'd19: begin u = {8'h36, 1'b0, SH_OFF}; s = {8'h3D, 1'b0, SH_ON}; end // 6 &
7'd24: begin u = {8'h3D, 1'b0, SH_OFF}; s = {8'h52, 1'b0, SH_OFF}; end // 7 '
7'd27: begin u = {8'h3E, 1'b0, SH_OFF}; s = {8'h46, 1'b0, SH_ON}; end // 8 (
7'd32: begin u = {8'h46, 1'b0, SH_OFF}; s = {8'h45, 1'b0, SH_ON}; end // 9 )
7'd35: begin u = {8'h45, 1'b0, SH_OFF}; s = u; end // 0 (shift-0 also 0)
7'd40: begin u = {8'h55, 1'b0, SH_ON}; s = u; end // +
7'd43: begin u = {8'h4E, 1'b0, SH_OFF}; s = u; end // -
7'd48: begin u = {8'h5D, 1'b0, SH_OFF}; s = u; end // pound -> '\' (choice)
7'd51: begin u = {8'h6C, 1'b1, SH_PASS}; s = {8'h00, 1'b0, SH_PASS}; end // CLR/HOME: Home; CLR sends nothing
7'd0: begin u = {8'h66, 1'b0, SH_PASS}; s = {8'h70, 1'b1, SH_PASS}; end // INST/DEL: Backspace(->DEL); shift = Insert
// --- second row ------------------------------------------------
7'd62: begin u = {8'h15, 1'b0, SH_PASS}; s = u; end // q
7'd9: begin u = {8'h1D, 1'b0, SH_PASS}; s = u; end // w
7'd14: begin u = {8'h24, 1'b0, SH_PASS}; s = u; end // e
7'd17: begin u = {8'h2D, 1'b0, SH_PASS}; s = u; end // r
7'd22: begin u = {8'h2C, 1'b0, SH_PASS}; s = u; end // t
7'd25: begin u = {8'h35, 1'b0, SH_PASS}; s = u; end // y
7'd30: begin u = {8'h3C, 1'b0, SH_PASS}; s = u; end // u
7'd33: begin u = {8'h43, 1'b0, SH_PASS}; s = u; end // i
7'd38: begin u = {8'h44, 1'b0, SH_PASS}; s = u; end // o
7'd41: begin u = {8'h4D, 1'b0, SH_PASS}; s = u; end // p
7'd46: begin u = {8'h1E, 1'b0, SH_ON}; s = u; end // @
7'd49: begin u = {8'h3E, 1'b0, SH_ON}; s = u; end // *
7'd54: begin u = {8'h36, 1'b0, SH_ON}; s = u; end // up-arrow key -> '^' (choice)
// --- third row -------------------------------------------------
7'd10: begin u = {8'h1C, 1'b0, SH_PASS}; s = u; end // a
7'd13: begin u = {8'h1B, 1'b0, SH_PASS}; s = u; end // s
7'd18: begin u = {8'h23, 1'b0, SH_PASS}; s = u; end // d
7'd21: begin u = {8'h2B, 1'b0, SH_PASS}; s = u; end // f
7'd26: begin u = {8'h34, 1'b0, SH_PASS}; s = u; end // g
7'd29: begin u = {8'h33, 1'b0, SH_PASS}; s = u; end // h
7'd34: begin u = {8'h3B, 1'b0, SH_PASS}; s = u; end // j
7'd37: begin u = {8'h42, 1'b0, SH_PASS}; s = u; end // k
7'd42: begin u = {8'h4B, 1'b0, SH_PASS}; s = u; end // l
7'd45: begin u = {8'h4C, 1'b0, SH_ON}; s = {8'h54, 1'b0, SH_OFF}; end // : [
7'd50: begin u = {8'h4C, 1'b0, SH_OFF}; s = {8'h5B, 1'b0, SH_OFF}; end // ; ]
7'd53: begin u = {8'h55, 1'b0, SH_OFF}; s = u; end // =
7'd1: begin u = {8'h5A, 1'b0, SH_PASS}; s = u; end // RETURN
// --- bottom row ------------------------------------------------
7'd12: begin u = {8'h1A, 1'b0, SH_PASS}; s = u; end // z
7'd23: begin u = {8'h22, 1'b0, SH_PASS}; s = u; end // x
7'd20: begin u = {8'h21, 1'b0, SH_PASS}; s = u; end // c
7'd31: begin u = {8'h2A, 1'b0, SH_PASS}; s = u; end // v
7'd28: begin u = {8'h32, 1'b0, SH_PASS}; s = u; end // b
7'd39: begin u = {8'h31, 1'b0, SH_PASS}; s = u; end // n
7'd36: begin u = {8'h3A, 1'b0, SH_PASS}; s = u; end // m
7'd47: begin u = {8'h41, 1'b0, SH_PASS}; s = u; end // , <
7'd44: begin u = {8'h49, 1'b0, SH_PASS}; s = u; end // . >
7'd55: begin u = {8'h4A, 1'b0, SH_PASS}; s = u; end // / ?
7'd60: begin u = {8'h29, 1'b0, SH_PASS}; s = u; end // SPACE
// --- cursor keys -----------------------------------------------
7'd2: begin u = {8'h74, 1'b1, SH_PASS}; s = {8'h6B, 1'b1, SH_PASS}; end // C64 horizontal: Right, shift = Left
7'd7: begin u = {8'h72, 1'b1, SH_PASS}; s = {8'h75, 1'b1, SH_PASS}; end // C64 vertical: Down, shift = Up
7'd73: begin u = {8'h75, 1'b1, SH_PASS}; s = u; end // dedicated Up
7'd74: begin u = {8'h6B, 1'b1, SH_PASS}; s = u; end // dedicated Left
// --- function keys: the C64 pairs, shift = the even one --------
// The decoder's own shift means "shifted F-key" (ESC[nn+1_), which
// is not what the keycap says, so the decoder's shift is forced OFF
// and the even key's own code is sent instead.
7'd4: begin u = {8'h05, 1'b0, SH_OFF}; s = {8'h06, 1'b0, SH_OFF}; end // F1 / F2
7'd5: begin u = {8'h04, 1'b0, SH_OFF}; s = {8'h0C, 1'b0, SH_OFF}; end // F3 / F4
7'd6: begin u = {8'h03, 1'b0, SH_OFF}; s = {8'h0B, 1'b0, SH_OFF}; end // F5 / F6
7'd3: begin u = {8'h83, 1'b0, SH_OFF}; s = {8'h0A, 1'b0, SH_OFF}; end // F7 / F8
7'd68: begin u = {8'h01, 1'b0, SH_OFF}; s = {8'h09, 1'b0, SH_OFF}; end // F9 / F10 -> HJELP / FUNK (the TDV table's F9/F10)
7'd69: begin u = {8'h78, 1'b0, SH_OFF}; s = {8'h07, 1'b0, SH_OFF}; end // F11 / F12 -> SKRIV / ANGRE
7'd67: begin u = {8'h01, 1'b0, SH_OFF}; s = u; end // HELP -> HJELP, same as F9 (choice)
// --- the MEGA65 extras -----------------------------------------
7'd65: begin u = {8'h0D, 1'b0, SH_PASS}; s = u; end // TAB
7'd71: begin u = {8'h76, 1'b0, SH_PASS}; s = u; end // ESC
// RUN/STOP -> End (E0 69) -> SLUTT/EXIT ESC[48_. Shift forced OFF so
// a held shift cannot turn it into the shifted variant ESC[49_.
7'd63: begin u = {8'h69, 1'b1, SH_OFF}; s = u; end // RUN/STOP -> EXIT (SLUTT)
// 61 MEGA, 64 NO SCROLL, 70 F13/F14, 75 RESTORE: nothing.
// 15/52 shift, 58 ctrl, 66 alt, 72 caps lock: modifiers, handled below.
default: begin end
endcase
keymap = {u, s};
end
endfunction
//--------------------------------------------------------------------------
// Scan sampling: a key is looked at once per dwell, after `key_num` has
// held still for 32 clocks, so the framework's own settling of
// `key_pressed_n` behind `key_num` (a RAM read or two) never matters.
//--------------------------------------------------------------------------
reg [6:0] s_num_d;
reg [5:0] s_stable;
wire s_sample = (s_stable == 6'd32);
always @(posedge clk or negedge rst_n) begin
if (!rst_n) begin
s_num_d <= 7'd0;
s_stable <= 6'd0;
end else begin
s_num_d <= key_num;
if (key_num != s_num_d) s_stable <= 6'd0;
else if (s_stable != 6'd63) s_stable <= s_stable + 6'd1;
end
end
//! Physical state of every key, 1 = down.
reg [79:0] s_down;
wire s_pressed_now = ~key_pressed_n;
wire s_was_down = s_down[key_num];
wire s_press_evt = s_sample && s_pressed_now && !s_was_down;
wire s_release_evt = s_sample && !s_pressed_now && s_was_down;
wire s_m65_shift = s_down[K_LSHIFT] | s_down[K_RSHIFT];
//--------------------------------------------------------------------------
// Event sequencer. At most three PS/2 events per MEGA65 event, one per
// clock: [synthetic shift] key [restore shift]. The next key of the scan
// is hundreds of clocks away, so no queue is needed.
//--------------------------------------------------------------------------
reg s_dec_shift; //! the shift state the DECODER currently believes
reg [1:0] s_step; //! 0 idle, 1..3 = event slots
reg [10:0] s_ev1, s_ev2, s_ev3; //! {code, extended, release, valid} - see below
// slot layout: [10:3] code, [2] extended, [1] release, [0] valid
// The key's target for the legend the user is holding
wire [21:0] s_map = keymap(key_num);
wire [10:0] s_target = s_m65_shift ? s_map[10:0] : s_map[21:11];
wire [7:0] s_t_code = s_target[10:3];
wire s_t_ext = s_target[2];
wire [1:0] s_t_req = s_target[1:0];
wire s_t_want = (s_t_req == SH_PASS) ? s_m65_shift : s_t_req[0];
wire s_is_shift = (key_num == K_LSHIFT) || (key_num == K_RSHIFT);
wire s_is_ctrl = (key_num == K_CTRL);
wire s_is_alt = (key_num == K_ALT);
wire s_is_caps = (key_num == K_CAPS);
//! Shift state the user will be holding AFTER this event is applied
//! (needed for a shift key's own transition).
wire s_m65_shift_next = s_is_shift ? ((s_press_evt) ? 1'b1
: ((key_num == K_LSHIFT) ? s_down[K_RSHIFT] : s_down[K_LSHIFT]))
: s_m65_shift;
always @(posedge clk or negedge rst_n) begin
if (!rst_n) begin
s_down <= 80'd0;
s_dec_shift <= 1'b0;
s_step <= 2'd0;
s_ev1 <= 11'd0;
s_ev2 <= 11'd0;
s_ev3 <= 11'd0;
code_valid <= 1'b0;
code_data <= 8'h00;
code_release <= 1'b0;
code_extended <= 1'b0;
end else begin
code_valid <= 1'b0;
if (s_step != 2'd0) begin
// deliver the queued slots in order, skipping empty ones
case (s_step)
2'd1: begin
if (s_ev1[0]) begin
code_valid <= 1'b1; code_data <= s_ev1[10:3]; code_extended <= s_ev1[2]; code_release <= s_ev1[1];
end
s_step <= 2'd2;
end
2'd2: begin
if (s_ev2[0]) begin
code_valid <= 1'b1; code_data <= s_ev2[10:3]; code_extended <= s_ev2[2]; code_release <= s_ev2[1];
end
s_step <= 2'd3;
end
default: begin
if (s_ev3[0]) begin
code_valid <= 1'b1; code_data <= s_ev3[10:3]; code_extended <= s_ev3[2]; code_release <= s_ev3[1];
end
s_step <= 2'd0;
end
endcase
end else if (s_press_evt || s_release_evt) begin
s_down[key_num] <= s_press_evt;
s_ev1 <= 11'd0;
s_ev2 <= 11'd0;
s_ev3 <= 11'd0;
if (s_is_shift) begin
// Keep the decoder's shift equal to what the user holds. Two
// shift keys: only the transition that changes the OR matters.
if (s_dec_shift != s_m65_shift_next) begin
s_ev1 <= {SC_LSHIFT, 1'b0, ~s_m65_shift_next, 1'b1};
s_dec_shift <= s_m65_shift_next;
s_step <= 2'd1;
end
end else if (s_is_ctrl) begin
s_ev1 <= {SC_CTRL, 1'b0, s_release_evt, 1'b1};
s_step <= 2'd1;
end else if (s_is_alt) begin
s_ev1 <= {SC_ALT, 1'b0, s_release_evt, 1'b1};
s_step <= 2'd1;
end else if (s_is_caps) begin
// latching key: every transition is one toggle for the decoder
s_ev1 <= {SC_CAPS, 1'b0, 1'b0, 1'b1};
s_step <= 2'd1;
end else if (s_press_evt && s_t_code != 8'h00) begin
// [set the decoder's shift for this legend] key [restore]
if (s_dec_shift != s_t_want)
s_ev1 <= {SC_LSHIFT, 1'b0, ~s_t_want, 1'b1};
s_ev2 <= {s_t_code, s_t_ext, 1'b0, 1'b1};
if (s_t_want != s_m65_shift)
s_ev3 <= {SC_LSHIFT, 1'b0, ~s_m65_shift, 1'b1};
s_dec_shift <= s_m65_shift; // where it ends up after slot 3
s_step <= 2'd1;
end
// releases of ordinary keys: nothing to send
end
end
end
endmodule
`default_nettype wire
