nd_avalon_port¶
Source: Verilog/fpga/mega65/rtl/nd_avalon_port.v
Where it sits (MEGA65 R3): nd120_mega65_machine > nd_avalon_port
- instance path: MEMPORT
Used in: nd120_mega65_machine (MEGA65 R3)
Contains: no other modules.
Module hierarchy - All modules

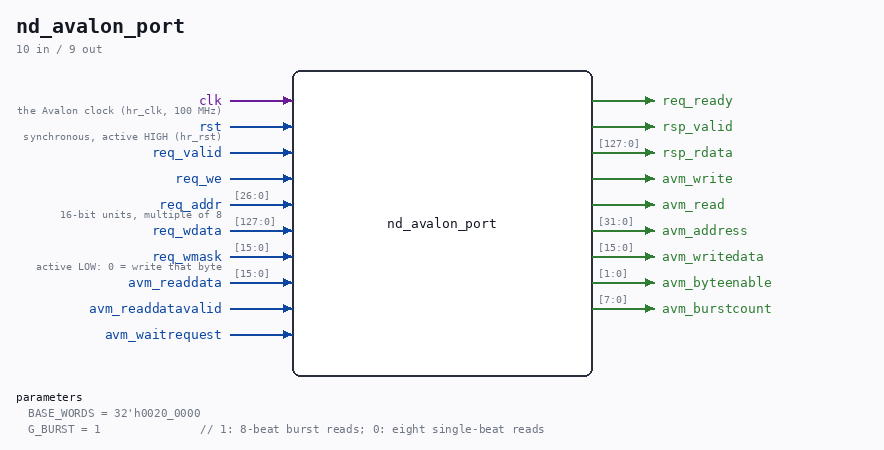

Schematic¶
Drawn from the Verilog: the yosys netlist of the MEGA65 R3 build, instance MEMPORT. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
nd_avalon_port - the nd_ddr2_port contract on an Avalon-MM 16-bit master (the MiSTer2MEGA65 HyperRAM port, MEGA65 R3) Full path: Verilog/fpga/mega65/rtl/nd_avalon_port.v WHAT THIS IS. The Nexys 4 DDR's main-memory backend is a BRAM cache (fpga/nexys4ddr/ddr2/MEM_RAM_49_DDR2.v) in front of a plain request/ response port whose contract is written in nd_ddr2_port.v: req_valid held until req_ready; req_we; req_addr in 16-BIT UNITS, a multiple of 8 (one transfer = one 128-bit line = 8 units); req_wdata 128 bits; req_wmask ACTIVE-LOW byte mask (0 = write that byte); rsp_valid one cycle with rsp_rdata (read) or as "done" (write). One operation outstanding at a time. That cache + the MEM_HOLD freeze absorb ANY latency, which is why the contract is the right seam for a memory whose latency varies: the MEGA65's HyperRAM, reached through the framework's Avalon-MM port (CORE/vhdl/mega65.vhd hr_core_*: 16-bit data, WORD address, 8-bit burstcount, waitrequest, readdatavalid; 100 MHz hr_clk). This module is the port for it: the same contract on the client side, Avalon on the other. Nothing above the seam knows the difference. HOW EACH OPERATION MAPS READ : one burst of 8 words (burstcount 8) from BASE + req_addr; the 8 readdatavalid beats fill rsp_rdata word 0 first (unit 0 = bits [15:0], as nd_ddr2_port lays a line out). G_BURST = 0 turns that into 8 single-beat reads for a slave that cannot burst - a build-time fallback, not the default. WRITE: the cache only ever writes ONE 16-bit word into a line (its wmask leaves 14 of 16 bytes masked), so a masked 8-beat burst would move 7 useless beats. Instead every word whose mask enables at least one byte gets its OWN single-beat write with byteenable = ~mask (Avalon byteenable is ACTIVE-HIGH - the one inversion this seam needs); fully masked words are skipped. Usually that is exactly one beat. AVALON RULES OBEYED: write/read/address/data/byteenable/burstcount are held unchanged while waitrequest is high; read and write are never asserted together; the address never leaves the window [BASE_WORDS, BASE_WORDS + 2M words), the 4 MB the ND-120 map holds. BASE_WORDS defaults to the framework's own boundary: globals.vhd C_HMAP_DEMO = 0x0200 in units of 4 kW = word 0x200000; the first 4 MiB of the 8 MiB part belong to the framework (video buffer for the HDMI scaler). Written 02-SEP-2026. Bench: sim/nd_avalon_port_tb.v against an Avalon slave model with random waitrequest and read latency.
Parameters¶
| Parameter | Default |
|---|---|
BASE_WORDS |
32'h0020_0000 |
G_BURST |
1 // 1: 8-beat burst reads; 0: eight single-beat reads |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk |
the Avalon clock (hr_clk, 100 MHz) |
| input | 1 |
rst |
synchronous, active HIGH (hr_rst) |
| input | 1 |
req_valid |
|
| input | 1 |
req_we |
|
| input | [26:0] |
req_addr |
16-bit units, multiple of 8 |
| input | [127:0] |
req_wdata |
|
| input | [15:0] |
req_wmask |
active LOW: 0 = write that byte |
| output | 1 |
req_ready |
|
| output | 1 |
rsp_valid |
|
| output | [127:0] |
rsp_rdata |
|
| output | 1 |
avm_write |
|
| output | 1 |
avm_read |
|
| output | [31:0] |
avm_address |
|
| output | [15:0] |
avm_writedata |
|
| output | [1:0] |
avm_byteenable |
|
| output | [7:0] |
avm_burstcount |
|
| input | [15:0] |
avm_readdata |
|
| input | 1 |
avm_readdatavalid |
|
| input | 1 |
avm_waitrequest |
Verilog source¶
Verilog/fpga/mega65/rtl/nd_avalon_port.v on GitHub.
Show the Verilog of nd_avalon_port (238 lines)
/****************************************************************************
** nd_avalon_port - the nd_ddr2_port contract on an Avalon-MM 16-bit master **
** (the MiSTer2MEGA65 HyperRAM port, MEGA65 R3) **
** **
** Full path: Verilog/fpga/mega65/rtl/nd_avalon_port.v **
** **
** WHAT THIS IS. The Nexys 4 DDR's main-memory backend is a BRAM cache **
** (fpga/nexys4ddr/ddr2/MEM_RAM_49_DDR2.v) in front of a plain request/ **
** response port whose contract is written in nd_ddr2_port.v: **
** req_valid held until req_ready; req_we; req_addr in 16-BIT UNITS, a **
** multiple of 8 (one transfer = one 128-bit line = 8 units); req_wdata **
** 128 bits; req_wmask ACTIVE-LOW byte mask (0 = write that byte); **
** rsp_valid one cycle with rsp_rdata (read) or as "done" (write). One **
** operation outstanding at a time. **
** That cache + the MEM_HOLD freeze absorb ANY latency, which is why the **
** contract is the right seam for a memory whose latency varies: the **
** MEGA65's HyperRAM, reached through the framework's Avalon-MM port **
** (CORE/vhdl/mega65.vhd hr_core_*: 16-bit data, WORD address, 8-bit **
** burstcount, waitrequest, readdatavalid; 100 MHz hr_clk). This module is **
** the port for it: the same contract on the client side, Avalon on the **
** other. Nothing above the seam knows the difference. **
** **
** HOW EACH OPERATION MAPS **
** READ : one burst of 8 words (burstcount 8) from BASE + req_addr; the **
** 8 readdatavalid beats fill rsp_rdata word 0 first (unit 0 = **
** bits [15:0], as nd_ddr2_port lays a line out). G_BURST = 0 **
** turns that into 8 single-beat reads for a slave that cannot **
** burst - a build-time fallback, not the default. **
** WRITE: the cache only ever writes ONE 16-bit word into a line (its **
** wmask leaves 14 of 16 bytes masked), so a masked 8-beat burst **
** would move 7 useless beats. Instead every word whose mask **
** enables at least one byte gets its OWN single-beat write with **
** byteenable = ~mask (Avalon byteenable is ACTIVE-HIGH - the one **
** inversion this seam needs); fully masked words are skipped. **
** Usually that is exactly one beat. **
** **
** AVALON RULES OBEYED: write/read/address/data/byteenable/burstcount are **
** held unchanged while waitrequest is high; read and write are never **
** asserted together; the address never leaves the window **
** [BASE_WORDS, BASE_WORDS + 2M words), the 4 MB the ND-120 map holds. **
** BASE_WORDS defaults to the framework's own boundary: globals.vhd **
** C_HMAP_DEMO = 0x0200 in units of 4 kW = word 0x200000; the first 4 MiB **
** of the 8 MiB part belong to the framework (video buffer for the HDMI **
** scaler). **
** **
** Written 02-SEP-2026. Bench: sim/nd_avalon_port_tb.v against an Avalon **
** slave model with random waitrequest and read latency. **
*****************************************************************************/
`default_nettype none
module nd_avalon_port #(
parameter [31:0] BASE_WORDS = 32'h0020_0000, // first HyperRAM word of the core's window
parameter integer G_BURST = 1 // 1: 8-beat burst reads; 0: eight single-beat reads
) (
input wire clk, //! the Avalon clock (hr_clk, 100 MHz)
input wire rst, //! synchronous, active HIGH (hr_rst)
// ---- nd_ddr2_port contract (client side) ----
input wire req_valid,
input wire req_we,
input wire [ 26:0] req_addr, //! 16-bit units, multiple of 8
input wire [127:0] req_wdata,
input wire [ 15:0] req_wmask, //! active LOW: 0 = write that byte
output wire req_ready,
output reg rsp_valid,
output reg [127:0] rsp_rdata,
// ---- Avalon-MM master ----
output reg avm_write,
output reg avm_read,
output reg [31:0] avm_address,
output reg [15:0] avm_writedata,
output reg [ 1:0] avm_byteenable,
output reg [ 7:0] avm_burstcount,
input wire [15:0] avm_readdata,
input wire avm_readdatavalid,
input wire avm_waitrequest
);
localparam [2:0] S_IDLE = 3'd0,
S_WR = 3'd1, // a single-beat write is on the bus
S_WR_NXT = 3'd2, // pick the next enabled word, or finish
S_RD_CMD = 3'd3, // the read command is on the bus
S_RD_DAT = 3'd4, // collecting readdatavalid beats
S_DONE = 3'd5; // rsp_valid pulse
reg [2:0] state;
reg [127:0] wdata_q;
reg [15:0] wmask_q;
reg [26:0] addr_q; // line address, 16-bit units
reg [2:0] beat; // word within the line
reg [3:0] rd_left; // readdatavalid beats still to come (burst) / reads still to issue (single)
assign req_ready = (state == S_IDLE);
//! Index of the first enabled word at or after `from`, 8 = none
function [3:0] next_enabled;
input [3:0] from;
input [15:0] mask; // active low
integer k;
begin
next_enabled = 4'd8;
for (k = 7; k >= 0; k = k - 1)
if ((k >= from) && (mask[k*2 +: 2] != 2'b11)) next_enabled = k[3:0];
end
endfunction
wire [3:0] first_word = next_enabled(4'd0, req_wmask);
wire [3:0] next_word = next_enabled({1'b0, beat} + 4'd1, wmask_q);
always @(posedge clk) begin
if (rst) begin
state <= S_IDLE;
rsp_valid <= 1'b0;
rsp_rdata <= 128'd0;
avm_write <= 1'b0;
avm_read <= 1'b0;
avm_address <= 32'd0;
avm_writedata <= 16'd0;
avm_byteenable <= 2'b00;
avm_burstcount <= 8'd0;
wdata_q <= 128'd0;
wmask_q <= 16'hFFFF;
addr_q <= 27'd0;
beat <= 3'd0;
rd_left <= 4'd0;
end else begin
rsp_valid <= 1'b0;
case (state)
S_IDLE: begin
if (req_valid) begin
addr_q <= {req_addr[26:3], 3'b000};
wdata_q <= req_wdata;
wmask_q <= req_wmask;
if (req_we) begin
if (first_word == 4'd8) begin
// nothing enabled: a write of no bytes is simply done
state <= S_DONE;
end else begin
beat <= first_word[2:0];
avm_write <= 1'b1;
avm_address <= BASE_WORDS + {5'd0, req_addr[26:3], 3'b000} + {28'd0, first_word};
avm_writedata <= req_wdata[first_word*16 +: 16];
avm_byteenable <= ~req_wmask[first_word*2 +: 2];
avm_burstcount <= 8'd1;
state <= S_WR;
end
end else begin
beat <= 3'd0;
avm_read <= 1'b1;
avm_address <= BASE_WORDS + {5'd0, req_addr[26:3], 3'b000};
avm_byteenable <= 2'b11;
avm_burstcount <= (G_BURST != 0) ? 8'd8 : 8'd1;
rd_left <= 4'd8;
state <= S_RD_CMD;
end
end
end
// ---- writes: one single-beat transaction per enabled word --------
S_WR: begin
if (!avm_waitrequest) begin
avm_write <= 1'b0;
state <= S_WR_NXT;
end
end
S_WR_NXT: begin
if (next_word == 4'd8) begin
state <= S_DONE;
end else begin
beat <= next_word[2:0];
avm_write <= 1'b1;
avm_address <= BASE_WORDS + {5'd0, addr_q} + {28'd0, next_word};
avm_writedata <= wdata_q[next_word*16 +: 16];
avm_byteenable <= ~wmask_q[next_word*2 +: 2];
state <= S_WR;
end
end
// ---- reads: one 8-beat burst, or eight single beats ---------------
// Both states store a beat the moment readdatavalid is seen; a
// pipelined slave may return the first word in the very cycle it
// accepts the command, and in single-beat mode that word may also be
// the only one - so "accepted" and "data" are handled together.
S_RD_CMD: begin
if (!avm_waitrequest) begin
if (avm_readdatavalid) begin
rsp_rdata[beat*16 +: 16] <= avm_readdata;
beat <= beat + 3'd1;
rd_left <= rd_left - 4'd1;
if (rd_left == 4'd1) begin
avm_read <= 1'b0;
state <= S_DONE;
end else if (G_BURST == 0) begin
// next single-beat read, command stays asserted
avm_address <= BASE_WORDS + {5'd0, addr_q} + {29'd0, beat} + 32'd1;
end else begin
avm_read <= 1'b0;
state <= S_RD_DAT;
end
end else begin
avm_read <= 1'b0;
state <= S_RD_DAT;
end
end
end
S_RD_DAT: begin
if (avm_readdatavalid) begin
rsp_rdata[beat*16 +: 16] <= avm_readdata;
beat <= beat + 3'd1;
rd_left <= rd_left - 4'd1;
if (rd_left == 4'd1) begin
state <= S_DONE;
end else if (G_BURST == 0) begin
avm_read <= 1'b1;
avm_address <= BASE_WORDS + {5'd0, addr_q} + {29'd0, beat} + 32'd1;
state <= S_RD_CMD;
end
end
end
S_DONE: begin
rsp_valid <= 1'b1;
state <= S_IDLE;
end
default: state <= S_IDLE;
endcase
end
end
endmodule
`default_nettype wire
