nd120_mega65_machine¶
Source: Verilog/fpga/mega65/rtl/nd120_mega65_machine.v
Where it sits (MEGA65 R6): nd120_mega65_machine
Used in: nothing - this is a top (MEGA65 R6, MEGA65 R3).
Contains: console_uart_rx, console_uart_tx, mips_counter, nd120_console_mega65, ND120_CORE, nd_avalon_port (only on MEGA65 R3), nd_storage_mega65_devices
Module hierarchy - All modules

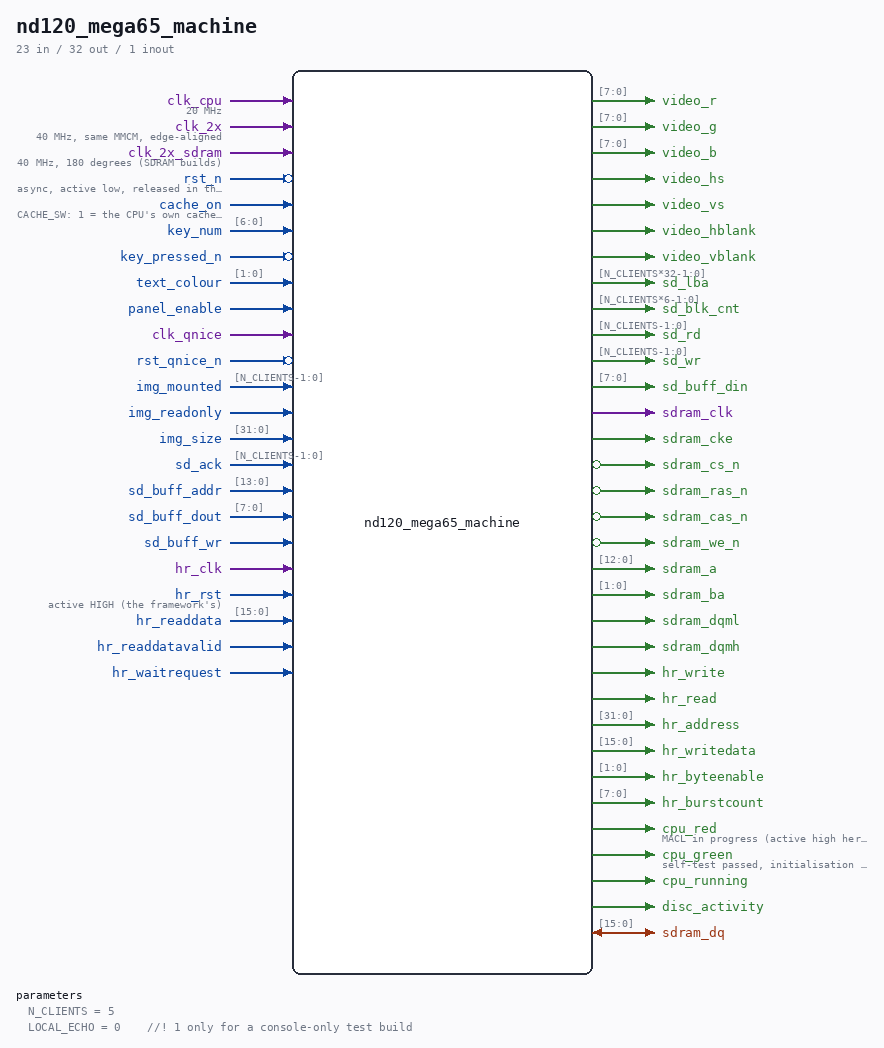

Schematic¶
Drawn from the Verilog: the yosys netlist of the MEGA65 R4 R5 R6 build, where it is the top. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Parameters¶
| Parameter | Default |
|---|---|
N_CLIENTS |
5 |
LOCAL_ECHO |
0 //! 1 only for a console-only test build |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk_cpu |
20 MHz |
| input | 1 |
clk_2x |
40 MHz, same MMCM, edge-aligned |
| input | 1 |
clk_2x_sdram |
40 MHz, 180 degrees (SDRAM builds) |
| input | 1 |
rst_n (active low) |
async, active low, released in the clk_2x domain |
| input | 1 |
cache_on |
CACHE_SW: 1 = the CPU's own cache enabled |
| input | [6:0] |
key_num |
|
| input | 1 |
key_pressed_n (active low) |
|
| input | [1:0] |
text_colour |
|
| input | 1 |
panel_enable |
|
| output | [7:0] |
video_r |
|
| output | [7:0] |
video_g |
|
| output | [7:0] |
video_b |
|
| output | 1 |
video_hs |
|
| output | 1 |
video_vs |
|
| output | 1 |
video_hblank |
|
| output | 1 |
video_vblank |
|
| input | 1 |
clk_qnice |
|
| input | 1 |
rst_qnice_n (active low) |
|
| input | [N_CLIENTS-1:0] |
img_mounted |
|
| input | 1 |
img_readonly |
|
| input | [31:0] |
img_size |
|
| output | [N_CLIENTS*32-1:0] |
sd_lba |
|
| output | [N_CLIENTS*6-1:0] |
sd_blk_cnt |
|
| output | [N_CLIENTS-1:0] |
sd_rd |
|
| output | [N_CLIENTS-1:0] |
sd_wr |
|
| input | [N_CLIENTS-1:0] |
sd_ack |
|
| input | [13:0] |
sd_buff_addr |
|
| input | [7:0] |
sd_buff_dout |
|
| output | [7:0] |
sd_buff_din |
|
| input | 1 |
sd_buff_wr |
|
| output | 1 |
sdram_clk |
|
| output | 1 |
sdram_cke |
|
| output | 1 |
sdram_cs_n (active low) |
|
| output | 1 |
sdram_ras_n (active low) |
|
| output | 1 |
sdram_cas_n (active low) |
|
| output | 1 |
sdram_we_n (active low) |
|
| output | [12:0] |
sdram_a |
|
| output | [1:0] |
sdram_ba |
|
| output | 1 |
sdram_dqml |
|
| output | 1 |
sdram_dqmh |
|
| inout | [15:0] |
sdram_dq |
|
| input | 1 |
hr_clk |
|
| input | 1 |
hr_rst |
active HIGH (the framework's) |
| output | 1 |
hr_write |
|
| output | 1 |
hr_read |
|
| output | [31:0] |
hr_address |
|
| output | [15:0] |
hr_writedata |
|
| output | [1:0] |
hr_byteenable |
|
| output | [7:0] |
hr_burstcount |
|
| input | [15:0] |
hr_readdata |
|
| input | 1 |
hr_readdatavalid |
|
| input | 1 |
hr_waitrequest |
|
| output | 1 |
cpu_red |
MACL in progress (active high here) |
| output | 1 |
cpu_green |
self-test passed, initialisation complete |
| output | 1 |
cpu_running |
|
| output | 1 |
disc_activity |
Verilog source¶
Verilog/fpga/mega65/rtl/nd120_mega65_machine.v on GitHub.
Show the Verilog of nd120_mega65_machine (607 lines)
//============================================================================
//! The ND-120 machine on the MEGA65: CPU board, main memory, console, and
//! the floppy / Winchester / tape controllers on virtual drives.
//!
//! Full path: Verilog/fpga/mega65/rtl/nd120_mega65_machine.v
//!
//! This is the MEGA65 counterpart of fpga/mister/nd120.sv's `emu` module,
//! written 02-SEP-2026 from the version of it that booted SINTRAN on the
//! DE10-Nano (4 MB SDRAM main memory, 7E1 console, storage over the MiSTer
//! block protocol). Everything MiSTer-specific is replaced by the
//! MiSTer2MEGA65 framework's contract, which CORE/vhdl/main.vhd hands in:
//!
//! keyboard the framework's 1 kHz key scan -> nd120_console_mega65
//! video RGB + syncs + blanks at 40 MHz, one pixel per clock
//! storage vdrives (MiSTer sd_* protocol, BYTE-wide buffer, QNICE
//! clock) -> nd_storage_vdrives -> the same three
//! controller-facing adapters the MiSTer and Nexys use
//! memory ONE of two, chosen at build time (docs/00-plan.md):
//! MAIN_RAM_SDRAM R4/R5/R6: the board's 64 MB SDRAM on the Tang/MiSTer
//! sheet-49 bridge (MEM_RAM_49_SDRAM + sdram18), 16-bit
//! module mode (ND_SDRAM_PACK16 + ND_SDRAM_DQ16) exactly
//! as on the DE10-Nano - the pins come out of this module
//! MAIN_RAM_DDR2 R3: the 8 MiB HyperRAM through the framework's
//! Avalon-MM port. The define's name is the Nexys's,
//! because what it selects is the Nexys's variable-
//! latency seam (MEM_RAM_49_DDR2 cache + MEM_HOLD) whose
//! request/response contract nd_avalon_port implements.
//!
//! CLOCKS (all from CORE/vhdl/clk.vhd's one MMCM, so the bridge's
//! "same PLL, edge-aligned" rule holds):
//! clk_cpu 20 MHz the CPU board (13.333 MHz on R3, see build.tcl;
//! BOARD_CLK_FREQ must say the same)
//! clk_2x 40 MHz SDRAM bridge clock AND the console's pixel clock
//! clk_2x_sdram 40 MHz 180 degrees, the SDRAM chip's clock pin
//! clk_qnice 50 MHz the framework's QNICE clock: vdrives' sd_* side
//! hr_clk 100 MHz the framework's HyperRAM clock: the Avalon side
//!
//! Panel lamps, the CPU's own two LEDs, the MIPS field and the disc lamps
//! feed the terminal's operator panel exactly as on the MiSTer.
//============================================================================
`default_nettype none
module nd120_mega65_machine #(
parameter integer N_CLIENTS = 5, //! storage slots: fd0 fd1 wd0 wd1 tape
parameter integer LOCAL_ECHO = 0 //! 1 only for a console-only test build
) (
// ---- clocks and resets ----
input wire clk_cpu, //! 20 MHz
input wire clk_2x, //! 40 MHz, same MMCM, edge-aligned
input wire clk_2x_sdram, //! 40 MHz, 180 degrees (SDRAM builds)
input wire rst_n, //! async, active low, released in the clk_2x domain
input wire cache_on, //! CACHE_SW: 1 = the CPU's own cache enabled
// ---- keyboard scan (clk_2x domain) ----
input wire [6:0] key_num,
input wire key_pressed_n,
input wire [1:0] text_colour,
input wire panel_enable,
// ---- video (clk_2x domain) ----
output wire [7:0] video_r,
output wire [7:0] video_g,
output wire [7:0] video_b,
output wire video_hs,
output wire video_vs,
output wire video_hblank,
output wire video_vblank,
// ---- storage: the vdrives side (clk_qnice domain), flattened ----
input wire clk_qnice,
input wire rst_qnice_n,
input wire [N_CLIENTS-1:0] img_mounted,
input wire img_readonly,
input wire [31:0] img_size,
output wire [N_CLIENTS*32-1:0] sd_lba,
output wire [N_CLIENTS*6-1:0] sd_blk_cnt,
output wire [N_CLIENTS-1:0] sd_rd,
output wire [N_CLIENTS-1:0] sd_wr,
input wire [N_CLIENTS-1:0] sd_ack,
input wire [13:0] sd_buff_addr,
input wire [7:0] sd_buff_dout,
output wire [7:0] sd_buff_din,
input wire sd_buff_wr,
// Both memory port groups are ALWAYS present, whichever backend the build
// selects: the VHDL wrapper (CORE/vhdl/main.vhd) declares this module as
// a component with one fixed port list. The unused group is driven idle.
// ---- main memory: the board's SDRAM (R4/R5/R6, MAIN_RAM_SDRAM) ----
output wire sdram_clk,
output wire sdram_cke,
output wire sdram_cs_n,
output wire sdram_ras_n,
output wire sdram_cas_n,
output wire sdram_we_n,
output wire [12:0] sdram_a,
output wire [1:0] sdram_ba,
output wire sdram_dqml,
output wire sdram_dqmh,
inout wire [15:0] sdram_dq,
// ---- main memory: the framework's HyperRAM Avalon port (R3, MAIN_RAM_DDR2) ----
input wire hr_clk,
input wire hr_rst, //! active HIGH (the framework's)
output wire hr_write,
output wire hr_read,
output wire [31:0] hr_address,
output wire [15:0] hr_writedata,
output wire [1:0] hr_byteenable,
output wire [7:0] hr_burstcount,
input wire [15:0] hr_readdata,
input wire hr_readdatavalid,
input wire hr_waitrequest,
// ---- status, for LEDs (clk_cpu domain) ----
output wire cpu_red, //! MACL in progress (active high here)
output wire cpu_green, //! self-test passed, initialisation complete
output wire cpu_running,
output wire disc_activity
);
//--------------------------------------------------------------------------
// Resets
//--------------------------------------------------------------------------
// rst_n is the framework's reset (MMCM lock + reset button), released in the
// clk_2x domain. The CPU gets it synchronised onto its own clock, so the
// core never sees a reset edge that violates its setup (MiSTer nd120.sv).
reg [1:0] cpu_rst_sync = 2'b00;
always @(posedge clk_cpu or negedge rst_n) begin
if (!rst_n) cpu_rst_sync <= 2'b00;
else cpu_rst_sync <= {cpu_rst_sync[0], 1'b1};
end
wire cpu_rst_n = cpu_rst_sync[1];
// The OSD's cache switch arrives from the framework's main_clk domain and
// feeds ~45 ns of CPU logic (CACHE_SW -> MMU cache -> CGA). Re-registered
// here in the CPU domain so that logic starts from a cpu_clk flop, and
// build.tcl false-paths the crossing INTO this synchroniser - a
// quasi-static setting, not a data path. Measured 02-SEP-2026 (R3 build):
// without this, 4673 endpoints failed on the 25 ns budget between the
// related 40 MHz and CPU clocks.
reg [1:0] s_cache_sync = 2'b11;
always @(posedge clk_cpu) s_cache_sync <= {s_cache_sync[0], cache_on};
wire s_cache_on_cpu = s_cache_sync[1];
//--------------------------------------------------------------------------
// Console: the shared terminal on the framework's keyboard and video, with
// the byte-level UART bridge to the CPU's real serial pins
//--------------------------------------------------------------------------
wire s_cpu_byte_valid;
wire [7:0] s_cpu_byte_data;
wire s_console_byte_ready;
wire s_kbd_valid;
wire [7:0] s_kbd_data;
wire s_kbd_ready;
wire s_cpu_txd, s_cpu_rxd;
wire [ 6:0] s_core_led;
wire s_core_run_n;
wire [ 3:0] s_core_pil;
wire [ 7:0] s_core_dbg_panel;
wire [15:0] s_core_panel_actlv;
wire s_core_debug_cfetch;
wire [15:0] s_panel_mips;
wire s_lamp_hdd_rd, s_lamp_hdd_wr, s_lamp_flp_rd, s_lamp_flp_wr;
nd120_console_mega65 #(
.FONT_FILE ("embedded"),
.LOCAL_ECHO(LOCAL_ECHO)
) CONSOLE (
.clk (clk_2x),
.rst_n(rst_n),
.key_num (key_num),
.key_pressed_n(key_pressed_n),
.text_colour (text_colour),
.cpu_byte_valid(s_cpu_byte_valid),
.cpu_byte_data (s_cpu_byte_data),
.cpu_byte_ready(s_console_byte_ready),
.panel_enable (panel_enable),
.panel_pil (s_core_pil),
.panel_actlv (s_core_panel_actlv),
.panel_mips (s_panel_mips),
// The CPU board's own lamps: ACTIVE LOW at the source (IO_REG_41.v),
// measured on the MiSTer - passing them straight through showed every
// lamp backwards.
.panel_cpu_red (~s_core_led[0]),
.panel_cpu_green (~s_core_led[1]),
.panel_lev0 (s_core_dbg_panel[5]),
.panel_hit (s_core_dbg_panel[4]),
.panel_ring (s_core_dbg_panel[1:0]),
.panel_paging_on (s_core_dbg_panel[2]),
.panel_interrupt_on(s_core_dbg_panel[3]),
.panel_running (~s_core_run_n),
.panel_hdd_rd (s_lamp_hdd_rd),
.panel_hdd_wr (s_lamp_hdd_wr),
.panel_flp_rd (s_lamp_flp_rd),
.panel_flp_wr (s_lamp_flp_wr),
.kbd_ready(s_kbd_ready),
.kbd_valid(s_kbd_valid),
.kbd_data (s_kbd_data),
.video_r(video_r),
.video_g(video_g),
.video_b(video_b),
.hsync (video_hs),
.vsync (video_vs),
.hblank (video_hblank),
.vblank (video_vblank),
.de (),
.bell ()
);
// The console UART bridge, as on the MiSTer (nd120.sv, 02-SEP-2026):
// 7 DATA BITS + PARITY on receive - SINTRAN's boot text carries software
// parity in bit 7, and an 8N1 receiver hands the terminal bytes >= 0x7F
// that it drops, losing every other character of those lines. 8N1 on
// transmit. 115200 fixed. Both on the 40 MHz console clock.
console_uart_rx #(
.CLK_HZ (40_000_000),
.BAUD (115_200),
.DATA_BITS(7),
.PARITY (1'b1)
) CONSOLE_UART_RX (
.clk (clk_2x),
.rst_n (rst_n),
.divisor_ovr(16'd0),
.rxd (s_cpu_txd),
.byte_valid (s_cpu_byte_valid),
.byte_data (s_cpu_byte_data)
);
console_uart_tx #(
.CLK_HZ (40_000_000),
.BAUD (115_200),
.DATA_BITS (8),
.PARITY (1'b0),
.PARITY_ODD(1'b0)
) CONSOLE_UART_TX (
.clk (clk_2x),
.rst_n (rst_n),
.divisor_ovr(16'd0),
.byte_valid (s_kbd_valid),
.byte_data (s_kbd_data),
.ready (s_kbd_ready),
.txd (s_cpu_rxd)
);
// Counts CFETCH in the CPU domain; CLOCK_HZ must be the CPU's clock, which
// is the build's BOARD_CLK_FREQ (20 MHz on R4-R6, 13.333 MHz on R3).
`ifdef BOARD_CLK_FREQ
localparam integer CPU_HZ = `BOARD_CLK_FREQ;
`else
localparam integer CPU_HZ = 20_000_000;
`endif
mips_counter #(
.CLOCK_HZ(CPU_HZ)
) MIPS (
.clk (clk_cpu),
.rst_n (cpu_rst_n),
.fetch (s_core_debug_cfetch),
.mips_bcd(s_panel_mips)
);
//--------------------------------------------------------------------------
// Storage: the three controller seams served from the virtual drives
//--------------------------------------------------------------------------
wire s_tape_req, s_tape_valid, s_tape_rewind;
wire [7:0] s_tape_data;
wire s_tdisk_fault;
wire [3:0] s_tdisk_code;
wire s_fd_req, s_fd_wr, s_fd_done, s_fd_err, s_fdb_we;
wire [15:0] s_fd_lsect, s_fdb_wdata, s_fdb_rdata;
wire [1:0] s_fd_format, s_fd_drive;
wire [10:0] s_fd_wc;
wire [3:0] s_fd_code, s_fd_media;
wire [9:0] s_fdb_addr;
wire s_wd_start, s_wd_req, s_wd_wr, s_wd_done, s_wd_err, s_wdb_we;
wire [15:0] s_wd_ba1, s_wd_ba2, s_wdb_wdata, s_wdb_rdata;
wire [2:0] s_wd_unit;
wire [10:0] s_wd_wc;
wire [3:0] s_wd_code;
wire [9:0] s_wdb_addr;
wire [N_CLIENTS-1:0] s_img_mounted_cpu;
nd_storage_mega65_devices #(
.N_CLIENTS(N_CLIENTS)
) STORAGE (
.clk_cpu (clk_cpu),
.rst_cpu_n (cpu_rst_n),
.clk_sys (clk_qnice),
.rst_sys_n (rst_qnice_n),
.byte_req (s_tape_req),
.byte_valid (s_tape_valid),
.byte_data (s_tape_data),
.source_rewind (s_tape_rewind),
.TDISK_FAULT (s_tdisk_fault),
.TDISK_ERR_CODE(s_tdisk_code),
.FDISK_REQ (s_fd_req),
.FDISK_WR (s_fd_wr),
.FDISK_LSECT (s_fd_lsect),
.FDISK_FORMAT (s_fd_format),
.FDISK_DRIVE (s_fd_drive),
.FDISK_WORDCOUNT(s_fd_wc),
.FDISK_DONE (s_fd_done),
.FDISK_ERR (s_fd_err),
.FDISK_ERR_CODE (s_fd_code),
.FDISK_MEDIA_FMT(s_fd_media),
.FDBUF_ADDR (s_fdb_addr),
.FDBUF_WDATA (s_fdb_wdata),
.FDBUF_WE (s_fdb_we),
.FDBUF_RDATA (s_fdb_rdata),
.WDISK_START (s_wd_start),
.WDISK_REQ (s_wd_req),
.WDISK_WR (s_wd_wr),
.WDISK_BLKADDR1 (s_wd_ba1),
.WDISK_BLKADDR2 (s_wd_ba2),
.WDISK_UNIT (s_wd_unit),
.WDISK_WORDCOUNT(s_wd_wc),
.WDISK_DONE (s_wd_done),
.WDISK_ERR (s_wd_err),
.WDISK_ERR_CODE (s_wd_code),
.WDBUF_ADDR (s_wdb_addr),
.WDBUF_WDATA (s_wdb_wdata),
.WDBUF_WE (s_wdb_we),
.WDBUF_RDATA (s_wdb_rdata),
.img_mounted (img_mounted),
.img_readonly(img_readonly),
.img_size (img_size),
.sd_lba (sd_lba),
.sd_blk_cnt (sd_blk_cnt),
.sd_rd (sd_rd),
.sd_wr (sd_wr),
.sd_ack (sd_ack),
.sd_buff_addr(sd_buff_addr),
.sd_buff_dout(sd_buff_dout),
.sd_buff_din (sd_buff_din),
.sd_buff_wr (sd_buff_wr),
.MOUNTED(s_img_mounted_cpu)
);
// panel lamps: the same four expressions the Nexys and MiSTer tops use
assign s_lamp_hdd_rd = s_wd_req & ~s_wd_wr;
assign s_lamp_hdd_wr = s_wd_req & s_wd_wr;
assign s_lamp_flp_rd = s_fd_req & ~s_fd_wr;
assign s_lamp_flp_wr = s_fd_req & s_fd_wr;
assign disc_activity = s_wd_req | s_fd_req | s_tape_req;
//--------------------------------------------------------------------------
// Main memory backend wiring
//--------------------------------------------------------------------------
`ifdef MAIN_RAM_SDRAM
// The bridge's ports are the Tang's 32-bit shape; on a 16-bit module the
// upper 16 DQ bits and the upper 2 DQM bits go nowhere and A[12:11] = 0
// (2K rows x 256 columns x 4 banks = the 4 MB map), exactly as nd120.sv.
wire [15:0] s_sdram_dq_hi;
wire [10:0] s_sdram_a11;
wire [ 3:0] s_sdram_dqm4;
assign sdram_a = {2'b00, s_sdram_a11};
assign sdram_dqml = s_sdram_dqm4[0];
assign sdram_dqmh = s_sdram_dqm4[1];
`endif
`ifndef MAIN_RAM_SDRAM
// no SDRAM in this build: park the pins the way the framework's own top
// does (cke 0, cs_n 1, dq released)
assign sdram_clk = 1'b0;
assign sdram_cke = 1'b0;
assign sdram_cs_n = 1'b1;
assign sdram_ras_n = 1'b1;
assign sdram_cas_n = 1'b1;
assign sdram_we_n = 1'b1;
assign sdram_a = 13'd0;
assign sdram_ba = 2'b00;
assign sdram_dqml = 1'b0;
assign sdram_dqmh = 1'b0;
assign sdram_dq = 16'bz;
`endif
`ifndef MAIN_RAM_DDR2
// no HyperRAM traffic in this build
assign hr_write = 1'b0;
assign hr_read = 1'b0;
assign hr_address = 32'd0;
assign hr_writedata = 16'd0;
assign hr_byteenable = 2'b00;
assign hr_burstcount = 8'd0;
`endif
`ifdef MAIN_RAM_DDR2
wire mm_req_valid, mm_req_we, mm_req_ready, mm_rsp_valid;
wire [ 26:0] mm_req_addr;
wire [127:0] mm_req_wdata, mm_rsp_rdata;
wire [ 15:0] mm_req_wmask;
nd_avalon_port #(
.BASE_WORDS(32'h0020_0000), // globals.vhd C_HMAP_DEMO: the core's 4 MiB window
.G_BURST (1)
) MEMPORT (
.clk(hr_clk),
.rst(hr_rst),
.req_valid(mm_req_valid),
.req_we (mm_req_we),
.req_addr (mm_req_addr),
.req_wdata(mm_req_wdata),
.req_wmask(mm_req_wmask),
.req_ready(mm_req_ready),
.rsp_valid(mm_rsp_valid),
.rsp_rdata(mm_rsp_rdata),
.avm_write (hr_write),
.avm_read (hr_read),
.avm_address (hr_address),
.avm_writedata (hr_writedata),
.avm_byteenable (hr_byteenable),
.avm_burstcount (hr_burstcount),
.avm_readdata (hr_readdata),
.avm_readdatavalid(hr_readdatavalid),
.avm_waitrequest (hr_waitrequest)
);
`endif
//--------------------------------------------------------------------------
// The ND-120 CPU board
//--------------------------------------------------------------------------
// No external ND bus on this board: same tie-offs as the Tang and MiSTer.
wire [23:0] s_bd_in = 24'hFFFFFF;
// Both console sources idle high; the CPU's RX is only the local keyboard
// here (no serial port on the MEGA65).
wire s_cpu_rxd_merged = s_cpu_rxd;
ND120_CORE #(
.INCLUDE_TAPE (1),
.INCLUDE_FLOPPY(1),
.INCLUDE_SMD (0),
.INCLUDE_WD (1)
) CORE (
.BAUD_9600(1'b0), // no baud switch - console fixed 115200
.clk_cpu (clk_cpu),
.sys_rst_n(cpu_rst_n),
.CACHE_SW (s_cache_on_cpu),
.BREQ_n(1'b1),
.BINT10_n(1'b1),
.BINT11_n(1'b1),
.BINT12_n(1'b1),
.BINT13_n(1'b1),
.BINT15_n(1'b1),
.POWSENSE_n(1'b1),
.BD_23_0_n_IN(s_bd_in),
.BD_23_0_n_OUT(),
.SEMRQ_n_IN(1'b1),
.SEMRQ_n_OUT(),
.BINPUT_n_IN(1'b1),
.BINPUT_n_OUT(),
.BDAP_n_IN(1'b1),
.BDAP_n_OUT(),
.BDRY_n_IN(1'b1),
.BDRY_n_OUT(),
.BAPR_n_IN(1'b1),
.BAPR_n_OUT(),
.BREF_n(),
.BERROR_n(),
.BINACK_n(),
.BIOXE_n(),
.BMEM_n(),
.OUTGRANT_n(),
.OUTIDENT_n(),
.MCL(),
.RXD(s_cpu_rxd_merged),
.TXD(s_cpu_txd),
.TAPE_BYTE_REQ(s_tape_req),
.TAPE_BYTE_VALID(s_tape_valid),
.TAPE_BYTE_DATA(s_tape_data),
.TAPE_REWIND(s_tape_rewind),
.DMA_REQ(1'b0),
.DMA_WR(1'b0),
.DMA_ADDR(24'd0),
.DMA_WDATA(16'd0),
.DMA_RDATA(),
.DMA_ACK(),
.DMA_ERR(),
.DMA_BUSY(),
.FDISK_REQ(s_fd_req),
.FDISK_WR(s_fd_wr),
.FDISK_LSECT(s_fd_lsect),
.FDISK_FORMAT(s_fd_format),
.FDISK_DRIVE(s_fd_drive),
.FDISK_WORDCOUNT(s_fd_wc),
.FDISK_DONE(s_fd_done),
.FDISK_ERR(s_fd_err),
.FDISK_ERR_CODE(s_fd_code),
.FDISK_MEDIA_FMT(s_fd_media),
.FDBUF_ADDR(s_fdb_addr),
.FDBUF_WDATA(s_fdb_wdata),
.FDBUF_WE(s_fdb_we),
.FDBUF_RDATA(s_fdb_rdata),
.SDISK_START(),
.SDISK_REQ(),
.SDISK_WR(),
.SDISK_BLKADDR1(),
.SDISK_BLKADDR2(),
.SDISK_UNIT(),
.SDISK_WORDCOUNT(),
.SDISK_DONE(1'b0),
.SDISK_ERR(1'b0),
.SDISK_ERR_CODE(4'd0),
.SDBUF_ADDR(10'd0),
.SDBUF_WDATA(16'd0),
.SDBUF_WE(1'b0),
.SDBUF_RDATA(),
.WDISK_START(s_wd_start),
.WDISK_REQ(s_wd_req),
.WDISK_WR(s_wd_wr),
.WDISK_BLKADDR1(s_wd_ba1),
.WDISK_BLKADDR2(s_wd_ba2),
.WDISK_UNIT(s_wd_unit),
.WDISK_WORDCOUNT(s_wd_wc),
.WDISK_DONE(s_wd_done),
.WDISK_ERR(s_wd_err),
.WDISK_ERR_CODE(s_wd_code),
.WDBUF_ADDR(s_wdb_addr),
.WDBUF_WDATA(s_wdb_wdata),
.WDBUF_WE(s_wdb_we),
.WDBUF_RDATA(s_wdb_rdata),
`ifdef MAIN_RAM_SDRAM
.clk2x (clk_2x),
.clk2x_sdram (clk_2x_sdram),
.O_sdram_clk (sdram_clk),
.O_sdram_cke (sdram_cke),
.O_sdram_cs_n (sdram_cs_n),
.O_sdram_cas_n(sdram_cas_n),
.O_sdram_ras_n(sdram_ras_n),
.O_sdram_wen_n(sdram_we_n),
.IO_sdram_dq ({s_sdram_dq_hi, sdram_dq}),
.O_sdram_addr (s_sdram_a11),
.O_sdram_ba (sdram_ba),
.O_sdram_dqm (s_sdram_dqm4),
.DBG_MEMW (),
.DBG_PTW (),
.PF_CAPTURED (),
.DBG_WDSTAGE (),
.DBG_PPN (),
.DBG_PGW (),
`endif
`ifdef MAIN_RAM_DDR2
.ui_clk (hr_clk),
.ui_rst (hr_rst),
.mm_req_valid(mm_req_valid),
.mm_req_we (mm_req_we),
.mm_req_addr (mm_req_addr),
.mm_req_wdata(mm_req_wdata),
.mm_req_wmask(mm_req_wmask),
.mm_req_ready(mm_req_ready),
.mm_rsp_valid(mm_rsp_valid),
.mm_rsp_rdata(mm_rsp_rdata),
.DBG_DDR2_BRIDGE(),
`endif
.LED(s_core_led),
.RUN_n(s_core_run_n),
.CSA_12_0(),
.PIL(s_core_pil),
.LA_23_10(),
.CA_9_0(),
.DEBUG_CC_TERM(),
.DEBUG_MCLK(),
.DEBUG_LCS_n(),
.DEBUG_FETCH(),
.DEBUG_MAP_n(),
.DEBUG_CFETCH(s_core_debug_cfetch),
.DEBUG_MR_n(),
.DEBUG_CLEAR_n(),
.DEBUG_REFRQ_n(),
.DEBUG_INTRQ_n(),
.DEBUG_POWFAIL_n(),
.DEBUG_FIDBO_15_0(),
.DEBUG_IREQ_15_0_N(),
.XMIC_DBG_15_0(),
.XWRFB_DBG_19_0(),
.XCYC_DBG_7_0(),
.DBG_PTW_LVL(),
.DBG_PANEL(s_core_dbg_panel),
.PANEL_ACTLV(s_core_panel_actlv),
.DBG_CACHE()
);
assign cpu_red = ~s_core_led[0];
assign cpu_green = ~s_core_led[1];
assign cpu_running = ~s_core_run_n;
endmodule
`default_nettype wire
