mips_counter

Source: Verilog/Terminals/rtl/mips_counter.v

Where it sits (Nexys): nd120_nexys4ddr_top > mips_counter - instance path: MIPS

Used in: emu (MiSTer), nd120_mega65_machine (MEGA65 R6, MEGA65 R3), nd120_nexys4ddr_top (Nexys)

Contains: no other modules.

Module hierarchy - All modules

Schematic

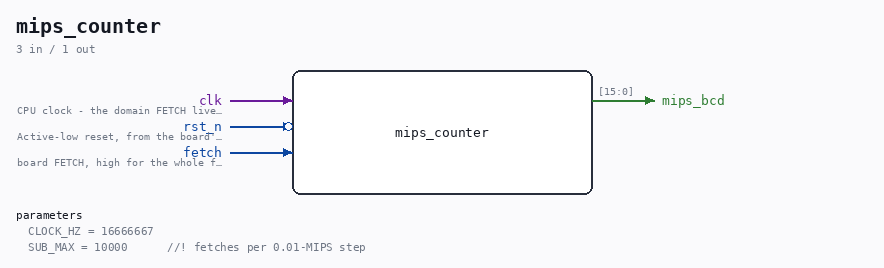

Drawn from the Verilog: the yosys netlist of the Nexys 4 DDR build, instance MIPS. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Parameters

Parameter	Default
CLOCK_HZ	16666667
SUB_MAX	10000 //! fetches per 0.01-MIPS step

Ports

Direction	Width	Name	Description
input	1	clk	CPU clock - the domain FETCH lives in
input	1	rst_n (active low)	Active-low reset, from the board's power-on reset (same net as ND120_CORE.sys_rst_n)
input	1	fetch	board FETCH, high for the whole fetch cycle
output	[15:0]	mips_bcd

Verilog source

Verilog/Terminals/rtl/mips_counter.v on GitHub.

Show the Verilog of mips_counter (116 lines)

//============================================================================
//! MIPS counter for the operator panel - macro instructions per second.
//!
//! Part of the board-independent terminal core (Verilog/Terminals/).
//!
//! Counts rising edges of the board's FETCH signal (ND3202D DEBUG_FETCH, the
//! "Instruction fetch cycle" net - Ronny, 29-AUG-2026: "you can probably count
//! when there is a FETCH signal") over a one-second window and publishes the
//! result as four BCD digits, XX.XX million instructions per second. Nothing
//! is added inside the gate arrays; the signal already leaves the board.
//!
//! HOW THE DIGITS ARE MADE - no divider anywhere. The displayed value is
//! fetches-per-second / 10^4 (0.01 MIPS resolution), so a sub-counter counts
//! fetches 0..SUB_MAX-1 and every rollover bumps a 4-digit BCD chain by one.
//! At the end of each second the chain is latched into `mips_bcd` and both
//! counters clear. The chain saturates at 99.99 - the field is sized for the
//! 45 MHz Nexys (Ronny, 29-AUG-2026: "the nexyst are doing 45 so be aware of
//! that for assigning space"), which can at most approach ~45 MIPS; two
//! integer digits hold anything this machine will ever do.
//!
//! SUB_MAX and CLOCK_HZ are parameters so the testbench can scale the whole
//! thing down and check real digit values in a short run.
//!
//! Written 30-AUG-2026.
//============================================================================

`default_nettype none

module mips_counter #(
    parameter integer CLOCK_HZ = 16666667,  //! CPU clock frequency
    parameter integer SUB_MAX  = 10000      //! fetches per 0.01-MIPS step
) (
    input wire clk,     //! CPU clock - the domain FETCH lives in
    input wire rst_n,   //! Active-low reset, from the board's power-on reset (same net as ND120_CORE.sys_rst_n)
    input wire fetch,   //! board FETCH, high for the whole fetch cycle

    //! {d3,d2,d1,d0} BCD: d3 d2 are the integer digits, d1 d0 the fraction.
    //! Updated once per second; a slow-changing word, safe to 2-flop sync
    //! into the video domain exactly like the ACTLV word.
    output reg [15:0] mips_bcd
);

  //! One count per fetch CYCLE, not per clock the signal is high: the fetch
  //! spans several CPU clocks, so only the rising edge counts.
  reg s_fetch_d;
  always @(posedge clk or negedge rst_n) begin
    if (!rst_n) s_fetch_d <= 1'b0;
    else        s_fetch_d <= fetch;
  end
  wire s_fetch_edge = fetch & ~s_fetch_d;

  //! ceil(log2) by hand - $clog2 of a parameter expression trips the older
  //! iverilog the unit tests run under, and 32 bits of sub-counter cost
  //! nothing next to a video framebuffer.
  reg [31:0] s_sub;       //! 0..SUB_MAX-1 fetches inside one 0.01-MIPS step
  reg [31:0] s_second;    //! 0..CLOCK_HZ-1 clocks inside the window
  reg [3:0]  s_d0, s_d1, s_d2, s_d3;   //! the BCD chain being built

  wire s_chain_full = (s_d3 == 4'd9) && (s_d2 == 4'd9) &&
                      (s_d1 == 4'd9) && (s_d0 == 4'd9);

  always @(posedge clk or negedge rst_n) begin
    if (!rst_n) begin
      s_sub    <= 32'd0;
      s_second <= 32'd0;
      s_d0     <= 4'd0;
      s_d1     <= 4'd0;
      s_d2     <= 4'd0;
      s_d3     <= 4'd0;
      mips_bcd <= 16'd0;
    end else begin
      // -- the fetch side -------------------------------------------------
      if (s_fetch_edge) begin
        if (s_sub == SUB_MAX - 1) begin
          s_sub <= 32'd0;
          // bump the BCD chain by one, saturating at 9999
          if (!s_chain_full) begin
            if (s_d0 != 4'd9)      s_d0 <= s_d0 + 4'd1;
            else begin
              s_d0 <= 4'd0;
              if (s_d1 != 4'd9)    s_d1 <= s_d1 + 4'd1;
              else begin
                s_d1 <= 4'd0;
                if (s_d2 != 4'd9)  s_d2 <= s_d2 + 4'd1;
                else begin
                  s_d2 <= 4'd0;
                  s_d3 <= s_d3 + 4'd1;
                end
              end
            end
          end
        end else begin
          s_sub <= s_sub + 32'd1;
        end
      end

      // -- the one-second window ------------------------------------------
      if (s_second == CLOCK_HZ - 1) begin
        s_second <= 32'd0;
        mips_bcd <= {s_d3, s_d2, s_d1, s_d0};
        // A fetch edge on the very boundary clock lands in the NEW window's
        // sub-counter; at 0.01-MIPS resolution one fetch is noise either way.
        s_d0     <= 4'd0;
        s_d1     <= 4'd0;
        s_d2     <= 4'd0;
        s_d3     <= 4'd0;
        s_sub    <= 32'd0;
      end else begin
        s_second <= s_second + 32'd1;
      end
    end
  end

endmodule

`default_nettype wire
