ps2_ascii_table_tdv¶
Source: Verilog/Terminals/rtl/ps2_ascii_table_tdv.v
Where it sits (Nexys): nd120_nexys4ddr_top > ps2_keyboard_tdv > ps2_decoder_tdv > ps2_ascii_table_tdv
- instance path: KEYBOARD.DECODER.TABLE
Used in: ps2_decoder_tdv (Nexys, MiSTer, MEGA65 R6, MEGA65 R3)
Contains: no other modules.
Module hierarchy - All modules

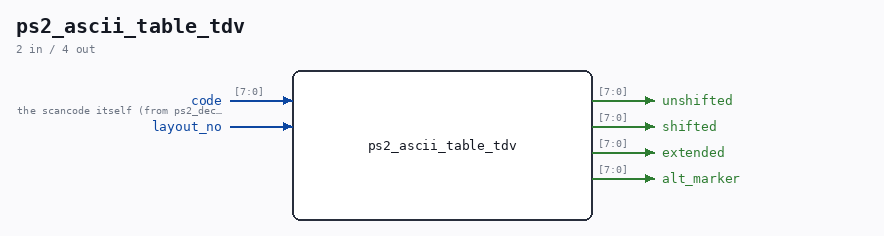

Schematic¶
Drawn from the Verilog: the yosys netlist of the Nexys 4 DDR build, instance KEYBOARD.DECODER.TABLE. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | [7:0] |
code |
the scancode itself (from ps2_decoder_tdv.code_data) |
| input | 1 |
layout_no |
|
| output | [7:0] |
unshifted |
|
| output | [7:0] |
shifted |
|
| output | [7:0] |
extended |
|
| output | [7:0] |
alt_marker |
Verilog source¶
Verilog/Terminals/rtl/ps2_ascii_table_tdv.v on GitHub.
Show the Verilog of ps2_ascii_table_tdv (375 lines)
//============================================================================
//! PS/2 scancode set 2 -> ASCII / TDV2200 marker, unshifted and shifted
//!
//! Part of the board-independent terminal core (Verilog/Terminals/).
//! Pure combinational lookup; 0x00 out means "this key has no character".
//! Sibling of ps2_ascii_table.v (the VT100 table) - same letter/digit/
//! punctuation/Norwegian data (a keycap sends the same character on either
//! terminal), different EXTENDED and FUNCTION-KEY columns, because a TDV's
//! special keys are not VT100's.
//!
//! TERMINAL TYPE 93 (Tandberg TDV-2200/9S ND-NOTIS), not type 53 (TDV 2200/9,
//! no S) - these are different real hardware models. Ground truth, in order
//! of trust:
//! 1. RetroTerm src/RetroTerm.Core/Terminal/Emulators/TDV/TDV2200KeyRegistry.cs
//! - the project's own corrected table (its sibling TDVKeyboardMapper.cs
//! is legacy/VT220-shaped and explicitly disowned - do not use it).
//! 2. NDInsight Developer/Languages/Application/VTM-KEY-CODES.md section 3
//! - measured on a live D100, terminal type 53.
//! 3. RetroTerm docs/manual-tests/FINDINGS-2026-08-20.md, "25 August 2026 -
//! the TDV key registry checked end to end against a real ND host" - a
//! live ND-100 check via VTM AT TYPE 93 SPECIFICALLY, 13/13 exact
//! matches (HJELP=ESC[46_, ANGRE=ESC[30_, F3=ESC[55_, VTM codes agree).
//! All three agree exactly on the ESC[nn_ / ESC[(nn+1)_ family (shift = base
//! plus one - there is no separate modifier byte, unlike VT100's marker
//! scheme). Also confirmed on real hardware (same FINDINGS file, "M4.2d"):
//! Home really is bare GS 0x1D, not an escape sequence - SENDKEY HOME
//! transmitted GS and the cursor landed on the PED: line, "exactly the
//! documented behaviour."
//!
//! Written 31-AUG-2026.
//============================================================================
`default_nettype none
module ps2_ascii_table_tdv (
input wire [7:0] code, //! the scancode itself (from ps2_decoder_tdv.code_data)
//! 0 = US ANSI, 1 = Norwegian (NS 4551-1). Same table as ps2_ascii_table.v.
input wire layout_no,
output wire [7:0] unshifted,
output wire [7:0] shifted,
//! Byte for the same scancode when it arrived with the E0 (extended)
//! prefix. 0x00 = sends nothing.
output reg [7:0] extended,
//! Alt+key marker for TDV application/editing functions (Insert-mode
//! toggle aside, these have no PC-keyboard analog at all) - 0x00 = no
//! Alt binding for this key. See the ALT+KEY table below.
output reg [7:0] alt_marker
);
//--------------------------------------------------------------------------
// Extended (E0-prefixed) keys
//
// Arrows, Home, Delete, keypad Enter: BARE C0 BYTES on a TDV, never an
// escape sequence (TDV2200KeyRegistry.cs: AlwaysSameCode, same byte in
// every column). No marker/expander needed for these - they pass straight
// through key_tdv2200.v unchanged, same as a letter.
//
// Insert/PageUp/PageDown/End sit on keys a real TDV keyboard does not have
// in these positions; there is no PC-keyboard-to-TDV-grid standard to
// follow, so these four are a deliberate, documented choice, picking the
// PC key whose PHYSICAL LABEL matches the TDV function most naturally:
// PageUp -> ROLLDN (registry: "D49 ROLLDN (Page Up, physically)")
// PageDown -> ROLLUP (registry: "D47 ROLLUP (Page Down, physically)")
// Insert -> INNS/EXPS, the TDV's own Insert-mode toggle key (D99)
// End -> SLUTT/EXIT (G54) - "slutt" is Norwegian for "end"
//
// Confirmed against RetroTerm's own TDV2200KeyRegistry.cs directly
// (01-SEP-2026): PAGEUP/PGUP alias to D49 (ROLLDN), PAGEDOWN/PGDN alias
// to D47 (ROLLUP), and the Alt-map entries agree (_defaultAltMap[33] =
// D49 for Alt+PageUp, [34] = D47 for Alt+PageDown) - this mapping IS the
// authentic TDV2200 assignment, not a guess. Measured live against PED
// that ROLLDN scrolls to LATER lines and ROLLUP to EARLIER ones, which
// feels backward from PC PageUp/PageDown intuition - but that is real ND
// terminal behavior (the names describe which way the paper rolls, not
// which way a PC user expects the viewport to move), not a bug to fix by
// remapping against the trusted registry.
// These four need the ESC[nn_ expander (key_tdv2200.v), so they carry a
// MARKER (bit7 set) rather than a raw byte - see the marker scheme note
// on the main table below.
//--------------------------------------------------------------------------
always @(*) begin
case (code)
8'h75: extended = 8'h1C; // Up -> FS
8'h72: extended = 8'h0B; // Down -> VT
8'h6B: extended = 8'h08; // Left -> BS
8'h74: extended = 8'h18; // Right -> CAN
8'h6C: extended = 8'h1D; // Home -> GS
8'h71: extended = 8'h7F; // Delete -> DEL
8'h5A: extended = 8'h0D; // keypad Enter -> CR
// ESC[nn_ family (unshifted n) - marker = 8'h80 | n, n fits 0..67 in 7 bits
8'h7D: extended = 8'h80 | 8'd32; // PageUp -> ROLLDN ESC[32_
8'h7A: extended = 8'h80 | 8'd28; // PageDown -> ROLLUP ESC[28_
8'h70: extended = 8'h80 | 8'd82; // Insert -> INNS/EXPS ESC[82_
8'h69: extended = 8'h80 | 8'd48; // End -> SLUTT ESC[48_
// Windows/GUI key (E0 1F) -> FUNK, same marker as F10 (01-SEP-2026,
// user-requested second entry point). FUNC-shift is the keyboard's
// documented design (FINDINGS-2026-08-20.md): press it, then the NEXT
// keystroke is what FUNC modifies - a stray press swallowing the
// next key is expected behavior, not a bug.
8'h1F: extended = 8'h80 | 8'd42; // Windows key -> FUNK ESC[42_
default: extended = 8'h00; // no TDV equivalent: send NOTHING
endcase
end
//--------------------------------------------------------------------------
// Norwegian (NS 4551-1) override - identical data to ps2_ascii_table.v.
// See that file's header for the full rationale (position source, 7-bit
// ISO 646 byte values, no dead-key composition).
//--------------------------------------------------------------------------
reg [7:0] no_unshifted, no_shifted;
reg no_override;
always @(*) begin
no_override = 1'b1;
no_unshifted = 8'h00;
no_shifted = 8'h00;
case (code)
8'h1E: begin no_unshifted = "2"; no_shifted = 8'h22; end
8'h25: begin no_unshifted = "4"; no_shifted = 8'h24; end
8'h36: begin no_unshifted = "6"; no_shifted = "&"; end
8'h3D: begin no_unshifted = "7"; no_shifted = "/"; end
8'h3E: begin no_unshifted = "8"; no_shifted = "("; end
8'h46: begin no_unshifted = "9"; no_shifted = ")"; end
8'h45: begin no_unshifted = "0"; no_shifted = "="; end
8'h54: begin no_unshifted = 8'h7D; no_shifted = 8'h5D; end // D11 aa / AA
8'h4C: begin no_unshifted = 8'h7C; no_shifted = 8'h5C; end // C10 oe / OE
8'h52: begin no_unshifted = 8'h7B; no_shifted = 8'h5B; end // C11 ae / AE
8'h4E: begin no_unshifted = "+"; no_shifted = "?"; end
8'h55: begin no_unshifted = 8'h5C; no_shifted = 8'h60; end
8'h5D: begin no_unshifted = 8'h27; no_shifted = "*"; end
8'h41: begin no_unshifted = ","; no_shifted = ";"; end
8'h49: begin no_unshifted = "."; no_shifted = ":"; end
8'h4A: begin no_unshifted = "-"; no_shifted = 8'h5F; end
8'h61: begin no_unshifted = "<"; no_shifted = ">"; end
8'h5B: begin no_unshifted = 8'h00; no_shifted = 8'h5E; end // dead diaeresis / ^
default: no_override = 1'b0;
endcase
end
reg [7:0] us_unshifted, us_shifted;
assign unshifted = (layout_no && no_override) ? no_unshifted : us_unshifted;
assign shifted = (layout_no && no_override) ? no_shifted : us_shifted;
//--------------------------------------------------------------------------
// Main table: letters/digits/punctuation identical to ps2_ascii_table.v.
// Function keys F1-F8 differ completely from VT100: TDV2200KeyRegistry.cs
// has NO F1=ESC[11~ (that is the disowned VT220-shaped table) - the real
// sequence is ESC[nn_, shift = nn+1, per key:
// F1=ESC[50_/51_ F2=ESC[52_/53_ F3=ESC[55_/56_ F4=ESC[58_/59_
// F5=ESC[60_/61_ F6=ESC[62_/63_ F7=ESC[64_/65_ F8=ESC[66_/67_
// F9-F12 have no TDV2200/9S keyboard equivalent (an 8-function-key
// keyboard) - mapped here to the TDV's other dedicated function keys that
// a PC keyboard has no natural key for, so they are not wasted:
// F9 = HJELP (Help, G53) ESC[46_/47_
// F10= FUNK (Func-shift prefix, G51) ESC[42_/43_ - VTM then waits for
// the key FUNK modifies; a stray press swallows the next keystroke,
// which is the keyboard's design (FINDINGS-2026-08-20.md), not a bug.
// F11= SKRIV (Print, G52) ESC[44_/45_
// F12= ANGRE (Undo/Cancel, D48) ESC[30_/31_
// The marker scheme: bit7=1 flags a TDV[nn_ sequence (safe - the ND-120
// is 7-bit, no ASCII character has bit7 set); bits[6:0] carry n directly
// (0..67 fits in 7 bits) - key_tdv2200.v expands marker -> ESC [ nn _.
//--------------------------------------------------------------------------
always @(*) begin
case (code)
// --- letters ---------------------------------------------------------
8'h1C: begin us_unshifted = "a"; us_shifted = "A"; end
8'h32: begin us_unshifted = "b"; us_shifted = "B"; end
8'h21: begin us_unshifted = "c"; us_shifted = "C"; end
8'h23: begin us_unshifted = "d"; us_shifted = "D"; end
8'h24: begin us_unshifted = "e"; us_shifted = "E"; end
8'h2B: begin us_unshifted = "f"; us_shifted = "F"; end
8'h34: begin us_unshifted = "g"; us_shifted = "G"; end
8'h33: begin us_unshifted = "h"; us_shifted = "H"; end
8'h43: begin us_unshifted = "i"; us_shifted = "I"; end
8'h3B: begin us_unshifted = "j"; us_shifted = "J"; end
8'h42: begin us_unshifted = "k"; us_shifted = "K"; end
8'h4B: begin us_unshifted = "l"; us_shifted = "L"; end
8'h3A: begin us_unshifted = "m"; us_shifted = "M"; end
8'h31: begin us_unshifted = "n"; us_shifted = "N"; end
8'h44: begin us_unshifted = "o"; us_shifted = "O"; end
8'h4D: begin us_unshifted = "p"; us_shifted = "P"; end
8'h15: begin us_unshifted = "q"; us_shifted = "Q"; end
8'h2D: begin us_unshifted = "r"; us_shifted = "R"; end
8'h1B: begin us_unshifted = "s"; us_shifted = "S"; end
8'h2C: begin us_unshifted = "t"; us_shifted = "T"; end
8'h3C: begin us_unshifted = "u"; us_shifted = "U"; end
8'h2A: begin us_unshifted = "v"; us_shifted = "V"; end
8'h1D: begin us_unshifted = "w"; us_shifted = "W"; end
8'h22: begin us_unshifted = "x"; us_shifted = "X"; end
8'h35: begin us_unshifted = "y"; us_shifted = "Y"; end
8'h1A: begin us_unshifted = "z"; us_shifted = "Z"; end
// --- digits and their shifted symbols (US layout) --------------------
8'h45: begin us_unshifted = "0"; us_shifted = ")"; end
8'h16: begin us_unshifted = "1"; us_shifted = "!"; end
8'h1E: begin us_unshifted = "2"; us_shifted = "@"; end
8'h26: begin us_unshifted = "3"; us_shifted = "#"; end
8'h25: begin us_unshifted = "4"; us_shifted = "$"; end
8'h2E: begin us_unshifted = "5"; us_shifted = "%"; end
8'h36: begin us_unshifted = "6"; us_shifted = "^"; end
8'h3D: begin us_unshifted = "7"; us_shifted = "&"; end
8'h3E: begin us_unshifted = "8"; us_shifted = "*"; end
8'h46: begin us_unshifted = "9"; us_shifted = "("; end
// --- punctuation -----------------------------------------------------
8'h0E: begin us_unshifted = "`"; us_shifted = "~"; end
8'h4E: begin us_unshifted = "-"; us_shifted = "_"; end
8'h55: begin us_unshifted = "="; us_shifted = "+"; end
8'h54: begin us_unshifted = "["; us_shifted = "{"; end
8'h5B: begin us_unshifted = "]"; us_shifted = "}"; end
8'h5D: begin us_unshifted = 8'h5C; us_shifted = "|"; end // 0x5C backslash (8'hXX, not "\\" - Quartus lexer)
8'h4C: begin us_unshifted = ";"; us_shifted = ":"; end
8'h52: begin us_unshifted = "'"; us_shifted = 8'h22; end
8'h41: begin us_unshifted = ","; us_shifted = "<"; end
8'h49: begin us_unshifted = "."; us_shifted = ">"; end
8'h4A: begin us_unshifted = "/"; us_shifted = "?"; end
// --- Up/Down arrows, bare (no E0 prefix) ------------------------------
// Measured live on real hardware 01-SEP-2026 via the 7-seg scancode
// debug tap (nd120_nexys4ddr_top.v sw[5]): this keyboard's Up and Down
// keys both send their bare numpad-dual-label code (0x75, 0x72) with
// NO E0 prefix, while Right correctly arrives E0-prefixed (extended
// table above, unaffected, confirmed still working). Standard PS/2
// Set 2 has the dedicated arrow-cluster keys always E0-prefixed -
// The Nexys 4 DDR's onboard USB-to-PS/2 bridge DROPS THE E0 PREFIX for
// the Up, Down AND Left arrows (Right keeps it) - a documented Digilent
// quirk, reproduced on multiple keyboards against Digilent's own demo
// (forum.digilent.com topic 16515). So those three arrive here as the
// BARE base code (0x75/0x72/0x6B) instead of the E0-prefixed form the
// extended table above handles. This keyboard is fine - a PC reading it
// directly sees the proper extended keys; it is the bridge that strips
// the E0. Purely additive: none of these bare codes had a main-table
// entry before (they sent nothing), so this cannot regress anything.
//
// CORRECTED 02-SEP-2026: an earlier note here said Left came back as
// 0x66 (Backspace's code) and left it out to protect the Backspace->DEL
// fix. That was a 6B/66 misread on the 7-seg. Re-measured on the raw-
// scancode tap: Left is bare 0x6B, DISTINCT from Backspace 0x66, so it
// is added safely below - same as Up/Down, no conflict.
8'h75: begin us_unshifted = 8'h1C; us_shifted = 8'h1C; end // Up (bare) -> FS
8'h72: begin us_unshifted = 8'h0B; us_shifted = 8'h0B; end // Down (bare) -> VT
8'h6B: begin us_unshifted = 8'h08; us_shifted = 8'h08; end // Left (bare) -> BS
// --- the control keys a console needs --------------------------------
8'h29: begin us_unshifted = 8'h20; us_shifted = 8'h20; end // space
8'h5A: begin us_unshifted = 8'h0D; us_shifted = 8'h0D; end // Enter -> CR
// Backspace -> DEL (0x7F), NOT BS. On a TDV, BS (0x08) is pure
// cursor-left with no delete - it is the exact same byte the Left
// arrow sends (see the extended table above). A destructive
// backward-delete needs DEL, same as the PC Delete key already
// sends. Found wrong 31-AUG-2026 on real PED: Backspace produced a
// cursor move, not a delete - confirmed by the user's own
// expectation of 127 dec before this was fixed.
8'h66: begin us_unshifted = 8'h7F; us_shifted = 8'h7F; end
8'h0D: begin us_unshifted = 8'h09; us_shifted = 8'h09; end // Tab -> HT
8'h76: begin us_unshifted = 8'h1B; us_shifted = 8'h1B; end // Esc
// --- function keys: ESC[nn_ / ESC[(nn+1)_ marker pair -----------------
8'h05: begin us_unshifted = 8'h80|8'd50; us_shifted = 8'h80|8'd51; end // F1
8'h06: begin us_unshifted = 8'h80|8'd52; us_shifted = 8'h80|8'd53; end // F2
8'h04: begin us_unshifted = 8'h80|8'd55; us_shifted = 8'h80|8'd56; end // F3
8'h0C: begin us_unshifted = 8'h80|8'd58; us_shifted = 8'h80|8'd59; end // F4
8'h03: begin us_unshifted = 8'h80|8'd60; us_shifted = 8'h80|8'd61; end // F5
8'h0B: begin us_unshifted = 8'h80|8'd62; us_shifted = 8'h80|8'd63; end // F6
8'h83: begin us_unshifted = 8'h80|8'd64; us_shifted = 8'h80|8'd65; end // F7
8'h0A: begin us_unshifted = 8'h80|8'd66; us_shifted = 8'h80|8'd67; end // F8
8'h01: begin us_unshifted = 8'h80|8'd46; us_shifted = 8'h80|8'd47; end // F9 -> HJELP
8'h09: begin us_unshifted = 8'h80|8'd42; us_shifted = 8'h80|8'd43; end // F10 -> FUNK
8'h78: begin us_unshifted = 8'h80|8'd44; us_shifted = 8'h80|8'd45; end // F11 -> SKRIV
8'h07: begin us_unshifted = 8'h80|8'd30; us_shifted = 8'h80|8'd31; end // F12 -> ANGRE
default: begin us_unshifted = 8'h00; us_shifted = 8'h00; end
endcase
end
//--------------------------------------------------------------------------
// ALT+KEY - user-requested application/editing shortcuts (31-AUG-2026),
// not a PC keyboard/TDV standard - there is no PC key for most of these
// functions at all, same situation as the F9-F12 remap above. Markers use
// 0xE0 upward. The ESC[nn_ family above is NOT capped at n=67 - Insert
// alone already uses n=82 (marker 0x80|82=0xD2), and the registry's own
// n range runs to 86 (NEWPARA) - so this range starts well past the
// highest n-based marker actually in use, with headroom to spare (up to
// n=95 before a collision, comfortably above the registry's max of 86).
// Found this exact collision 31-AUG-2026: an earlier cut used 0xC4,
// which put Insert's own marker (0xD2) on top of Alt+E's SENT marker -
// Insert silently sent SENT instead. key_tdv2200.v expands each Alt
// marker into its own fixed byte sequence.
//
// SOURCE, per key - two different trust levels, both stated so nobody
// mistakes one for the other later:
// TRUSTED (TDV2200KeyRegistry.cs, same registry as the F-key table
// above): HELP=HJELP(46) FUNC=FUNK(42) EXIT=SLUTT(48) CANCEL=ANGRE(30)
// COPY=KOPI(12) MOVE=FLYTT(14) JUST(24) MARK=MERK(00) FIELD=FELT(02)
// PARA=AVSH(04) SENT=SETN(06) WORD=ORD(08).
// USER-SPECIFIED, NOT IN THE REGISTRY - no confirmed TDV2200 sequence
// exists for these at all (DO, COMMAND, FIND, SELECT are not TDV2200
// registry keys; PUSH1-8 are host-programmable with no fixed sequence
// per the registry's own IsProgrammable flag): DO=ESC[29~
// COMMAND=ESC[26~ FIND=ESC[1;2R SELECT=ESC[4;2~
// PUSH1-8=ESC P N<1-8> ESC \. Treat these as unverified until a live
// capture or a real TDV settles them.
// APPROXIMATE, no registry key matches the name: INSERT HERE mapped to
// D99 INNS/EXPS (n=82), the TDV's own Insert-mode toggle - the closest
// real function, not a confirmed match for "insert at cursor."
//--------------------------------------------------------------------------
localparam [7:0] ALTM_HELP = 8'hE0;
localparam [7:0] ALTM_DO = 8'hE1; // user-specified, unconfirmed
localparam [7:0] ALTM_FUNC = 8'hE2;
localparam [7:0] ALTM_EXIT = 8'hE3;
localparam [7:0] ALTM_CANCEL = 8'hE4;
localparam [7:0] ALTM_COMMAND = 8'hE5; // user-specified, unconfirmed
localparam [7:0] ALTM_FIND = 8'hE6; // user-specified, unconfirmed
localparam [7:0] ALTM_SELECT = 8'hE7; // user-specified, unconfirmed
localparam [7:0] ALTM_COPY = 8'hE8;
localparam [7:0] ALTM_MOVE = 8'hE9;
localparam [7:0] ALTM_JUST = 8'hEA;
localparam [7:0] ALTM_MARK = 8'hEB;
localparam [7:0] ALTM_FIELD = 8'hEC;
localparam [7:0] ALTM_PARA = 8'hED;
localparam [7:0] ALTM_SENT = 8'hEE;
localparam [7:0] ALTM_WORD = 8'hEF;
localparam [7:0] ALTM_INSHERE = 8'hF0; // approximate - see header
localparam [7:0] ALTM_PUSH1 = 8'hF1; // user-specified, unconfirmed (x8)
always @(*) begin
case (code)
8'h33: alt_marker = ALTM_HELP; // Alt+H
8'h23: alt_marker = ALTM_DO; // Alt+D
8'h3C: alt_marker = ALTM_FUNC; // Alt+U
8'h22: alt_marker = ALTM_EXIT; // Alt+X
8'h21: alt_marker = ALTM_CANCEL; // Alt+C
8'h3A: alt_marker = ALTM_COMMAND; // Alt+M
8'h2B: alt_marker = ALTM_FIND; // Alt+F
8'h1B: alt_marker = ALTM_SELECT; // Alt+S
8'h42: alt_marker = ALTM_COPY; // Alt+K
8'h2A: alt_marker = ALTM_MOVE; // Alt+V
8'h3B: alt_marker = ALTM_JUST; // Alt+J
8'h1C: alt_marker = ALTM_MARK; // Alt+A
8'h4B: alt_marker = ALTM_FIELD; // Alt+L
8'h4D: alt_marker = ALTM_PARA; // Alt+P
8'h24: alt_marker = ALTM_SENT; // Alt+E
8'h1D: alt_marker = ALTM_WORD; // Alt+W
8'h43: alt_marker = ALTM_INSHERE; // Alt+I
8'h16: alt_marker = ALTM_PUSH1 + 8'd0; // Alt+1
8'h1E: alt_marker = ALTM_PUSH1 + 8'd1; // Alt+2
8'h26: alt_marker = ALTM_PUSH1 + 8'd2; // Alt+3
8'h25: alt_marker = ALTM_PUSH1 + 8'd3; // Alt+4
8'h2E: alt_marker = ALTM_PUSH1 + 8'd4; // Alt+5
8'h36: alt_marker = ALTM_PUSH1 + 8'd5; // Alt+6
8'h3D: alt_marker = ALTM_PUSH1 + 8'd6; // Alt+7
8'h3E: alt_marker = ALTM_PUSH1 + 8'd7; // Alt+8
default: alt_marker = 8'h00;
endcase
end
endmodule
`default_nettype wire
