ratio_meter

Source: Verilog/Terminals/rtl/ratio_meter.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

Module hierarchy - All modules

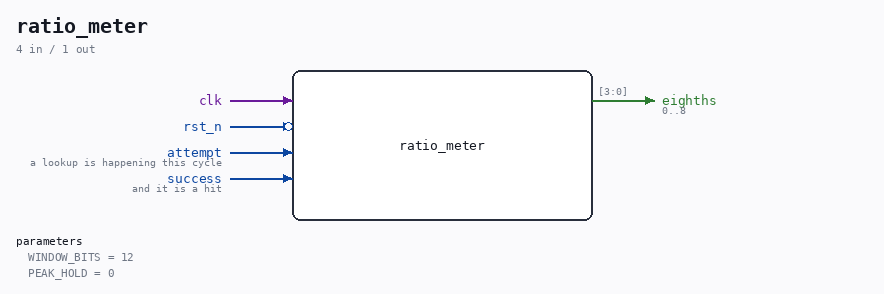

Schematic

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Parameters

Parameter	Default
WINDOW_BITS	12
PEAK_HOLD	0

Ports

Direction	Width	Name	Description
input	1	clk
input	1	rst_n (active low)
input	1	attempt	a lookup is happening this cycle
input	1	success	and it is a hit
output	[3:0]	eighths	0..8

Verilog source

Verilog/Terminals/rtl/ratio_meter.v on GitHub.

Show the Verilog of ratio_meter (81 lines)

//============================================================================
//! What fraction of ATTEMPTS succeeded? Answer in eighths.
//!
//! Part of the board-independent terminal core (Verilog/Terminals/).
//!
//! Exists because rate_meter answers the wrong question for a cache. It reports
//! what fraction of CLOCK CYCLES a signal was high, which is right for
//! UTILIZATION - "how much of the time was the machine not idle" - and wrong
//! for CACHE HIT RATE, which the ND-100 Reference Manual describes as a hit
//! rate: hits divided by LOOKUPS.
//!
//! Lookups are a small fraction of clock cycles, so measuring hits per cycle
//! produced a bar that sat empty no matter what the machine did. It was not
//! broken wiring; it was the wrong quantity, and it read as "nothing is shown".
//!
//! HOW THE TWO INPUTS ARE MEANT. `attempt` is high while a lookup is happening
//! (on the ND-120 that is LAPA_n asserted - the page address being latched);
//! `success` is the cache comparator, HIT. Both are counted in CYCLES rather
//! than edges, deliberately: an assertion may last more than one clock, and
//! counting cycles needs no assumption about exactly when within the lookup
//! HIT becomes valid. Getting that assumption wrong would produce a plausible
//! number that is quietly false, which is worse than an empty bar.
//!
//! Written 28-AUG-2026.
//============================================================================

`default_nettype none

module ratio_meter #(
    //! Counted in ATTEMPTS, not clocks, so the window is self-scaling: a busy
    //! machine updates the bar often, an idle one rarely. 2^12 lookups is a
    //! few times a second under load.
    parameter integer WINDOW_BITS = 12,

    //! 1 = rise at once, fall one eighth per window - same reasoning as
    //! rate_meter's.
    parameter integer PEAK_HOLD = 0
) (
    input wire clk,
    input wire rst_n,

    input wire attempt,   //! a lookup is happening this cycle
    input wire success,   //! and it is a hit

    output reg [3:0] eighths  //! 0..8
);

  reg [WINDOW_BITS-1:0] s_attempts;
  reg [WINDOW_BITS-1:0] s_hits;

  //! This window's answer. All-hits is special-cased: the top three bits of a
  //! full counter are 111, which would report 7/8 for a cache that never missed.
  wire [3:0] s_new = (s_hits == s_attempts) ? 4'd8
                   : {1'b0, s_hits[WINDOW_BITS-1:WINDOW_BITS-3]};

  always @(posedge clk or negedge rst_n) begin
    if (!rst_n) begin
      s_attempts <= {WINDOW_BITS{1'b0}};
      s_hits     <= {WINDOW_BITS{1'b0}};
      eighths    <= 4'd0;
    end else if (attempt) begin
      if (&s_attempts) begin
        //! End of the window. All-hits has to be special-cased: the top three
        //! bits of a full counter are 111, which would report 7/8 for a cache
        //! that never missed once.
        eighths    <= (PEAK_HOLD == 0)  ? s_new
                    : (s_new > eighths) ? s_new
                    : (eighths == 4'd0) ? 4'd0
                                        : eighths - 4'd1;
        s_attempts <= {{(WINDOW_BITS-1){1'b0}}, 1'b1};
        s_hits     <= {{(WINDOW_BITS-1){1'b0}}, success};
      end else begin
        s_attempts <= s_attempts + 1'b1;
        if (success) s_hits <= s_hits + 1'b1;
      end
    end
  end

endmodule

`default_nettype wire
