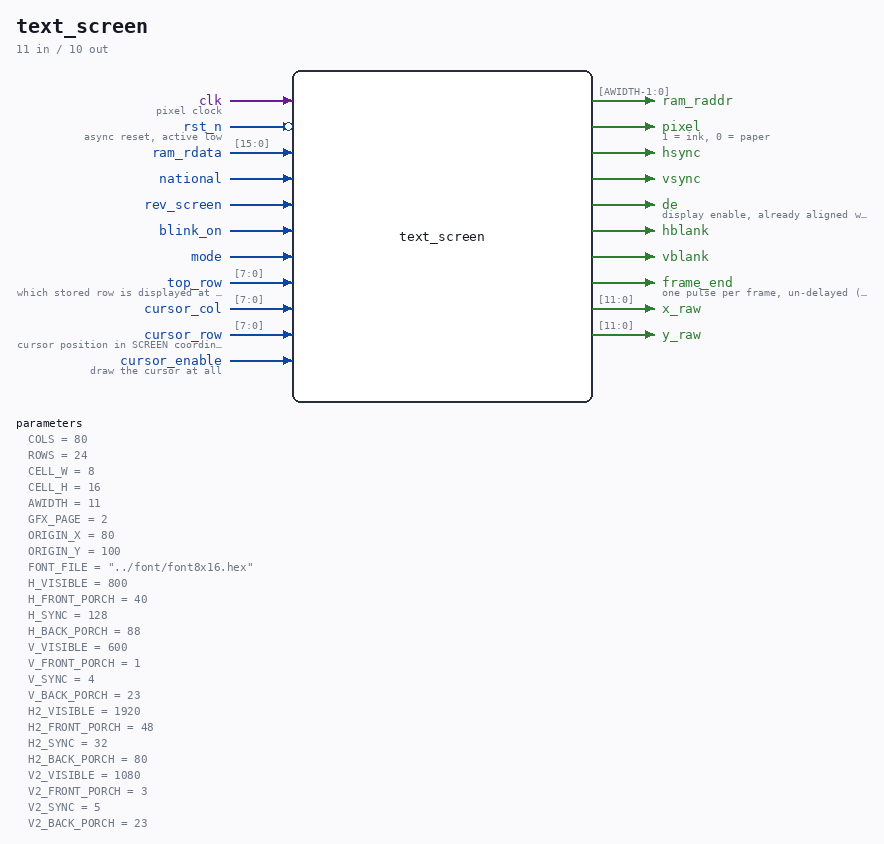

text_screen¶
Source: Verilog/Terminals/rtl/text_screen.v
Where it sits (Nexys): nd120_nexys4ddr_top > terminal_top > text_screen
- instance path: TERMINAL.SCREEN
Used in: terminal_top (Nexys, MiSTer, MEGA65 R6, MEGA65 R3)
Contains: font_rom, vga_timing
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Nexys 4 DDR build, instance TERMINAL.SCREEN. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Parameters¶
| Parameter | Default |
|---|---|
COLS |
80 |
ROWS |
24 |
CELL_W |
8 |
CELL_H |
16 |
AWIDTH |
11 |
GFX_PAGE |
2 |
ORIGIN_X |
80 |
ORIGIN_Y |
100 |
FONT_FILE |
"../font/font8x16.hex" |
H_VISIBLE |
800 |
H_FRONT_PORCH |
40 |
H_SYNC |
128 |
H_BACK_PORCH |
88 |
V_VISIBLE |
600 |
V_FRONT_PORCH |
1 |
V_SYNC |
4 |
V_BACK_PORCH |
23 |
H2_VISIBLE |
1920 |
H2_FRONT_PORCH |
48 |
H2_SYNC |
32 |
H2_BACK_PORCH |
80 |
V2_VISIBLE |
1080 |
V2_FRONT_PORCH |
3 |
V2_SYNC |
5 |
V2_BACK_PORCH |
23 |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk |
pixel clock |
| input | 1 |
rst_n (active low) |
async reset, active low |
| output | [AWIDTH-1:0] |
ram_raddr |
|
| input | [15:0] |
ram_rdata |
|
| input | 1 |
national |
|
| input | 1 |
rev_screen |
|
| input | 1 |
blink_on |
|
| input | 1 |
mode |
|
| input | [7:0] |
top_row |
which stored row is displayed at the top |
| input | [7:0] |
cursor_col |
|
| input | [7:0] |
cursor_row |
cursor position in SCREEN coordinates |
| input | 1 |
cursor_enable |
draw the cursor at all |
| output | 1 |
pixel |
1 = ink, 0 = paper |
| output | 1 |
hsync |
|
| output | 1 |
vsync |
|
| output | 1 |
de |
display enable, already aligned with pixel |
| output | 1 |
hblank |
|
| output | 1 |
vblank |
|
| output | 1 |
frame_end |
one pulse per frame, un-delayed (for blink) |
| output | [11:0] |
x_raw |
|
| output | [11:0] |
y_raw |
Verilog source¶
Verilog/Terminals/rtl/text_screen.v on GitHub.
Show the Verilog of text_screen (349 lines)
//============================================================================
//! Text screen - turns the character RAM into pixels
//!
//! Part of the board-independent terminal core (Verilog/Terminals/).
//!
//! Owns the VGA timing generator, the character RAM read port and the font
//! ROM, and produces one monochrome pixel per pixel clock plus the sync and
//! blanking signals. Colour is applied by the board (12-bit on the Nexys, the
//! framework video mixer on MiSTer) - this module says "ink or paper", which
//! is all a terminal needs and keeps it portable.
//!
//! THE PIPELINE (the part that is easy to get wrong):
//!
//! t+0 address the character RAM with the cell containing pixel X
//! t+1 character code is out; address the font ROM with it + the pixel row
//! t+2 the font's 8-pixel row is out; select bit X[2:0] and emit it
//!
//! So the pixel emitted at time t belongs to the pixel position the counters
//! held at t-2. Everything that must line up with it - de, hsync, vsync and
//! the low 3 bits of x - is delayed by the same two clocks. Delaying sync
//! along with the data (rather than compensating the address) keeps the whole
//! frame internally consistent; it shifts the image 2 pixels, which no monitor
//! and no human can see.
//!
//! Hardware scrolling: the visible top line is `top_row`, not row 0. Scrolling
//! is then one register increment instead of moving 1920 words, and the screen
//! is a ring. terminal_ctrl owns that register and clears the newly exposed
//! line.
//!
//! Written 27-AUG-2026.
//============================================================================
`default_nettype none
module text_screen #(
parameter integer COLS = 80,
parameter integer ROWS = 24,
parameter integer CELL_W = 8,
parameter integer CELL_H = 16,
parameter integer AWIDTH = 11,
//! Which font page a cell's graphics-attribute bit (RAM bit 12) selects.
//! 2 = TDV2200 character set 2 (TDV build - reached by both ESC 6 and SS2),
//! 3 = DEC Special Graphics (VT100 build) - the two builds never run at
//! once, so this is fixed per instantiation, not a runtime signal. See
//! terminal_top.v's select, and font/make_font.py for why the TDV set is
//! on the proven-present page 2, not page 3.
parameter integer GFX_PAGE = 2,
//! Where the character grid sits inside the visible area. 80x25 of 8x16 is
//! 640x400; centred in 800x600 that is (800-640)/2 = 80, (600-400)/2 = 100.
parameter integer ORIGIN_X = 80,
parameter integer ORIGIN_Y = 100,
parameter FONT_FILE = "../font/font8x16.hex",
// VGA mode - defaults are 800x600@60 from a 40.000 MHz pixel clock
parameter integer H_VISIBLE = 800,
parameter integer H_FRONT_PORCH = 40,
parameter integer H_SYNC = 128,
parameter integer H_BACK_PORCH = 88,
parameter integer V_VISIBLE = 600,
parameter integer V_FRONT_PORCH = 1,
parameter integer V_SYNC = 4,
parameter integer V_BACK_PORCH = 23,
// Mode 1: 1920x1080@60 CVT-REDUCED BLANKING, glyphs doubled to 16x32.
//
// Reduced blanking, not the CEA-861 timings, and the reason is timing not
// taste. Same visible 1920x1080, but 2080x1111 total instead of 2200x1125,
// so 60 Hz needs 139.7 MHz instead of 148.5. The design was 0.171 ns short
// at 148.5 after two rounds of pipelining; the lower clock buys 0.48 ns of
// budget without touching the logic again. CVT-RB is a standard mode.
parameter integer H2_VISIBLE = 1920,
parameter integer H2_FRONT_PORCH = 48,
parameter integer H2_SYNC = 32,
parameter integer H2_BACK_PORCH = 80,
parameter integer V2_VISIBLE = 1080,
parameter integer V2_FRONT_PORCH = 3,
parameter integer V2_SYNC = 5,
parameter integer V2_BACK_PORCH = 23
) (
input wire clk, //! pixel clock
input wire rst_n, //! async reset, active low
// Character RAM read port
output wire [AWIDTH-1:0] ram_raddr,
input wire [ 15:0] ram_rdata,
// Screen state, driven by terminal_ctrl
//! Font page. 0 = US / ISO 646 IRV, 1 = Norwegian (NS 4551-1). It changes
//! what six existing byte values LOOK like - it does not add characters.
//! A cell whose graphics attribute bit is set overrides this and reads
//! the GFX_PAGE font page (page 2 = TDV set 2, page 3 = DEC) instead.
input wire national,
//! DECSCNM - reverse the whole screen (ink and paper swap everywhere).
input wire rev_screen,
//! Blink phase from terminal_ctrl; cells with the blink attribute show
//! their glyph only while this is high.
input wire blink_on,
//! Video mode. 0 = the H_*/V_* parameters at 1x glyphs; 1 = the H2_*/V2_*
//! parameters at 2x glyphs. MUST be switched together with the pixel clock.
//!
//! WHY THE GLYPHS SCALE WITH IT. The grid is a FIXED 80x25 cells, so at 1x
//! it is always 640x400 pixels no matter how big the screen is. Raising the
//! resolution alone therefore makes the text SMALLER - a 640x400 island in
//! a 1920x1080 field. Doubling the glyphs turns that into 1280x800, which
//! is a sensible size on a 1080p panel. It costs nothing: the same font ROM
//! is read, each pixel and each row simply lasts twice as long.
input wire mode,
input wire [7:0] top_row, //! which stored row is displayed at the top
input wire [7:0] cursor_col,
input wire [7:0] cursor_row, //! cursor position in SCREEN coordinates
input wire cursor_enable, //! draw the cursor at all
// Video out
output wire pixel, //! 1 = ink, 0 = paper
output wire hsync,
output wire vsync,
output wire de, //! display enable, already aligned with `pixel`
//! The two halves of `de`, same alignment. MiSTer wants only `de`; the
//! MiSTer2MEGA65 framework wants hblank and vblank SEPARATELY (its analog
//! path's video mixer derives its own de from them). Added 02-SEP-2026
//! for the MEGA65 glue; every other user leaves them unconnected.
output wire hblank,
output wire vblank,
output wire frame_end, //! one pulse per frame, un-delayed (for blink)
//! The raw pixel counters, un-delayed. Anything else drawing on this screen
//! (the operator panel) works from these and applies the SAME two clocks of
//! delay, which is how the two stay aligned without either knowing about
//! the other.
output wire [11:0] x_raw,
output wire [11:0] y_raw
);
wire [11:0] s_x;
wire [11:0] s_y;
assign x_raw = s_x;
assign y_raw = s_y;
wire s_hsync_raw;
wire s_vsync_raw;
wire s_de_raw;
wire s_hblank_raw;
wire s_vblank_raw;
vga_timing #(
.H_VISIBLE (H_VISIBLE),
.H_FRONT_PORCH(H_FRONT_PORCH),
.H_SYNC (H_SYNC),
.H_BACK_PORCH (H_BACK_PORCH),
.V_VISIBLE (V_VISIBLE),
.V_FRONT_PORCH(V_FRONT_PORCH),
.V_SYNC (V_SYNC),
.V_BACK_PORCH (V_BACK_PORCH),
.H2_VISIBLE (H2_VISIBLE),
.H2_FRONT_PORCH(H2_FRONT_PORCH),
.H2_SYNC (H2_SYNC),
.H2_BACK_PORCH (H2_BACK_PORCH),
.V2_VISIBLE (V2_VISIBLE),
.V2_FRONT_PORCH(V2_FRONT_PORCH),
.V2_SYNC (V2_SYNC),
.V2_BACK_PORCH (V2_BACK_PORCH)
) TIMING (
.clk (clk),
.rst_n (rst_n),
.mode (mode),
.x (s_x),
.y (s_y),
.hsync (s_hsync_raw),
.vsync (s_vsync_raw),
.de (s_de_raw),
.hblank (s_hblank_raw),
.vblank (s_vblank_raw),
.line_end (),
.frame_end(frame_end)
);
//--------------------------------------------------------------------------
// Stage 0 - which cell does pixel (s_x, s_y) belong to
//--------------------------------------------------------------------------
// Position inside the character grid. Signed compare against the origin, so
// the border around the grid is simply "outside".
//! Centre the grid for whichever mode is running. Computed, never written
//! down - the same lesson as the 108-vs-100 bug that shipped in terminal_top:
//! a hand-maintained origin goes stale the moment anything around it changes.
localparam integer ORIGIN2_X = (H2_VISIBLE - COLS * CELL_W * 2) / 2;
//! NOT centred vertically, unlike mode 0, and that is deliberate.
//!
//! Centring 800 rows of text in 1080 leaves 140 above and 140 below - which
//! in the panel's halved coordinates is only 70 logical rows, and the panel
//! needs 80. It was therefore drawn past the bottom of the screen and simply
//! disappeared at 1080p while working fine at 800x600.
//!
//! Sitting the text at y=40 leaves 240 physical rows underneath: the panel
//! takes 160 of them and 40 remain as a bottom margin.
localparam integer ORIGIN2_Y = 40;
wire [11:0] s_origin_x = mode ? ORIGIN2_X[11:0] : ORIGIN_X[11:0];
wire [11:0] s_origin_y = mode ? ORIGIN2_Y[11:0] : ORIGIN_Y[11:0];
wire signed [12:0] s_grid_x = $signed({1'b0, s_x}) - $signed({1'b0, s_origin_x});
wire signed [12:0] s_grid_y = $signed({1'b0, s_y}) - $signed({1'b0, s_origin_y});
wire s_in_grid = (s_grid_x >= 0) && (s_grid_x < (mode ? COLS*CELL_W*2 : COLS*CELL_W)) &&
(s_grid_y >= 0) && (s_grid_y < (mode ? ROWS*CELL_H*2 : ROWS*CELL_H));
wire [11:0] s_gx = s_grid_x[11:0];
wire [11:0] s_gy = s_grid_y[11:0];
//! At 2x, every cell is 16x32 instead of 8x16, so the divide moves up one bit
//! and the font is indexed with the position SHIFTED RIGHT - which is the
//! whole of pixel doubling: each font pixel is read twice in a row, and each
//! font row is read on two consecutive scan lines.
wire [7:0] s_col = mode ? s_gx[11:4] : s_gx[11:3];
wire [7:0] s_screen_row = mode ? s_gy[11:5] : s_gy[11:4];
wire [3:0] s_pixel_row = mode ? s_gy[4:1] : s_gy[3:0];
wire [2:0] s_pixel_col = mode ? s_gx[3:1] : s_gx[2:0];
// Hardware scroll: screen row N is stored row (top_row + N) mod ROWS.
wire [8:0] s_sum_row = {1'b0, top_row} + {1'b0, s_screen_row};
wire [7:0] s_stored_row = (s_sum_row >= ROWS) ? (s_sum_row[7:0] - ROWS[7:0])
: s_sum_row[7:0];
// address = stored_row * COLS + col. COLS is 80 = 64 + 16, so the multiply is
// two shifts and an add - no DSP, no multiplier inferred.
//
// THE ROW HALF IS REGISTERED, and that is what makes 148.4 MHz reachable.
// Done in one lump this was the critical path of the whole design:
//
// Source: TIMING/s_vcount_reg[1] -> Dest: CHARRAM address
// Data Path Delay: 7.623 ns Logic Levels: 11 (CARRY4=7)
// Slack: -1.696 ns (budget 6.737 ns)
//
// Subtracting the origin, deriving the text row, adding top_row, wrapping it
// and multiplying by 80 is seven carry chains - and all of it recomputed for
// every pixel, when the row only changes once every 16 SCANLINES.
//
// Registering it is free of artefacts because of WHEN y changes: the vertical
// counter advances at the end of a line, during horizontal blanking, which is
// hundreds of clocks before the next visible pixel. The register has long
// settled by the time `de` rises. What is left in the per-pixel path is one
// adder.
reg [AWIDTH-1:0] s_row_base;
always @(posedge clk) s_row_base <= ({s_stored_row, 6'b0} + {s_stored_row, 4'b0});
assign ram_raddr = s_row_base + {{(AWIDTH-8){1'b0}}, s_col};
//--------------------------------------------------------------------------
// Stage 1 - character code out of the RAM, into the font ROM
//--------------------------------------------------------------------------
reg [3:0] s_pixel_row_d1;
always @(posedge clk) s_pixel_row_d1 <= s_pixel_row;
wire [7:0] s_font_pixels;
//! WHICH FONT PAGE. The ROM holds four 128-glyph pages: page 0 is US /
//! ISO 646 IRV, page 1 the Norwegian variant (six bytes draw AE OE AA
//! ae oe aa and the currency sign instead of [ \ ] { | } and $ - see the
//! long note in font/make_font.py), page 2 the DEC Special Graphics set
//! the VT100 build draws boxes with, page 3 the TDV2200 character set 2 the
//! TDV build draws boxes with. The cell's graphics attribute (bit 12, set
//! by terminal_ctrl(_tdv) from its own charset state at write time) wins
//! over `national`: a line-drawing cell is line drawing on both layouts.
//! GFX_PAGE picks 2 or 3 - fixed per build, see the parameter comment.
//!
//! Bit 7 of the stored character is REPLACED, not ORed: the ND-120 is 7-bit,
//! so bit 7 carries no information, and replacing it means a stray high byte
//! cannot land on the wrong page.
wire [1:0] s_font_page = ram_rdata[12] ? GFX_PAGE[1:0] : {1'b0, national};
font_rom #(
.FONT_FILE(FONT_FILE)
) FONT (
.clk (clk),
.char_code({s_font_page, ram_rdata[6:0]}),
.row (s_pixel_row_d1),
.pixels (s_font_pixels)
);
//--------------------------------------------------------------------------
// Delay lines - everything that must meet the pixel two clocks downstream
//--------------------------------------------------------------------------
reg [1:0] s_de_dly, s_hsync_dly, s_vsync_dly, s_in_grid_dly;
reg [1:0] s_hblank_dly, s_vblank_dly;
reg [2:0] s_pixel_col_d1, s_pixel_col_d2;
//! Per-cell attributes. They arrive WITH the character code, one stage
//! later than everything else, so they need one register to reach the
//! output while the rest need two.
reg s_reverse_d2, s_under_d2, s_blink_d2;
reg [3:0] s_pixel_row_d2; //! for the underline - drawn at one fixed row
reg [1:0] s_cursor_dly; //! this cell is the cursor cell
// Is the cell being fetched at stage 0 the cursor cell? Compared in SCREEN
// coordinates, so the cursor stays put when the screen scrolls under it.
wire s_is_cursor_cell = cursor_enable && s_in_grid &&
(s_col == cursor_col) && (s_screen_row == cursor_row);
always @(posedge clk) begin
s_de_dly <= {s_de_dly[0], s_de_raw};
s_hsync_dly <= {s_hsync_dly[0], s_hsync_raw};
s_vsync_dly <= {s_vsync_dly[0], s_vsync_raw};
s_hblank_dly <= {s_hblank_dly[0], s_hblank_raw};
s_vblank_dly <= {s_vblank_dly[0], s_vblank_raw};
s_in_grid_dly <= {s_in_grid_dly[0], s_in_grid};
s_cursor_dly <= {s_cursor_dly[0], s_is_cursor_cell};
s_pixel_col_d1 <= s_pixel_col;
s_pixel_col_d2 <= s_pixel_col_d1;
s_reverse_d2 <= ram_rdata[8];
s_under_d2 <= ram_rdata[10];
s_blink_d2 <= ram_rdata[11];
s_pixel_row_d2 <= s_pixel_row_d1;
end
//--------------------------------------------------------------------------
// Stage 2 - pick the pixel out of the font row
//--------------------------------------------------------------------------
// MSB is the leftmost pixel, so column 0 selects bit 7.
wire s_glyph_bit = s_font_pixels[3'd7 - s_pixel_col_d2];
//! Underline: force pixel row 14 to ink - below the baseline of every glyph
//! in the shipped font, the same row the VT100 used relative to its cell.
//! Blink: while the phase is low the glyph (underline included) is hidden;
//! reverse and the cursor still show, so a blinking reverse cell blinks
//! between reverse-space and reverse-glyph, as a real terminal does.
wire s_glyph_pixel = (s_glyph_bit | (s_under_d2 && s_pixel_row_d2 == 4'd14))
&& (!s_blink_d2 || blink_on);
// Reverse video (per cell and DECSCNM whole-screen) and the cursor are all
// "swap ink and paper". Doing the cursor this way means it works on top of
// any character, needs no separate shape, and costs one XOR.
wire s_invert = s_reverse_d2 ^ s_cursor_dly[1] ^ rev_screen;
assign pixel = s_in_grid_dly[1] ? (s_glyph_pixel ^ s_invert) : 1'b0;
assign de = s_de_dly[1];
assign hsync = s_hsync_dly[1];
assign vsync = s_vsync_dly[1];
assign hblank = s_hblank_dly[1];
assign vblank = s_vblank_dly[1];
endmodule
`default_nettype wire
