cdc_byte¶
Source: Verilog/Terminals/rtl/cdc_byte.v
Where it sits (Nexys): nd120_nexys4ddr_top > terminal_top > cdc_byte
- instance path: TERMINAL.CDC
Used in: terminal_top (Nexys, MiSTer, MEGA65 R6, MEGA65 R3)
Contains: no other modules.
Module hierarchy - All modules

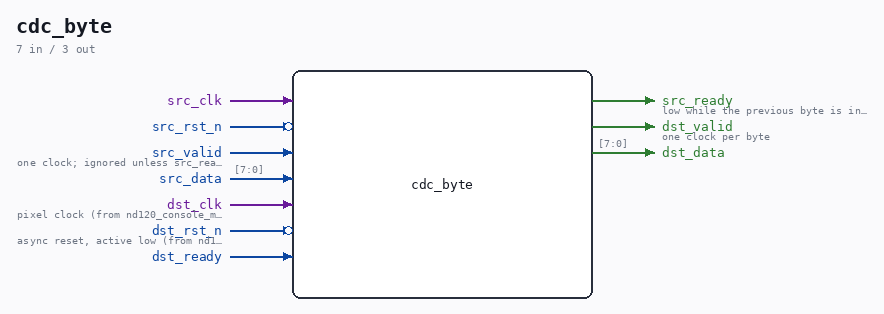

Schematic¶
Drawn from the Verilog: the yosys netlist of the Nexys 4 DDR build, instance TERMINAL.CDC. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
src_clk |
|
| input | 1 |
src_rst_n (active low) |
|
| input | 1 |
src_valid |
one clock; ignored unless src_ready |
| input | [7:0] |
src_data |
|
| output | 1 |
src_ready |
low while the previous byte is in flight (to terminal_top.byte_ready) |
| input | 1 |
dst_clk |
pixel clock (from nd120_console_mega65.clk and others) |
| input | 1 |
dst_rst_n (active low) |
async reset, active low (from nd120_console_mega65.rst_n and others) |
| output | 1 |
dst_valid |
one clock per byte |
| output | [7:0] |
dst_data |
|
| input | 1 |
dst_ready |
Verilog source¶
Verilog/Terminals/rtl/cdc_byte.v on GitHub.
Show the Verilog of cdc_byte (120 lines)
//============================================================================
//! Single-byte clock-domain crossing, toggle handshake
//!
//! Part of the board-independent terminal core (Verilog/Terminals/).
//!
//! Carries one byte at a time from the source clock (the CPU/UART domain) to
//! the destination clock (the pixel domain). A toggle handshake, not a FIFO,
//! and deliberately so: the console byte rate is glacial next to the pixel
//! clock - 115200 baud is a byte roughly every 87 us, while a 40 MHz pixel
//! clock ticks every 25 ns - so a single-entry crossing can never be the
//! bottleneck, and it has none of the ways an asynchronous FIFO can be got
//! subtly wrong.
//!
//! How it works: the source flips `s_toggle` once per accepted byte and holds
//! the data steady. The destination synchronizes the toggle through two flops
//! and emits one `dst_valid` pulse on each edge. The data is sampled on the
//! destination side only after the toggle has arrived, by which time it has
//! been stable for at least two destination clocks - so the data bits need no
//! synchronizers of their own, which is the whole point of doing it this way.
//!
//! `src_ready` is low while a byte is still in flight. The caller must not
//! present a new byte until it is high again.
//!
//! Written 27-AUG-2026.
//============================================================================
`default_nettype none
module cdc_byte (
// Source domain
input wire src_clk,
input wire src_rst_n,
input wire src_valid, //! one clock; ignored unless src_ready
input wire [7:0] src_data,
output wire src_ready, //! low while the previous byte is in flight (to terminal_top.byte_ready)
// Destination domain
input wire dst_clk, //! pixel clock (from nd120_console_mega65.clk and others)
input wire dst_rst_n, //! async reset, active low (from nd120_console_mega65.rst_n and others)
output reg dst_valid, //! one clock per byte
output wire [7:0] dst_data,
//! High when the destination can take a byte THIS clock. The byte is held
//! in the crossing until it is - which keeps src_ready low, so the source
//! stalls too. Tie high if the destination is always able to accept.
input wire dst_ready
);
// All state declared up front - the two sides refer to each other's flops,
// so declaring them where they are driven would mean using them first.
reg s_toggle; //! source: flips once per accepted byte
reg [7:0] s_data; //! source: the byte in flight
reg [1:0] s_ack_sync; //! source: destination's toggle, synchronized back
reg [1:0] s_toggle_sync; //! destination: source's toggle, synchronized in
reg s_toggle_seen; //! destination: previous value, for edge detect
reg s_dst_toggle_q; //! destination: what the source watches for its ack
//--------------------------------------------------------------------------
// Source side
//--------------------------------------------------------------------------
wire s_busy = (s_toggle != s_ack_sync[1]);
assign src_ready = !s_busy;
always @(posedge src_clk or negedge src_rst_n) begin
if (!src_rst_n) begin
s_toggle <= 1'b0;
s_data <= 8'h00;
s_ack_sync <= 2'b00;
end else begin
s_ack_sync <= {s_ack_sync[0], s_dst_toggle_q};
if (src_valid && src_ready) begin
s_data <= src_data;
s_toggle <= ~s_toggle;
end
end
end
//--------------------------------------------------------------------------
// Destination side
//--------------------------------------------------------------------------
assign dst_data = s_data;
always @(posedge dst_clk or negedge dst_rst_n) begin
if (!dst_rst_n) begin
s_toggle_sync <= 2'b00;
s_toggle_seen <= 1'b0;
s_dst_toggle_q <= 1'b0;
dst_valid <= 1'b0;
end else begin
s_toggle_sync <= {s_toggle_sync[0], s_toggle};
dst_valid <= 1'b0;
// An edge on the synchronized toggle means one new byte has arrived -
// but it is only DELIVERED when the destination can take it. Until then
// the toggle is not consumed and not reflected back, so src_ready stays
// low and the source waits. This is what makes the crossing a real
// handshake rather than a fire-and-forget.
//
// It was fire-and-forget until 28-AUG-2026, on the argument that a
// console byte arrives every ~87 us at 115200 baud while the longest
// busy window is ~48 us, so nothing could ever be lost. The argument was
// sound and the premise was wrong: term_banner.v feeds this thing as
// fast as it will go - a byte every ~150 ns - and the power-on
// clear-screen sweep quietly ate all 318 characters of the startup
// message. "Cannot happen in practice" lasted exactly as long as the
// only source was a UART.
if (dst_ready && (s_toggle_sync[1] != s_toggle_seen)) begin
dst_valid <= 1'b1;
s_toggle_seen <= s_toggle_sync[1];
// Reflect the toggle back so the source can free the slot.
s_dst_toggle_q <= s_toggle_sync[1];
end
end
end
endmodule
`default_nettype wire
