ND_BUS_SLAVE¶

Source: Verilog/ND-BUS-DEVICES/BUS-IF/circuit/ND_BUS_SLAVE.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND_BUS_SLAVE - instance path: CORE.gen_bus_slave.BUS_SLAVE

Used in: ND120_CORE (Simulation, Tang, Nexys, MiSTer, MEGA65 R6, MEGA65 R3, QMTECH)

Contains: no other modules.

Module hierarchy - All modules

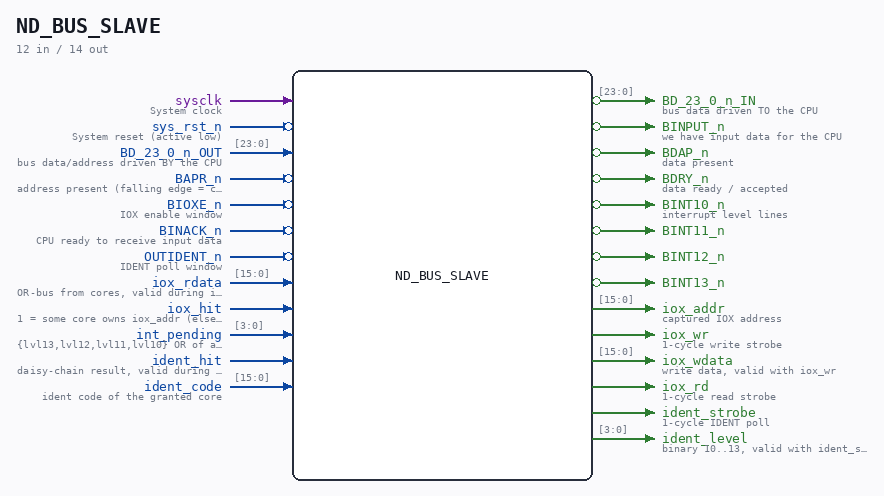

ND_BUS_SLAVE symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.gen_bus_slave.BUS_SLAVE. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

ND-100 BUS SLAVE ADAPTER The one bus adapter for all external bus devices. Implements the device side of the ND-100 bus IOX/IDENT handshake: BAPR/BIOXE/BINPUT/BINACK/BDAP/BDRY/OUTIDENT + BINT10-13 Ported from the C reference model simDevices/NDBus.cpp (proccess_bif_signal), which runSim boots with today. Signal sequence per ND-06.026.1 EN page 126. All bus signals are active low. The BD bus is inverted: a released bus reads all ones. Outputs drive their inactive level (1) when idle - wired-AND with other bus agents, no z inside the FPGA. Device-side bus: see ND-BUS-DEVICES/README.md Last reviewed: 11-JUL-2026 Ronny Hansen

Ports¶

Direction	Width	Name	Description
input	`1`	`sysclk`	System clock
input	`1`	`sys_rst_n` (active low)	System reset (active low)
input	`[23:0]`	`BD_23_0_n_OUT`	bus data/address driven BY the CPU
output	`[23:0]`	`BD_23_0_n_IN`	bus data driven TO the CPU
input	`1`	`BAPR_n` (active low)	address present (falling edge = capture)
input	`1`	`BIOXE_n` (active low)	IOX enable window
input	`1`	`BINACK_n` (active low)	CPU ready to receive input data
input	`1`	`OUTIDENT_n` (active low)	IDENT poll window
output	`1`	`BINPUT_n` (active low)	we have input data for the CPU
output	`1`	`BDAP_n` (active low)	data present
output	`1`	`BDRY_n` (active low)	data ready / accepted
output	`1`	`BINT10_n` (active low)	interrupt level lines
output	`1`	`BINT11_n` (active low)
output	`1`	`BINT12_n` (active low)
output	`1`	`BINT13_n` (active low)
output	`[15:0]`	`iox_addr`	captured IOX address
output	`1`	`iox_wr`	1-cycle write strobe
output	`[15:0]`	`iox_wdata`	write data, valid with iox_wr
output	`1`	`iox_rd`	1-cycle read strobe
input	`[15:0]`	`iox_rdata`	OR-bus from cores, valid during iox_rd
input	`1`	`iox_hit`	1 = some core owns iox_addr (else no answer)
input	`[3:0]`	`int_pending`	{lvl13,lvl12,lvl11,lvl10} OR of all cores
output	`1`	`ident_strobe`	1-cycle IDENT poll
output	`[3:0]`	`ident_level`	binary 10..13, valid with ident_strobe
input	`1`	`ident_hit`	daisy-chain result, valid during strobe
input	`[15:0]`	`ident_code`	ident code of the granted core

Verilog source¶

Verilog/ND-BUS-DEVICES/BUS-IF/circuit/ND_BUS_SLAVE.v on GitHub.

Show the Verilog of ND_BUS_SLAVE (198 lines)

/**************************************************************************
** ND-100 BUS SLAVE ADAPTER                                              **
**                                                                       **
** The one bus adapter for all external bus devices.                     **
** Implements the device side of the ND-100 bus IOX/IDENT handshake:     **
**   BAPR/BIOXE/BINPUT/BINACK/BDAP/BDRY/OUTIDENT + BINT10-13             **
**                                                                       **
** Ported from the C reference model simDevices/NDBus.cpp                **
** (proccess_bif_signal), which runSim boots with today. Signal          **
** sequence per ND-06.026.1 EN page 126.                                 **
**                                                                       **
** All bus signals are active low. The BD bus is inverted: a released    **
** bus reads all ones. Outputs drive their inactive level (1) when       **
** idle - wired-AND with other bus agents, no z inside the FPGA.         **
**                                                                       **
** Device-side bus: see ND-BUS-DEVICES/README.md                        **
**                                                                       **
** Last reviewed: 11-JUL-2026                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module ND_BUS_SLAVE (
    input wire sysclk,   // System clock
    input wire sys_rst_n, // System reset (active low)

    // ND-100 bus, CPU side (names as on ND120_TOP)
    input  wire [23:0] BD_23_0_n_OUT,  // bus data/address driven BY the CPU
    output reg  [23:0] BD_23_0_n_IN,   // bus data driven TO the CPU
    input  wire        BAPR_n,         // address present (falling edge = capture)
    input  wire        BIOXE_n,        // IOX enable window
    input  wire        BINACK_n,       // CPU ready to receive input data
    input  wire        OUTIDENT_n,     // IDENT poll window
    output reg         BINPUT_n,       // we have input data for the CPU
    output reg         BDAP_n,         // data present
    output reg         BDRY_n,         // data ready / accepted
    output wire        BINT10_n,       // interrupt level lines
    output wire        BINT11_n,
    output wire        BINT12_n,
    output wire        BINT13_n,

    // Device-side bus
    output reg  [15:0] iox_addr,       // captured IOX address
    output reg         iox_wr,         // 1-cycle write strobe
    output reg  [15:0] iox_wdata,      // write data, valid with iox_wr
    output reg         iox_rd,         // 1-cycle read strobe
    input  wire [15:0] iox_rdata,      // OR-bus from cores, valid during iox_rd
    input  wire        iox_hit,        // 1 = some core owns iox_addr (else no answer)
    input  wire [3:0]  int_pending,    // {lvl13,lvl12,lvl11,lvl10} OR of all cores
    output reg         ident_strobe,   // 1-cycle IDENT poll
    output reg  [3:0]  ident_level,    // binary 10..13, valid with ident_strobe
    input  wire        ident_hit,      // daisy-chain result, valid during strobe
    input  wire [15:0] ident_code      // ident code of the granted core
);

  // Transaction state (from address LSB at BAPR, as in the C model)
  localparam ST_IDLE  = 2'd0;
  localparam ST_READ  = 2'd1;
  localparam ST_WRITE = 2'd2;

  reg [1:0]  s_state;
  reg [23:0] s_bus_addr;      // full 24-bit address captured at BAPR
  reg        s_prev_bapr_n;
  reg        s_prev_bioxe_n;
  reg        s_prev_binack_n;
  reg        s_prev_outident_n;
  reg        s_ident_valid;   // an ident code is latched for this OUTIDENT window
  reg [15:0] s_ident_code_q;

  // Interrupt level lines: NOR of the pending flags (the C model's intent)
  assign BINT10_n = ~int_pending[0];
  assign BINT11_n = ~int_pending[1];
  assign BINT12_n = ~int_pending[2];
  assign BINT13_n = ~int_pending[3];

  wire s_bapr_fall     = (BAPR_n     == 1'b0) && (s_prev_bapr_n     == 1'b1);
  wire s_bioxe_fall    = (BIOXE_n    == 1'b0) && (s_prev_bioxe_n    == 1'b1);
  wire s_bioxe_rise    = (BIOXE_n    == 1'b1) && (s_prev_bioxe_n    == 1'b0);
  wire s_binack_fall   = (BINACK_n   == 1'b0) && (s_prev_binack_n   == 1'b1);
  wire s_outident_fall = (OUTIDENT_n == 1'b0) && (s_prev_outident_n == 1'b1);
  wire s_outident_rise = (OUTIDENT_n == 1'b1) && (s_prev_outident_n == 1'b0);

  // IDENT level from the address strobed at BAPR (NDBus.cpp switch)
  wire [3:0] s_level_dec = (s_bus_addr[15:0] == 16'o000004) ? 4'd10 :
                           (s_bus_addr[15:0] == 16'o000011) ? 4'd11 :
                           (s_bus_addr[15:0] == 16'o000022) ? 4'd12 :
                           (s_bus_addr[15:0] == 16'o000043) ? 4'd13 : 4'd0;

  always @(posedge sysclk or negedge sys_rst_n) begin
    if (!sys_rst_n) begin
      s_state           <= ST_IDLE;
      s_bus_addr        <= 24'd0;
      s_prev_bapr_n     <= 1'b1;
      s_prev_bioxe_n    <= 1'b1;
      s_prev_binack_n   <= 1'b1;
      s_prev_outident_n <= 1'b1;
      s_ident_valid     <= 1'b0;
      s_ident_code_q    <= 16'd0;
      BD_23_0_n_IN      <= 24'hFFFFFF;
      BINPUT_n          <= 1'b1;
      BDAP_n            <= 1'b1;
      BDRY_n            <= 1'b1;
      iox_addr          <= 16'd0;
      iox_wr            <= 1'b0;
      iox_wdata         <= 16'd0;
      iox_rd            <= 1'b0;
      ident_strobe      <= 1'b0;
      ident_level       <= 4'd0;
    end else begin
      // Default: strobes are single-cycle
      iox_wr       <= 1'b0;
      iox_rd       <= 1'b0;
      ident_strobe <= 1'b0;

      // Address present: capture, direction from LSB (0=read, 1=write)
      if (s_bapr_fall) begin
        s_bus_addr <= ~BD_23_0_n_OUT;
        iox_addr   <= ~BD_23_0_n_OUT[15:0];
        s_state    <= (~BD_23_0_n_OUT[0]) ? ST_WRITE : ST_READ;
        BINPUT_n   <= 1'b1;
      end

      // IOX window opens: data (write) is on the bus now.
      // Only answer if a device core owns this address (iox_hit). If none
      // does, drive nothing so the CPU bus-times-out -> level-14 IOX error,
      // instead of the slave answering every address.
      if (s_bioxe_fall) begin
        if (s_state == ST_WRITE && iox_hit) begin
          iox_wdata <= ~BD_23_0_n_OUT[15:0];
          iox_wr    <= 1'b1;
          BDRY_n    <= 1'b0;  // data accepted
        end
        if (s_state == ST_READ && iox_hit) begin
          BINPUT_n <= 1'b0;   // we will put data on the bus, wait for BINACK
        end
      end

      // CPU ready to receive: issue the read strobe, answer next cycle.
      // An IDENT answer has priority: the level code strobed at BAPR
      // (004/011/022/043) would otherwise be misread as an IOX
      // direction (its LSB is meaningless here).
      if (s_binack_fall) begin
        if (s_ident_valid) begin
          BD_23_0_n_IN <= ~{8'h00, s_ident_code_q};
          BDAP_n       <= 1'b0;
          BDRY_n       <= 1'b0;
        end else if (s_state == ST_READ && iox_hit) begin
          iox_rd <= 1'b1;
        end
      end
      // One cycle after the read strobe the OR-bus data is captured
      if (iox_rd) begin
        BD_23_0_n_IN <= ~{8'h00, iox_rdata};
        BDAP_n       <= 1'b0;
        BDRY_n       <= 1'b0;
      end

      // IDENT poll: level from the captured address; the granted core
      // clears its pending+enable flags during this same strobe
      if (s_outident_fall) begin
        ident_level  <= s_level_dec;
        ident_strobe <= 1'b1;
        s_state      <= ST_IDLE;  // an IDENT window is not an IOX transaction
      end
      if (ident_strobe) begin
        if (ident_hit) begin
          s_ident_valid  <= 1'b1;
          s_ident_code_q <= ident_code;
          BD_23_0_n_IN   <= ~{8'h00, ident_code};
          BINPUT_n       <= 1'b0;  // tell CPU we have data, wait for BINACK
        end
      end
      if (s_outident_rise) begin
        if (s_ident_valid) begin
          s_ident_valid <= 1'b0;
          BINPUT_n      <= 1'b1;
          BDRY_n        <= 1'b1;
          BDAP_n        <= 1'b1;
          BD_23_0_n_IN  <= 24'hFFFFFF;
        end
      end

      // IOX window closes: release everything
      if (s_bioxe_rise) begin
        BDRY_n       <= 1'b1;
        BDAP_n       <= 1'b1;
        BINPUT_n     <= 1'b1;
        BD_23_0_n_IN <= 24'hFFFFFF;
        s_state      <= ST_IDLE;
      end

      s_prev_bapr_n     <= BAPR_n;
      s_prev_bioxe_n    <= BIOXE_n;
      s_prev_binack_n   <= BINACK_n;
      s_prev_outident_n <= OUTIDENT_n;
    end
  end

endmodule
