ND_DMA_MASTER¶
Source: Verilog/ND-BUS-DEVICES/DMA/circuit/ND_DMA_MASTER.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND_DMA_MASTER
- instance path: CORE.gen_floppy.FLOPPY_DMA_MASTER
Used in: ND120_CORE (Simulation, Tang, Nexys, MiSTer, MEGA65 R6, MEGA65 R3, QMTECH)
Contains: no other modules.
Module hierarchy - All modules

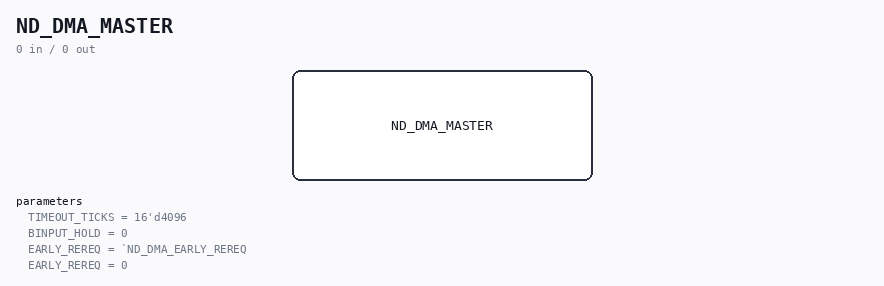

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.gen_floppy.FLOPPY_DMA_MASTER. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND-100 DMA BUS MASTER The request/grant + memory-reference engine every DMA controller (floppy DMA, SMD) uses to exchange single words directly with the NORD-100 memory system. Protocol per ND-06.016.01 chapter V and docs/nd100-bus-dma.md: 1. Assert BREQ (wired-OR bus request) and wait. 2. The Bus Control Unit answers with BMEM (leading edge freezes request status) and daisy-chains OUTGRANT; the first module with a frozen request receives INGRANT and stops the token. 3. Granted: present the 24-bit physical address on BD with BAPR; BINPUT inactive = memory read, active = memory write. 4. Read: remove the address (no feedback), assert BDAP ("BD free, memory may drive"); memory answers data + BDRY; strobe data on BDRY. Write: present data combined with BDAP; memory strobes on BDAP and answers BDRY = accepted. 5. BDRY leading edge ends the grant; trailing edge releases the bus. One word per allocation - block transfers re-request. BDAP driver note: the master drives BDAP in BOTH directions - verified against PAL_44902A ("PAUSE UNTIL BDAP OCCURS"), see docs/nd100-bus-dma.md section 9 gap 1 resolution. Daisy chain: INGRANT_n in, OUTGRANT_n out. A module that is not requesting passes the token through; a claiming module consumes it. All bus signals active low; BD released = all ones. Client side is a one-word request/ack interface; the device (word counter, core address register) sits on top and re-requests per word. Last reviewed: 11-JUL-2026 Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
TIMEOUT_TICKS |
16'd4096 |
BINPUT_HOLD |
0 |
EARLY_REREQ |
`ND_DMA_EARLY_REREQ |
EARLY_REREQ |
0 |
Verilog source¶
Verilog/ND-BUS-DEVICES/DMA/circuit/ND_DMA_MASTER.v on GitHub.
Show the Verilog of ND_DMA_MASTER (370 lines)
/**************************************************************************
** ND-100 DMA BUS MASTER **
** **
** The request/grant + memory-reference engine every DMA controller **
** (floppy DMA, SMD) uses to exchange single words directly with the **
** NORD-100 memory system. Protocol per ND-06.016.01 chapter V and **
** docs/nd100-bus-dma.md: **
** **
** 1. Assert BREQ (wired-OR bus request) and wait. **
** 2. The Bus Control Unit answers with BMEM (leading edge freezes **
** request status) and daisy-chains OUTGRANT; the first module **
** with a frozen request receives INGRANT and stops the token. **
** 3. Granted: present the 24-bit physical address on BD with BAPR; **
** BINPUT inactive = memory read, active = memory write. **
** 4. Read: remove the address (no feedback), assert BDAP ("BD free, **
** memory may drive"); memory answers data + BDRY; strobe data on **
** BDRY. Write: present data combined with BDAP; memory strobes on **
** BDAP and answers BDRY = accepted. **
** 5. BDRY leading edge ends the grant; trailing edge releases the **
** bus. One word per allocation - block transfers re-request. **
** **
** BDAP driver note: the master drives BDAP in BOTH directions - **
** verified against PAL_44902A ("PAUSE UNTIL BDAP OCCURS"), see **
** docs/nd100-bus-dma.md section 9 gap 1 resolution. **
** **
** Daisy chain: INGRANT_n in, OUTGRANT_n out. A module that is not **
** requesting passes the token through; a claiming module consumes it. **
** **
** All bus signals active low; BD released = all ones. Client side is a **
** one-word request/ack interface; the device (word counter, core **
** address register) sits on top and re-requests per word. **
** **
** Last reviewed: 11-JUL-2026 **
** Ronny Hansen **
***************************************************************************/
module ND_DMA_MASTER #(
// Safety net only: the real timeout guard is the BCU's (memory out
// of range -> PES bit 14). This local counter stops a hung FSM in
// sim/tbs; 0 disables it.
parameter [15:0] TIMEOUT_TICKS = 16'd4096,
// BINPUT is an ADDRESS-PHASE signal: memory latches the direction
// at BAPR; after BAPR goes inactive BINPUT carries no meaning
// (confirmed 11-JUL-2026 against Figure V.4.2).
// 0 = release BINPUT together with BAPR (correct behavior)
// 1 = hold BINPUT until the BDRY leading edge (conservative
// variant, kept selectable for validation runs)
parameter BINPUT_HOLD = 0,
// Early re-request (open question, both variants unit-tested):
// 0 = a new dma_req is accepted only after dma_ack (BREQ
// re-asserted after the BDRY trailing edge)
// 1 = a dma_req arriving during a transfer is buffered and BREQ
// re-asserted already in the cycle tail (overlapping BDRY)
// `ND_DMA_EARLY_REREQ overrides the default at COMPILE time ONLY - no
// build defines it, so every normal build keeps 0. The dmaSim P3 teeth
// target sets it to 1 (with MIN_GAP 0) to reproduce the back-to-back
// hazard, proving the recovery gap is load-bearing.
`ifdef ND_DMA_EARLY_REREQ
parameter EARLY_REREQ = `ND_DMA_EARLY_REREQ,
`else
parameter EARLY_REREQ = 0,
`endif
// Recovery gap between granted cycles, in sysclk ticks. MEASURED on
// the real CPU-board RTL (full-RTL gate): the memory-side grant and
// decode chain (BLRQ/BCGNT 25/50ns stages) needs time to unwind
// after BDRY before it can latch the next externally strobed
// address - a back-to-back re-request wins the bus grant but the
// RAM cycle never happens (every second read lost). Real ND-100
// controllers re-request at 1.4us+ periods (manual II.4 examples),
// so hardware never hit this. The request is ACCEPTED at any time;
// only the BREQ assertion is deferred.
//
// UNITS - READ THIS: the quantity that matters is a real-TIME interval,
// not a tick count. The target is the ND-100 controller re-request
// period, ~1.4us (manual II.4). "32 ticks" is only that interval
// expressed in sysclk periods AT THE SIM CLOCK. This design does not pin
// one CPU/bus clock frequency (see the clocking docs), so the equivalent
// tick count is clock-dependent, NOT a physical constant - 32 is the
// sim-era default. At a known silicon clock, re-derive it from the time
// (ticks = ceil(1.4us * f_sysclk)); do not carry 32 over blindly.
// `ND_DMA_MIN_GAP_TICKS overrides the default at COMPILE time ONLY - no
// build defines it, so every normal build keeps 32. The dmaSim P3 teeth
// target sets it to 0 (with EARLY_REREQ 1) to reproduce "every second
// read lost", proving the recovery gap is load-bearing.
`ifdef ND_DMA_MIN_GAP_TICKS
parameter [7:0] MIN_GAP_TICKS = `ND_DMA_MIN_GAP_TICKS
`else
parameter [7:0] MIN_GAP_TICKS = 8'd32
`endif
) (
input wire sysclk,
input wire sys_rst_n,
// Client (device core) side: one word per request
input wire dma_req, // pulse: start transfer (when !dma_busy)
input wire dma_wr, // with req: 0 = memory read, 1 = memory write
input wire [23:0] dma_addr, // physical memory address
input wire [15:0] dma_wdata, // write data
output reg [15:0] dma_rdata, // read data, valid with dma_ack
output reg dma_ack, // pulse: transfer complete
output reg dma_err, // with ack: local timeout hit
output wire dma_busy,
// ND-100 bus, master side
output reg BREQ_n, // bus request (wired-OR line)
input wire INGRANT_n, // grant token in (OUTGRANT of the module before us / the BCU)
output wire OUTGRANT_n, // grant token out (to the next module)
input wire BMEM_n, // memory cycle enable from the BCU; leading edge freezes requests
output reg [23:0] BD_23_0_n_OUT, // we drive the bus (address, write data); FFFFFF when released
input wire [23:0] BD_23_0_n_IN, // bus as driven by others (read data from memory)
output reg BAPR_n, // address present strobe
output reg BINPUT_n, // direction: low = write (input to memory), high = read
output reg BDAP_n, // data present / BD-free strobe (master-driven both ways)
input wire BDRY_n // data ready from memory
);
localparam ST_IDLE = 3'd0;
localparam ST_REQ = 3'd1; // BREQ out, waiting for BMEM+INGRANT
localparam ST_ADDR = 3'd2; // address on BD with BAPR
localparam ST_DATA = 3'd3; // BDAP out, waiting for BDRY
localparam ST_END = 3'd4; // BDRY seen: strobe/complete, wait release
reg [2:0] s_state;
reg s_wr;
reg [23:0] s_addr;
reg [15:0] s_wdata;
reg [15:0] s_rd_capture; // last driven bus value seen in the data window
reg s_rd_captured;
reg [1:0] s_rd_idle_cnt; // consecutive undriven-bus ticks while BDRY idle
reg s_pend; // EARLY_REREQ: buffered next request
reg s_pend_wr;
reg [23:0] s_pend_addr;
reg [15:0] s_pend_wdata;
reg s_prev_bmem_n;
reg [15:0] s_tick_cnt;
reg [7:0] s_gap_cnt; // recovery gap countdown (MIN_GAP_TICKS)
reg [1:0] s_phase_cnt; // small strobe-width counter
assign dma_busy = (s_state != ST_IDLE);
wire s_bmem_fall = (BMEM_n == 1'b0) && (s_prev_bmem_n == 1'b1);
// Request freeze (F.2, Figure V.4.1 "DMA REQ. STATUS IS FROZEN"):
// only a request asserted BEFORE the leading edge of BMEM takes part
// in the current grant round. s_req_frozen latches our status at the
// BMEM edge; s_frozen_eff covers the edge cycle itself (the register
// updates one clock later).
reg s_req_frozen;
wire s_frozen_eff = s_req_frozen |
(s_bmem_fall && (s_state == ST_REQ) && (BREQ_n == 1'b0));
// Daisy chain: combinational pass-through, like the search chain on
// the real backplane. We consume the token only when FROZEN-in and
// waiting (Figure V.5.1: an un-frozen requester must keep connecting
// INGRANT to OUTGRANT), and for the whole transfer once granted - if
// the token leaked past a granted master mid-cycle, the next
// requester downstream would start its own cycle on the occupied bus.
wire s_claiming = ((s_state == ST_REQ) && s_frozen_eff) ||
(s_state == ST_ADDR) || (s_state == ST_DATA) ||
(s_state == ST_END);
assign OUTGRANT_n = INGRANT_n | s_claiming;
always @(posedge sysclk or negedge sys_rst_n) begin
if (!sys_rst_n) begin
s_state <= ST_IDLE;
s_wr <= 1'b0;
s_addr <= 24'd0;
s_wdata <= 16'd0;
s_req_frozen <= 1'b0;
s_rd_capture <= 16'd0;
s_rd_captured <= 1'b0;
s_pend <= 1'b0;
s_pend_wr <= 1'b0;
s_pend_addr <= 24'd0;
s_pend_wdata <= 16'd0;
s_prev_bmem_n <= 1'b1;
s_tick_cnt <= 16'd0;
s_gap_cnt <= 8'd0;
s_phase_cnt <= 2'd0;
dma_rdata <= 16'd0;
dma_ack <= 1'b0;
dma_err <= 1'b0;
BREQ_n <= 1'b1;
BD_23_0_n_OUT <= 24'hFFFFFF;
BAPR_n <= 1'b1;
BINPUT_n <= 1'b1;
BDAP_n <= 1'b1;
end else begin
dma_ack <= 1'b0;
if (s_gap_cnt != 8'd0) s_gap_cnt <= s_gap_cnt - 8'd1;
// Freeze latch: sampled at the BMEM leading edge, cleared when the
// round is over (BMEM inactive)
if (BMEM_n == 1'b1) s_req_frozen <= 1'b0;
else if (s_bmem_fall)
s_req_frozen <= (s_state == ST_REQ) && (BREQ_n == 1'b0);
// EARLY_REREQ: buffer one request arriving while busy
if (EARLY_REREQ != 0 && dma_req && (s_state != ST_IDLE) && !s_pend) begin
s_pend <= 1'b1;
s_pend_wr <= dma_wr;
s_pend_addr <= dma_addr;
s_pend_wdata <= dma_wdata;
end
case (s_state)
ST_IDLE: begin
dma_err <= 1'b0;
if (dma_req) begin
s_wr <= dma_wr;
s_addr <= dma_addr;
s_wdata <= dma_wdata;
s_state <= ST_REQ;
s_tick_cnt <= 16'd0;
end
end
// Wait for the allocation: BMEM active AND our request frozen in
// at its leading edge AND the grant token reaching us. A request
// raised after the BMEM edge waits for the next round (F.2).
ST_REQ: begin
// assert the request once the recovery gap has expired
if (BREQ_n == 1'b1 && s_gap_cnt == 8'd0) begin
BREQ_n <= 1'b0;
end
if ((BMEM_n == 1'b0) && (INGRANT_n == 1'b0) && s_frozen_eff) begin
// Granted: drop the request, start the address cycle
BREQ_n <= 1'b1;
BD_23_0_n_OUT <= ~s_addr;
BAPR_n <= 1'b0;
BINPUT_n <= s_wr ? 1'b0 : 1'b1; // low = write
s_phase_cnt <= 2'd2;
s_state <= ST_ADDR;
end
end
// Hold address + BAPR for two clocks, then move to the data part
ST_ADDR: begin
if (s_phase_cnt != 2'd0) begin
s_phase_cnt <= s_phase_cnt - 2'd1;
end else begin
BAPR_n <= 1'b1;
if (BINPUT_HOLD == 0) begin
// Direction was latched by memory at BAPR; BINPUT has no
// meaning in the data phase - release it with BAPR
BINPUT_n <= 1'b1;
end
if (s_wr) begin
// Write: data on BD combined with BDAP
BD_23_0_n_OUT <= ~{8'd0, s_wdata};
end else begin
// Read: remove the address, BD free for memory
BD_23_0_n_OUT <= 24'hFFFFFF;
end
BDAP_n <= 1'b0;
s_rd_captured <= 1'b0;
s_rd_idle_cnt <= 2'd0;
s_state <= ST_DATA;
end
end
// Wait for memory's BDRY. Read data: on the real backplane the
// data holds through BDRY, so strobing at the BDRY leading edge
// equals taking the LAST DRIVEN value of the data window - and
// the latter also tolerates our zero-delay RTL, where the
// internal BDRY25/BDRY50 delay chains make the board release
// its data drivers before the externally visible BDRY edge
// (measured in the full-RTL gate; see docs/nd100-bus-dma.md).
ST_DATA: begin
// Capture only GENUINELY-DRIVEN read data by rejecting BOTH idle
// patterns of this inverted wired-AND bus:
// 0xFFFFFF = idle-high (tb model + the DMA's own idle drive + a
// memory word of 0, which drives ~0 = 0xFFFFFF), and
// 0x000000 = released/undriven (ND120_TOP+FPGA "drive 0 when
// disabled", and the pre-data phase there).
// Real non-zero data is neither (the upper byte is driven 0xFF, e.g.
// data 0x0F00 -> bus 0xFFF0FF; even data 0xFFFF -> bus 0xFF0000).
// For a data value of 0 the bus is 0xFFFFFF at the BDRY edge in BOTH
// environments, so the `~BD_23_0_n_IN` fallback below yields 0 - no
// capture needed. This makes the capture value-independent and works
// for both the standalone tbs (data presented AT BDRY) and ND120_TOP
// (data presented BEFORE BDRY, released to 0xFFFFFF at the edge).
// The old `!= 0xFFFFFF` captured the ND120_TOP pre-data 0x000000 as
// garbage 0xFFFF, corrupting zero-word reads (FLOMON command block
// sector -> 65535 -> floppy boot hang); `!= 0x000000` alone broke the
// tbs (idle-high captured as 0). Rejecting both is correct everywhere.
if (!s_wr && (BD_23_0_n_IN != 24'hFFFFFF) && (BD_23_0_n_IN != 24'h000000)) begin
s_rd_capture <= ~BD_23_0_n_IN[15:0];
s_rd_captured <= 1'b1;
s_rd_idle_cnt <= 2'd0;
end else if (!s_wr && s_rd_captured && (s_rd_idle_cnt != 2'd3)) begin
// Undriven tick: age the capture. A captured value is only
// trusted at the BDRY edge while FRESH (bus driven within the
// last 2 ticks) - see the acceptance test below.
s_rd_idle_cnt <= s_rd_idle_cnt + 2'd1;
end
if (BDRY_n == 1'b0) begin
if (!s_wr) begin
// Accept the captured value only if the drive window ran
// (near-)contiguously into this BDRY edge: the board may
// release its data drivers up to ~2 ticks before the edge
// (measured 0-1 ticks), but a CPU-fetch TRANSIENT leaking
// through the BIF transceiver sits at least a memory-access
// time (~6 ticks) before BDRY, so an age limit of 2 rejects
// every transient - including TRAINS of them, which the
// earlier clear-after-2-idle-ticks rule could miss when a
// new flicker kept resetting the idle counter. For a read
// of a ZERO word the answer drives ~0 = 24'hFFFFFF
// (idle-indistinguishable), so a stale capture used to win
// there; with the age limit the fallback 0 wins instead.
dma_rdata <= (s_rd_captured && (s_rd_idle_cnt <= 2'd2))
? s_rd_capture
: ~BD_23_0_n_IN[15:0];
end
// Leading edge of BDRY terminates the grant: release our
// strobes and data
BDAP_n <= 1'b1;
BD_23_0_n_OUT <= 24'hFFFFFF;
BINPUT_n <= 1'b1;
s_state <= ST_END;
end
end
// Trailing edge of BDRY releases the bus; complete toward the client
ST_END: begin
if (EARLY_REREQ != 0 && s_pend) begin
BREQ_n <= 1'b0; // re-assert in the cycle tail (overlaps BDRY)
end
if (BDRY_n == 1'b1) begin
dma_ack <= 1'b1;
s_gap_cnt <= MIN_GAP_TICKS;
if (EARLY_REREQ != 0 && s_pend) begin
s_wr <= s_pend_wr;
s_addr <= s_pend_addr;
s_wdata <= s_pend_wdata;
s_pend <= 1'b0;
s_tick_cnt <= 16'd0;
s_state <= ST_REQ;
end else begin
s_state <= ST_IDLE;
end
end
end
default: s_state <= ST_IDLE;
endcase
// Local hang guard (sim safety net; the real guard is the BCU's)
if (TIMEOUT_TICKS != 16'd0 && s_state != ST_IDLE) begin
s_tick_cnt <= s_tick_cnt + 16'd1;
if (s_tick_cnt >= TIMEOUT_TICKS) begin
BREQ_n <= 1'b1;
BAPR_n <= 1'b1;
BDAP_n <= 1'b1;
BINPUT_n <= 1'b1;
BD_23_0_n_OUT <= 24'hFFFFFF;
dma_err <= 1'b1;
dma_ack <= 1'b1;
s_pend <= 1'b0;
s_gap_cnt <= MIN_GAP_TICKS;
s_state <= ST_IDLE;
end
end
s_prev_bmem_n <= BMEM_n;
end
end
endmodule
