ND_FLOPPY_PIO¶
Source: Verilog/ND-BUS-DEVICES/FLOPPY/circuit/ND_FLOPPY_PIO.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules
Schematic¶
Schematic not generated: netlistsvg failed: RangeError: Maximum call stack size exceeded.
Description¶
ND-100 FLOPPY DISK CONTROLLER, PIO INTERFACE (3027 style) Register core matching the C reference models: Verilog/simDevices/NDDevices.cpp (class FloppyPIO) nd100x src/devices/floppy/deviceFloppyPIO.c Register spec: ND-11.012.01 / ND-11.015.01 IOX 1560+0 R read data buffer (word, auto-increment pointer) +1 W write data buffer (word, auto-increment pointer) +2 R read status register 1 +3 W write control word +4 R read status register 2 +5 W write drive address (b0=1) / write difference (b0=0) +6 R read test data (test mode) +7 W write sector (b0 n/a) / write test byte (test mode) Ident code 021 (octal), interrupt level 11. Commands (control word b8-15, highest set bit wins): b8 format track, b9 write data, b10 write deleted data, b11 read ID, b12 read data, b13 seek, b14 recalibrate, b15 control reset Completion after the disk backend finishes + DELAY_TICKS; raises level-11 interrupt if enabled. IDENT clears pending + int enable. The 1024-word interface buffer lives here (BRAM). The disk image is behind the disk_* backend port: the sim harness serves an image file, hardware serves the SDRAM-cached image with SD write-through. NOT ported from the C models (ask before adding - documented hacks): - RSR1 read "magic" bits 9/10/11 derived from the buffer pointer (exists only to satisfy a diagnostic test program) - autoload's hardcoded 388-byte boot blob (real hardware reads track 0 sector 1; FLO-MON must be on the diskette) - deleted-sector shadow array (no room in the image format) Last reviewed: 11-JUL-2026 Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
BASE_ADDR |
16'o001560 |
IDENT_CODE |
16'o000021 |
INT_LEVEL |
4'd11 |
DELAY_TICKS |
16'd3000 // C model: IODELAY_FLOPPY |

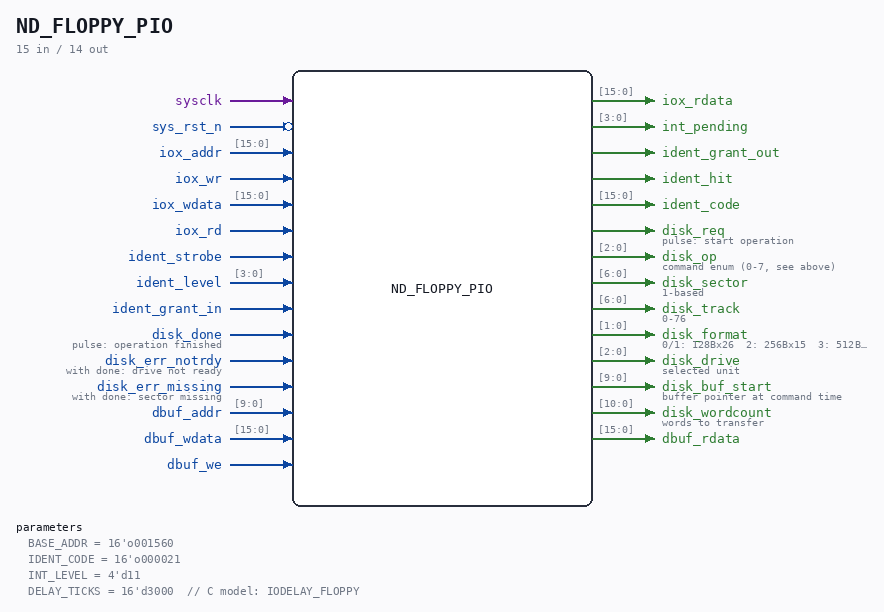

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
|
| input | 1 |
sys_rst_n (active low) |
|
| input | [15:0] |
iox_addr |
|
| input | 1 |
iox_wr |
|
| input | [15:0] |
iox_wdata |
|
| input | 1 |
iox_rd |
|
| output | [15:0] |
iox_rdata |
|
| output | [3:0] |
int_pending |
|
| input | 1 |
ident_strobe |
|
| input | [3:0] |
ident_level |
|
| input | 1 |
ident_grant_in |
|
| output | 1 |
ident_grant_out |
|
| output | 1 |
ident_hit |
|
| output | [15:0] |
ident_code |
|
| output | 1 |
disk_req |
pulse: start operation |
| output | [2:0] |
disk_op |
command enum (0-7, see above) |
| output | [6:0] |
disk_sector |
1-based |
| output | [6:0] |
disk_track |
0-76 |
| output | [1:0] |
disk_format |
0/1: 128Bx26 2: 256Bx15 3: 512Bx8 |
| output | [2:0] |
disk_drive |
selected unit |
| output | [9:0] |
disk_buf_start |
buffer pointer at command time |
| output | [10:0] |
disk_wordcount |
words to transfer |
| input | 1 |
disk_done |
pulse: operation finished |
| input | 1 |
disk_err_notrdy |
with done: drive not ready |
| input | 1 |
disk_err_missing |
with done: sector missing |
| input | [9:0] |
dbuf_addr |
|
| input | [15:0] |
dbuf_wdata |
|
| input | 1 |
dbuf_we |
|
| output | [15:0] |
dbuf_rdata |
Verilog source¶
Verilog/ND-BUS-DEVICES/FLOPPY/circuit/ND_FLOPPY_PIO.v on GitHub.
Show the Verilog of ND_FLOPPY_PIO (412 lines)
/**************************************************************************
** ND-100 FLOPPY DISK CONTROLLER, PIO INTERFACE (3027 style) **
** **
** Register core matching the C reference models: **
** Verilog/simDevices/NDDevices.cpp (class FloppyPIO) **
** nd100x src/devices/floppy/deviceFloppyPIO.c **
** Register spec: ND-11.012.01 / ND-11.015.01 **
** **
** IOX 1560+0 R read data buffer (word, auto-increment pointer) **
** +1 W write data buffer (word, auto-increment pointer) **
** +2 R read status register 1 **
** +3 W write control word **
** +4 R read status register 2 **
** +5 W write drive address (b0=1) / write difference (b0=0) **
** +6 R read test data (test mode) **
** +7 W write sector (b0 n/a) / write test byte (test mode) **
** **
** Ident code 021 (octal), interrupt level 11. **
** Commands (control word b8-15, highest set bit wins): **
** b8 format track, b9 write data, b10 write deleted data, b11 read **
** ID, b12 read data, b13 seek, b14 recalibrate, b15 control reset **
** Completion after the disk backend finishes + DELAY_TICKS; raises **
** level-11 interrupt if enabled. IDENT clears pending + int enable. **
** **
** The 1024-word interface buffer lives here (BRAM). The disk image is **
** behind the disk_* backend port: the sim harness serves an image **
** file, hardware serves the SDRAM-cached image with SD write-through. **
** **
** NOT ported from the C models (ask before adding - documented hacks): **
** - RSR1 read "magic" bits 9/10/11 derived from the buffer pointer **
** (exists only to satisfy a diagnostic test program) **
** - autoload's hardcoded 388-byte boot blob (real hardware reads **
** track 0 sector 1; FLO-MON must be on the diskette) **
** - deleted-sector shadow array (no room in the image format) **
** **
** Last reviewed: 11-JUL-2026 **
** Ronny Hansen **
***************************************************************************/
module ND_FLOPPY_PIO #(
parameter [15:0] BASE_ADDR = 16'o001560,
parameter [15:0] IDENT_CODE = 16'o000021,
parameter [3:0] INT_LEVEL = 4'd11,
parameter [15:0] DELAY_TICKS = 16'd3000 // C model: IODELAY_FLOPPY
) (
input wire sysclk,
input wire sys_rst_n,
// Device bus (from ND_BUS_SLAVE)
input wire [15:0] iox_addr,
input wire iox_wr,
input wire [15:0] iox_wdata,
input wire iox_rd,
output reg [15:0] iox_rdata,
output wire [3:0] int_pending,
input wire ident_strobe,
input wire [3:0] ident_level,
input wire ident_grant_in,
output wire ident_grant_out,
output wire ident_hit,
output wire [15:0] ident_code,
// Disk image backend (sim: file image; hardware: SDRAM cache + SD)
output reg disk_req, // pulse: start operation
output reg [2:0] disk_op, // command enum (0-7, see above)
output wire [6:0] disk_sector, // 1-based
output wire [6:0] disk_track, // 0-76
output wire [1:0] disk_format, // 0/1: 128Bx26 2: 256Bx15 3: 512Bx8
output wire [2:0] disk_drive, // selected unit
output wire [9:0] disk_buf_start, // buffer pointer at command time
output wire [10:0] disk_wordcount, // words to transfer
input wire disk_done, // pulse: operation finished
input wire disk_err_notrdy, // with done: drive not ready
input wire disk_err_missing, // with done: sector missing
// Backend port into the interface buffer
input wire [9:0] dbuf_addr,
input wire [15:0] dbuf_wdata,
input wire dbuf_we,
output reg [15:0] dbuf_rdata
);
// Commands (control-word bit - 8)
localparam CMD_FORMAT = 3'd0;
localparam CMD_WRITE = 3'd1;
localparam CMD_WRITEDEL = 3'd2;
localparam CMD_READID = 3'd3;
localparam CMD_READ = 3'd4;
localparam CMD_SEEK = 3'd5;
localparam CMD_RECAL = 3'd6;
localparam CMD_CTLRESET = 3'd7;
// Interface buffer, 1024 x 16 (BRAM)
reg [15:0] s_buffer[0:1023];
reg [9:0] s_bufptr;
// Status register 1 bits
reg s_int_enabled; // b1
reg s_busy; // b2
reg s_rft; // b3 device ready for transfer
reg s_deleted; // b5
reg s_rw_complete; // b6
reg s_seek_complete; // b7
reg s_timeout; // b8
// Status register 2 bits
reg s_not_ready; // b8
reg s_write_prot; // b9
reg s_missing; // b11
reg s_crc_err; // b12
reg s_overrun; // b14
wire [15:0] s_rsr2 = {1'b0, s_overrun, 1'b0, s_crc_err, s_missing, 1'b0,
s_write_prot, s_not_ready, 8'd0};
wire s_rsr2_or = (s_rsr2 != 16'd0);
wire [15:0] s_rsr1 = {7'd0, s_timeout, s_seek_complete, s_rw_complete,
s_deleted, s_rsr2_or, s_rft, s_busy, s_int_enabled, 1'b0};
// Geometry / addressing
reg [1:0] s_format; // formatSelect
reg [2:0] s_drive; // selected unit
reg s_drive_sel; // a drive is selected
reg [6:0] s_track;
reg [6:0] s_sector; // 1-based
reg s_auto_incr;
reg s_test_mode;
reg [7:0] s_test_byte;
reg s_testmode_hi; // test-data byte phase
wire [4:0] s_sect_per_track = (s_format == 2'd2) ? 5'd15 :
(s_format == 2'd3) ? 5'd8 : 5'd26;
wire [10:0] s_words_per_sector = (s_format == 2'd2) ? 11'd128 :
(s_format == 2'd3) ? 11'd256 : 11'd64;
// Command engine
reg [2:0] s_cmd;
reg s_cmd_running; // waiting for disk_done
reg s_delay_running; // completion delay after disk_done
reg [15:0] s_delay_cnt;
reg [9:0] s_cmd_buf_start;
assign disk_sector = s_sector;
assign disk_track = s_track;
assign disk_format = s_format;
assign disk_drive = s_drive;
assign disk_buf_start = s_cmd_buf_start;
assign disk_wordcount = s_words_per_sector;
// Address decode
wire s_addressed = (iox_addr[15:3] == BASE_ADDR[15:3]);
wire [2:0] s_reg = iox_addr[2:0];
// Interrupt: enabled AND ready (evaluated continuously)
wire s_pending = s_int_enabled && s_rft;
assign int_pending = {(INT_LEVEL == 4'd13) && s_pending,
(INT_LEVEL == 4'd12) && s_pending,
(INT_LEVEL == 4'd11) && s_pending,
(INT_LEVEL == 4'd10) && s_pending};
wire s_ident_answer = ident_strobe && ident_grant_in &&
(ident_level == INT_LEVEL) && s_pending;
assign ident_hit = s_ident_answer;
assign ident_code = s_ident_answer ? IDENT_CODE : 16'd0;
assign ident_grant_out = ident_grant_in && !s_ident_answer;
// Read mux (OR-bus: 0 when not addressed)
always @(*) begin
iox_rdata = 16'd0;
if (iox_rd && s_addressed) begin
case (s_reg)
3'd0: iox_rdata = s_buffer[s_bufptr];
3'd2: iox_rdata = s_rsr1;
3'd4: iox_rdata = s_rsr2;
3'd6: iox_rdata = 16'd0; // test data handled in the clocked block
default: iox_rdata = 16'd0;
endcase
end
end
// Backend buffer port (read is combinational like the CPU-side mux)
always @(*) begin
dbuf_rdata = s_buffer[dbuf_addr];
end
// Command decode: highest set bit of the control-word high byte wins
function [2:0] cmd_decode(input [7:0] hi);
integer k;
begin
cmd_decode = 3'd0;
for (k = 0; k < 8; k = k + 1) begin
if (hi[k]) cmd_decode = k[2:0];
end
end
endfunction
wire s_wr_here = iox_wr && s_addressed;
wire [2:0] s_cmd_dec = cmd_decode(iox_wdata[15:8]);
always @(posedge sysclk or negedge sys_rst_n) begin
if (!sys_rst_n) begin
s_bufptr <= 10'd0;
s_int_enabled <= 1'b0;
s_busy <= 1'b0;
s_rft <= 1'b1; // C model Reset(): ready for transfer
s_deleted <= 1'b0;
s_rw_complete <= 1'b0;
s_seek_complete <= 1'b0;
s_timeout <= 1'b0;
s_not_ready <= 1'b0;
s_write_prot <= 1'b0;
s_missing <= 1'b0;
s_crc_err <= 1'b0;
s_overrun <= 1'b0;
s_format <= 2'd0;
s_drive <= 3'd0;
s_drive_sel <= 1'b0;
s_track <= 7'd0;
s_sector <= 7'd1;
s_auto_incr <= 1'b0;
s_test_mode <= 1'b0;
s_test_byte <= 8'd0;
s_testmode_hi <= 1'b0;
s_cmd <= 3'd0;
s_cmd_running <= 1'b0;
s_delay_running <= 1'b0;
s_delay_cnt <= 16'd0;
s_cmd_buf_start <= 10'd0;
disk_req <= 1'b0;
disk_op <= 3'd0;
end else begin
disk_req <= 1'b0;
// Backend writes into the interface buffer (sector read fill)
if (dbuf_we) begin
s_buffer[dbuf_addr] <= dbuf_wdata;
end
// CPU data-buffer access: auto-increment pointer
if (iox_rd && s_addressed && (s_reg == 3'd0)) begin
s_bufptr <= s_bufptr + 10'd1;
end
if (s_wr_here && (s_reg == 3'd1)) begin
s_buffer[s_bufptr] <= iox_wdata;
s_bufptr <= s_bufptr + 10'd1;
end
// Control word
if (s_wr_here && (s_reg == 3'd3)) begin
s_int_enabled <= iox_wdata[1];
s_test_mode <= iox_wdata[3];
if (iox_wdata[4]) begin // device clear
s_drive_sel <= 1'b0;
s_bufptr <= 10'd0;
s_rft <= 1'b1;
s_not_ready <= 1'b0;
s_write_prot<= 1'b0;
s_missing <= 1'b0;
s_crc_err <= 1'b0;
s_overrun <= 1'b0;
end
if (iox_wdata[5]) begin // clear interface buffer address
s_bufptr <= 10'd0;
s_rft <= 1'b1;
end
if (iox_wdata[15:8] != 8'd0) begin
// A command: clear errors and completion flags, go busy
s_busy <= 1'b1;
s_rft <= 1'b0;
s_rw_complete <= 1'b0;
s_seek_complete <= 1'b0;
s_deleted <= 1'b0;
s_not_ready <= 1'b0;
s_write_prot <= 1'b0;
s_missing <= 1'b0;
s_crc_err <= 1'b0;
s_overrun <= 1'b0;
s_cmd <= s_cmd_dec;
s_cmd_buf_start <= s_bufptr;
case (s_cmd_dec)
CMD_CTLRESET: begin
// No interrupt per documentation; just not busy
s_busy <= 1'b0;
end
CMD_RECAL: begin
s_track <= 7'd0;
s_sector <= 7'd1;
s_delay_running <= 1'b1;
s_delay_cnt <= DELAY_TICKS;
end
CMD_SEEK: begin
s_delay_running <= 1'b1;
s_delay_cnt <= DELAY_TICKS;
end
CMD_READID: begin
// ID field: track / zero, sector / zero (see C model note:
// byte 3 hex 02 removed - FLOPPY-FU-1986F complains)
s_buffer[0] <= {1'b0, s_track, 8'd0};
s_buffer[1] <= {1'b0, s_sector, 8'd0};
s_bufptr <= 10'd0;
s_cmd_buf_start <= 10'd0;
s_delay_running <= 1'b1;
s_delay_cnt <= DELAY_TICKS;
end
default: begin
// READ / WRITE / WRITEDEL / FORMAT go to the disk backend
if ({2'b0, s_sector} > {2'b0, s_sect_per_track}) begin
s_missing <= 1'b1;
s_rft <= 1'b1;
s_busy <= 1'b0;
end else if (!s_drive_sel) begin
s_not_ready <= 1'b1;
s_busy <= 1'b0;
end else begin
disk_req <= 1'b1;
disk_op <= s_cmd_dec;
s_cmd_running <= 1'b1;
end
end
endcase
end
end
// Drive address / difference
if (s_wr_here && (s_reg == 3'd5)) begin
if (iox_wdata[0]) begin
// Write drive address
s_drive <= iox_wdata[10:8];
s_drive_sel <= !iox_wdata[11];
s_format <= iox_wdata[15:14];
end else begin
// Write difference: move head, clamp track to 0..76
if (iox_wdata[15]) begin
s_track <= (({1'b0, s_track} + {1'b0, iox_wdata[14:8]}) > 8'd76)
? 7'd76 : (s_track + iox_wdata[14:8]);
end else begin
s_track <= (s_track < iox_wdata[14:8]) ? 7'd0
: (s_track - iox_wdata[14:8]);
end
end
end
// Sector / test byte
if (s_wr_here && (s_reg == 3'd7)) begin
if (s_test_mode) begin
s_test_byte <= iox_wdata[15:8];
end else begin
s_sector <= iox_wdata[14:8];
s_auto_incr <= iox_wdata[15];
end
end
// Test-data read: shift the test byte into the buffer (C model)
if (iox_rd && s_addressed && (s_reg == 3'd6) && s_test_mode) begin
if (s_testmode_hi) begin
s_buffer[s_bufptr] <= {s_buffer[s_bufptr][15:8], s_test_byte};
s_bufptr <= s_bufptr + 10'd1;
s_testmode_hi <= 1'b0;
end else begin
s_buffer[s_bufptr] <= {s_test_byte, s_buffer[s_bufptr][7:0]};
s_testmode_hi <= 1'b1;
end
end
// Disk backend finished: start the completion delay
if (s_cmd_running && disk_done) begin
s_cmd_running <= 1'b0;
if (disk_err_notrdy) begin
s_not_ready <= 1'b1;
s_busy <= 1'b0;
end else if (disk_err_missing) begin
s_missing <= 1'b1;
s_busy <= 1'b0;
end else begin
// Data commands advance the buffer pointer by one sector
if (s_cmd != CMD_FORMAT) begin
s_bufptr <= s_cmd_buf_start + s_words_per_sector[9:0];
end
s_delay_running <= 1'b1;
s_delay_cnt <= DELAY_TICKS;
end
end
// Completion delay -> completion flags + interrupt condition
if (s_delay_running) begin
if (s_delay_cnt != 16'd0) begin
s_delay_cnt <= s_delay_cnt - 16'd1;
end else begin
s_delay_running <= 1'b0;
s_busy <= 1'b0;
s_rft <= 1'b1;
if (s_cmd == CMD_SEEK || s_cmd == CMD_RECAL) begin
s_seek_complete <= 1'b1;
end else begin
s_rw_complete <= 1'b1;
if (s_auto_incr && (s_sector <= {2'b0, s_sect_per_track})) begin
s_sector <= s_sector + 7'd1;
end
end
end
end
// IDENT answered: clear the enable bit (pending follows)
if (s_ident_answer) begin
s_int_enabled <= 1'b0;
end
end
end
endmodule
