ND_SMD¶
Source: Verilog/ND-BUS-DEVICES/SMD/circuit/ND_SMD.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND_SMD
- instance path: CORE.gen_smd.SMD_1540
Used in: ND120_CORE (Simulation)
Contains: no other modules.
Module hierarchy - All modules

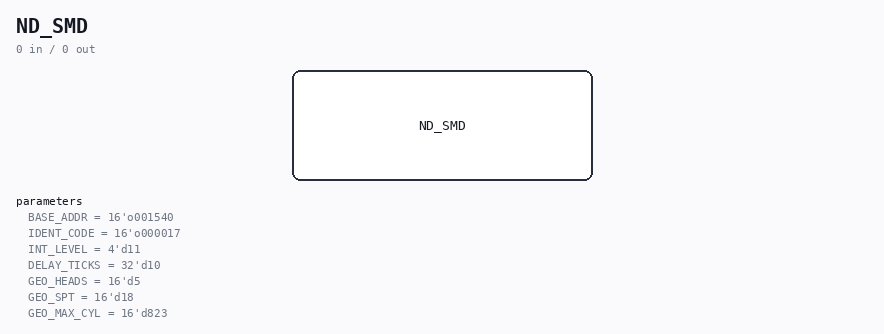

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.gen_smd.SMD_1540. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Parameters¶
| Parameter | Default |
|---|---|
BASE_ADDR |
16'o001540 |
IDENT_CODE |
16'o000017 |
INT_LEVEL |
4'd11 |
DELAY_TICKS |
32'd10 |
GEO_HEADS |
16'd5 |
GEO_SPT |
16'd18 |
GEO_MAX_CYL |
16'd823 |
Verilog source¶
Verilog/ND-BUS-DEVICES/SMD/circuit/ND_SMD.v on GitHub.
Show the Verilog of ND_SMD (1111 lines)
`include "nd_storage_status.vh"
/**************************************************************************
** ND SMD DISC CONTROLLER, 15 MHz (ND632 / PCB 3043+3044), DMA **
** **
** Register core made 1:1 faithful to the AUTHORITATIVE C# oracle **
** RetroCore/Emulated.HW/ND/CPU/NDBUS/NDBusDiscControllerSMD.cs **
** and its proven, host-gated C port **
** ND-BUS-DEVICES/portable/src/nd_smd.c (nd_smd_*). **
** Where a behaviour is a documented DIVERGENCE in the C port, this RTL **
** follows the same choice; those are marked "DIVERGENCE:" below. **
** **
** CONTROLLER TYPE is a strap (parameter HAS_WC_FLIPFLOP, DEFAULT 0): **
** 0 = ECC / BIG-DISC card (DEFAULT): NO flip-flops - each of the Core **
** Address / Word Count registers loads its full value in ONE write **
** and reads back in one, and Core Address bits 16-17 come from **
** control-word bits 5-6. This is the type that BOOTS: the mass- **
** storage microcode writes the word counter ONCE (002000), which **
** loads 1024 only on a single-write card. A plain build boots. **
** 1 = 15/10 MHz card (opt-in): it HAS the address/word-count FLIP-FLOPS, **
** so the 24-bit Core Address and Word Count registers are each **
** loaded by TWO writes (HI 8 bits, then LO 16) and read back LO then **
** HI; control-word bits 5-6 (address 16-17) are IGNORED (old 10MHz). **
** Mirrors the C core nd_smd.has_flipflops exactly. **
** **
** UNLIKE the floppy card there is NO command block in ND memory. The **
** guest loads the transfer parameters into controller registers by IOX **
** writes, then a GO (control word +5, bit 2 = active). ExecuteGO **
** converts C/H/S -> LBA, bounds-checks the address, and moves the data. **
** **
** Register map (offset from base, ALL multiplexed by CWR = control **
** word bit 15, mirrored in status bit 15): **
** +0 R Core Address (CWR=0) / Word Counter (CWR=1) [LO then HI] **
** +1 W Load Core Address (CWR=0, HI then LO) / count-mem (CWR=1) **
** +2 R Seek Condition (CWR=0) / ECC Count (CWR=1) **
** +3 W Load Block Address I (CWR=0) / II (CWR=1) **
** +4 R Status (CWR=0, READING IT RESETS THE FLIP-FLOPS) / ECC Pattern **
** +5 W Load Control Word (GO / opcode) **
** +6 R Read Block Address I (CWR=0) / II (CWR=1) **
** +7 W Load Word Counter (CWR=0, HI then LO) / Load ECC Control (CWR=1)**
** **
** Control word (+5): b0 int-enable (on NOT active), b1 error-int enable, **
** b2 ACTIVE (GO), b3 test mode, b4 device clear, b5-6 addr16/17 (old **
** card, ignored), b7-9 unit select, b10 marginal recovery, b11-14 **
** device operation (M0..M9), b15 register multiplex (CWR). **
** **
** Status (+4, CWR=0), oracle ReadStatusRegister(): **
** b0 int-enabled b1 error-int-enabled b2 active **
** b3 ready-for-xfer b4 inclusive-OR error b5 illegal load **
** b6 timeout b7 hardware error 2 b8 address mismatch **
** b10 comparer error b13 disk unit NOT ready (FORCED 1 when no unit **
** selected) b14 on cylinder b15 register multiplex. **
** Inclusive-OR (b4) = OR(illegal, timeout, hwErr2, addrMismatch, **
** comparerErr, seekErr) - the UNION taken by the C port so neither **
** reference's "error present" expectation is lost. **
** **
** Seek condition (+2, CWR=0): b0-7 seek-complete (one per unit), b8-10 **
** unit selected, b11 seek error (only M7 clears it), b12 = 1 (15 MHz **
** card id, SINTRAN uses it to tell the 15 MHz card from the NORD-10). **
** **
** Interrupt (level 11) is a LATCHED line driven at the oracle's exact **
** SetInterruptBit() events: raised on completion iff int-enable is set **
** (ReadEnd), raised on error iff error-int-enable is set (HandleError), **
** re-evaluated on a non-GO control word, dropped when int-enable is **
** cleared, and cleared on IDENT (which also clears int-enable). **
** **
** HARDWARE-CONSTRAINED DIVERGENCE (the only structural gap vs the **
** oracle): the oracle's ExecuteGO pre-checks that the unit is ATTACHED **
** and (for writes) not WRITE-PROTECTED using media metadata. This RTL **
** controller has no such backend metadata port, so those two faults are **
** surfaced the hardware way instead - the disk/DMA backend raises **
** disk_err_in / dma_err during the transfer, which this core turns into **
** the same HandleError (disk-unit-not-ready + error interrupt). The **
** address-mismatch bound (b8) IS pre-checked, against the geometry given **
** by the GEO_* parameters (default = the 75 MB disk the C# oracle fixes **
** every unit to). A backend that owns a different geometry should pass **
** matching GEO_* parameters. **
** **
** BOOT MODE ('1540&', BPUN byte-server): the device-agnostic microcode **
** loader (writes +3 bit 2, polls +2 ready, reads +0) is answered from **
** reset until the FIRST Load Control Word - preserved BYTE-FOR-BYTE from **
** the silicon-validated implementation; it is not part of the oracle. **
** A +1 or +7 write ALSO leaves boot mode: that loader never writes those **
** registers, but the MASS STORAGE LOAD microroutine ('21540&', CSA **
** o2217) starts with two +1 writes and a +7 write, and boot mode used to **
** discard them - so the GO that followed ran with a zero word count and **
** loaded nothing. **
** **
** Thumbwheels (all level 11): tw0 01540/017, tw1 01550/020, **
** tw2 00540/023, tw3 00550/006 (octal). This instance = tw0 defaults. **
** **
** Last reviewed: 1-AUG-2026 **
** Ronny Hansen **
***************************************************************************/
module ND_SMD #(
parameter [15:0] BASE_ADDR = 16'o001540,
parameter [15:0] IDENT_CODE = 16'o000017,
parameter [3:0] INT_LEVEL = 4'd11,
// How long the controller stays ACTIVE after a GO before it reports
// completion, in sysclk cycles. Do NOT set this by hand at an
// instantiation: it is a TIME, so the board wrapper computes it from its
// own clock frequency (see ND120_CORE.v, which turns a millisecond figure
// into cycles). The module default stays small so the unit testbenches
// run fast. 32 bits: 8 ms at 100 MHz is 800,000 cycles.
parameter [31:0] DELAY_TICKS = 32'd10,
// Geometry for the ExecuteGO address-mismatch bound. Default = the
// 75 MB SMD disk (5 heads, 18 sectors/track, 823 cylinders), which is
// the geometry the C# oracle fixes every unit to. 1024-byte sectors.
parameter [15:0] GEO_HEADS = 16'd5,
parameter [15:0] GEO_SPT = 16'd18,
parameter [15:0] GEO_MAX_CYL = 16'd823,
// Controller-type strap (docs/design/SMD-CONTROLLER-TYPE-SEAM.md).
// 0 = ECC / BIG-DISC controller (THE DEFAULT): the Core Address and Word
// Counter registers have NO flip-flops - each loads its FULL value in
// a SINGLE write, the reads return the full value every time, and Core
// Address bits 16-17 come from control-word bits 5-6. This is the card
// that BOOTS: the mass-storage microcode (CSA o2217) writes the Word
// Counter ONCE with 002000, which loads 1024 on a single-write card.
// 1 = 15/10 MHz SMD (ND632): the 24-bit Core Address and Word Counter
// registers load via a HI-then-LO TWO-write flip-flop, and the reads
// return LO then HI. Control-word bits 5-6 are ignored (old 10 MHz).
// Mirrors the C core's nd_smd.has_flipflops EXACTLY (nd_smd_set_controller);
// the equivalence gate drives both sides to the same value.
//
// DEFAULT IS 0 (no flip-flop) so a plain build BOOTS the SMD image with no
// define. The 15 MHz two-write card is the opt-in: set HAS_WC_FLIPFLOP(1)
// (the three flip-flop unit testbenches do exactly that, and ND120_CORE
// exposes it via -DND120_SMD_15MHZ). A parameter, not an `input wire`,
// because an unwired input floats to Z and would read as 0 anyway - the
// parameter makes the choice explicit and constant-foldable.
parameter HAS_WC_FLIPFLOP = 0,
// WORD-COUNTER protocol, SEPARATE from the card-type strap above.
// Defaults to the card type, but the ND-120 needs them to differ: the
// mass-storage microroutine at CSA o2217 writes the MEMORY ADDRESS with two
// +1 accesses (flip-flop protocol) and the WORD COUNT with ONE +7 write of
// 002000, which only loads 1024 words if the word counter is single-access.
// Ground truth: ND-BUS-DEVICES/SMD/sim/traces/mass-load-21540.trace.
// Measured in nd100x 03-AUG-2026 (ND100X_SMD_TYPE=smd15 ND100X_SMD_WC_FF=0):
// DISC-TEMA scores IDENTICALLY with the word counter single-access, so it
// constrains only the memory address - the two requirements are compatible.
// RetroCore models the same idea as four independent flip-flop flags.
parameter HAS_WCNT_FLIPFLOP = HAS_WC_FLIPFLOP
) (
input wire sysclk,
input wire sys_rst_n,
// Device bus (from ND_BUS_SLAVE) - IOX slave side
input wire [15:0] iox_addr,
input wire iox_wr,
input wire [15:0] iox_wdata,
input wire iox_rd,
output reg [15:0] iox_rdata,
output wire iox_sel, // 1 = this core owns the captured IOX address
output wire [3:0] int_pending,
input wire ident_strobe,
input wire [3:0] ident_level,
input wire ident_grant_in,
output wire ident_grant_out,
output wire ident_hit,
output wire [15:0] ident_code,
// DMA master client port (to ND_DMA_MASTER)
output reg dma_req,
output reg dma_wr,
output reg [23:0] dma_addr,
output reg [15:0] dma_wdata,
input wire [15:0] dma_rdata,
input wire dma_ack,
input wire dma_err,
input wire dma_busy,
// Disk backend: chunk transfers through the internal buffer.
output reg disk_start,
output reg disk_req,
output reg disk_wr,
output wire [15:0] disk_blkaddr1, // block address I (head/sector)
output wire [15:0] disk_blkaddr2, // block address II (cylinder)
output wire [2:0] disk_unit,
output wire [10:0] disk_wordcount, // words in the current chunk
input wire disk_done,
input wire disk_err_in,
// WHY the backend failed (nd_storage_status.vh), valid with disk_done
// when disk_err_in. Mapped below onto status bits THIS card's manual
// already defines - the code itself never reaches the guest.
input wire [3:0] disk_err_code,
input wire [9:0] dbuf_addr,
input wire [15:0] dbuf_wdata,
input wire dbuf_we,
output reg [15:0] dbuf_rdata
);
localparam [10:0] BUF_WORDS = 11'd1024;
// ---- controller registers (oracle ControllerRegs) ----
reg [15:0] s_core_addr; // core address bits 0-15 (LO)
reg [7:0] s_core_addr_hi; // core address bits 16-23 (HI)
reg [15:0] s_word_cnt; // word counter bits 0-15 (LO)
reg [7:0] s_word_cnt_hi; // word counter bits 16-23 (HI)
reg [15:0] s_blkaddr1; // block address I (head b8-15, sector b0-7)
reg [15:0] s_blkaddr2; // block address II (cylinder)
reg [15:0] s_ecc_count; // ECC count register (bit0 of ECC control resets it)
// ---- unit selection + per-unit state ----
reg [2:0] s_sel_unit; // raw unit from control word bits 7-9
reg s_disk_selected; // a unit 0..3 is selected
reg [7:0] s_on_cyl; // per-unit on-cylinder (status b14)
reg [7:0] s_not_ready; // per-unit disk-not-ready (status b13)
reg [7:0] s_seek_complete; // seek-condition b0-7 (one per unit)
// ---- status flags ----
reg s_cwr; // register multiplex bit (control b15)
reg s_int_en; // control b0
reg s_errint_en; // control b1
reg s_active; // status b2
reg s_rft; // status b3 - ready for transfer
reg s_test_mode; // control b3
reg s_marginal; // control b10
reg s_illegal; // status b5
reg s_time_out; // status b6 (never set in this port, kept for parity)
reg s_hw_err2; // status b7
reg s_addr_mismatch; // status b8
reg s_comparer_err; // status b10
// status b11 = DMA CHANNEL ERROR (the oracle's SMDStatusRegister names bit 11
// "DMA Channel error", reserved/never set there because its transfer is a
// memcpy). The RTL has a real DMA master that CAN fault, and a bus/memory
// fault used to be indistinguishable from a media fault (both ended in
// err_active with only "disk unit not ready" showing). Setting b11 tells a
// diagnostic which side failed. NOT part of the inclusive-OR (b4): the
// oracle's hardwareError does not include bit 11.
reg s_dma_ch_err; // status b11
reg s_seek_err; // seek-condition b11
// ---- flip-flops (15 MHz card: two-word HI/LO loads, cleared by a
// status read or a device clear) ----
reg s_maw_ff; // core-address WRITE flip-flop
reg s_mar_ff; // core-address READ flip-flop
reg s_wcw_ff; // word-counter WRITE flip-flop
reg s_wcr_ff; // word-counter READ flip-flop
reg s_wc_eccw_ff; // ECC-control WRITE flip-flop
reg s_irq; // latched level-11 interrupt line
`ifdef ND120_SMD_TRACE
reg [31:0] s_trace_cyc; // sysclk counter for the simulation-only trace
`endif
// ---- boot mode (not in the oracle; preserved verbatim) ----
reg s_boot_mode;
reg s_boot_fetch;
reg s_boot_loaded;
reg [10:0] s_bootptr;
assign disk_blkaddr1 = s_blkaddr1;
assign disk_blkaddr2 = s_blkaddr2;
assign disk_unit = s_sel_unit;
// ---- internal buffer ----
// Async-read arrays do NOT map to Gowin BSRAM (they explode into ~16k FF +
// LUT mux trees - measured 43k LUT4 standalone), so the buffer is a simple
// dual-port RAM: one muxed write port, one registered read port whose
// address follows the active consumer (see the RAM port block above the
// main FSM). Same refactor as ND_FLOPPY_DMA's buffer. dbuf_rdata is driven
// from the registered read there.
reg [15:0] s_buffer[0:1023];
// ---- decode ----
wire s_addressed = (iox_addr[15:3] == BASE_ADDR[15:3]);
assign iox_sel = s_addressed; // slave gates its BDRY response on this
wire [2:0] s_reg = iox_addr[2:0];
wire s_wr_here = iox_wr && s_addressed;
wire s_rd_here = iox_rd && s_addressed;
// ---- status / seek / ECC assembly (oracle ReadStatusRegister etc.) ----
wire s_incl_or = s_illegal | s_time_out | s_hw_err2 |
s_addr_mismatch | s_comparer_err | s_seek_err;
// disk-unit-not-ready is FORCED 1 when no unit is selected.
wire s_oncyl_bit = s_disk_selected ? s_on_cyl[s_sel_unit] : 1'b0;
wire s_notready_bit = s_disk_selected ? s_not_ready[s_sel_unit] : 1'b1;
wire [15:0] s_status =
{ s_cwr, // b15 register multiplex
s_oncyl_bit, // b14 on cylinder
s_notready_bit, // b13 disk unit not ready
1'b0, // b12
s_dma_ch_err, // b11 DMA channel error (bus/memory fault)
s_comparer_err, // b10 comparer error
1'b0, // b9
s_addr_mismatch, // b8 address mismatch
s_hw_err2, // b7 hardware error 2
s_time_out, // b6 timeout
s_illegal, // b5 illegal load
s_incl_or, // b4 inclusive-OR error
s_rft, // b3 ready for transfer
s_active, // b2 active
s_errint_en, // b1 error-interrupt enabled
s_int_en }; // b0 interrupt enabled
// b12 of the seek condition is the CONTROLLER-TYPE identity bit: 1 on the
// SMD 10/15 MHz cards, 0 on the NORD-10-era BIG-DISC / ECC cards. It must
// follow the HAS_WC_FLIPFLOP strap, because that bit is how software decides
// which register protocol to use. Hard-coding it to 1 while strapped as the
// single-access ECC card made the machine announce itself as a 15 MHz card:
// TPE then drove the two-access HI/LO protocol and DISC-TEMA's Memory Address
// Register test failed on every value (expected 00000000001b, found
// 00000200001b = (N<<16)|N - the second read returning the low word again,
// which is CORRECT behaviour for a single-access card). Measured on the Tang
// 03-AUG-2026. Oracle: RetroCore NDBusDiscControllerSMD.cs gates this bit on
// SMD_15MHZ_CONTR / SMD_10MHZ_CONTR only, and notes that SINTRAN M will not
// read/write/boot DISC-75-1 when it is set.
wire [15:0] s_seek_cond =
{ 3'b000, // b15-13 address field / ECC parity / ECC correctable
HAS_WC_FLIPFLOP ? 1'b1 : 1'b0, // b12 SMD 10/15 MHz card id
s_seek_err, // b11 seek error
s_sel_unit, // b10-8 unit selected
s_seek_complete };// b7-0 seek complete per unit
// ECC pattern (read +4, CWR=1): bits 11-13 = 1, bit 15 = CWR read-back.
// b14 is the second controller-type identity bit and is the INVERSE sense of
// seek-condition b12: ND-11.020.01 sec 2.5 says "Bit 14: Always 0. To
// distinguish from the old ND-100 SMD controller", so the 15 MHz card reads 0
// and the older BIG-DISC / ECC cards read 1 (RetroCore sets it for
// BIG_DISC_CONTR / ECC_DISC_CONTR). Follows the strap for the same reason as
// b12 above.
wire [15:0] s_ecc_pattern =
{ s_cwr, HAS_WC_FLIPFLOP ? 1'b0 : 1'b1, 3'b111, 11'd0 };
// ---- interrupt / ident (latched line) ----
assign int_pending = {(INT_LEVEL == 4'd13) && s_irq,
(INT_LEVEL == 4'd12) && s_irq,
(INT_LEVEL == 4'd11) && s_irq,
(INT_LEVEL == 4'd10) && s_irq};
wire s_ident_answer = ident_strobe && ident_grant_in &&
(ident_level == INT_LEVEL) && s_irq;
assign ident_hit = s_ident_answer;
assign ident_code = s_ident_answer ? IDENT_CODE : 16'd0;
assign ident_grant_out = ident_grant_in && !s_ident_answer;
// ---- IOX read mux (CWR-multiplexed; boot mode overrides) ----
always @(*) begin
iox_rdata = 16'd0;
if (s_rd_here) begin
if (s_boot_mode) begin
case (s_reg)
// registered read: the port block's default read address IS the
// boot pointer, so s_buf_dout tracks it (settles one sysclk after
// each pointer step - far inside the IOX strobe spacing).
3'd0: iox_rdata = s_buf_dout;
3'd2: iox_rdata = {11'd0, s_incl_or, s_rft, 3'd0};
default: iox_rdata = 16'd0;
endcase
end else begin
// NOTE: reads are NOT gated on a selected unit. The status register,
// ECC pattern, seek condition, core address and word counter are
// CONTROLLER registers (cards 3043/3044) - they exist whether or not a
// drive is selected, and only the drive-sourced bits depend on one
// (s_oncyl_bit / s_notready_bit above already return 0 / 1 when
// nothing is selected). The old "return 0 while no unit is selected"
// gate was copied from the oracle, where it was a bug: it made the
// status register unreadable exactly when a GO on a not-specified unit
// had just raised hardware-error b7, so the error could never be seen.
// DISC-TEMA reports that as "Read (from NOT specified unit), Status
// Bit 7b is 0 !". Fixed in the oracle too.
case (s_reg)
// With flip-flops the read alternates LO then HI (the *_ff read
// toggles below); a single-write card has no HI phase and returns the
// full LO register every time.
3'd0: iox_rdata = s_cwr
? ((HAS_WCNT_FLIPFLOP && s_wcr_ff) ? {8'd0, s_word_cnt_hi} : s_word_cnt)
: ((HAS_WC_FLIPFLOP && s_mar_ff) ? {8'd0, s_core_addr_hi} : s_core_addr);
3'd2: iox_rdata = s_cwr ? s_ecc_count : s_seek_cond;
3'd4: iox_rdata = s_cwr ? s_ecc_pattern : s_status;
3'd6: iox_rdata = s_cwr ? s_blkaddr2 : s_blkaddr1;
default: iox_rdata = 16'd0;
endcase
end
end
end
// ---- transfer engine ----
localparam E_IDLE = 3'd0;
localparam E_DISK_RD = 3'd1; // backend: image chunk -> buffer
localparam E_MEM_WR = 3'd2; // DMA: buffer -> ND memory
localparam E_MEM_RD = 3'd3; // DMA: ND memory -> buffer
localparam E_DISK_WR = 3'd4; // backend: buffer -> image chunk
localparam E_DELAY = 3'd5; // completion delay -> ReadEnd
reg [2:0] s_eng;
reg [10:0] s_chunk_q;
reg [10:0] s_sec_idx;
reg [31:0] s_delay_cnt;
reg s_dma_wait;
reg [23:0] s_mem_addr; // running ND word address
reg [23:0] s_words_left; // words still to move
reg [2:0] s_unit; // selected drive for this command
assign disk_wordcount = s_chunk_q;
// CHS -> LBA (oracle smd_chs_to_lba: uses S as-is; all-zero C/H/S -> 0).
function [31:0] chs2lba;
input [15:0] cyl;
input [7:0] head;
input [7:0] sector;
begin
if (cyl == 16'd0 && head == 8'd0 && sector == 8'd0)
chs2lba = 32'd0;
else
chs2lba = (({16'd0, cyl} * {16'd0, GEO_HEADS}) + {24'd0, head})
* {16'd0, GEO_SPT} + {24'd0, sector};
end
endfunction
// GO-time address decode (registers are stable outside a control write).
wire [7:0] w_head = s_blkaddr1[15:8];
wire [7:0] w_sector = s_blkaddr1[7:0];
wire [15:0] w_cyl = s_blkaddr2;
wire [31:0] w_lba = chs2lba(w_cyl, w_head, w_sector);
wire [31:0] w_max_lba = chs2lba(GEO_MAX_CYL[15:0], GEO_HEADS[7:0], GEO_SPT[7:0]);
wire [23:0] w_words = {s_word_cnt_hi, s_word_cnt};
task dma_issue(input wr, input [23:0] a, input [15:0] d);
begin
dma_req <= 1'b1;
dma_wr <= wr;
dma_addr <= a;
dma_wdata <= d;
s_dma_wait <= 1'b1;
end
endtask
// ClearFlipFlops (oracle).
task clr_ff;
begin
s_maw_ff <= 1'b0;
s_mar_ff <= 1'b0;
s_wcw_ff <= 1'b0;
s_wcr_ff <= 1'b0;
s_wc_eccw_ff <= 1'b0;
end
endtask
// ==== BACKEND FAILURE -> STATUS BIT =====================================
//
// WHERE THESE BITS COME FROM: every bit set below is one the SMD DISC
// CONTROLLER MANUAL ND-11.020.01, SECTION 2.5 (status register, read at
// IOX +4 when the multiplex bit selects status) already defines for this
// card. They are assembled into s_status above, each with its bit number
// and manual name. NOTHING here is invented: this task chooses AMONG the
// manual's bits, it never adds one and never puts the reason code itself
// anywhere the guest can read it. That rule is stated in
// Verilog/SD-FAT/circuit/nd_storage_status.vh: the SD-FAT stack is
// clean-room and may carry a reason code, a reproduced ND card may not.
//
// WHERE THE REASON CODE COMES FROM: nd_storage_engine.v tags the failure
// where it happens, and it travels engine -> nd_storage ->
// nd_storage_disc_adapter -> disk_err_code here.
//
// FULL MAPPING - all nine codes of nd_storage_status.vh:
//
// NDS_ERR_NOCARD b7 hardware error 2. No SD card in the slot: the
// drive electronics behind the interface cannot
// serve at all, which is the general hardware
// fault this bit reports.
// NDS_ERR_NOTOPEN b7 same bit: SMD0.IMG is not on the card, or the
// mount failed, so again there is no usable drive.
// NDS_ERR_RANGE b8 address mismatch - the CHS position asked for
// is past the end of the image, i.e. the address
// was not found on the drive.
// NDS_ERR_TIMEOUT b6 timeout. The engine watchdog fired: the backend
// never answered - exactly the event b6 exists for.
// NDS_ERR_WRPROT b5 illegal load. The controller was asked for a
// NDS_ERR_WRALIGN b5 transfer it is not allowed to perform (write
// path absent, or a partial/unaligned write that
// would need a read-modify-write). The medium is
// fine; the REQUEST was rejected - which is what
// "illegal load" means on this card.
// NDS_ERR_CARDIO b10 comparer error. The card answered but the data
// NDS_ERR_FATCHAIN b10 cannot be trusted (CMD17/CMD24 failure, CRC,
// card stopped mid-block, broken/circular FAT
// chain). b10 is the bit this file already used
// for a media write fault, so CARDIO keeps the
// historical behaviour byte-for-byte.
// NDS_ERR_NONE never reaches this task (no error, no call).
//
// b4 (inclusive OR of the error bits) follows automatically via
// s_incl_or, and err_active additionally forces b13 disk-unit-not-ready
// for the selected unit - both exactly as before this task existed.
//
// WHY THIS EXISTS: before it, every backend failure reached the guest as
// the same anonymous "not ready" (plus, on writes only, a comparer
// error). "No SD card", "SMD0.IMG absent", "block past the end of the
// image", "broken FAT chain" and "the card stopped answering" were
// indistinguishable from the guest, from DISC-TEMA and from a waveform.
//
// Call this BEFORE err_active (err_active clears the transfer state).
// ========================================================================
task set_backend_fault;
input [3:0] code;
begin
case (code)
// b7 hardware error 2 (ND-11.020.01 sec 2.5)
`NDS_ERR_NOCARD,
`NDS_ERR_NOTOPEN: s_hw_err2 <= 1'b1;
// b8 address mismatch (sec 2.5)
`NDS_ERR_RANGE: s_addr_mismatch <= 1'b1;
// b6 timeout (sec 2.5)
`NDS_ERR_TIMEOUT: s_time_out <= 1'b1;
// b5 illegal load (sec 2.5)
`NDS_ERR_WRPROT,
`NDS_ERR_WRALIGN: s_illegal <= 1'b1;
// b10 comparer error (sec 2.5) - CARDIO, FATCHAIN
default: s_comparer_err <= 1'b1;
endcase
end
endtask
// HandleError for a fault raised DURING a transfer (s_unit / s_errint_en are
// stable here). The specific error status bit is set by the caller first.
task err_active;
begin
s_rft <= 1'b0;
s_active <= 1'b0;
clr_ff;
s_on_cyl[s_unit] <= 1'b0;
s_not_ready[s_unit] <= 1'b1;
s_eng <= E_IDLE;
s_dma_wait <= 1'b0;
if (s_errint_en) s_irq <= 1'b1;
end
endtask
// ---- buffer RAM ports (BSRAM-mappable: sync write + sync read) ----------
// One muxed WRITE port (backend fill via dbuf_we, or the DMA read-in
// commit) and one registered READ port whose address follows the active
// consumer: E_MEM_WR walks the sector for the DMA-out, E_DISK_WR serves
// the backend readout (dbuf_addr), otherwise the boot-stream pointer.
// s_buf_valid marks s_buf_dout as current for the address requested THIS
// cycle (s_buf_dout holds s_buffer[s_buf_raddr_q]); consumers that need
// the freshest word gate on it, adding the one cycle of read latency.
// The write sites these ports replace lived inside the FSM below; the
// E_MEM_RD commit condition is mirrored here exactly.
wire s_memrd_commit = (s_eng == E_MEM_RD) && s_dma_wait &&
dma_ack && !dma_err;
wire s_buf_we = dbuf_we | s_memrd_commit;
wire [ 9:0] s_buf_waddr = dbuf_we ? dbuf_addr : s_sec_idx[9:0];
wire [15:0] s_buf_wdata = dbuf_we ? dbuf_wdata : dma_rdata;
wire [ 9:0] s_buf_raddr = (s_eng == E_MEM_WR) ? s_sec_idx[9:0] :
(s_eng == E_DISK_WR) ? dbuf_addr :
s_bootptr[9:0];
reg [15:0] s_buf_dout;
reg [ 9:0] s_buf_raddr_q;
wire s_buf_valid = (s_buf_raddr_q == s_buf_raddr);
always @(posedge sysclk) begin
if (s_buf_we) s_buffer[s_buf_waddr] <= s_buf_wdata;
s_buf_dout <= s_buffer[s_buf_raddr];
s_buf_raddr_q <= s_buf_raddr;
end
always @(*) dbuf_rdata = s_buf_dout;
always @(posedge sysclk or negedge sys_rst_n) begin
if (!sys_rst_n) begin
s_core_addr <= 16'd0;
s_core_addr_hi <= 8'd0;
s_word_cnt <= 16'd0;
s_word_cnt_hi <= 8'd0;
s_blkaddr1 <= 16'd0;
s_blkaddr2 <= 16'd0;
s_ecc_count <= 16'd0;
s_sel_unit <= 3'd0;
s_disk_selected<= 1'b0;
s_on_cyl <= 8'd0;
s_not_ready <= 8'd0;
s_seek_complete<= 8'd0;
s_cwr <= 1'b0;
s_int_en <= 1'b0;
s_errint_en <= 1'b0;
s_active <= 1'b0;
s_rft <= 1'b1; // reset value serves the boot handshake
s_test_mode <= 1'b0;
s_marginal <= 1'b0;
s_illegal <= 1'b0;
s_time_out <= 1'b0;
s_hw_err2 <= 1'b0;
s_addr_mismatch<= 1'b0;
s_comparer_err <= 1'b0;
s_dma_ch_err <= 1'b0;
s_seek_err <= 1'b0;
s_maw_ff <= 1'b0;
s_mar_ff <= 1'b0;
s_wcw_ff <= 1'b0;
s_wcr_ff <= 1'b0;
s_wc_eccw_ff <= 1'b0;
s_irq <= 1'b0;
s_boot_mode <= 1'b1;
s_boot_fetch <= 1'b0;
s_boot_loaded <= 1'b0;
s_bootptr <= 11'd0;
s_eng <= E_IDLE;
s_chunk_q <= 11'd0;
s_sec_idx <= 11'd0;
s_delay_cnt <= 32'd0;
s_dma_wait <= 1'b0;
s_mem_addr <= 24'd0;
s_words_left <= 24'd0;
s_unit <= 3'd0;
dma_req <= 1'b0;
dma_wr <= 1'b0;
dma_addr <= 24'd0;
dma_wdata <= 16'd0;
disk_start <= 1'b0;
disk_req <= 1'b0;
disk_wr <= 1'b0;
end else begin
dma_req <= 1'b0;
disk_start <= 1'b0;
disk_req <= 1'b0;
// (backend dbuf_we writes now land through the muxed RAM write port
// above - see the buffer RAM ports block)
// ---- read-strobe side effects ----
if (s_rd_here) begin
if (s_boot_mode) begin
// boot stream readout: +0 read consumes the word, clears ready
if (s_reg == 3'd0) begin
s_bootptr <= s_bootptr + 11'd1;
s_rft <= 1'b0;
end
end else if (s_disk_selected) begin
case (s_reg)
// Only the flip-flop card alternates LO/HI on successive +0 reads;
// a single-write card has one 16-bit read, so leave the FFs alone.
3'd0: if (s_cwr) begin
if (HAS_WCNT_FLIPFLOP) s_wcr_ff <= ~s_wcr_ff; // WC: LO then HI
end else begin
if (HAS_WC_FLIPFLOP) s_mar_ff <= ~s_mar_ff; // CA: LO then HI
end
3'd4: if (!s_cwr) clr_ff; // status read resets FFs
default: ;
endcase
end
end
// ---- IOX register writes ----
if (s_wr_here) begin
case (s_reg)
// +1 Load Core Address (CWR=0) / count-mem (CWR=1, maint. only)
// A +1 write ALSO leaves boot mode. The BPUN byte-server the boot
// mode exists for never writes +1 or +7 (it writes +3 with bit 2,
// polls +2, reads +0), while the microcode MASS STORAGE LOAD
// routine at CSA o2217 (Code/Microcode/ND-120-DELILAH-L.LISTING.txt
// line 5866, "MASS STORAGE LOAD, BECAUSE BIT 13 IS 1") starts with
// TWO +1 writes (core address HI then LO) before +3 / +7 / +5.
// Swallowing them left '21540&' loading a word count of zero, so
// the GO completed instantly and transferred nothing.
3'd1: begin
s_boot_mode <= 1'b0;
if (s_cwr) begin
if (s_test_mode && s_marginal) begin
s_core_addr <= s_core_addr + 16'd1;
s_word_cnt <= s_word_cnt - 16'd1;
end
end else if (s_active) begin
// Illegal load while active: raise b5 and IGNORE the write. It is
// a status flag only (ND-11.020.01 sec 2.5 b5) - the running
// operation continues and the drive does NOT go not-ready, so
// err_active must not be called here. DISC-TEMA loads this
// register during an active parity check and then expects to read
// status with b5 AND b2 both set.
s_illegal <= 1'b1;
end else if (!HAS_WC_FLIPFLOP) begin
// ECC / BIG-DISC: no flip-flop - one write loads the full 16 bits.
// Bits 16-17 are NOT loaded here; they come from control-word
// bits 5-6 at the next +5 write (mirrors the nd100x oracle).
s_core_addr <= iox_wdata;
end else if (s_maw_ff) begin
s_core_addr <= iox_wdata; // second write: LO 16
s_maw_ff <= 1'b0;
end else begin
s_core_addr_hi <= iox_wdata[7:0]; // first write: HI 8
s_maw_ff <= 1'b1;
end
end
// +3 boot activate / Load Block Address I (CWR=0) / II (CWR=1)
3'd3: begin
if (s_boot_mode) begin
// BOOT byte-server (preserved verbatim)
if (iox_wdata[2] && s_eng == E_IDLE) begin
if (!s_boot_loaded && !s_boot_fetch) begin
s_active <= 1'b1;
// The FIRST fetch must drop ready-for-transfer exactly like
// the wrap-around fetch below does. Without this the loader
// polls +2, sees the RESET value of ready (1) while the
// block read is still in flight, and reads +0 before the
// buffer holds anything - so word 0 of the boot stream is
// garbage and every word after it is shifted by one.
// Measured with ND120_SMD_TRACE: "RD +0 -> 000062" arrived
// while active=1, before the first disk_done.
s_rft <= 1'b0;
s_hw_err2 <= 1'b0;
s_illegal <= 1'b0;
s_boot_fetch <= 1'b1;
s_blkaddr1 <= 16'd0;
s_blkaddr2 <= 16'd0;
s_chunk_q <= BUF_WORDS;
disk_start <= 1'b1;
disk_req <= 1'b1;
disk_wr <= 1'b0;
s_eng <= E_DISK_RD;
end else if (s_bootptr == 11'd1024) begin
s_bootptr <= 11'd0;
s_active <= 1'b1;
s_rft <= 1'b0;
s_boot_fetch <= 1'b1;
s_chunk_q <= BUF_WORDS;
disk_req <= 1'b1;
disk_wr <= 1'b0;
s_eng <= E_DISK_RD;
end else begin
s_rft <= 1'b1; // next word already buffered
end
end
end else if (s_active) begin
// Illegal load while active - b5 only, operation continues.
// See the +1 case above.
s_illegal <= 1'b1;
end else if (s_cwr) begin
s_blkaddr2 <= iox_wdata; // cylinder
end else begin
s_blkaddr1 <= iox_wdata; // head b8-15, sector b0-7
end
end
// +5 Load Control Word (GO / opcode). Leaves boot mode.
// A control word loaded while the controller is active is an ILLEGAL
// LOAD like any other register write - ND-11.020.01 sec 2.5 b5, "Load
// of any register while status bit 2 is true". This used to be dropped
// silently, and DISC-TEMA caught it: "Error after Illegal Load
// (Control Word), Bit 5b was 0 !".
//
// Device clear (b4) is the one exception - it is the programmed master
// clear (ND-11.013.01A: "Programmed master clear, i.e., control word
// bit 4 (device clear)") and must always reach the controller, or an
// active controller could never be recovered.
3'd5: if (s_active && !iox_wdata[4]) begin
s_illegal <= 1'b1;
end else begin
s_boot_mode <= 1'b0;
s_int_en <= iox_wdata[0];
s_errint_en <= iox_wdata[1];
s_test_mode <= iox_wdata[3];
s_marginal <= iox_wdata[10];
s_sel_unit <= iox_wdata[9:7];
s_disk_selected <= ~iox_wdata[9]; // unit 0..3 -> selected
s_cwr <= iox_wdata[15];
// ECC / BIG-DISC: control-word bits 5-6 ARE core-address bits 16-17
// (the oracle's deviceSMD.c:465-468). On the flip-flop card these
// bits are "old 10 MHz, ignored" and the HI byte comes from the
// second +1 write instead. Only affects addresses above 64 K words.
if (!HAS_WC_FLIPFLOP) s_core_addr_hi <= {6'd0, iox_wdata[6:5]};
s_active <= iox_wdata[2]; // oracle: active = bit 2 (clear/GO override below)
s_rft <= 1'b1; // oracle: ready = true (top)
if (!iox_wdata[0]) s_irq <= 1'b0; // int-enable clear drops line
// selecting a unit puts it on-cylinder
if (~iox_wdata[9]) s_on_cyl[iox_wdata[9:7]] <= 1'b1;
if (iox_wdata[4]) begin
// ---- Device clear ----
s_active <= 1'b0;
if (~iox_wdata[9]) s_not_ready[iox_wdata[9:7]] <= 1'b0;
s_seek_complete[iox_wdata[9:7]] <= 1'b1;
s_core_addr <= 16'd0;
s_core_addr_hi <= 8'd0;
s_blkaddr1 <= 16'd0;
s_blkaddr2 <= 16'd0;
s_word_cnt <= 16'd0;
s_word_cnt_hi <= 8'd0;
s_rft <= 1'b0;
clr_ff;
s_illegal <= 1'b0;
s_time_out <= 1'b0;
s_hw_err2 <= 1'b0;
s_addr_mismatch<= 1'b0;
s_comparer_err <= 1'b0;
s_dma_ch_err <= 1'b0;
s_seek_err <= 1'b0;
s_eng <= E_IDLE;
s_dma_wait <= 1'b0;
// else-branch interrupt eval with rft now false: ie && test
s_irq <= iox_wdata[0] && iox_wdata[3];
end else if (iox_wdata[2]) begin
// ---- GO ----
if (iox_wdata[9]) begin
// no unit selected -> DRIVE_NOT_SELECTED
s_hw_err2 <= 1'b1;
s_rft <= 1'b0;
s_active <= 1'b0;
clr_ff;
s_eng <= E_IDLE;
s_dma_wait <= 1'b0;
if (iox_wdata[1]) s_irq <= 1'b1;
end else begin
s_active <= 1'b1;
// Unlike the oracle, whose transfer executes instantly inside
// the control-word write (so ready=true at top is already
// final), the RTL engine takes real time: ready-for-transfer
// must be LOW until completion (E_DELAY) raises it.
s_rft <= 1'b0;
s_unit <= iox_wdata[9:7];
s_not_ready[iox_wdata[9:7]] <= 1'b0;
s_seek_complete[iox_wdata[9:7]] <= 1'b0; // clear for the xfer
// On the single-write card the HI bits arrive with THIS control
// word (bits 5-6), so use them directly - the s_core_addr_hi
// register write above is non-blocking and not visible yet.
s_mem_addr <= HAS_WC_FLIPFLOP ? {s_core_addr_hi, s_core_addr}
: {6'd0, iox_wdata[6:5], s_core_addr};
s_words_left <= w_words;
if (!iox_wdata[3] &&
((w_lba > w_max_lba) ||
(w_sector >= GEO_SPT[7:0]) ||
({8'd0, w_head} >= GEO_MAX_CYL))) begin
// ---- address mismatch ----
s_addr_mismatch <= 1'b1;
s_rft <= 1'b0;
s_active <= 1'b0;
clr_ff;
s_on_cyl[iox_wdata[9:7]] <= 1'b0;
s_not_ready[iox_wdata[9:7]] <= 1'b1;
s_eng <= E_IDLE;
s_dma_wait <= 1'b0;
if (iox_wdata[1]) s_irq <= 1'b1;
end else begin
case (iox_wdata[14:11])
4'd0: begin // M0 read transfer (disk -> memory)
if (w_words != 24'd0) begin
disk_start <= 1'b1;
disk_req <= 1'b1;
disk_wr <= 1'b0;
s_chunk_q <= (w_words > {13'd0, BUF_WORDS}) ?
BUF_WORDS : w_words[10:0];
s_sec_idx <= 11'd0;
s_eng <= E_DISK_RD;
end else begin
s_delay_cnt <= DELAY_TICKS;
s_eng <= E_DELAY;
end
end
4'd1: begin // M1 write transfer (memory -> disk)
if (w_words != 24'd0) begin
disk_start <= 1'b1;
s_chunk_q <= (w_words > {13'd0, BUF_WORDS}) ?
BUF_WORDS : w_words[10:0];
s_sec_idx <= 11'd0;
s_eng <= E_MEM_RD;
end else begin
s_delay_cnt <= DELAY_TICKS;
s_eng <= E_DELAY;
end
end
4'd4: begin // M4 initiate seek
s_seek_err <= 1'b0;
s_delay_cnt <= DELAY_TICKS;
s_eng <= E_DELAY;
end
4'd6: begin // M6 seek-complete search
s_on_cyl[iox_wdata[9:7]] <= 1'b1;
s_seek_err <= 1'b0;
s_seek_complete[iox_wdata[9:7]] <= 1'b1;
s_delay_cnt <= DELAY_TICKS;
s_eng <= E_DELAY;
end
4'd7: begin // M7 return to zero (only op that clears seekErr)
s_seek_err <= 1'b0;
s_on_cyl[iox_wdata[9:7]] <= 1'b1;
s_seek_complete[iox_wdata[9:7]] <= 1'b1;
s_delay_cnt <= DELAY_TICKS;
s_eng <= E_DELAY;
end
4'd9: begin // M9 select release (DIVERGENCE: complete, no hang)
s_disk_selected <= 1'b0;
s_delay_cnt <= DELAY_TICKS;
s_eng <= E_DELAY;
end
default: begin // M2/M3/M5/M8 stub completion
s_delay_cnt <= DELAY_TICKS;
s_eng <= E_DELAY;
end
endcase
end
end
end else begin
// ---- not a GO: re-evaluate the interrupt line ----
// rft was just set true, so ie && (test?1:rft) == ie
s_irq <= iox_wdata[0];
end
end
// +7 Load Word Counter (CWR=0) / Load ECC Control (CWR=1)
// Leaves boot mode for the same reason as +1 above (MASS writes the
// word count 2000 octal = 1024 words here).
3'd7: begin
// Illegal load (status b5): "Load of any register while status bit
// 2 is true" - ND-11.020.01 sec 2.5. The word counter is a register
// like the others, and this check was missing entirely, so DISC-TEMA
// reported "Error after Illegal Load (Word Count), Bit 5b was 0 !".
// The load is ignored; the running operation is NOT disturbed.
if (s_active) begin
s_illegal <= 1'b1;
end else begin
s_boot_mode <= 1'b0;
if (s_cwr) begin
// Load ECC Control. Flip-flop card: HI write is a no-op, the LO
// (second) write acts. Single-write card: the one write acts.
if (!HAS_WC_FLIPFLOP || s_wc_eccw_ff) begin
if (iox_wdata[0]) s_ecc_count <= 16'd0; // bit0: reset ECC
if (iox_wdata[1]) s_hw_err2 <= 1'b1; // bit1: force parity
s_wc_eccw_ff <= 1'b0;
end else begin
s_wc_eccw_ff <= 1'b1; // HI byte unused (as in the oracle)
end
end else if (!HAS_WCNT_FLIPFLOP) begin
// Single-access word counter: one write loads the full 16 bits.
// THE line that makes the mass-storage boot work - the microcode's
// single +7 write of 002000 now lands as 1024 words, not 0.
s_word_cnt <= iox_wdata;
s_word_cnt_hi <= 8'd0;
end else if (s_wcw_ff) begin
s_word_cnt <= iox_wdata; // second write: LO 16
s_wcw_ff <= 1'b0;
end else begin
s_word_cnt_hi <= iox_wdata[7:0];// first write: HI 8
s_wcw_ff <= 1'b1;
end
end
end
default: ;
endcase
end
// ---- transfer engine ----
case (s_eng)
E_IDLE: ;
E_DISK_RD: begin
if (disk_done) begin
if (disk_err_in && s_boot_fetch) begin
// boot fetch error (boot path, no unit semantics)
s_hw_err2 <= 1'b1;
s_boot_fetch <= 1'b0;
s_active <= 1'b0;
s_rft <= 1'b1;
s_eng <= E_IDLE;
end else if (disk_err_in) begin
// media read fault -> disk unit not ready (oracle READ_ERROR),
// plus the bit that says which fault it actually was
set_backend_fault(disk_err_code);
err_active;
end else if (s_boot_fetch) begin
s_boot_fetch <= 1'b0;
s_boot_loaded <= 1'b1;
s_active <= 1'b0;
s_rft <= 1'b1;
s_eng <= E_IDLE;
end else begin
s_sec_idx <= 11'd0;
s_eng <= E_MEM_WR;
end
end
end
E_MEM_WR: begin
// s_buf_valid: wait the one read-latency cycle after entering the
// state / advancing s_sec_idx so s_buf_dout holds THIS word.
if (!s_dma_wait && !dma_busy && s_buf_valid) begin
dma_issue(1'b1, s_mem_addr, s_buf_dout);
end else if (s_dma_wait && dma_ack) begin
s_dma_wait <= 1'b0;
if (dma_err) begin
s_dma_ch_err <= 1'b1; // b11: the fault came from the ND bus
err_active; // bus/memory fault -> not ready
end else begin
s_mem_addr <= s_mem_addr + 24'd1;
s_words_left <= s_words_left - 24'd1;
if (s_sec_idx + 11'd1 >= s_chunk_q || s_words_left == 24'd1) begin
if (s_words_left == 24'd1) begin
s_delay_cnt <= DELAY_TICKS;
s_eng <= E_DELAY;
end else begin
s_chunk_q <= ((s_words_left - 24'd1) > {13'd0, BUF_WORDS}) ?
BUF_WORDS : (s_words_left[10:0] - 11'd1);
disk_req <= 1'b1;
disk_wr <= 1'b0;
s_eng <= E_DISK_RD;
end
end else begin
s_sec_idx <= s_sec_idx + 11'd1;
end
end
end
end
E_MEM_RD: begin
if (!s_dma_wait && !dma_busy) begin
dma_issue(1'b0, s_mem_addr, 16'd0);
end else if (s_dma_wait && dma_ack) begin
s_dma_wait <= 1'b0;
if (dma_err) begin
s_dma_ch_err <= 1'b1; // b11: the fault came from the ND bus
err_active; // bus/memory fault -> not ready
end else begin
// buffer write happens through the muxed RAM write port
// (s_memrd_commit mirrors this exact condition)
s_mem_addr <= s_mem_addr + 24'd1;
s_words_left <= s_words_left - 24'd1;
if (s_sec_idx + 11'd1 >= s_chunk_q || s_words_left == 24'd1) begin
disk_req <= 1'b1;
disk_wr <= 1'b1;
s_eng <= E_DISK_WR;
end else begin
s_sec_idx <= s_sec_idx + 11'd1;
end
end
end
end
E_DISK_WR: begin
if (disk_done) begin
if (disk_err_in) begin
// media write fault (oracle WriteBlock false). The reason
// picks the bit; NDS_ERR_CARDIO keeps the historical
// comparer-error bit this branch always set.
set_backend_fault(disk_err_code);
err_active;
end else if (s_words_left == 24'd0) begin
s_delay_cnt <= DELAY_TICKS;
s_eng <= E_DELAY;
end else begin
s_chunk_q <= (s_words_left > {13'd0, BUF_WORDS}) ?
BUF_WORDS : s_words_left[10:0];
s_sec_idx <= 11'd0;
s_eng <= E_MEM_RD;
end
end
end
// Completion delay, then ReadEnd (oracle SMDReadEnd). Boot completions
// use the same delay slot but skip the register sync / interrupt.
E_DELAY: begin
if (s_delay_cnt != 32'd0) begin
s_delay_cnt <= s_delay_cnt - 32'd1;
end else if (s_boot_mode) begin
s_active <= 1'b0;
s_rft <= 1'b1;
s_eng <= E_IDLE;
end else begin
s_active <= 1'b0;
s_rft <= 1'b1;
clr_ff;
s_core_addr <= s_mem_addr[15:0];
s_core_addr_hi <= s_mem_addr[23:16];
s_word_cnt <= 16'd0;
s_word_cnt_hi <= 8'd0;
s_seek_complete<= (8'd1 << s_unit);
s_eng <= E_IDLE;
s_irq <= s_int_en; // ReadEnd: interrupt iff int-enabled
end
end
default: s_eng <= E_IDLE;
endcase
`ifdef ND120_SMD_TRACE
// Simulation-only IOX trace (define ND120_SMD_TRACE to enable). Prints
// every register access with the controller state that decides what the
// access MEANS, which is what settles questions like "does the mass
// storage load microroutine write +7 once or twice".
// s_trace_cyc counts sysclk edges: the difference between two lines is
// the real cost of one loader step ($time is useless here - the sim
// model has no timescale and prints 0).
s_trace_cyc <= s_trace_cyc + 32'd1;
if (s_wr_here)
$display("[SMD] cyc=%0d WR +%0d val=%o boot=%b cwr=%b mawff=%b wcwff=%b",
s_trace_cyc, s_reg, iox_wdata, s_boot_mode, s_cwr, s_maw_ff, s_wcw_ff);
if (s_rd_here)
$display("[SMD] cyc=%0d RD +%0d -> %o boot=%b active=%b rft=%b",
s_trace_cyc, s_reg, iox_rdata, s_boot_mode, s_active, s_rft);
// Every IOX the CPU issues to a DISC-range address that is NOT ours.
// The controller sees the whole bus, so this answers "which device is
// the test program actually driving" without touching the bus RTL.
if ((iox_rd || iox_wr) && !s_addressed &&
iox_addr >= 16'o000400 && iox_addr < 16'o002000)
$display("[SMD-OTHER] cyc=%0d %s dev=%06o data=%06o",
s_trace_cyc, iox_wr ? "WR" : "RD", iox_addr, iox_wdata);
`endif
// IDENT answered: clear interrupt-enable and drop the line (oracle IDENT).
if (s_ident_answer) begin
s_int_en <= 1'b0;
s_irq <= 1'b0;
end
end
end
endmodule
