qmtech_mem_test_top¶
Source: Verilog/fpga/qmtech-a35t/mem-test/qmtech_mem_test_top.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
QMTECH XC7A35T standalone memory test for the ND-120 BRAM path Port of ../../basys3/mem-test/basys3_mem_test_top.v - same die, same MEM_RAM_49 (-> SIP1M9 sync BRAM, ramSize=3), same DRAM RAS/CAS/AA protocol, same test vectors and FSM, so results are directly comparable with the Basys3 run (which PASSES on silicon). Board differences vs the Basys3 version: - 50 MHz input clock (Basys3: 100 MHz) -> MMCM mult 20.0 instead of 10.0, same 16.667 MHz clk_cpu. - No on-board UART: msg_printer still runs (it paces the FSM exactly as on Basys3) but its TX is an internal mark_debug net for ILA, not a pin. - Report on the two active-low LEDs: running led_n[0] fast blink (4 Hz), led_n[1] off done + PASS led_n[0] slow blink (1 Hz), led_n[1] off done + FAIL led_n[0] solid on, led_n[1] solid on - Reset = user key on H18, active low (Basys3 btn1 is active high).
Parameters¶
| Parameter | Default |
|---|---|
DF |
1736 |
CLK_CPU_FREQ |
16_666_667 // for the LED blink dividers |

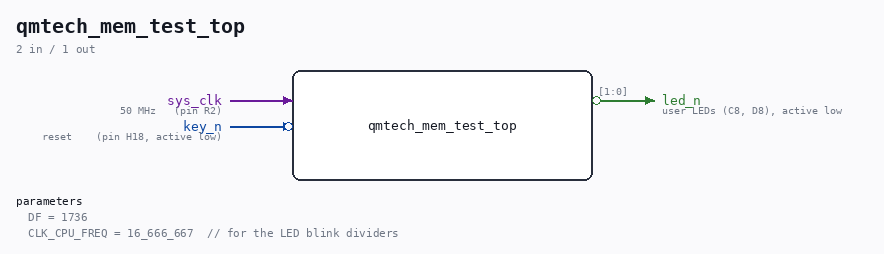

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sys_clk |
50 MHz (pin R2) |
| input | 1 |
key_n (active low) |
reset (pin H18, active low) |
| output | [1:0] |
led_n (active low) |
user LEDs (C8, D8), active low |
Verilog source¶
Verilog/fpga/qmtech-a35t/mem-test/qmtech_mem_test_top.v on GitHub.
Show the Verilog of qmtech_mem_test_top (194 lines)
/****************************************************************************
** QMTECH XC7A35T standalone memory test for the ND-120 BRAM path **
** **
** Port of ../../basys3/mem-test/basys3_mem_test_top.v - same die, same **
** MEM_RAM_49 (-> SIP1M9 sync BRAM, ramSize=3), same DRAM RAS/CAS/AA **
** protocol, same test vectors and FSM, so results are directly comparable **
** with the Basys3 run (which PASSES on silicon). **
** **
** Board differences vs the Basys3 version: **
** - 50 MHz input clock (Basys3: 100 MHz) -> MMCM mult 20.0 instead of **
** 10.0, same 16.667 MHz clk_cpu. **
** - No on-board UART: msg_printer still runs (it paces the FSM exactly **
** as on Basys3) but its TX is an internal mark_debug net for ILA, not **
** a pin. **
** - Report on the two active-low LEDs: **
** running led_n[0] fast blink (4 Hz), led_n[1] off **
** done + PASS led_n[0] slow blink (1 Hz), led_n[1] off **
** done + FAIL led_n[0] solid on, led_n[1] solid on **
** - Reset = user key on H18, active low (Basys3 btn1 is active high). **
****************************************************************************/
`default_nettype none
module qmtech_mem_test_top #(
parameter integer DF = 1736, // clk_cpu(16.667MHz)/9600; override small for sim
parameter integer CLK_CPU_FREQ = 16_666_667 // for the LED blink dividers
) (
input wire sys_clk, // 50 MHz (pin R2)
input wire key_n, // reset (pin H18, active low)
output wire [1:0] led_n // user LEDs (C8, D8), active low
);
`ifdef NO_MMCM
// Simulation: drive clk_cpu directly from the input clock (no Xilinx primitive)
wire clk_cpu = sys_clk;
wire mmcm_locked = 1'b1;
`else
// ---------- 50 MHz -> 16.667 MHz clk_cpu (VCO 50*20 = 1000 MHz) ----------
wire clk_cpu, clk_cpu_pre, clkfb_out, clkfb_in, mmcm_locked;
MMCME2_BASE #(
.BANDWIDTH("OPTIMIZED"), .CLKFBOUT_MULT_F(20.0), .CLKIN1_PERIOD(20.0),
.CLKOUT0_DIVIDE_F(60.0), .DIVCLK_DIVIDE(1), .STARTUP_WAIT("FALSE")
) mmcm (
.CLKIN1(sys_clk), .CLKFBIN(clkfb_in), .CLKFBOUT(clkfb_out),
.CLKOUT0(clk_cpu_pre), .LOCKED(mmcm_locked), .PWRDWN(1'b0), .RST(1'b0)
);
BUFG bfb (.I(clkfb_out), .O(clkfb_in));
BUFG bcp (.I(clk_cpu_pre), .O(clk_cpu));
`endif
// ---------- reset ----------
reg [7:0] rstcnt = 8'h00;
reg rst_n = 1'b0;
always @(posedge clk_cpu) begin
if (!mmcm_locked || !key_n) begin rstcnt <= 0; rst_n <= 1'b0; end
else if (rstcnt != 8'hFF) rstcnt <= rstcnt + 1'b1;
else rst_n <= 1'b1;
end
// ---------- MEM_RAM_49 (ramSize=3 -> sync BRAM) ----------
reg [9:0] aa;
reg ras, cas, bank0, mwrite_n;
reg [17:0] dd_in;
wire [17:0] dd_out;
wire corr_n;
MEM_RAM_49 ram (
.sysclk(clk_cpu), .sys_rst_n(rst_n),
.AA_9_0(aa), .BANK0(bank0), .BANK1(1'b0), .BANK2(1'b0),
.CAS(cas), .RAS(ras), .MWRITE50_n(mwrite_n),
.DD_17_0_IN(dd_in), .DD_17_0_OUT(dd_out), .CORR_n(corr_n)
);
// ---------- test vectors (addr, data) ----------
reg [19:0] t_addr;
reg [7:0] t_data;
reg [2:0] tidx;
always @(*) begin
case (tidx)
3'd0: begin t_addr = 20'h00000; t_data = 8'hA5; end
3'd1: begin t_addr = 20'h00001; t_data = 8'h5A; end
3'd2: begin t_addr = 20'h00002; t_data = 8'h3C; end
3'd3: begin t_addr = 20'h00004; t_data = 8'hC3; end // old model aliased 0<->4
3'd4: begin t_addr = 20'h00010; t_data = 8'hFF; end
3'd5: begin t_addr = 20'h00100; t_data = 8'h11; end
3'd6: begin t_addr = 20'h000FF; t_data = 8'h77; end
3'd7: begin t_addr = 20'h003FF; t_data = 8'h42; end
endcase
end
wire [9:0] row = t_addr[9:0];
wire [9:0] col = t_addr[19:10];
// ---------- msg_printer (paces the FSM; TX is ILA-only on this board) ----------
reg p_start;
reg [3:0] p_msg;
reg [22:0] p_addr;
reg [7:0] p_data;
wire p_busy;
(* mark_debug = "true" *) wire uart_txd;
msg_printer #(.DELAY_FRAMES(DF)) printer (
.clk(clk_cpu), .rst_n(rst_n), .start(p_start), .msg(p_msg),
.addr(p_addr), .data(p_data), .busy(p_busy), .txd(uart_txd)
);
// msg selectors (must match msg_printer.v)
localparam M_BANNER=4'd0, M_WRITE=4'd2, M_READ_OK=4'd3, M_READ_ERR=4'd4,
M_PASS=4'd8, M_FAIL=4'd9;
// ---------- main FSM ----------
localparam S_RST=0, S_BANNER=1, S_BANWAIT=2,
S_WR=3, S_WRMSG=4, S_WRMSGW=5,
S_RD=6, S_RDMSG=7, S_RDMSGW=8,
S_NEXT=9, S_RESULT=10, S_RESWAIT=11, S_DONE=12;
(* mark_debug = "true" *) reg [3:0] state;
reg [3:0] d; // DRAM sub-cycle 0..6
(* mark_debug = "true" *) reg [7:0] rd_data;
(* mark_debug = "true" *) reg fail;
// DRAM protocol driven by sub-cycle d (each = 1 clk_cpu), is_write = (state==S_WR)
task drive_dram(input is_write);
begin
// defaults (idle)
ras=1'b0; cas=1'b0; bank0=1'b0; mwrite_n=1'b1;
aa=row; dd_in={10'b0, t_data};
case (d)
4'd0: begin ras=1; bank0=1; aa=row; mwrite_n=~is_write ? 1'b1 : 1'b0; end // RAS fall, row
4'd1: begin ras=1; bank0=1; aa=col; mwrite_n= is_write?1'b0:1'b1; end // AA->col, CAS high
4'd2: begin ras=1; bank0=1; cas=1; aa=col; mwrite_n=is_write?1'b0:1'b1; end// CAS fall, col
4'd3: begin ras=1; bank0=1; cas=1; aa=col; mwrite_n=is_write?1'b0:1'b1; end// both low
4'd4: begin ras=1; bank0=1; cas=1; aa=col; mwrite_n=is_write?1'b0:1'b1; end// both low
4'd5: begin ras=0; bank0=1; cas=1; aa=col; mwrite_n=1'b1; end // RAS deassert, read window
default: begin ras=0; cas=0; bank0=0; end // precharge
endcase
end
endtask
always @(posedge clk_cpu) begin
if (!rst_n) begin
state<=S_RST; d<=0; tidx<=0; fail<=0; p_start<=0;
ras<=0; cas<=0; bank0<=0; mwrite_n<=1; aa<=0; dd_in<=0; rd_data<=0;
end else begin
p_start <= 1'b0;
case (state)
S_RST: begin state<=S_BANNER; end
S_BANNER: begin p_msg<=M_BANNER; p_start<=1; state<=S_BANWAIT; end
S_BANWAIT: if (!p_start && !p_busy) begin d<=0; state<=S_WR; end
// ---- write access ----
S_WR: begin
drive_dram(1'b1);
if (d==4'd6) begin d<=0; state<=S_WRMSG; end else d<=d+1'b1;
end
S_WRMSG: begin p_msg<=M_WRITE; p_addr<={3'b0,t_addr}; p_data<=t_data; p_start<=1; state<=S_WRMSGW; end
S_WRMSGW: if (!p_start && !p_busy) begin d<=0; state<=S_RD; end
// ---- read access ----
S_RD: begin
drive_dram(1'b0);
if (d==4'd5) rd_data<=dd_out[7:0]; // capture in the read window
if (d==4'd6) begin d<=0; state<=S_RDMSG; end else d<=d+1'b1;
end
S_RDMSG: begin
p_addr<={3'b0,t_addr}; p_data<=rd_data;
if (rd_data==t_data) p_msg<=M_READ_OK;
else begin p_msg<=M_READ_ERR; fail<=1'b1; end
p_start<=1; state<=S_RDMSGW;
end
S_RDMSGW: if (!p_start && !p_busy) state<=S_NEXT;
S_NEXT: if (tidx==3'd7) state<=S_RESULT; else begin tidx<=tidx+1'b1; state<=S_WR; end
S_RESULT: begin p_msg<= fail ? M_FAIL : M_PASS; p_start<=1; state<=S_RESWAIT; end
S_RESWAIT: if (!p_start && !p_busy) state<=S_DONE;
S_DONE: begin ras<=0; cas<=0; bank0<=0; end
default: state<=S_RST;
endcase
end
end
// ---------- LED report (2 LEDs, active low) ----------
localparam SLOW_HALF = CLK_CPU_FREQ / 2; // 1 Hz
localparam FAST_HALF = CLK_CPU_FREQ / 8; // 4 Hz
reg [31:0] s_slow_cnt = 32'd0, s_fast_cnt = 32'd0;
reg s_slow = 1'b0, s_fast = 1'b0;
always @(posedge clk_cpu) begin
if (s_slow_cnt == SLOW_HALF - 1) begin s_slow_cnt <= 32'd0; s_slow <= ~s_slow; end
else s_slow_cnt <= s_slow_cnt + 32'd1;
if (s_fast_cnt == FAST_HALF - 1) begin s_fast_cnt <= 32'd0; s_fast <= ~s_fast; end
else s_fast_cnt <= s_fast_cnt + 32'd1;
end
wire done = (state == S_DONE);
assign led_n[0] = ~(done ? (fail ? 1'b1 : s_slow) : s_fast);
assign led_n[1] = ~(done & fail);
endmodule
`default_nettype wire
