nd120_sterr_catch¶
Source: Verilog/fpga/mister/rtl/nd120_sterr_catch.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules

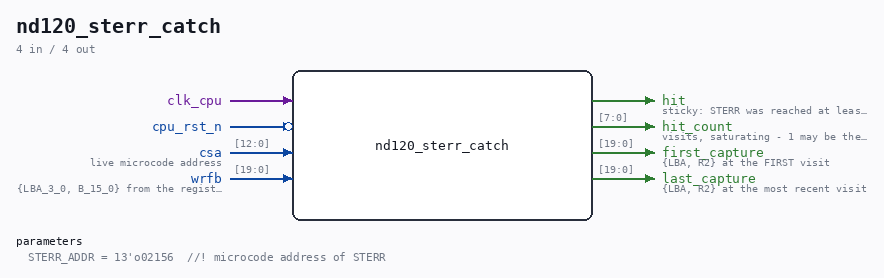

Schematic¶
Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
nd120_sterr_catch.v - catch the self-test failure and report its number WHY (01-SEP-2026, Ronny's call)
The MiSTer board reaches no OPCOM prompt. Sampling the microcode address once a second was a dead end - it ALIASES against a tight loop and reports arbitrary points inside it. The direct question is instead: did the microcode take the self-test failure branch, and if so with what error? The DELILAH microcode answers it at address 002156: % DISPLAY ERROR NO. R2 STERR: B,R2 ALUF,PASSB ALUD,Q IDBS,ALU T,JMP T,PUSH DYTP2; ALUF,PASSQ ALUD,NONE % LOOP ON ERROR IDBS,ALU COMM,LDPIL T,RETURN T,HOLD; So STERR selects R2 onto the register file's B port. This module watches for CSA == 002156 and latches that port. The value it captures IS R2, by construction - no need to know which of the sixteen register slots the microcode assembler's name "R2" decodes to. The captured LBA field reports that slot as a by-product, which settles the question for good. CAREFUL - not every visit counts. The WCS loader walks PAST the STERR address once while loading microcode (noted in runSim/Run120.cpp); only execution-phase visits mean a real self-test failure. This module therefore reports a COUNT as well as the value, and keeps BOTH the first and the most recent capture, so a single spurious walk-past is visible as count==1 rather than being mistaken for a failure. DIAGNOSTIC SCAFFOLDING, built only under ND120_DIAG_PRINT.
Parameters¶
| Parameter | Default |
|---|---|
STERR_ADDR |
13'o02156 //! microcode address of STERR |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk_cpu |
|
| input | 1 |
cpu_rst_n (active low) |
|
| input | [12:0] |
csa |
live microcode address |
| input | [19:0] |
wrfb |
{LBA_3_0, B_15_0} from the register file |
| output | 1 |
hit |
sticky: STERR was reached at least once |
| output | [7:0] |
hit_count |
visits, saturating - 1 may be the loader |
| output | [19:0] |
first_capture |
{LBA, R2} at the FIRST visit |
| output | [19:0] |
last_capture |
{LBA, R2} at the most recent visit |
Verilog source¶
Verilog/fpga/mister/rtl/nd120_sterr_catch.v on GitHub.
Show the Verilog of nd120_sterr_catch (80 lines)
/*****************************************************************************
* nd120_sterr_catch.v - catch the self-test failure and report its number *
* *
* WHY (01-SEP-2026, Ronny's call) *
* ------------------------------- *
* The MiSTer board reaches no OPCOM prompt. Sampling the microcode address *
* once a second was a dead end - it ALIASES against a tight loop and reports *
* arbitrary points inside it. The direct question is instead: did the *
* microcode take the self-test failure branch, and if so with what error? *
* *
* The DELILAH microcode answers it at address 002156: *
* *
* % DISPLAY ERROR NO. R2 *
* STERR: B,R2 ALUF,PASSB ALUD,Q *
* IDBS,ALU T,JMP T,PUSH DYTP2; *
* ALUF,PASSQ ALUD,NONE % LOOP ON ERROR *
* IDBS,ALU COMM,LDPIL T,RETURN T,HOLD; *
* *
* So STERR selects R2 onto the register file's B port. This module watches *
* for CSA == 002156 and latches that port. The value it captures IS R2, by *
* construction - no need to know which of the sixteen register slots the *
* microcode assembler's name "R2" decodes to. The captured LBA field reports *
* that slot as a by-product, which settles the question for good. *
* *
* CAREFUL - not every visit counts. The WCS loader walks PAST the STERR *
* address once while loading microcode (noted in runSim/Run120.cpp); only *
* execution-phase visits mean a real self-test failure. This module *
* therefore reports a COUNT as well as the value, and keeps BOTH the first *
* and the most recent capture, so a single spurious walk-past is visible as *
* count==1 rather than being mistaken for a failure. *
* *
* DIAGNOSTIC SCAFFOLDING, built only under ND120_DIAG_PRINT. *
*****************************************************************************/
`default_nettype none
module nd120_sterr_catch #(
parameter [12:0] STERR_ADDR = 13'o02156 //! microcode address of STERR
) (
input wire clk_cpu,
input wire cpu_rst_n,
input wire [12:0] csa, //! live microcode address
input wire [19:0] wrfb, //! {LBA_3_0, B_15_0} from the register file
output reg hit, //! sticky: STERR was reached at least once
output reg [7:0] hit_count, //! visits, saturating - 1 may be the loader
output reg [19:0] first_capture, //! {LBA, R2} at the FIRST visit
output reg [19:0] last_capture //! {LBA, R2} at the most recent visit
);
reg r_at_sterr; //! previous cycle was already at STERR - count ENTRIES only
wire s_at = (csa == STERR_ADDR);
always @(posedge clk_cpu) begin
if (!cpu_rst_n) begin
hit <= 1'b0;
hit_count <= 8'd0;
first_capture <= 20'd0;
last_capture <= 20'd0;
r_at_sterr <= 1'b0;
end else begin
r_at_sterr <= s_at;
// Count ENTRIES into STERR, not clocks spent there: the microinstruction
// is held for several cycles, and counting clocks would turn one visit
// into a meaningless large number.
if (s_at && !r_at_sterr) begin
last_capture <= wrfb;
if (!hit) begin
hit <= 1'b1;
first_capture <= wrfb;
end
if (hit_count != 8'hFF) hit_count <= hit_count + 8'd1;
end
end
end
endmodule
`default_nettype wire
