nd_storage_mister_devices¶
Source: Verilog/fpga/mister/rtl/nd_storage_mister_devices.v
Where it sits (MiSTer): emu > nd_storage_mister_devices
- instance path: STORAGE
Used in: emu (MiSTer)
Contains: nd_storage_disc_adapter x2, nd_storage_floppy_adapter x2, nd_storage_hps, nd_storage_tape_adapter
Module hierarchy - All modules

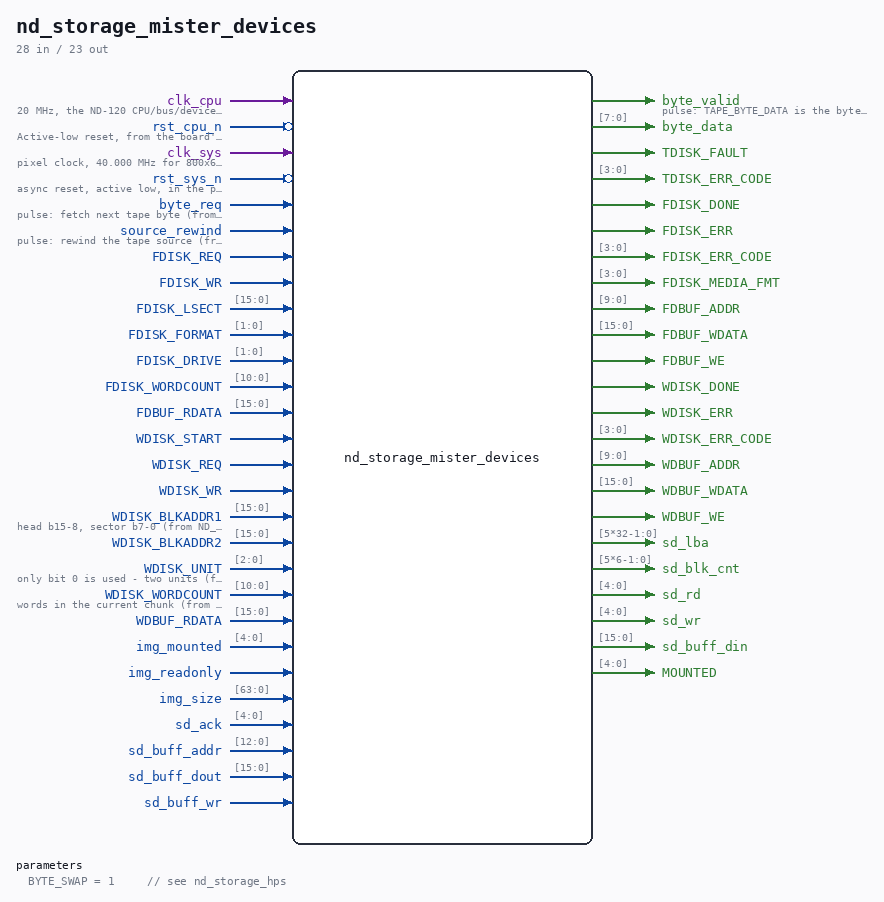

Schematic¶
Drawn from the Verilog: the yosys netlist of the MiSTer build, instance STORAGE. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Parameters¶
| Parameter | Default |
|---|---|
BYTE_SWAP |
1 // see nd_storage_hps |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk_cpu |
20 MHz, the ND-120 CPU/bus/device domain (from pll_cpu.outclk_0) |
| input | 1 |
rst_cpu_n (active low) |
Active-low reset, from the board's power-on reset (same net as ND120_CORE.sys_rst_n) |
| input | 1 |
clk_sys |
pixel clock, 40.000 MHz for 800x600@60 (same net as nd120_console_mister.clk) |
| input | 1 |
rst_sys_n (active low) |
async reset, active low, in the pixel domain (same net as nd120_console_mister.rst_n) |
| input | 1 |
byte_req |
pulse: fetch next tape byte (from ND120_CORE.TAPE_BYTE_REQ) |
| output | 1 |
byte_valid |
pulse: TAPE_BYTE_DATA is the byte (to ND120_CORE.TAPE_BYTE_VALID) |
| output | [7:0] |
byte_data |
|
| input | 1 |
source_rewind |
pulse: rewind the tape source (from ND120_CORE.TAPE_REWIND) |
| output | 1 |
TDISK_FAULT |
|
| output | [3:0] |
TDISK_ERR_CODE |
|
| input | 1 |
FDISK_REQ |
|
| input | 1 |
FDISK_WR |
|
| input | [15:0] |
FDISK_LSECT |
|
| input | [1:0] |
FDISK_FORMAT |
|
| input | [1:0] |
FDISK_DRIVE |
|
| input | [10:0] |
FDISK_WORDCOUNT |
|
| output | 1 |
FDISK_DONE |
|
| output | 1 |
FDISK_ERR |
|
| output | [3:0] |
FDISK_ERR_CODE |
|
| output | [3:0] |
FDISK_MEDIA_FMT |
|
| output | [9:0] |
FDBUF_ADDR |
|
| output | [15:0] |
FDBUF_WDATA |
|
| output | 1 |
FDBUF_WE |
|
| input | [15:0] |
FDBUF_RDATA |
|
| input | 1 |
WDISK_START |
|
| input | 1 |
WDISK_REQ |
|
| input | 1 |
WDISK_WR |
|
| input | [15:0] |
WDISK_BLKADDR1 |
head b15-8, sector b7-0 (from ND_WINCHESTER.disk_blkaddr1) |
| input | [15:0] |
WDISK_BLKADDR2 |
|
| input | [2:0] |
WDISK_UNIT |
only bit 0 is used - two units (from ND_WINCHESTER.disk_unit) |
| input | [10:0] |
WDISK_WORDCOUNT |
words in the current chunk (from ND_WINCHESTER.disk_wordcount) |
| output | 1 |
WDISK_DONE |
|
| output | 1 |
WDISK_ERR |
|
| output | [3:0] |
WDISK_ERR_CODE |
|
| output | [9:0] |
WDBUF_ADDR |
|
| output | [15:0] |
WDBUF_WDATA |
|
| output | 1 |
WDBUF_WE |
|
| input | [15:0] |
WDBUF_RDATA |
|
| input | [4:0] |
img_mounted |
|
| input | 1 |
img_readonly |
|
| input | [63:0] |
img_size |
|
| output | [5*32-1:0] |
sd_lba |
|
| output | [5*6-1:0] |
sd_blk_cnt |
|
| output | [4:0] |
sd_rd |
|
| output | [4:0] |
sd_wr |
|
| input | [4:0] |
sd_ack |
|
| input | [12:0] |
sd_buff_addr |
|
| input | [15:0] |
sd_buff_dout |
|
| output | [15:0] |
sd_buff_din |
|
| input | 1 |
sd_buff_wr |
|
| output | [4:0] |
MOUNTED |
Verilog source¶
Verilog/fpga/mister/rtl/nd_storage_mister_devices.v on GitHub.
Show the Verilog of nd_storage_mister_devices (272 lines)
`include "nd_storage_status.vh"
/****************************************************************************
** nd_storage_mister_devices - the ND-120 storage subsystem on the MiSTer **
** **
** The MiSTer counterpart of Verilog/SD-FAT/circuit/nd_storage_devices.v: **
** the same "storage subsystem in a box" with pin-for-pin FDISK_* and FDBUF_*, **
** WDISK_* and WDBUF_* and TAPE byte-source seams matching ND120_CORE, but **
** with nd_storage_hps behind the adapters instead of the SD/FAT stack. **
** No SD card, no SPI, no FAT: the images are files the user mounts from **
** the MiSTer OSD, one per slot. **
** **
** SLOT MAP (= OSD "S<n>" lines in nd120.sv's CONF_STR, = hps_io VDNUM **
** index, = nd_storage_hps client): **
** 0 floppy drive 0 (ND_FLOPPY_DMA command word b7:6 = 0) **
** 1 floppy drive 1 (b7:6 = 1) **
** 2 Winchester unit 0 (ND_WINCHESTER control word b9 = 0) **
** 3 Winchester unit 1 (b9 = 1) **
** 4 paper tape (ND_TAPE_400 byte stream, read from byte 0) **
** The Winchester card has a ONE-bit unit field, so two units is all it **
** can address (ND_WINCHESTER.v header). The four-unit device would be the **
** SMD card, which this board does not build. **
** **
** TWO ADAPTERS PER CONTROLLER. nd_storage_floppy_adapter and **
** nd_storage_disc_adapter each serve ONE drive/unit (parameter DRIVE / **
** UNIT) and ignore a request for any other completely - every output **
** parked at 0 - so two instances share the controller's disk_* inputs and **
** their disk_done/disk_err/err_code/dbuf_* outputs are ORed. The Tang and **
** Nexys aggregator only ever instantiated ONE of each; this is the first **
** build with a second floppy drive and a second Winchester unit, and the **
** OR is what nd_storage_mister_devices_tb proves. **
** **
** OPEN. There is nothing to open on this board - the file is whatever the **
** OSD mounted, and nd_storage_hps reports that as open_ok directly - so **
** open_start is a single pulse after reset, purely to satisfy the **
** adapters' contract. A drive whose slot has no image simply answers **
** every request with err + NDS_ERR_NOTOPEN, which the controllers map **
** onto their own "not ready" / "disk fault" status bits. **
** **
** FLOPPY MEDIA FORMAT follows the SELECTED drive: FDISK_MEDIA_FMT is **
** derived from slot 0's or slot 1's image size according to FDISK_DRIVE, **
** by the same size rule the Tang aggregator and the C reference use **
** (315392 bytes = 8-inch 512 B/sector -> 0; else the 1.2 MB 1024 B/sector **
** double-sided double-density descriptor -> 0xF). **
** **
** Ronny Hansen, 01-SEP-2026 **
*****************************************************************************/
module nd_storage_mister_devices #(
parameter integer BYTE_SWAP = 1 // see nd_storage_hps
) (
input wire clk_cpu, //! 20 MHz, the ND-120 CPU/bus/device domain (from pll_cpu.outclk_0)
input wire rst_cpu_n, //! Active-low reset, from the board's power-on reset (same net as ND120_CORE.sys_rst_n)
input wire clk_sys, //! pixel clock, 40.000 MHz for 800x600@60 (same net as nd120_console_mister.clk)
input wire rst_sys_n, //! async reset, active low, in the pixel domain (same net as nd120_console_mister.rst_n)
// ---- ND_TAPE_400 byte source port (pin-for-pin) ----
input wire byte_req, //! pulse: fetch next tape byte (from ND120_CORE.TAPE_BYTE_REQ)
output wire byte_valid, //! pulse: TAPE_BYTE_DATA is the byte (to ND120_CORE.TAPE_BYTE_VALID)
output wire [7:0] byte_data,
input wire source_rewind, //! pulse: rewind the tape source (from ND120_CORE.TAPE_REWIND)
// sticky tape diagnostic - see nd_storage_tape_adapter's header: the
// ND-400 reader has no register for "no image", so it is published here
output wire TDISK_FAULT,
output wire [3:0] TDISK_ERR_CODE,
// ---- ND_FLOPPY_DMA disk-image backend seam (slots 0 and 1) ----
input wire FDISK_REQ,
input wire FDISK_WR,
input wire [15:0] FDISK_LSECT,
input wire [ 1:0] FDISK_FORMAT,
input wire [ 1:0] FDISK_DRIVE,
input wire [10:0] FDISK_WORDCOUNT,
output wire FDISK_DONE,
output wire FDISK_ERR,
output wire [ 3:0] FDISK_ERR_CODE,
output wire [ 3:0] FDISK_MEDIA_FMT,
output wire [ 9:0] FDBUF_ADDR,
output wire [15:0] FDBUF_WDATA,
output wire FDBUF_WE,
input wire [15:0] FDBUF_RDATA,
// ---- ND_WINCHESTER disk-image backend seam (slots 2 and 3) ----
input wire WDISK_START,
input wire WDISK_REQ,
input wire WDISK_WR,
input wire [15:0] WDISK_BLKADDR1, //! head b15-8, sector b7-0 (from ND_WINCHESTER.disk_blkaddr1)
input wire [15:0] WDISK_BLKADDR2,
input wire [ 2:0] WDISK_UNIT, //! only bit 0 is used - two units (from ND_WINCHESTER.disk_unit)
input wire [10:0] WDISK_WORDCOUNT, //! words in the current chunk (from ND_WINCHESTER.disk_wordcount)
output wire WDISK_DONE,
output wire WDISK_ERR,
output wire [ 3:0] WDISK_ERR_CODE,
output wire [ 9:0] WDBUF_ADDR,
output wire [15:0] WDBUF_WDATA,
output wire WDBUF_WE,
input wire [15:0] WDBUF_RDATA,
// ---- hps_io block interface (clk_sys), flattened per slot ----
input wire [4:0] img_mounted,
input wire img_readonly,
input wire [63:0] img_size,
output wire [5*32-1:0] sd_lba,
output wire [5*6-1:0] sd_blk_cnt,
output wire [4:0] sd_rd,
output wire [4:0] sd_wr,
input wire [4:0] sd_ack,
input wire [12:0] sd_buff_addr,
input wire [15:0] sd_buff_dout,
output wire [15:0] sd_buff_din,
input wire sd_buff_wr,
// ---- diagnostics (clk_cpu): which slots hold a file ----
output wire [4:0] MOUNTED
);
localparam integer N = 5;
localparam integer CL_FD0 = 0;
localparam integer CL_FD1 = 1;
localparam integer CL_WD0 = 2;
localparam integer CL_WD1 = 3;
localparam integer CL_TAPE = 4;
// ---- flattened client buses ------------------------------------------------
wire [N-1:0] open_req_w, open_ok_w, open_err_w, req_w, wr_w;
wire [N-1:0] busy_w, done_w, err_w, buf_we_w;
wire [N*4-1:0] err_code_w;
wire [N*32-1:0] size_bytes_w;
wire [N*16-1:0] block_w, buf_wdata_w, buf_rdata_w;
wire [N*10-1:0] buf_addr_w;
// one open pulse after reset, for every adapter at once (nd_storage_hps
// takes any number of concurrent open_req - there is no card to bring up)
reg s_open_done;
always @(posedge clk_cpu or negedge rst_cpu_n)
if (!rst_cpu_n) s_open_done <= 1'b0;
else s_open_done <= 1'b1;
wire s_open_pulse = !s_open_done;
// ---- floppy: two adapters, outputs ORed ----------------------------------
wire f0_done, f0_err, f0_we, f1_done, f1_err, f1_we;
wire [3:0] f0_code, f1_code;
wire [9:0] f0_addr, f1_addr;
wire [15:0] f0_wdata, f1_wdata;
assign FDISK_DONE = f0_done | f1_done;
assign FDISK_ERR = f0_err | f1_err;
assign FDISK_ERR_CODE = f0_code | f1_code;
assign FDBUF_ADDR = f0_addr | f1_addr;
assign FDBUF_WDATA = f0_wdata | f1_wdata;
assign FDBUF_WE = f0_we | f1_we;
// media format of the SELECTED drive, from its image size (see header)
wire [31:0] f0_size = size_bytes_w[CL_FD0*32 +: 32];
wire [31:0] f1_size = size_bytes_w[CL_FD1*32 +: 32];
wire [3:0] f0_fmt = (f0_size == 32'd315392) ? 4'h0 : 4'hF;
wire [3:0] f1_fmt = (f1_size == 32'd315392) ? 4'h0 : 4'hF;
assign FDISK_MEDIA_FMT = (FDISK_DRIVE == 2'd1) ? f1_fmt : f0_fmt;
nd_storage_floppy_adapter #(.DRIVE(2'd0)) u_fd0 (
.clk_cpu(clk_cpu), .rst_n(rst_cpu_n),
.disk_req(FDISK_REQ), .disk_wr(FDISK_WR), .disk_lsect(FDISK_LSECT),
.disk_format(FDISK_FORMAT), .disk_drive(FDISK_DRIVE), .disk_wordcount(FDISK_WORDCOUNT),
.disk_done(f0_done), .disk_err(f0_err), .disk_err_code(f0_code),
.dbuf_addr(f0_addr), .dbuf_wdata(f0_wdata), .dbuf_we(f0_we), .dbuf_rdata(FDBUF_RDATA),
.open_start(s_open_pulse),
.c_open_req(open_req_w[CL_FD0]), .c_open_ok(open_ok_w[CL_FD0]), .c_open_err(open_err_w[CL_FD0]),
.c_size_bytes(f0_size),
.c_req(req_w[CL_FD0]), .c_wr(wr_w[CL_FD0]), .c_block(block_w[CL_FD0*16 +: 16]),
.c_busy(busy_w[CL_FD0]), .c_done(done_w[CL_FD0]), .c_err(err_w[CL_FD0]),
.c_err_code(err_code_w[CL_FD0*4 +: 4]),
.c_buf_addr(buf_addr_w[CL_FD0*10 +: 10]), .c_buf_wdata(buf_wdata_w[CL_FD0*16 +: 16]),
.c_buf_we(buf_we_w[CL_FD0]), .c_buf_rdata(buf_rdata_w[CL_FD0*16 +: 16])
);
nd_storage_floppy_adapter #(.DRIVE(2'd1)) u_fd1 (
.clk_cpu(clk_cpu), .rst_n(rst_cpu_n),
.disk_req(FDISK_REQ), .disk_wr(FDISK_WR), .disk_lsect(FDISK_LSECT),
.disk_format(FDISK_FORMAT), .disk_drive(FDISK_DRIVE), .disk_wordcount(FDISK_WORDCOUNT),
.disk_done(f1_done), .disk_err(f1_err), .disk_err_code(f1_code),
.dbuf_addr(f1_addr), .dbuf_wdata(f1_wdata), .dbuf_we(f1_we), .dbuf_rdata(FDBUF_RDATA),
.open_start(s_open_pulse),
.c_open_req(open_req_w[CL_FD1]), .c_open_ok(open_ok_w[CL_FD1]), .c_open_err(open_err_w[CL_FD1]),
.c_size_bytes(f1_size),
.c_req(req_w[CL_FD1]), .c_wr(wr_w[CL_FD1]), .c_block(block_w[CL_FD1*16 +: 16]),
.c_busy(busy_w[CL_FD1]), .c_done(done_w[CL_FD1]), .c_err(err_w[CL_FD1]),
.c_err_code(err_code_w[CL_FD1*4 +: 4]),
.c_buf_addr(buf_addr_w[CL_FD1*10 +: 10]), .c_buf_wdata(buf_wdata_w[CL_FD1*16 +: 16]),
.c_buf_we(buf_we_w[CL_FD1]), .c_buf_rdata(buf_rdata_w[CL_FD1*16 +: 16])
);
// ---- Winchester: two adapters, outputs ORed --------------------------------
// The same nd_storage_disc_adapter the Tang uses for the Winchester, with
// the Micropolis 1325 / DISC-74-1 geometry (8 heads, 9 sectors/track,
// 1024-byte sectors), one per unit.
wire w0_done, w0_err, w0_we, w1_done, w1_err, w1_we;
wire [3:0] w0_code, w1_code;
wire [9:0] w0_addr, w1_addr;
wire [15:0] w0_wdata, w1_wdata;
assign WDISK_DONE = w0_done | w1_done;
assign WDISK_ERR = w0_err | w1_err;
assign WDISK_ERR_CODE = w0_code | w1_code;
assign WDBUF_ADDR = w0_addr | w1_addr;
assign WDBUF_WDATA = w0_wdata | w1_wdata;
assign WDBUF_WE = w0_we | w1_we;
nd_storage_disc_adapter #(.UNIT(3'd0), .GEO_HEADS(16'd8), .GEO_SPT(16'd9)) u_wd0 (
.clk_cpu(clk_cpu), .rst_n(rst_cpu_n),
.disk_start(WDISK_START), .disk_req(WDISK_REQ), .disk_wr(WDISK_WR),
.disk_blkaddr1(WDISK_BLKADDR1), .disk_blkaddr2(WDISK_BLKADDR2), .disk_unit(WDISK_UNIT),
.disk_wordcount(WDISK_WORDCOUNT),
.disk_done(w0_done), .disk_err(w0_err), .disk_err_code(w0_code),
.dbuf_addr(w0_addr), .dbuf_wdata(w0_wdata), .dbuf_we(w0_we), .dbuf_rdata(WDBUF_RDATA),
.open_start(s_open_pulse),
.c_open_req(open_req_w[CL_WD0]), .c_open_ok(open_ok_w[CL_WD0]), .c_open_err(open_err_w[CL_WD0]),
.c_size_bytes(size_bytes_w[CL_WD0*32 +: 32]),
.c_req(req_w[CL_WD0]), .c_wr(wr_w[CL_WD0]), .c_block(block_w[CL_WD0*16 +: 16]),
.c_busy(busy_w[CL_WD0]), .c_done(done_w[CL_WD0]), .c_err(err_w[CL_WD0]),
.c_err_code(err_code_w[CL_WD0*4 +: 4]),
.c_buf_addr(buf_addr_w[CL_WD0*10 +: 10]), .c_buf_wdata(buf_wdata_w[CL_WD0*16 +: 16]),
.c_buf_we(buf_we_w[CL_WD0]), .c_buf_rdata(buf_rdata_w[CL_WD0*16 +: 16])
);
nd_storage_disc_adapter #(.UNIT(3'd1), .GEO_HEADS(16'd8), .GEO_SPT(16'd9)) u_wd1 (
.clk_cpu(clk_cpu), .rst_n(rst_cpu_n),
.disk_start(WDISK_START), .disk_req(WDISK_REQ), .disk_wr(WDISK_WR),
.disk_blkaddr1(WDISK_BLKADDR1), .disk_blkaddr2(WDISK_BLKADDR2), .disk_unit(WDISK_UNIT),
.disk_wordcount(WDISK_WORDCOUNT),
.disk_done(w1_done), .disk_err(w1_err), .disk_err_code(w1_code),
.dbuf_addr(w1_addr), .dbuf_wdata(w1_wdata), .dbuf_we(w1_we), .dbuf_rdata(WDBUF_RDATA),
.open_start(s_open_pulse),
.c_open_req(open_req_w[CL_WD1]), .c_open_ok(open_ok_w[CL_WD1]), .c_open_err(open_err_w[CL_WD1]),
.c_size_bytes(size_bytes_w[CL_WD1*32 +: 32]),
.c_req(req_w[CL_WD1]), .c_wr(wr_w[CL_WD1]), .c_block(block_w[CL_WD1*16 +: 16]),
.c_busy(busy_w[CL_WD1]), .c_done(done_w[CL_WD1]), .c_err(err_w[CL_WD1]),
.c_err_code(err_code_w[CL_WD1*4 +: 4]),
.c_buf_addr(buf_addr_w[CL_WD1*10 +: 10]), .c_buf_wdata(buf_wdata_w[CL_WD1*16 +: 16]),
.c_buf_we(buf_we_w[CL_WD1]), .c_buf_rdata(buf_rdata_w[CL_WD1*16 +: 16])
);
// ---- paper tape -----------------------------------------------------------
nd_storage_tape_adapter u_tape (
.clk_cpu(clk_cpu), .rst_n(rst_cpu_n),
.byte_req(byte_req), .byte_valid(byte_valid), .byte_data(byte_data),
.source_rewind(source_rewind),
.fault(TDISK_FAULT), .fault_code(TDISK_ERR_CODE),
.open_start(s_open_pulse),
.c_open_req(open_req_w[CL_TAPE]), .c_open_ok(open_ok_w[CL_TAPE]), .c_open_err(open_err_w[CL_TAPE]),
.c_size_bytes(size_bytes_w[CL_TAPE*32 +: 32]),
.c_req(req_w[CL_TAPE]), .c_wr(wr_w[CL_TAPE]), .c_block(block_w[CL_TAPE*16 +: 16]),
.c_busy(busy_w[CL_TAPE]), .c_done(done_w[CL_TAPE]), .c_err(err_w[CL_TAPE]),
.c_err_code(err_code_w[CL_TAPE*4 +: 4]),
.c_buf_addr(buf_addr_w[CL_TAPE*10 +: 10]), .c_buf_wdata(buf_wdata_w[CL_TAPE*16 +: 16]),
.c_buf_we(buf_we_w[CL_TAPE]), .c_buf_rdata(buf_rdata_w[CL_TAPE*16 +: 16])
);
// ---- the backend -------------------------------------------------------------
nd_storage_hps #(.N_CLIENTS(N), .BYTE_SWAP(BYTE_SWAP)) u_hps (
.clk_cpu(clk_cpu), .rst_cpu_n(rst_cpu_n),
.open_req(open_req_w), .open_ok(open_ok_w), .open_err(open_err_w), .size_bytes(size_bytes_w),
.req(req_w), .wr(wr_w), .block(block_w), .busy(busy_w), .done(done_w), .err(err_w),
.err_code(err_code_w),
.buf_addr(buf_addr_w), .buf_wdata(buf_wdata_w), .buf_we(buf_we_w), .buf_rdata(buf_rdata_w),
.clk_sys(clk_sys), .rst_sys_n(rst_sys_n),
.img_mounted(img_mounted), .img_readonly(img_readonly), .img_size(img_size),
.sd_lba(sd_lba), .sd_blk_cnt(sd_blk_cnt), .sd_rd(sd_rd), .sd_wr(sd_wr), .sd_ack(sd_ack),
.sd_buff_addr(sd_buff_addr), .sd_buff_dout(sd_buff_dout), .sd_buff_din(sd_buff_din),
.sd_buff_wr(sd_buff_wr),
.mounted(MOUNTED)
);
endmodule
