nd_storage_disc_adapter¶
Source: Verilog/SD-FAT/circuit/nd_storage_disc_adapter.v
Where it sits (Tang): ND120_TANG20K_TOP > nd_storage_devices > nd_storage_disc_adapter
- instance path: TAPE_SDFAT_SOURCE.gen_wd.u_wd_adapter
Used in: nd_storage_devices (Tang, Nexys, QMTECH), nd_storage_mega65_devices (MEGA65 R6, MEGA65 R3), nd_storage_mister_devices (MiSTer)
Contains: no other modules.
Module hierarchy - All modules

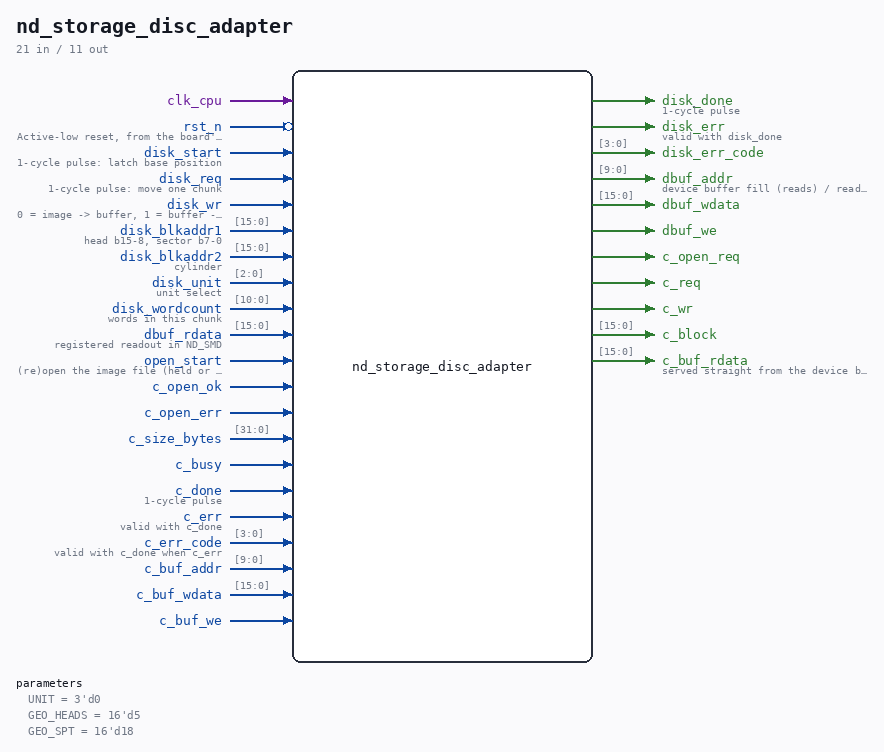

Schematic¶
Drawn from the Verilog: the yosys netlist of the Tang Nano 20K build, instance TAPE_SDFAT_SOURCE.gen_wd.u_wd_adapter. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Parameters¶
| Parameter | Default |
|---|---|
UNIT |
3'd0 |
GEO_HEADS |
16'd5 |
GEO_SPT |
16'd18 |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk_cpu |
|
| input | 1 |
rst_n (active low) |
Active-low reset, from the board's power-on reset (same net as ND120_CORE.sys_rst_n) |
| input | 1 |
disk_start |
1-cycle pulse: latch base position |
| input | 1 |
disk_req |
1-cycle pulse: move one chunk |
| input | 1 |
disk_wr |
0 = image -> buffer, 1 = buffer -> image |
| input | [15:0] |
disk_blkaddr1 |
head b15-8, sector b7-0 |
| input | [15:0] |
disk_blkaddr2 |
cylinder |
| input | [2:0] |
disk_unit |
unit select |
| input | [10:0] |
disk_wordcount |
words in this chunk |
| output | 1 |
disk_done |
1-cycle pulse |
| output | 1 |
disk_err |
valid with disk_done |
| output | [3:0] |
disk_err_code |
|
| output | [9:0] |
dbuf_addr |
device buffer fill (reads) / readout (writes) |
| output | [15:0] |
dbuf_wdata |
|
| output | 1 |
dbuf_we |
|
| input | [15:0] |
dbuf_rdata |
registered readout in ND_SMD |
| input | 1 |
open_start |
(re)open the image file (held or pulsed) |
| output | 1 |
c_open_req |
|
| input | 1 |
c_open_ok |
|
| input | 1 |
c_open_err |
|
| input | [31:0] |
c_size_bytes |
|
| output | 1 |
c_req |
|
| output | 1 |
c_wr |
|
| output | [15:0] |
c_block |
|
| input | 1 |
c_busy |
|
| input | 1 |
c_done |
1-cycle pulse |
| input | 1 |
c_err |
valid with c_done |
| input | [3:0] |
c_err_code |
valid with c_done when c_err |
| input | [9:0] |
c_buf_addr |
|
| input | [15:0] |
c_buf_wdata |
|
| input | 1 |
c_buf_we |
|
| output | [15:0] |
c_buf_rdata |
served straight from the device buffer |
Verilog source¶
Verilog/SD-FAT/circuit/nd_storage_disc_adapter.v on GitHub.
Show the Verilog of nd_storage_disc_adapter (413 lines)
`include "nd_storage_status.vh"
/****************************************************************************
** nd_storage_disc_adapter - block adapter for the ND_SMD disk backend **
** **
** Sits between ND_SMD's disk-image backend port (pin-for-pin, see **
** Verilog/ND-BUS-DEVICES/SMD/circuit/ND_SMD.v) and ONE nd_storage client **
** port (client 3 = SMD0.IMG in the v1 owner file set). Single clock: **
** clk_cpu (the client-port domain - the CDC lives inside nd_storage). **
** **
** THE DEVICE CONTRACT (read from ND_SMD.v and mirrored from the TWO **
** existing backends - the unit tb model in **
** Verilog/ND-BUS-DEVICES/SMD/sim/nd_smd_tb.v and the Verilator C backend **
** process_verilog_smd() in Verilog/simDevices/NDBus.cpp - so the same **
** image bytes work in sim and on the card): **
** disk_start in 1-cycle pulse at command start: LATCH the base **
** position from the block-address registers **
** disk_req in 1-cycle pulse: move ONE CHUNK (may coincide **
** with disk_start - the boot path and M0 do) **
** disk_wr in 0 = image -> device buffer, 1 = buffer -> image **
** disk_blkaddr1 in [15:0] head b15-8, sector b7-0 **
** disk_blkaddr2 in [15:0] cylinder **
** disk_unit in [2:0] selected drive **
** disk_wordcount in [10:0] words in this chunk (1..1024) **
** disk_done out 1-cycle pulse (device waits on it as a level) **
** disk_err out valid with disk_done (device disk_err_in) **
** dbuf_addr/wdata/we out: fill the device's 1024x16 buffer (reads) **
** dbuf_rdata in device buffer readout - REGISTERED in ND_SMD **
** (sync-read BSRAM): valid one cycle after the **
** address, which the engine's 3-cycle write pull **
** (address / wait / sample) tolerates **
** **
** POSITION MAPPING - the ORACLE CHS->LBA formula (same as nd100x / **
** RetroCore, so an image prepared there reads correctly here), kept in **
** lockstep with the Verilator C backend process_verilog_smd() in **
** Verilog/simDevices/NDBus.cpp: **
** LBA = (disk_blkaddr2 * GEO_HEADS + head) * GEO_SPT + sector **
** word offset = LBA * 512 (1024-byte sector = 512 words) **
** with head = disk_blkaddr1[15:8], sector = disk_blkaddr1[7:0]. **
** (WAS disk_blkaddr2 * 2048 + disk_blkaddr1 * 64, which only agreed with **
** the real geometry at block 0 - a working boot but garbage past it.) **
** disk_start latches it; chunks advance linearly (+wordcount each done). **
** File words are big-endian bytes, same as the nd_storage engine packs **
** them (word w = {byte 2w, byte 2w+1}) - one image format everywhere. **
** NOTE the unit tb Verilog/ND-BUS-DEVICES/SMD/sim/nd_smd_tb.v keeps its **
** OWN self-contained linear map (it never touches a real image), so it **
** deliberately does NOT use this formula. **
** **
** ZERO-BSRAM STREAM-THROUGH (deliberate divergence from the floppy **
** adapter): the floppy adapter caches the current 2048-byte block in a **
** local 1024x16 RAM, which costs one Gowin BSRAM. The Tang build has **
** exactly ONE BSRAM left for the whole SMD subsystem and ND_SMD's own **
** buffer takes it, so this adapter holds NO payload: **
** READ: a chunk may span two client blocks (position is 64-word **
** granular). Per covered block: one c_req block read; the **
** engine streams all 1024 block words in order through **
** c_buf_we/c_buf_addr/c_buf_wdata; the in-segment words are **
** forwarded (re-registered, address-translated) to dbuf_*. **
** WRITE: only a FULL ALIGNED BLOCK (chunk offset 0 mod 1024 words AND **
** wordcount 1024) is accepted: one c_req block write, and the **
** engine's pull (c_buf_addr walk) is served STRAIGHT from the **
** device buffer (dbuf_addr = c_buf_addr, c_buf_rdata = **
** dbuf_rdata). An UNALIGNED or PARTIAL write answers **
** done+err with zero traffic: read-modify-write would need a **
** block of storage this adapter must not have. ND_SMD turns **
** that into comparer-error + error interrupt - visible, never **
** silent. Sector-aligned SMD transfers (the normal driver **
** pattern: cylinder/head/sector maps to 64-word multiples, **
** 1024-word chunks at even 512-word sectors are block-aligned **
** when the transfer starts on an even sector) work; arbitrary **
** offsets do not. The Verilator C backend has no such limit - **
** documented divergence. **
** **
** Errors (disk_done WITH disk_err, never a wedge, always retryable): **
** - file not open (c_open_ok low) **
** - out of range: chunk end past c_size_bytes (covers the tail-block **
** write rule too: an aligned block write ends exactly at the block **
** end, so a partial tail block always refuses) **
** - write not a full aligned block (see above) **
** - c_err from nd_storage (SD/engine failure): clean error, retryable **
** **
** disk_unit != UNIT is ignored COMPLETELY (all outputs parked 0), so **
** per-unit instances can OR their disk_done/disk_err/dbuf_* outputs. **
** **
** open_start is a level/pulse from the board logic; while high it is **
** passed through as c_open_req pulses (nd_storage ignores it while the **
** port is busy), same as the floppy adapter. **
** **
** Last reviewed: 31-JUL-2026 **
** Ronny Hansen **
*****************************************************************************/
module nd_storage_disc_adapter #(
parameter [2:0] UNIT = 3'd0, // disk_unit value this instance serves
// Drive geometry, used to turn cylinder/head/sector into a flat image
// offset. MUST match the GEO_* parameters of the ND_SMD instance in front
// of this adapter and the disk table in the emulator references (75 MB
// unit = 5 heads, 18 sectors/track, 823 cylinders, 1024-byte sectors).
parameter [15:0] GEO_HEADS = 16'd5,
parameter [15:0] GEO_SPT = 16'd18
) (
input wire clk_cpu,
input wire rst_n, //! Active-low reset, from the board's power-on reset (same net as ND120_CORE.sys_rst_n)
// Disk-image backend port (to ND_SMD, pin-for-pin)
input wire disk_start, // 1-cycle pulse: latch base position
input wire disk_req, // 1-cycle pulse: move one chunk
input wire disk_wr, // 0 = image -> buffer, 1 = buffer -> image
input wire [15:0] disk_blkaddr1, // head b15-8, sector b7-0
input wire [15:0] disk_blkaddr2, // cylinder
input wire [ 2:0] disk_unit, // unit select
input wire [10:0] disk_wordcount, // words in this chunk
output reg disk_done, // 1-cycle pulse
output reg disk_err, // valid with disk_done
// WHY it failed, valid with disk_done (nd_storage_status.vh). The
// controller maps this onto a status bit ITS OWN MANUAL defines - it
// never invents one - so the guest can tell a missing card from a
// missing file from a block past the end of the image.
output reg [3:0] disk_err_code,
output wire [ 9:0] dbuf_addr, // device buffer fill (reads) / readout (writes)
output reg [15:0] dbuf_wdata,
output reg dbuf_we,
input wire [15:0] dbuf_rdata, // registered readout in ND_SMD
// Board/boot control
input wire open_start, // (re)open the image file (held or pulsed)
// nd_storage client port (one client, clk_cpu domain)
output reg c_open_req,
input wire c_open_ok,
input wire c_open_err,
input wire [31:0] c_size_bytes,
output reg c_req,
output reg c_wr,
output reg [15:0] c_block,
input wire c_busy,
input wire c_done, // 1-cycle pulse
input wire c_err, // valid with c_done
input wire [3:0] c_err_code, // valid with c_done when c_err
input wire [ 9:0] c_buf_addr,
input wire [15:0] c_buf_wdata,
input wire c_buf_we,
output wire [15:0] c_buf_rdata // served straight from the device buffer
);
// ---- request decode ---------------------------------------------------
wire s_unit_match = (disk_unit == UNIT);
// base word position = CHS -> LBA -> words:
// LBA = (cylinder * GEO_HEADS + head) * GEO_SPT + sector
// words = LBA * 512 (1024-byte sector = 512 words)
// Was blkaddr2*2048 + blkaddr1*64, which only agrees with the real geometry
// at block 0 - hence a working boot but garbage for any later sector.
wire [15:0] s_head = {8'd0, disk_blkaddr1[15:8]};
wire [15:0] s_sect = {8'd0, disk_blkaddr1[7:0]};
wire [31:0] s_lba = ({16'd0, disk_blkaddr2} * {16'd0, GEO_HEADS} +
{16'd0, s_head}) * {16'd0, GEO_SPT} + {16'd0, s_sect};
wire [31:0] s_base32 = s_lba << 9; // * 512 words
wire [27:0] s_base = s_base32[27:0];
wire s_base_ovf = |s_base32[31:28]; // refuse rather than alias
reg [27:0] s_pos; // next chunk's word position (advances across chunks)
reg s_pos_ovf;
// disk_start may coincide with disk_req: the effective position of a
// request accepted THIS cycle is the freshly latched base
wire [27:0] s_p0 = disk_start ? s_base : s_pos;
wire s_p0_ovf = disk_start ? s_base_ovf : s_pos_ovf;
// chunk end in bytes must lie inside the file
wire [31:0] s_end_bytes = ({3'b0, s_p0} + {21'b0, disk_wordcount}) << 1;
wire s_oor = s_end_bytes > c_size_bytes;
// client blocks are 16-bit indices: positions above 2^26 words can never
// be in range for a slot-resident file, refuse before truncating
wire s_blk_ovf = (s_p0[27:26] != 2'b00) | s_p0_ovf;
// WRITE ACCEPTANCE. Was "full aligned 1024-word block only", which refused
// every write SINTRAN issues: it writes 512 words = 1024 bytes = one ND page
// = exactly ONE WINCHESTER SECTOR, the natural unit for this card. The
// storage layer's block is 2048 bytes, so a sector write is half a block.
// Silicon trace 10-AUG-2026: word count 001000, control 004045, status
// 021030 - refused - and the boot died with "DISC TRANSFER ERROR IN SEGMENT
// HANDLING".
//
// A partial block is now served by READ-MODIFY-WRITE (S_MREQ/S_MWAIT
// below). What is still refused is a MULTI-block chunk whose first block is
// partial: the merged words are staged in the device buffer above the
// guest's own chunk, so there is only room when the chunk fits in one block
// (s_wc <= s_seg). SINTRAN's sector writes always do.
wire s_wr_partial = (s_p0[9:0] != 10'd0) || (disk_wordcount != 11'd1024);
wire [10:0] s_seg0 = ((11'd1024 - {1'b0, s_p0[9:0]}) < disk_wordcount)
? (11'd1024 - {1'b0, s_p0[9:0]}) : disk_wordcount;
wire s_wr_badal = s_wr_partial && (disk_wordcount > s_seg0);
wire s_bad = !c_open_ok
| s_oor
| s_blk_ovf
| (disk_wr & s_wr_badal);
// ---- FSM ---------------------------------------------------------------
localparam [2:0] S_IDLE = 3'd0, // wait for a matching disk_req
S_CREQ = 3'd1, // wait !c_busy, pulse c_req for one block
S_CWAIT = 3'd2, // client op in flight (stream forwarding)
S_DONE = 3'd3, // pulse disk_done (+disk_err)
S_MREQ = 3'd4, // read-modify-write: request the block
S_MWAIT = 3'd5; // ...and keep the words we are NOT writing
reg [ 2:0] s_state;
reg s_merge; // this segment is partial: merge before writing
reg s_op_wr; // latched disk_wr
reg [10:0] s_wc; // latched disk_wordcount
reg [27:0] s_p; // running word position (start of current segment)
reg [10:0] s_idx; // chunk words already served before this segment
reg [10:0] s_seg; // words this block segment covers
reg s_err_q; // verdict for the S_DONE pulse
reg [3:0] s_code_q; // and WHY, for the same pulse
reg [ 9:0] r_dbuf_addr;
// current segment geometry (combinational; latched into s_seg at c_req)
wire [ 9:0] s_off = s_p[9:0]; // offset inside the block
wire [10:0] s_blkrem = 11'd1024 - {1'b0, s_off};
wire [10:0] s_chunkrem = s_wc - s_idx;
wire [10:0] s_seg_next = (s_blkrem < s_chunkrem) ? s_blkrem : s_chunkrem;
// read-forward window: block word s_off .. s_off + s_seg - 1
wire [10:0] s_win_lo = {1'b0, s_off};
wire [10:0] s_win_hi = {1'b0, s_off} + s_seg; // exclusive, max 1024
wire s_in_win = ({1'b0, c_buf_addr} >= s_win_lo) &&
({1'b0, c_buf_addr} < s_win_hi);
// write pull served straight from the device buffer (registered read in
// ND_SMD; the engine's address/wait/sample pull gives it the cycle it
// needs). Aligned full-block writes make the translation the identity.
// Where block word c_buf_addr lives in the device buffer during a write
// pull. For an aligned full block this is the identity, as before. For a
// merged partial block it is NOT: the guest's own words sit at the bottom
// of the buffer (chunk-relative, s_idx..), while the words fetched by the
// merge read are staged ABOVE the chunk at s_seg.. in block order. Getting
// this wrong writes the right number of words in the wrong places, which
// looks like data corruption rather than a refusal.
wire [10:0] s_mrg_idx = ({1'b0, c_buf_addr} < s_win_lo)
? {1'b0, c_buf_addr}
: ({1'b0, c_buf_addr} - s_seg);
wire [ 9:0] s_wr_dbuf = s_in_win
? (s_idx[9:0] + (c_buf_addr - s_off))
: (s_seg[9:0] + s_mrg_idx[9:0]);
wire s_wr_stream = (s_state == S_CWAIT) && s_op_wr;
assign dbuf_addr = s_wr_stream ? s_wr_dbuf : r_dbuf_addr;
assign c_buf_rdata = dbuf_rdata;
always @(posedge clk_cpu or negedge rst_n) begin
if (!rst_n) begin
disk_done <= 1'b0;
disk_err <= 1'b0;
dbuf_wdata <= 16'd0;
dbuf_we <= 1'b0;
r_dbuf_addr <= 10'd0;
c_open_req <= 1'b0;
c_req <= 1'b0;
c_wr <= 1'b0;
c_block <= 16'd0;
s_pos <= 28'd0;
s_pos_ovf <= 1'b0;
s_state <= S_IDLE;
s_op_wr <= 1'b0;
s_wc <= 11'd0;
s_p <= 28'd0;
s_idx <= 11'd0;
s_seg <= 11'd0;
s_err_q <= 1'b0;
s_code_q <= `NDS_ERR_NONE;
disk_err_code <= `NDS_ERR_NONE;
end else begin
disk_done <= 1'b0;
disk_err <= 1'b0;
dbuf_we <= 1'b0;
c_req <= 1'b0;
c_open_req <= 1'b0;
if (open_start) c_open_req <= 1'b1;
// base-position latch (any state; the device only pulses it at
// command start, and an accept in the same cycle uses s_p0)
if (disk_start && s_unit_match) begin
s_pos <= s_base;
s_pos_ovf <= s_base_ovf;
end
case (s_state)
S_IDLE: begin
// idle outputs parked at 0 so per-unit instances can OR their pins
r_dbuf_addr <= 10'd0;
dbuf_wdata <= 16'd0;
if (disk_req && s_unit_match) begin
s_op_wr <= disk_wr;
s_wc <= disk_wordcount;
s_p <= s_p0;
s_idx <= 11'd0;
if (s_bad) begin
s_err_q <= 1'b1;
// Say WHICH refusal this is. All three used to look identical
// to the guest, and a write silently refused for being
// unaligned is the worst of them: the data never reached the
// card and nothing said so beyond one anonymous error bit.
s_code_q <= !c_open_ok ? `NDS_ERR_NOTOPEN
: (s_oor | s_blk_ovf) ? `NDS_ERR_RANGE
: `NDS_ERR_WRALIGN;
s_state <= S_DONE;
end else if (disk_wordcount == 11'd0) begin
s_err_q <= 1'b0; // nothing to move: clean completion
s_code_q <= `NDS_ERR_NONE;
s_state <= S_DONE;
end else if (disk_wr && s_wr_partial) begin
s_merge <= 1'b1; // fetch the block before writing it
s_state <= S_MREQ;
end else begin
s_merge <= 1'b0;
s_state <= S_CREQ;
end
end
end
// pulse c_req as soon as the port is free (req while busy is lost)
S_CREQ: begin
if (!c_busy) begin
c_req <= 1'b1;
c_wr <= s_op_wr;
c_block <= s_p[25:10];
s_seg <= s_seg_next;
s_state <= S_CWAIT;
end
end
// ---- read-modify-write, phase 1: fetch the block ----------------
// The guest supplied only part of this block. Read the whole block and
// keep the words OUTSIDE the guest's window - the inverse of the read
// forwarding below - staged above the chunk. The guest's own words in
// the device buffer are left untouched. Skipping this would write a
// half-filled block and silently destroy the other half.
S_MREQ: begin
if (!c_busy) begin
c_req <= 1'b1;
c_wr <= 1'b0; // READ
c_block <= s_p[25:10];
s_seg <= s_seg_next;
s_state <= S_MWAIT;
end
end
S_MWAIT: begin
if (c_buf_we && !s_in_win) begin
dbuf_we <= 1'b1;
r_dbuf_addr <= s_seg[9:0] + s_mrg_idx[9:0];
dbuf_wdata <= c_buf_wdata;
end
if (c_done) begin
if (c_err) begin
s_err_q <= 1'b1;
s_code_q <= c_err_code;
s_state <= S_DONE;
end else begin
s_state <= S_CREQ; // now write the merged block back
end
end
end
S_CWAIT: begin
// read stream: forward the in-segment block words to the device
// buffer, re-registered with the chunk-relative address
if (!s_op_wr && c_buf_we && s_in_win) begin
dbuf_we <= 1'b1;
r_dbuf_addr <= s_idx[9:0] + (c_buf_addr - s_off);
dbuf_wdata <= c_buf_wdata;
end
if (c_done) begin
if (c_err) begin
s_err_q <= 1'b1;
s_code_q <= c_err_code; // pass the storage stack's reason on
s_state <= S_DONE;
end else if (s_op_wr) begin
s_pos <= s_p + 28'd1024; // one full block committed
s_err_q <= 1'b0;
s_code_q <= `NDS_ERR_NONE;
s_state <= S_DONE;
end else if ({6'd0, s_idx} + {6'd0, s_seg} >= {6'd0, s_wc}) begin
s_pos <= s_p + {17'd0, s_seg}; // chunk complete
s_err_q <= 1'b0;
s_code_q <= `NDS_ERR_NONE;
s_state <= S_DONE;
end else begin
s_idx <= s_idx + s_seg; // next covered block
s_p <= s_p + {17'd0, s_seg};
s_state <= S_CREQ;
end
end
end
S_DONE: begin
disk_done <= 1'b1;
disk_err <= s_err_q;
disk_err_code <= s_code_q;
r_dbuf_addr <= 10'd0;
dbuf_wdata <= 16'd0;
s_state <= S_IDLE;
end
default: s_state <= S_IDLE;
endcase
end
end
endmodule
