nds_sync_level

Source: Verilog/SD-FAT/circuit/nds_sync.v

Where it sits (Simulation): ND120_TOP > nd_storage_devices > nd_storage > nd_storage_engine > nds_sync_level - instance path: TAPE_SDFAT_SOURCE.u_nd_storage.u_engine.u_sync_err

Used in: nd_storage_engine (Simulation, Tang, Nexys, QMTECH)

Contains: no other modules.

Module hierarchy - All modules

Schematic

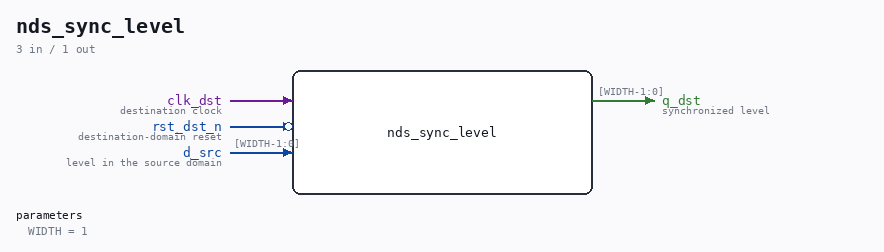

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance TAPE_SDFAT_SOURCE.u_nd_storage.u_engine.u_sync_grant. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

nd_storage CDC synchronizer primitives The two small modules used by every clock-domain crossing in the nd_storage stack (docs/nd-storage-design.md section 4.4: all crossings are 2-flop and toggle-based). nds_sync_pulse - toggle in, pulse out: the SOURCE domain flips a toggle register; this module 2-flop-synchronizes the toggle into the destination clock and emits a registered one-cycle pulse per flip. Payload riding with the toggle must be held stable by the source from the flip until the handshake answer returns: the receiver samples it at the pulse, which is at least two destination clocks after the flip landed. nds_sync_level - plain 2-flop level synchronizer, WIDTH bits, for quasi-static levels (open_ok, grant id, err flag). Multi-bit values may only change while no consumer acts on them (the grant id changes only while the word bridge is idle). Source toggles must reset to 0 in their own domain: a toggle that is already 1 when the destination leaves reset yields one spurious pulse. Last reviewed: 11-JUL-2026 Ronny Hansen

Parameters

Parameter	Default
WIDTH	1

Ports

Direction	Width	Name	Description
input	1	clk_dst	destination clock
input	1	rst_dst_n (active low)	destination-domain reset
input	[WIDTH-1:0]	d_src	level in the source domain
output	[WIDTH-1:0]	q_dst	synchronized level

Verilog source

Verilog/SD-FAT/circuit/nds_sync.v on GitHub.

Show the Verilog of nds_sync_level (25 lines)

module nds_sync_level #(
    parameter WIDTH = 1
) (
    input  wire             clk_dst,    // destination clock
    input  wire             rst_dst_n,  // destination-domain reset
    input  wire [WIDTH-1:0] d_src,      // level in the source domain
    output wire [WIDTH-1:0] q_dst       // synchronized level
);

  reg [WIDTH-1:0] s_meta;
  reg [WIDTH-1:0] s_sync;

  always @(posedge clk_dst) begin
    if (!rst_dst_n) begin
      s_meta <= {WIDTH{1'b0}};
      s_sync <= {WIDTH{1'b0}};
    end else begin
      s_meta <= d_src;
      s_sync <= s_meta;
    end
  end

  assign q_dst = s_sync;

endmodule
