sd_fat_freescan¶
Source: Verilog/SD-FAT/circuit/sd_fat_freescan.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules

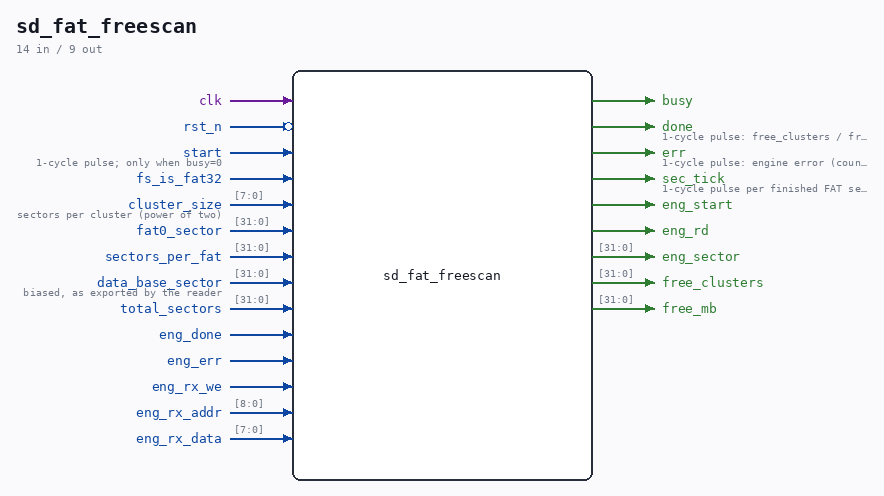

Schematic¶
Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
FAT free-space scanner Reads FAT #0 sector by sector through the sd_writer engine (read mode, CMD17) and counts the FREE entries (value 0) between cluster 2 and the volume's last cluster - a FAT32 entry is masked to its low 28 bits, a FAT16 entry is the full 16. The counting rides directly on the engine's rx byte stream, so a sector costs no extra pass; the scan stops with the sector that holds the last real cluster (a 32 GB FAT32 card is ~30k FAT sectors, roughly 10 s at the 13.5 MHz 1-bit engine clock - the caller prints a SCANNING line first). free_clusters raw count free_mb free_clusters * cluster bytes / 1 MB (truncated) Uses the engine on an already-initialized card; the reader must be parked (the sd_fat_check.v pattern). Read-only - never writes. This file is ORIGINAL ND-120 project code (MIT, like the repository). Last reviewed: 11-JUL-2026 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk |
|
| input | 1 |
rst_n (active low) |
|
| input | 1 |
start |
1-cycle pulse; only when busy=0 |
| output | 1 |
busy |
|
| output | 1 |
done |
1-cycle pulse: free_clusters / free_mb valid |
| output | 1 |
err |
1-cycle pulse: engine error (counts invalid) |
| output | 1 |
sec_tick |
1-cycle pulse per finished FAT sector (watchdog) |
| input | 1 |
fs_is_fat32 |
|
| input | [7:0] |
cluster_size |
sectors per cluster (power of two) |
| input | [31:0] |
fat0_sector |
|
| input | [31:0] |
sectors_per_fat |
|
| input | [31:0] |
data_base_sector |
biased, as exported by the reader |
| input | [31:0] |
total_sectors |
|
| output | 1 |
eng_start |
|
| output | 1 |
eng_rd |
|
| output | [31:0] |
eng_sector |
|
| input | 1 |
eng_done |
|
| input | 1 |
eng_err |
|
| input | 1 |
eng_rx_we |
|
| input | [8:0] |
eng_rx_addr |
|
| input | [7:0] |
eng_rx_data |
|
| output | [31:0] |
free_clusters |
|
| output | [31:0] |
free_mb |
Verilog source¶
Verilog/SD-FAT/circuit/sd_fat_freescan.v on GitHub.
Show the Verilog of sd_fat_freescan (206 lines)
/****************************************************************************
** FAT free-space scanner **
** **
** Reads FAT #0 sector by sector through the sd_writer engine (read mode, **
** CMD17) and counts the FREE entries (value 0) between cluster 2 and the **
** volume's last cluster - a FAT32 entry is masked to its low 28 bits, a **
** FAT16 entry is the full 16. The counting rides directly on the **
** engine's rx byte stream, so a sector costs no extra pass; the scan **
** stops with the sector that holds the last real cluster (a 32 GB FAT32 **
** card is ~30k FAT sectors, roughly 10 s at the 13.5 MHz 1-bit engine **
** clock - the caller prints a SCANNING line first). **
** **
** free_clusters raw count **
** free_mb free_clusters * cluster bytes / 1 MB (truncated) **
** **
** Uses the engine on an already-initialized card; the reader must be **
** parked (the sd_fat_check.v pattern). Read-only - never writes. **
** **
** This file is ORIGINAL ND-120 project code (MIT, like the repository). **
** **
** Last reviewed: 11-JUL-2026 **
** Ronny Hansen **
*****************************************************************************/
module sd_fat_freescan (
input wire clk,
input wire rst_n,
input wire start, // 1-cycle pulse; only when busy=0
output wire busy,
output reg done, // 1-cycle pulse: free_clusters / free_mb valid
output reg err, // 1-cycle pulse: engine error (counts invalid)
output reg sec_tick, // 1-cycle pulse per finished FAT sector (watchdog)
// filesystem geometry (as latched from the reader)
input wire fs_is_fat32,
input wire [7:0] cluster_size, // sectors per cluster (power of two)
input wire [31:0] fat0_sector,
input wire [31:0] sectors_per_fat,
input wire [31:0] data_base_sector, // biased, as exported by the reader
input wire [31:0] total_sectors,
// sd_writer engine, read mode only (exclusive use while busy)
output reg eng_start,
output wire eng_rd,
output reg [31:0] eng_sector,
input wire eng_done,
input wire eng_err,
input wire eng_rx_we,
input wire [8:0] eng_rx_addr,
input wire [7:0] eng_rx_data,
output reg [31:0] free_clusters,
output reg [31:0] free_mb
);
assign eng_rd = 1'b1; // this module only reads
function [4:0] log2cs(input [7:0] cs);
casez (cs)
8'b1???????: log2cs = 5'd7;
8'b01??????: log2cs = 5'd6;
8'b001?????: log2cs = 5'd5;
8'b0001????: log2cs = 5'd4;
8'b00001???: log2cs = 5'd3;
8'b000001??: log2cs = 5'd2;
8'b0000001?: log2cs = 5'd1;
default: log2cs = 5'd0;
endcase
endfunction
// same cluster arithmetic as sd_fat_check.v: data_base_sector is biased
// by -2 clusters, so data_base + 2*cs is the first data sector and the
// usable clusters are 2 .. s_max_cluster
wire [31:0] s_usable = total_sectors -
(data_base_sector + {24'b0, cluster_size} * 2);
wire [4:0] s_l2cs = log2cs(cluster_size);
localparam [2:0] FS_IDLE = 3'd0;
localparam [2:0] FS_PREP = 3'd1; // max_cluster = usable >> l2cs, bit by bit
localparam [2:0] FS_RD = 3'd2; // kick one FAT-sector read
localparam [2:0] FS_WAIT = 3'd3; // count entries as the bytes stream in
localparam [2:0] FS_MB = 3'd4; // free sectors = free << l2cs, bit by bit
localparam [2:0] FS_FIN = 3'd5; // free_mb = free sectors >> 11, done
// the two shift-by-l2cs conversions run one bit per clock through s_acc:
// a variable barrel shifter here costs hundreds of LUTs for nothing (the
// scan itself takes milliseconds; at most 7 extra clocks each)
reg [2:0] s_state;
reg [23:0] s_left; // FAT sectors still to read (spec max 2^22)
reg [27:0] s_clu; // cluster of the entry being assembled (28-bit)
reg s_nz; // nonzero masked byte seen in the current entry
reg [38:0] s_acc; // sequential shifter (usable / free sectors)
reg [4:0] s_sh; // shifts still to do
reg [27:0] s_max_cluster; // last real cluster (valid from FS_RD on)
assign busy = (s_state != FS_IDLE);
// last byte of a FAT entry: every 2nd byte (FAT16) / 4th byte (FAT32);
// the FAT32 top nibble is reserved and masked out of the free test
wire s_last = fs_is_fat32 ? (eng_rx_addr[1:0] == 2'b11)
: (eng_rx_addr[0] == 1'b1);
wire [7:0] s_masked = (fs_is_fat32 && s_last) ? (eng_rx_data & 8'h0F)
: eng_rx_data;
wire s_entry_free = !s_nz && (s_masked == 8'h00);
wire s_clu_valid = (s_clu >= 28'd2) && (s_clu <= s_max_cluster);
always @(posedge clk) begin
if (!rst_n) begin
s_state <= FS_IDLE;
done <= 1'b0;
err <= 1'b0;
sec_tick <= 1'b0;
eng_start <= 1'b0;
eng_sector <= 32'd0;
s_left <= 24'd0;
s_clu <= 28'd0;
s_nz <= 1'b0;
s_acc <= 39'd0;
s_sh <= 5'd0;
s_max_cluster <= 28'd0;
free_clusters <= 32'd0;
free_mb <= 32'd0;
end else begin
done <= 1'b0;
err <= 1'b0;
sec_tick <= 1'b0;
eng_start <= 1'b0;
// entry counter: rides the engine's rx stream while we own it
if (s_state == FS_WAIT && eng_rx_we) begin
if (s_last) begin
if (s_clu_valid && s_entry_free)
free_clusters <= free_clusters + 32'd1;
s_clu <= s_clu + 28'd1;
s_nz <= 1'b0;
end else if (s_masked != 8'h00) begin
s_nz <= 1'b1;
end
end
case (s_state)
FS_IDLE:
if (start) begin
eng_sector <= fat0_sector; // then a running +1 per sector
s_left <= sectors_per_fat[23:0];
s_clu <= 28'd0;
s_nz <= 1'b0;
free_clusters <= 32'd0;
s_acc <= {7'd0, s_usable};
s_sh <= s_l2cs;
s_state <= FS_PREP;
end
FS_PREP: // s_max_cluster = (usable >> l2cs) + 1, one bit per clock
if (s_sh == 5'd0) begin
s_max_cluster <= s_acc[27:0] + 28'd1;
s_state <= FS_RD;
end else begin
s_acc <= {1'b0, s_acc[38:1]};
s_sh <= s_sh - 5'd1;
end
FS_RD: begin
eng_start <= 1'b1;
s_state <= FS_WAIT;
end
FS_WAIT:
if (eng_done) begin
sec_tick <= 1'b1;
// stop with the sector holding the last real cluster, or at the
// end of the FAT - whichever comes first
if (s_clu > s_max_cluster || s_left <= 24'd1) begin
s_acc <= {7'd0, free_clusters};
s_sh <= s_l2cs;
s_state <= FS_MB;
end else begin
eng_sector <= eng_sector + 32'd1;
s_left <= s_left - 24'd1;
s_state <= FS_RD;
end
end else if (eng_err) begin
err <= 1'b1;
s_state <= FS_IDLE;
end
FS_MB: // free sectors = free clusters << l2cs, one bit per clock
if (s_sh == 5'd0) s_state <= FS_FIN;
else begin
s_acc <= {s_acc[37:0], 1'b0};
s_sh <= s_sh - 5'd1;
end
FS_FIN: begin // MB = free sectors * 512 / 2^20 = >> 11 (constant)
free_mb <= {4'd0, s_acc[38:11]};
done <= 1'b1;
s_state <= FS_IDLE;
end
default: s_state <= FS_IDLE;
endcase
end
end
endmodule
