sd_fat_check¶
Source: Verilog/SD-FAT/circuit/sd_fat_check.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules

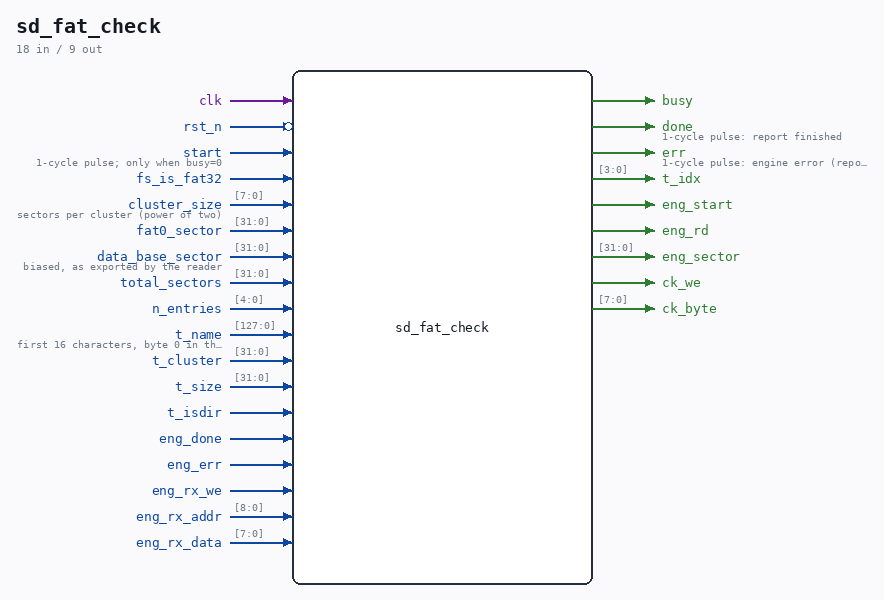

Schematic¶
Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
FAT cluster-chain validator ("fsck-lite") Walks the cluster chain of every file in a table of root-directory entries (captured by the caller during a directory scan) and emits an ASCII report, one line per entry: BOOT.BPUN CL 00013AF2 LEN 00003 EXP 00003 OK TEST.TXT CL 00000002 LEN 00003 EXP 00003 OK HDD CL 00000004 DIR CHECK DONE LEN = clusters actually reachable by following the FAT until a proper end-of-chain mark; EXP = ceil(size / cluster bytes). A chain that hits a FREE entry, an out-of-range pointer or a loop, or whose length differs from EXP, is flagged BAD - exactly the damage a wrong FAT write leaves behind. Directories are listed but not walked (their length is not derivable from the size field). Uses the sd_writer engine in read mode (CMD17) on an already- initialized card; the reader must be parked. Read-only - this module never writes to the card. This file is ORIGINAL ND-120 project code (MIT, like the repository). Last reviewed: 11-JUL-2026 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk |
|
| input | 1 |
rst_n (active low) |
|
| input | 1 |
start |
1-cycle pulse; only when busy=0 |
| output | 1 |
busy |
|
| output | 1 |
done |
1-cycle pulse: report finished |
| output | 1 |
err |
1-cycle pulse: engine error (report incomplete) |
| input | 1 |
fs_is_fat32 |
|
| input | [7:0] |
cluster_size |
sectors per cluster (power of two) |
| input | [31:0] |
fat0_sector |
|
| input | [31:0] |
data_base_sector |
biased, as exported by the reader |
| input | [31:0] |
total_sectors |
|
| input | [4:0] |
n_entries |
|
| output | [3:0] |
t_idx |
|
| input | [127:0] |
t_name |
first 16 characters, byte 0 in the low byte |
| input | [31:0] |
t_cluster |
|
| input | [31:0] |
t_size |
|
| input | 1 |
t_isdir |
|
| output | 1 |
eng_start |
|
| output | 1 |
eng_rd |
|
| output | [31:0] |
eng_sector |
|
| input | 1 |
eng_done |
|
| input | 1 |
eng_err |
|
| input | 1 |
eng_rx_we |
|
| input | [8:0] |
eng_rx_addr |
|
| input | [7:0] |
eng_rx_data |
|
| output | 1 |
ck_we |
|
| output | [7:0] |
ck_byte |
Verilog source¶
Verilog/SD-FAT/circuit/sd_fat_check.v on GitHub.
Show the Verilog of sd_fat_check (425 lines)
/****************************************************************************
** FAT cluster-chain validator ("fsck-lite") **
** **
** Walks the cluster chain of every file in a table of root-directory **
** entries (captured by the caller during a directory scan) and emits an **
** ASCII report, one line per entry: **
** **
** BOOT.BPUN CL 00013AF2 LEN 00003 EXP 00003 OK **
** TEST.TXT CL 00000002 LEN 00003 EXP 00003 OK **
** HDD CL 00000004 DIR **
** CHECK DONE **
** **
** LEN = clusters actually reachable by following the FAT until a proper **
** end-of-chain mark; EXP = ceil(size / cluster bytes). A chain that hits **
** a FREE entry, an out-of-range pointer or a loop, or whose length **
** differs from EXP, is flagged BAD - exactly the damage a wrong FAT **
** write leaves behind. Directories are listed but not walked (their **
** length is not derivable from the size field). **
** **
** Uses the sd_writer engine in read mode (CMD17) on an already- **
** initialized card; the reader must be parked. Read-only - this module **
** never writes to the card. **
** **
** This file is ORIGINAL ND-120 project code (MIT, like the repository). **
** **
** Last reviewed: 11-JUL-2026 **
** Ronny Hansen **
*****************************************************************************/
module sd_fat_check (
input wire clk,
input wire rst_n,
input wire start, // 1-cycle pulse; only when busy=0
output wire busy,
output reg done, // 1-cycle pulse: report finished
output reg err, // 1-cycle pulse: engine error (report incomplete)
// filesystem geometry (as latched from the reader)
input wire fs_is_fat32,
input wire [7:0] cluster_size, // sectors per cluster (power of two)
input wire [31:0] fat0_sector,
input wire [31:0] data_base_sector, // biased, as exported by the reader
input wire [31:0] total_sectors,
// entry table (combinational read by index at the caller)
input wire [4:0] n_entries,
output reg [3:0] t_idx,
input wire [127:0] t_name, // first 16 characters, byte 0 in the low byte
input wire [31:0] t_cluster,
input wire [31:0] t_size,
input wire t_isdir,
// sd_writer engine, read mode only (exclusive use while busy)
output reg eng_start,
output wire eng_rd,
output reg [31:0] eng_sector,
input wire eng_done,
input wire eng_err,
input wire eng_rx_we,
input wire [8:0] eng_rx_addr,
input wire [7:0] eng_rx_data,
// report byte stream (goes into the caller's text buffer)
output reg ck_we,
output reg [7:0] ck_byte
);
assign eng_rd = 1'b1; // this module only reads
// ------------------------------------------------------------- FAT buffer
reg [7:0] fbuf[0:511];
always @(posedge clk) if (eng_rx_we) fbuf[eng_rx_addr] <= eng_rx_data;
reg [8:0] fb_addr;
reg [7:0] fb_q;
always @(posedge clk) fb_q <= fbuf[fb_addr];
// ------------------------------------------------------------- helpers
function [31:0] fat_sec(input [31:0] c);
fat_sec = fat0_sector + (fs_is_fat32 ? (c >> 7) : (c >> 8));
endfunction
function [8:0] fat_off(input [31:0] c);
fat_off = fs_is_fat32 ? {c[6:0], 2'b00} : {c[7:0], 1'b0};
endfunction
function is_eoc(input [31:0] c);
is_eoc = fs_is_fat32 ? (c[27:0] >= 28'hFFFFFF7) : (c[15:0] >= 16'hFFF7);
endfunction
function [7:0] hexd(input [3:0] n);
hexd = (n < 4'd10) ? (8'h30 + {4'b0, n}) : (8'h37 + {4'b0, n});
endfunction
function [4:0] log2cs(input [7:0] cs);
casez (cs)
8'b1???????: log2cs = 5'd7;
8'b01??????: log2cs = 5'd6;
8'b001?????: log2cs = 5'd5;
8'b0001????: log2cs = 5'd4;
8'b00001???: log2cs = 5'd3;
8'b000001??: log2cs = 5'd2;
8'b0000001?: log2cs = 5'd1;
default: log2cs = 5'd0;
endcase
endfunction
function [16:0] pow10_5(input [2:0] i);
case (i)
3'd0: pow10_5 = 17'd1;
3'd1: pow10_5 = 17'd10;
3'd2: pow10_5 = 17'd100;
3'd3: pow10_5 = 17'd1000;
default: pow10_5 = 17'd10000;
endcase
endfunction
wire [31:0] usable_sectors = total_sectors - (data_base_sector + {24'b0, cluster_size} * 2);
wire [31:0] max_cluster = (usable_sectors >> log2cs(cluster_size)) + 32'd1;
wire [17:0] bytes_per_cluster = {1'b0, cluster_size, 9'b0};
localparam S_NAME = " CL "; // (emitted char-wise, strings below)
localparam S_LEN = " LEN ";
localparam S_EXP = " EXP ";
localparam S_OK = " OK\015\012";
localparam S_BAD = " BAD\015\012";
localparam S_DIR = " DIR\015\012";
localparam S_DONE = "CHECK DONE\015\012";
function [7:0] strchar(input [8*12-1:0] s, input integer len, input integer i);
strchar = (i < len) ? s[8*(len-1-i)+:8] : 8'h00;
endfunction
// ------------------------------------------------------------- FSM
localparam C_IDLE = 5'd0;
localparam C_ENTRY = 5'd1; // next table entry or the DONE line
localparam C_NAME = 5'd2; // 12 name chars (0 -> space)
localparam C_CLHDR = 5'd3; // "CL "
localparam C_CLHEX = 5'd4; // 8 hex digits of the first cluster
localparam C_KIND = 5'd5; // DIR line or LEN walk
localparam C_EXPCALC = 5'd6; // EXP = ceil(size/bpc) subtract loop
localparam C_WALK = 5'd7; // chain hop: valid cluster?
localparam C_WRD = 5'd8; // read the FAT sector (engine)
localparam C_WENT0 = 5'd9; // fetch the entry bytes
localparam C_WENT1 = 5'd10;
localparam C_LENHDR = 5'd11; // " LEN "
localparam C_LENDEC = 5'd12; // 5 decimal digits
localparam C_EXPHDR = 5'd13; // " EXP "
localparam C_EXPDEC = 5'd14;
localparam C_VERDICT = 5'd15; // " OK" / " BAD" + CRLF
localparam C_DONELN = 5'd16; // "CHECK DONE"
localparam C_FIN = 5'd17;
localparam C_ERR = 5'd18;
localparam C_EGO = 5'd19; // engine read helper
localparam C_EWAIT = 5'd20;
localparam C_BRD = 5'd21; // buffered byte read wait
localparam C_STR = 5'd22; // generic string emitter
reg [4:0] state, e_ret, b_ret, str_ret;
reg [2:0] str_sel; // 0 LEN,1 EXP,2 OK,3 BAD,4 DIR,5 DONE,6 CLHDR
reg [3:0] sidx;
reg [3:0] nidx; // name/hex char counter
reg [31:0] cur, ent_val, cur_sec;
reg [1:0] byte_i;
reg [16:0] chain_len, expct, decval;
reg [2:0] decpow;
reg [3:0] decdig;
reg [31:0] szrem;
reg [17:0] guard;
reg bad;
assign busy = (state != C_IDLE);
reg [7:0] str_ch;
always @(*) begin
case (str_sel)
3'd0: str_ch = strchar({56'b0, S_LEN}, 5, sidx);
3'd1: str_ch = strchar({56'b0, S_EXP}, 5, sidx);
3'd2: str_ch = strchar({56'b0, S_OK}, 5, sidx);
3'd3: str_ch = strchar({48'b0, S_BAD}, 6, sidx);
3'd4: str_ch = strchar({48'b0, S_DIR}, 6, sidx);
3'd5: str_ch = strchar(S_DONE, 12, sidx);
default: str_ch = strchar({64'b0, S_NAME}, 4, sidx);
endcase
end
always @(posedge clk) begin
if (!rst_n) begin
state <= C_IDLE;
e_ret <= C_IDLE;
b_ret <= C_IDLE;
str_ret <= C_IDLE;
str_sel <= 0;
sidx <= 0;
nidx <= 0;
done <= 1'b0;
err <= 1'b0;
eng_start <= 1'b0;
eng_sector <= 0;
ck_we <= 1'b0;
ck_byte <= 0;
t_idx <= 0;
fb_addr <= 0;
cur <= 0;
ent_val <= 0;
cur_sec <= 0;
byte_i <= 0;
chain_len <= 0;
expct <= 0;
decval <= 0;
decpow <= 0;
decdig <= 0;
szrem <= 0;
guard <= 0;
bad <= 1'b0;
end else begin
done <= 1'b0;
err <= 1'b0;
eng_start <= 1'b0;
ck_we <= 1'b0;
case (state)
C_IDLE:
if (start) begin
t_idx <= 0;
state <= (n_entries == 0) ? C_DONELN : C_ENTRY;
if (n_entries == 0) begin
str_sel <= 3'd5;
sidx <= 0;
str_ret <= C_FIN;
state <= C_STR;
end
end
C_ENTRY: begin
nidx <= 0;
state <= C_NAME;
end
C_NAME: begin // 16 chars, NUL padded with spaces
ck_we <= 1'b1;
ck_byte <= (t_name[8*nidx+:8] == 8'h00) ? 8'h20 : t_name[8*nidx+:8];
if (nidx == 4'd15) begin
nidx <= 0;
str_sel <= 3'd6; // "CL "
sidx <= 0;
str_ret <= C_CLHEX;
state <= C_STR;
end else nidx <= nidx + 4'd1;
end
C_CLHEX: begin
ck_we <= 1'b1;
ck_byte <= hexd(t_cluster[31-4*nidx-:4]);
if (nidx == 4'd7) begin
nidx <= 0;
state <= C_KIND;
end else nidx <= nidx + 4'd1;
end
C_KIND:
if (t_isdir) begin
str_sel <= 3'd4; // " DIR" CRLF
sidx <= 0;
str_ret <= C_FIN;
state <= C_STR;
end else begin
szrem <= t_size;
expct <= 0;
state <= C_EXPCALC;
end
C_EXPCALC:
if (szrem == 0) begin
cur <= fs_is_fat32 ? {4'b0, t_cluster[27:0]} : {16'b0, t_cluster[15:0]};
chain_len <= 0;
cur_sec <= 32'hFFFFFFFF;
guard <= 0;
bad <= 1'b0;
state <= C_WALK;
end else if (szrem >= {14'b0, bytes_per_cluster}) begin
szrem <= szrem - {14'b0, bytes_per_cluster};
expct <= expct + 17'd1;
end else begin
szrem <= 0;
expct <= expct + 17'd1;
end
// ---- chain walk ---------------------------------------------------
C_WALK:
if (cur < 32'd2) begin
// free/reserved pointer: fine ONLY as "no chain at all" (size 0)
bad <= bad | (chain_len != 0) | (expct != 0);
state <= C_LENHDR;
end else if (is_eoc(cur)) begin
state <= C_LENHDR; // proper end of chain
end else if (cur > max_cluster || guard[17]) begin
bad <= 1'b1; // out of range pointer, or a loop
state <= C_LENHDR;
end else begin
chain_len <= chain_len + 17'd1;
guard <= guard + 18'd1;
if (fat_sec(cur) == cur_sec) state <= C_WENT0;
else begin
eng_sector <= fat_sec(cur);
cur_sec <= fat_sec(cur);
e_ret <= C_WENT0;
state <= C_EGO;
end
end
C_WENT0: begin
fb_addr <= fat_off(cur);
byte_i <= 0;
ent_val <= 0;
b_ret <= C_WENT1;
state <= C_BRD;
end
C_WENT1: begin
ent_val <= ent_val | ({24'b0, fb_q} << {byte_i, 3'b000});
if ({1'b0, byte_i} == (fs_is_fat32 ? 3'd3 : 3'd1)) begin
state <= C_WALK;
cur <= fs_is_fat32
? ((ent_val | ({24'b0, fb_q} << {byte_i, 3'b000})) & 32'h0FFFFFFF)
: ((ent_val | ({24'b0, fb_q} << {byte_i, 3'b000})) & 32'h0000FFFF);
end else begin
byte_i <= byte_i + 2'd1;
fb_addr <= fb_addr + 9'd1;
b_ret <= C_WENT1;
state <= C_BRD;
end
end
// ---- report tail ---------------------------------------------------
C_LENHDR: begin
str_sel <= 3'd0;
sidx <= 0;
str_ret <= C_LENDEC;
decval <= chain_len;
decpow <= 3'd4;
decdig <= 0;
state <= C_STR;
end
C_LENDEC:
if (decval >= pow10_5(decpow)) begin
decval <= decval - pow10_5(decpow);
decdig <= decdig + 4'd1;
end else begin
ck_we <= 1'b1;
ck_byte <= 8'h30 + {4'b0, decdig};
decdig <= 0;
if (decpow == 0) begin
str_sel <= 3'd1;
sidx <= 0;
str_ret <= C_EXPDEC;
decval <= expct;
decpow <= 3'd4;
state <= C_STR;
end else decpow <= decpow - 3'd1;
end
C_EXPDEC:
if (decval >= pow10_5(decpow)) begin
decval <= decval - pow10_5(decpow);
decdig <= decdig + 4'd1;
end else begin
ck_we <= 1'b1;
ck_byte <= 8'h30 + {4'b0, decdig};
decdig <= 0;
if (decpow == 0) state <= C_VERDICT;
else decpow <= decpow - 3'd1;
end
C_VERDICT: begin
str_sel <= (bad || chain_len != expct) ? 3'd3 : 3'd2; // BAD / OK
sidx <= 0;
str_ret <= C_FIN;
state <= C_STR;
end
C_FIN:
if (t_idx + 5'd1 >= n_entries[4:0]) begin
str_sel <= 3'd5; // "CHECK DONE"
sidx <= 0;
str_ret <= C_ERR; // (reused as terminal-done, see below)
state <= C_STR;
end else begin
t_idx <= t_idx + 4'd1;
state <= C_ENTRY;
end
C_ERR: begin // terminal state: emit done (err path jumps here too)
done <= 1'b1;
state <= C_IDLE;
end
C_DONELN: state <= C_ERR;
// ---- helpers -------------------------------------------------------
C_EGO: begin
eng_start <= 1'b1;
state <= C_EWAIT;
end
C_EWAIT:
if (eng_done) state <= e_ret;
else if (eng_err) begin
err <= 1'b1;
state <= C_IDLE;
end
C_BRD: state <= b_ret;
C_STR:
if (str_ch == 8'h00) state <= str_ret;
else begin
ck_we <= 1'b1;
ck_byte <= str_ch;
sidx <= sidx + 4'd1;
end
default: state <= C_IDLE;
endcase
end
end
endmodule
