sd_card_ctrl¶
Source: Verilog/SD-FAT/circuit/sd_file_reader.v
Where it sits (Simulation): ND120_TOP > nd_storage_devices > nd_storage > sd_file_reader > sd_card_ctrl
- instance path: TAPE_SDFAT_SOURCE.u_nd_storage.u_reader.u_ctrl
Used in: sd_file_reader (Simulation, Tang, Nexys, QMTECH)
Contains: no other modules.
Module hierarchy - All modules

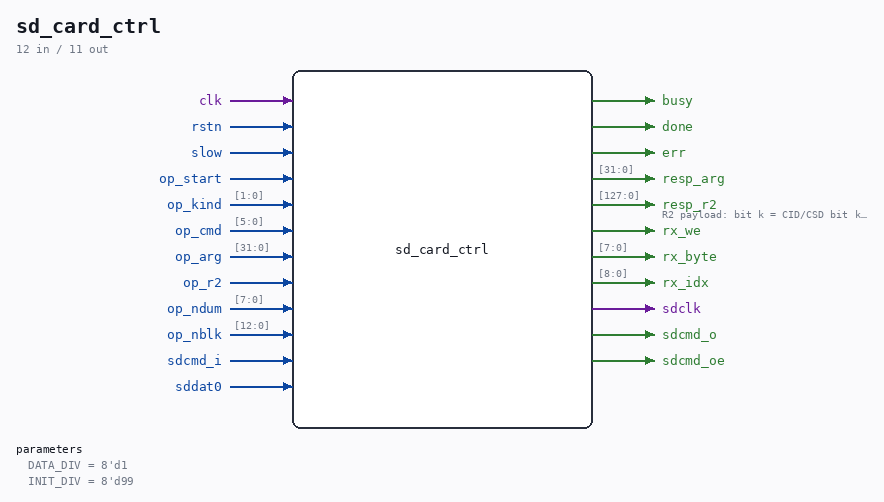

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance TAPE_SDFAT_SOURCE.u_nd_storage.u_reader.u_ctrl. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
SD card init + FAT16/FAT32 mount + root-directory scan + file stream ORIGINAL ND-120 project code (MIT, like the repository). CLEAN-ROOM implementation from public specifications only: the SD Physical Layer Simplified Specification (command framing, init sequence, response formats, data-block framing) and the Microsoft FAT specification (MBR/BPB layout, FAT12/16/32 thresholds, directory entries, VFAT long file names). The command/data bit engine reuses the proven idiom of this project's own sd_writer.v (tick-based bit clock, CRC functions, 48-bit command shifter). One run per release of rstn (the consumers hold the module in reset and release it per command - the rewind / card-swap recovery pattern): 1. card init at the identification clock (~137 kHz at 27 MHz): 74+ dummy clocks, CMD0, CMD8 (SDv2 detect), CMD55+ACMD41 loop (HCS; CCS in the OCR selects SDHC block addressing), CMD2 (CID), CMD3 (RCA), CMD9 (CSD - card_capacity_mb is decoded from it, both CSD v1 and v2; a CMD9 timeout is tolerated and leaves it 0), CMD7 (select) - then the DATA clock (clk/(2CLK_DIV), 13.5 MHz at 27 MHz / CLK_DIV=1) - CMD16 (512-byte blocks). card_stat counts the init steps; >= 8 means the card is ready. 2. mount: sector 0 is a DBR (superfloppy) or an MBR (the four partition entries are walked for the first plausible volume); the BPB gives the geometry. Cluster count < 4085 (FAT12) or a malformed BPB = unmountable: scan_done without filesystem_type. 3. root directory scan (FAT16 linear region / FAT32 root cluster chain, CMD17 per sector): every plain file and subdirectory is reported on dir_entry_ (VFAT long name when a valid LFN chain with a matching SFN checksum precedes the entry, else the 8.3 name, no trailing dot on extension-less names); deleted entries, volume labels and hidden/system/read-only entries are skipped; a 0x00 name byte ends the directory. target_name/target_len is matched case-insensitively (target_len = 0 never matches: LIST mode). 4. file streaming: the FAT chain is walked run by run (consecutive clusters merge into one CMD18 multi-block read - the speed path; a single-sector tail uses CMD17); every block's CRC16 is verified; found_file_size bytes are emitted in order on outen/outbyte. 5. scan_done (sticky level): file streamed, file not found after the full scan, or unmountable filesystem. No tristates (repo rule): CMD is exposed as sdcmd_i/_o/_oe; DAT0 is never driven by this module (read-only core - writes live in sd_writer.v). CLK_DIV: data-phase half-period in clk cycles. 1 = clk/2 (13.5 MHz at 27 MHz, inside the mandatory 25 MHz default-speed limit); legacy values >1 divide further (2 = clk/4 for 25-50 MHz clocks). The identification clock is fixed near 137 kHz at 27 MHz (100-400 kHz band). SIMULATE=1 shortens only the identification clock and the power-up dummy-clock run (simulation card models answer immediately). Last reviewed: 11-JUL-2026 Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
DATA_DIV |
8'd1 |
INIT_DIV |
8'd99 |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk |
|
| input | 1 |
rstn |
|
| input | 1 |
slow |
|
| input | 1 |
op_start |
|
| input | [1:0] |
op_kind |
|
| input | [5:0] |
op_cmd |
|
| input | [31:0] |
op_arg |
|
| input | 1 |
op_r2 |
|
| input | [7:0] |
op_ndum |
|
| input | [12:0] |
op_nblk |
|
| output | 1 |
busy |
|
| output | 1 |
done |
|
| output | 1 |
err |
|
| output | [31:0] |
resp_arg |
|
| output | [127:0] |
resp_r2 |
R2 payload: bit k = CID/CSD bit k (k >= 1) |
| output | 1 |
rx_we |
|
| output | [7:0] |
rx_byte |
|
| output | [8:0] |
rx_idx |
|
| output | 1 |
sdclk |
|
| input | 1 |
sdcmd_i |
|
| output | 1 |
sdcmd_o |
|
| output | 1 |
sdcmd_oe |
|
| input | 1 |
sddat0 |
Verilog source¶
Verilog/SD-FAT/circuit/sd_file_reader.v on GitHub.
Show the Verilog of sd_card_ctrl (322 lines)
/****************************************************************************
** sd_card_ctrl - SD command / read-data bit engine (1-bit SD native) **
** **
** Helper of sd_file_reader (same file, same clean-room provenance). One **
** operation at a time: **
** K_DUMMY op_ndum sdclk cycles with CMD driven high (power-up ramp, **
** ACMD41 retry spacing) **
** K_CMD 48-bit command (start 0, host 1, index, arg, CRC7, end 1), **
** then a 48-bit (or 136-bit, op_r2) response; resp_arg **
** captures the 32-bit argument field **
** K_CMDN command without a response (CMD0) **
** K_READ command + R1, then op_nblk data blocks on DAT0 (start 0 + **
** 4096 data bits + CRC16 + end); every byte is strobed out on **
** rx_we/rx_byte/rx_idx and every block's CRC16 is verified **
** (the CCITT accumulator over data+CRC ends at zero). **
** op_nblk > 1 sends CMD18 traffic and terminates with CMD12; **
** a CRC error or data timeout mid-stream aborts via CMD12 **
** and reports err. **
** **
** Outputs change on the falling sdclk edge, inputs are sampled on the **
** rising edge (the sd_writer.v timing idiom, proven at CLKDIV=1 = **
** 13.5 MHz on hardware). The bit clock halves are DATA_DIV clk cycles **
** (INIT_DIV while slow=1). No tristates: sdcmd_o/_oe only, DAT0 is **
** never driven. **
** **
** Last reviewed: 11-JUL-2026 **
** Ronny Hansen **
*****************************************************************************/
module sd_card_ctrl #(
parameter [7:0] DATA_DIV = 8'd1,
parameter [7:0] INIT_DIV = 8'd99
) (
input wire clk,
input wire rstn,
input wire slow,
input wire op_start,
input wire [1:0] op_kind,
input wire [5:0] op_cmd,
input wire [31:0] op_arg,
input wire op_r2,
input wire [7:0] op_ndum,
input wire [12:0] op_nblk,
output wire busy,
output reg done,
output reg err,
output reg [31:0] resp_arg,
output reg [127:0] resp_r2, // R2 payload: bit k = CID/CSD bit k (k >= 1)
output reg rx_we,
output reg [7:0] rx_byte,
output reg [8:0] rx_idx,
output reg sdclk,
input wire sdcmd_i,
output reg sdcmd_o,
output reg sdcmd_oe,
input wire sddat0
);
function [6:0] crc7_step(input [6:0] c, input b);
crc7_step = {c[5:0], 1'b0} ^ (7'h09 & {7{c[6] ^ b}});
endfunction
function [15:0] crc16_step(input [15:0] c, input b);
crc16_step = {c[14:0], 1'b0} ^ (16'h1021 & {16{c[15] ^ b}});
endfunction
// ------------------------------------------------------------- bit clock
reg [7:0] divcnt;
wire [7:0] half = slow ? INIT_DIV : DATA_DIV;
wire tick = (divcnt >= half - 8'd1);
wire fall_tick = tick && sdclk; // next edge falls: change outputs
wire rise_tick = tick && !sdclk; // next edge rises: sample inputs
// ------------------------------------------------------------- FSM
localparam [3:0] E_IDLE = 4'd0;
localparam [3:0] E_DUM = 4'd1;
localparam [3:0] E_GAP = 4'd2; // 8 released clocks before a command
localparam [3:0] E_CMD = 4'd3; // shift the 48-bit command
localparam [3:0] E_NRC = 4'd4; // no-response tail (CMD0)
localparam [3:0] E_RWAIT = 4'd5; // response start bit
localparam [3:0] E_RESP = 4'd6; // remaining response bits
localparam [3:0] E_DWAIT = 4'd7; // data start bit
localparam [3:0] E_DATA = 4'd8; // 4096 data + 16 CRC bits
localparam [3:0] E_DEND = 4'd9; // block end bit + verdict
localparam [3:0] E_DONE = 4'd10;
localparam [3:0] E_ERR = 4'd11;
localparam [21:0] TO_RESP = 22'd1000; // response timeout (sdclk)
localparam [21:0] TO_DATA = 22'd2_000_000; // data-start timeout (sdclk)
reg [3:0] state;
reg [1:0] kind_r;
reg r2_r;
reg stopph; // the running command is the injected CMD12
reg err_p; // err (not done) once the CMD12 completes
reg [12:0] blkleft;
reg multi; // op_nblk > 1: CMD18 stream, CMD12 to terminate
reg [47:0] cmdreg;
reg [6:0] crc7;
reg [15:0] crc16;
reg [12:0] bitcnt;
reg [45:0] rsh;
reg [7:0] rbits;
reg [7:0] shreg;
reg [7:0] dumcnt;
reg [21:0] toctr;
assign busy = (state != E_IDLE);
wire [45:0] rsh_n = {rsh[44:0], sdcmd_i};
always @(posedge clk) begin
if (!rstn) begin
state <= E_IDLE;
divcnt <= 8'd0;
sdclk <= 1'b0;
sdcmd_o <= 1'b1;
sdcmd_oe <= 1'b0;
done <= 1'b0;
err <= 1'b0;
resp_arg <= 32'd0;
resp_r2 <= 128'd0;
rx_we <= 1'b0;
rx_byte <= 8'd0;
rx_idx <= 9'd0;
kind_r <= 2'd0;
r2_r <= 1'b0;
stopph <= 1'b0;
err_p <= 1'b0;
blkleft <= 13'd0;
multi <= 1'b0;
cmdreg <= 48'd0;
crc7 <= 7'd0;
crc16 <= 16'd0;
bitcnt <= 13'd0;
rsh <= 46'd0;
rbits <= 8'd0;
shreg <= 8'd0;
dumcnt <= 8'd0;
toctr <= 22'd0;
end else begin
done <= 1'b0;
err <= 1'b0;
rx_we <= 1'b0;
if (state == E_IDLE) begin
divcnt <= 8'd0;
sdclk <= 1'b0;
sdcmd_oe <= 1'b0;
if (op_start) begin
kind_r <= op_kind;
r2_r <= op_r2;
stopph <= 1'b0;
err_p <= 1'b0;
multi <= (op_nblk > 13'd1);
blkleft <= (op_nblk == 13'd0) ? 13'd1 : op_nblk;
cmdreg <= {2'b01, op_cmd, op_arg, 7'd0, 1'b1};
crc7 <= 7'd0;
bitcnt <= 13'd0;
dumcnt <= op_ndum;
state <= (op_kind == 2'd0) ? E_DUM : E_GAP;
end
end else begin
divcnt <= tick ? 8'd0 : divcnt + 8'd1;
if (tick) sdclk <= ~sdclk;
case (state)
E_DUM: // op_ndum clocks with CMD driven high
if (fall_tick) begin
sdcmd_oe <= 1'b1;
sdcmd_o <= 1'b1;
if (dumcnt <= 8'd1) begin
sdcmd_oe <= 1'b0;
state <= E_DONE;
end else dumcnt <= dumcnt - 8'd1;
end
E_GAP: // NCC spacing, CMD released
if (fall_tick) begin
sdcmd_oe <= 1'b0;
if (bitcnt == 13'd7) begin
bitcnt <= 13'd0;
state <= E_CMD;
end else bitcnt <= bitcnt + 13'd1;
end
E_CMD: // 48-bit command, CRC7 accumulated over the first 40 bits
if (fall_tick) begin
if (bitcnt < 13'd40) begin
sdcmd_oe <= 1'b1;
sdcmd_o <= cmdreg[47];
crc7 <= crc7_step(crc7, cmdreg[47]);
cmdreg <= {cmdreg[46:0], 1'b1};
end else if (bitcnt < 13'd47) begin
sdcmd_o <= crc7[6];
crc7 <= {crc7[5:0], 1'b0};
end else begin
sdcmd_o <= 1'b1; // end bit
end
if (bitcnt == 13'd47) begin
bitcnt <= 13'd0;
toctr <= 22'd0;
state <= (kind_r == 2'd2 && !stopph) ? E_NRC : E_RWAIT;
end else bitcnt <= bitcnt + 13'd1;
end
E_NRC: // CMD0 has no response: 8 clocks, then done
if (fall_tick) begin
sdcmd_oe <= 1'b0;
if (bitcnt == 13'd7) begin
bitcnt <= 13'd0;
state <= E_DONE;
end else bitcnt <= bitcnt + 13'd1;
end
E_RWAIT: begin
if (fall_tick) sdcmd_oe <= 1'b0; // release after the end bit
if (rise_tick && !sdcmd_oe) begin
if (sdcmd_i == 1'b0) begin
bitcnt <= 13'd0;
rbits <= (r2_r && !stopph) ? 8'd135 : 8'd47;
state <= E_RESP;
end else if (toctr >= TO_RESP) state <= E_ERR;
else toctr <= toctr + 22'd1;
end
end
E_RESP:
if (rise_tick) begin
rsh <= rsh_n;
// the 46-bit rsh window loses the head of a 136-bit R2; a full
// shadow keeps every CID/CSD bit (the last 128 sampled bits are
// exactly CSD[127:1] followed by the end bit)
if (r2_r && !stopph) resp_r2 <= {resp_r2[126:0], sdcmd_i};
if (bitcnt[7:0] == rbits - 8'd1) begin
if (!r2_r || stopph) resp_arg <= rsh_n[39:8];
bitcnt <= 13'd0;
toctr <= 22'd0;
if (stopph) state <= err_p ? E_ERR : E_DONE;
else if (kind_r == 2'd3) state <= E_DWAIT;
else state <= E_DONE;
end else bitcnt <= bitcnt + 13'd1;
end
E_DWAIT:
if (rise_tick) begin
if (sddat0 == 1'b0) begin // data start bit
bitcnt <= 13'd0;
crc16 <= 16'd0;
shreg <= 8'd0;
state <= E_DATA;
end else if (toctr >= TO_DATA) begin
if (multi) begin // close the CMD18 stream, then err
err_p <= 1'b1;
cmdreg <= {2'b01, 6'd12, 32'd0, 7'd0, 1'b1};
crc7 <= 7'd0;
bitcnt <= 13'd0;
stopph <= 1'b1;
state <= E_GAP;
end else state <= E_ERR;
end else toctr <= toctr + 22'd1;
end
E_DATA: // 4096 data bits + 16 CRC bits (accumulator ends at 0)
if (rise_tick) begin
crc16 <= crc16_step(crc16, sddat0);
if (bitcnt < 13'd4096) begin
shreg <= {shreg[6:0], sddat0};
if (bitcnt[2:0] == 3'd7) begin
rx_we <= 1'b1;
rx_idx <= bitcnt[11:3];
rx_byte <= {shreg[6:0], sddat0};
end
end
if (bitcnt == 13'd4111) state <= E_DEND;
else bitcnt <= bitcnt + 13'd1;
end
E_DEND: // end bit; CRC verdict; next block / CMD12 / done
if (rise_tick) begin
if (crc16 != 16'd0) begin
if (multi) begin
err_p <= 1'b1;
cmdreg <= {2'b01, 6'd12, 32'd0, 7'd0, 1'b1};
crc7 <= 7'd0;
bitcnt <= 13'd0;
stopph <= 1'b1;
state <= E_GAP;
end else state <= E_ERR;
end else if (blkleft > 13'd1) begin
blkleft <= blkleft - 13'd1;
toctr <= 22'd0;
state <= E_DWAIT;
end else if (multi) begin
cmdreg <= {2'b01, 6'd12, 32'd0, 7'd0, 1'b1};
crc7 <= 7'd0;
bitcnt <= 13'd0;
stopph <= 1'b1;
state <= E_GAP;
end else state <= E_DONE;
end
E_DONE: begin
done <= 1'b1;
state <= E_IDLE;
end
E_ERR: begin
err <= 1'b1;
state <= E_IDLE;
end
default: state <= E_IDLE;
endcase
end
end
end
endmodule
