nd_storage_floppy_adapter¶
Source: Verilog/SD-FAT/circuit/nd_storage_floppy_adapter.v
Where it sits (Tang): ND120_TANG20K_TOP > nd_storage_devices > nd_storage_floppy_adapter
- instance path: TAPE_SDFAT_SOURCE.gen_floppy.u_floppy_adapter
Used in: nd_storage_devices (Tang, Nexys, QMTECH), nd_storage_mega65_devices (MEGA65 R6, MEGA65 R3), nd_storage_mister_devices (MiSTer)
Contains: no other modules.
Module hierarchy - All modules

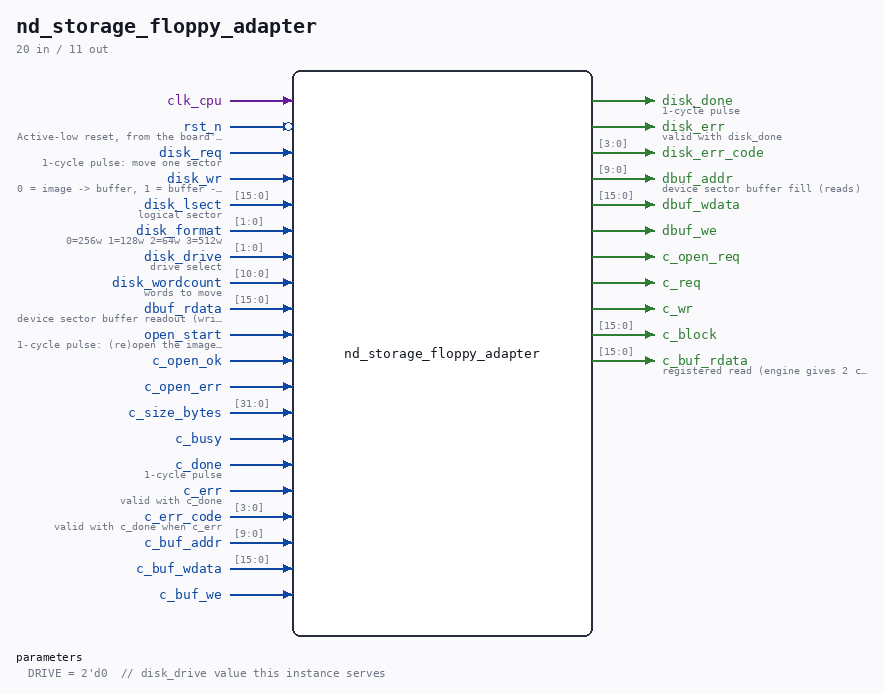

Schematic¶
Drawn from the Verilog: the yosys netlist of the Tang Nano 20K build, instance TAPE_SDFAT_SOURCE.gen_floppy.u_floppy_adapter. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Parameters¶
| Parameter | Default |
|---|---|
DRIVE |
2'd0 // disk_drive value this instance serves |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk_cpu |
|
| input | 1 |
rst_n (active low) |
Active-low reset, from the board's power-on reset (same net as ND120_CORE.sys_rst_n) |
| input | 1 |
disk_req |
1-cycle pulse: move one sector |
| input | 1 |
disk_wr |
0 = image -> buffer, 1 = buffer -> image |
| input | [15:0] |
disk_lsect |
logical sector |
| input | [1:0] |
disk_format |
0=256w 1=128w 2=64w 3=512w |
| input | [1:0] |
disk_drive |
drive select |
| input | [10:0] |
disk_wordcount |
words to move |
| output | 1 |
disk_done |
1-cycle pulse |
| output | 1 |
disk_err |
valid with disk_done |
| output | [3:0] |
disk_err_code |
|
| output | [9:0] |
dbuf_addr |
device sector buffer fill (reads) |
| output | [15:0] |
dbuf_wdata |
|
| output | 1 |
dbuf_we |
|
| input | [15:0] |
dbuf_rdata |
device sector buffer readout (writes) |
| input | 1 |
open_start |
1-cycle pulse: (re)open the image file |
| output | 1 |
c_open_req |
|
| input | 1 |
c_open_ok |
|
| input | 1 |
c_open_err |
|
| input | [31:0] |
c_size_bytes |
|
| output | 1 |
c_req |
|
| output | 1 |
c_wr |
|
| output | [15:0] |
c_block |
|
| input | 1 |
c_busy |
|
| input | 1 |
c_done |
1-cycle pulse |
| input | 1 |
c_err |
valid with c_done |
| input | [3:0] |
c_err_code |
valid with c_done when c_err |
| input | [9:0] |
c_buf_addr |
|
| input | [15:0] |
c_buf_wdata |
|
| input | 1 |
c_buf_we |
|
| output | [15:0] |
c_buf_rdata |
registered read (engine gives 2 cycles) |
Verilog source¶
Verilog/SD-FAT/circuit/nd_storage_floppy_adapter.v on GitHub.
Show the Verilog of nd_storage_floppy_adapter (348 lines)
`include "nd_storage_status.vh"
/****************************************************************************
** nd_storage_floppy_adapter - block adapter for the DMA floppy backend **
** **
** Design doc: Verilog/docs/nd-storage-design.md section 2.6 (step 8, **
** retargeted 11-JUL: the DMA controller's disk_* backend port, NOT the **
** PIO sector port); spec Verilog/docs/nd-storage-interface-spec.md **
** section 4 (client contract) and section 9 acceptance test 6. **
** **
** Sits between ND_FLOPPY_DMA's disk-image backend port (pin-for-pin, see **
** Verilog/ND-BUS-DEVICES/FLOPPY-DMA/circuit/ND_FLOPPY_DMA.v) and ONE **
** nd_storage client port. Single clock: clk_cpu (the client-port domain **
** - the CDC lives inside nd_storage). **
** **
** THE ACTUAL DEVICE CONTRACT (read from the source, 11-JUL): one **
** LOGICAL SECTOR per request, not 1K-word chunks: **
** disk_req in 1-cycle pulse: move one sector **
** disk_wr in 0 = image -> device buffer, 1 = buffer -> image **
** disk_lsect in [15:0] logical sector number **
** disk_format in [1:0] 0=256w 1=128w 2=64w 3=512w per sector **
** disk_drive in [1:0] drive select (command word bits 7:6) **
** disk_wordcount in [10:0] words to move (= words per sector) **
** disk_done out 1-cycle pulse (device waits on it as a level) **
** disk_err out valid with disk_done (device disk_err_in) **
** dbuf_addr/wdata/we out: fill the device's 1024x16 sector buffer **
** (read direction) **
** dbuf_rdata in device buffer readout (combinational in the **
** device; sampled here with a settle cycle) **
** All request fields are registered in the device and stable from the **
** disk_req pulse until disk_done. **
** **
** DRIVE SELECT (parameter DRIVE): one adapter instance serves ONE drive **
** (FLOPPY1.IMG = client 1 = DRIVE 0, FLOPPY2.IMG = client 2 = DRIVE 1). **
** A request with disk_drive != DRIVE is ignored COMPLETELY (all outputs **
** stay 0), so two instances can share the controller's disk_* outputs **
** with their disk_done/disk_err/dbuf_* outputs OR-combined. The '1560&' **
** boot path always uses drive 0 (the boot command word is 16'h0300). **
** **
** Block math: linear word offset = disk_lsect << log2(words/sector); **
** client block = offset[24:10], word-in-block = offset[9:0]. Every **
** sector size divides 1024, so a sector NEVER crosses a block boundary. **
** **
** READ: block hit (s_have_blk, s_cur_blk match) -> serve from the local **
** 1024x16 buffer; miss -> one c_req block read, then serve **
** disk_wordcount words to the device buffer via dbuf_*. **
** WRITE: read-modify-write - fetch the containing block (unless cached **
** or the request is a full aligned block), overlay the device's **
** words (dbuf_addr walk with a settle cycle), then one c_req **
** write. The local buffer stays valid as the block cache after a **
** successful commit. **
** Word order: client words ARE ND words - no byte swizzling here **
** (design doc 4.1: the big-endian byte packing happens below the client **
** port). **
** **
** Errors (disk_done WITH disk_err, never a wedge, always retryable): **
** - file not open (c_open_ok low) **
** - out of range: read end past c_size_bytes; for WRITES the whole **
** containing block must lie inside the file ((block+1)*2048 <= **
** c_size_bytes) - the step-6 HARD RULE: never write the partial tail **
** block of a file whose size is not a 2048-byte multiple (the CMD24s **
** would spill past the cluster chain). Floppy images are block **
** multiples, so in-range requests are never refused. **
** - c_err from nd_storage (SD failure): block cache dropped, the **
** request errors out cleanly; the next disk_req simply retries. **
** **
** open_start is a pulse from the board/boot logic; it is passed through **
** as a c_open_req pulse (nd_storage ignores it while the port is busy). **
** **
** Last reviewed: 11-JUL-2026 **
** Ronny Hansen **
*****************************************************************************/
module nd_storage_floppy_adapter #(
parameter [1:0] DRIVE = 2'd0 // disk_drive value this instance serves
) (
input wire clk_cpu,
input wire rst_n, //! Active-low reset, from the board's power-on reset (same net as ND120_CORE.sys_rst_n)
// Disk-image backend port (to ND_FLOPPY_DMA, pin-for-pin)
input wire disk_req, // 1-cycle pulse: move one sector
input wire disk_wr, // 0 = image -> buffer, 1 = buffer -> image
input wire [15:0] disk_lsect, // logical sector
input wire [ 1:0] disk_format, // 0=256w 1=128w 2=64w 3=512w
input wire [ 1:0] disk_drive, // drive select
input wire [10:0] disk_wordcount, // words to move
output reg disk_done, // 1-cycle pulse
output reg disk_err, // valid with disk_done
// WHY it failed, valid with disk_done (nd_storage_status.vh). The
// controller maps this onto a status bit ITS OWN MANUAL defines - it
// never invents one - so the guest can tell a missing card from a
// missing file from a sector past the end of the image.
output reg [ 3:0] disk_err_code,
output reg [ 9:0] dbuf_addr, // device sector buffer fill (reads)
output reg [15:0] dbuf_wdata,
output reg dbuf_we,
input wire [15:0] dbuf_rdata, // device sector buffer readout (writes)
// Board/boot control
input wire open_start, // 1-cycle pulse: (re)open the image file
// nd_storage client port (one client, clk_cpu domain)
output reg c_open_req,
input wire c_open_ok,
input wire c_open_err,
input wire [31:0] c_size_bytes,
output reg c_req,
output reg c_wr,
output reg [15:0] c_block,
input wire c_busy,
input wire c_done, // 1-cycle pulse
input wire c_err, // valid with c_done
input wire [ 3:0] c_err_code, // valid with c_done when c_err
input wire [ 9:0] c_buf_addr,
input wire [15:0] c_buf_wdata,
input wire c_buf_we,
output reg [15:0] c_buf_rdata // registered read (engine gives 2 cycles)
);
// Local copy of the current block (BRAM): written by the client port
// during a fetch AND by the write-overlay walk (ONE write port, the two
// sources are mutually exclusive by FSM construction); read back to
// serve the device (reads) and to feed c_buf_rdata (write commit).
reg [15:0] s_blkbuf[0:1023];
// ---- request decode (combinational on the disk_req cycle) -------------
wire [3:0] s_shift = (disk_format == 2'd0) ? 4'd8 :
(disk_format == 2'd1) ? 4'd7 :
(disk_format == 2'd2) ? 4'd6 : 4'd9;
wire [24:0] s_lin_words = {9'd0, disk_lsect} << s_shift; // word offset in file
wire [15:0] s_req_blk = {1'b0, s_lin_words[24:10]}; // containing block
wire [ 9:0] s_req_woff = s_lin_words[9:0]; // word offset in block
// read: the transfer must end inside the file (bytes)
wire [31:0] s_rd_end_bytes = ({7'd0, s_lin_words} + {21'd0, disk_wordcount}) << 1;
// write: the WHOLE containing block must lie inside the file (step-6 rule)
wire [31:0] s_wr_end_bytes = ({16'd0, s_req_blk} + 32'd1) << 11;
// local buffer overflow guard (a consistent device never trips this)
wire [11:0] s_span = {2'd0, s_req_woff} + {1'd0, disk_wordcount};
// The three refusals kept apart, so the reason survives to the guest
// instead of collapsing into one anonymous error bit.
wire s_notopen = !c_open_ok;
wire s_straddle = (s_span > 12'd1024); // sector crosses a block boundary
wire s_oor = disk_wr ? (s_wr_end_bytes > c_size_bytes)
: (s_rd_end_bytes > c_size_bytes);
wire s_bad = s_notopen | s_straddle | s_oor;
// full aligned block write: no read-modify-write pre-read needed
wire s_direct = (s_req_woff == 10'd0) && (disk_wordcount == 11'd1024);
// ---- FSM ---------------------------------------------------------------
localparam [3:0] F_IDLE = 4'd0, // wait for a matching disk_req
F_CREQ = 4'd1, // wait !c_busy, pulse c_req
F_CWAIT = 4'd2, // client op in flight, wait c_done
F_SRV1 = 4'd3, // read serve: registered buffer read
F_SRV2 = 4'd4, // read serve: dbuf write strobe
F_PULL1 = 4'd5, // write overlay: present dbuf_addr
F_PULL2 = 4'd6, // write overlay: settle cycle
F_PULL3 = 4'd7, // write overlay: sample dbuf_rdata
F_DONE = 4'd8; // pulse disk_done (+disk_err)
reg [ 3:0] s_state;
reg s_op_wr; // latched disk_wr
reg [10:0] s_wc; // latched disk_wordcount
reg [ 9:0] s_woff; // latched word offset in block
reg [15:0] s_blk; // latched target block
reg [10:0] s_idx; // word index within the transfer
reg [15:0] s_word; // registered local-buffer read data
reg [15:0] s_cur_blk; // block number held in s_blkbuf
reg s_have_blk; // s_blkbuf/s_cur_blk are valid
reg s_commit; // write phase: 0 = RMW pre-read, 1 = commit write
reg s_err_q; // error verdict for the F_DONE pulse
reg [ 3:0] s_code_q; // and WHY, for the same pulse
// block buffer: single write port (client fetch stream has priority;
// the overlay walk only runs while the client port is idle), plus a
// registered read for the commit path (the engine gives 2 cycles)
always @(posedge clk_cpu) begin
if (c_buf_we) s_blkbuf[c_buf_addr] <= c_buf_wdata;
else if (s_state == F_PULL3) s_blkbuf[s_woff + s_idx[9:0]] <= dbuf_rdata;
c_buf_rdata <= s_blkbuf[c_buf_addr];
end
always @(posedge clk_cpu or negedge rst_n) begin
if (!rst_n) begin
disk_done <= 1'b0;
disk_err <= 1'b0;
dbuf_addr <= 10'd0;
dbuf_wdata <= 16'd0;
dbuf_we <= 1'b0;
c_open_req <= 1'b0;
c_req <= 1'b0;
c_wr <= 1'b0;
c_block <= 16'd0;
s_state <= F_IDLE;
s_op_wr <= 1'b0;
s_wc <= 11'd0;
s_woff <= 10'd0;
s_blk <= 16'd0;
s_idx <= 11'd0;
s_word <= 16'd0;
s_cur_blk <= 16'd0;
s_have_blk <= 1'b0;
s_commit <= 1'b0;
s_err_q <= 1'b0;
s_code_q <= `NDS_ERR_NONE;
disk_err_code <= `NDS_ERR_NONE;
end else begin
disk_done <= 1'b0;
disk_err <= 1'b0;
dbuf_we <= 1'b0;
c_req <= 1'b0;
c_open_req <= 1'b0;
if (open_start) c_open_req <= 1'b1;
case (s_state)
F_IDLE: begin
// idle outputs parked at 0 so two instances can OR their pins
dbuf_addr <= 10'd0;
dbuf_wdata <= 16'd0;
if (disk_req && (disk_drive == DRIVE)) begin
s_op_wr <= disk_wr;
s_wc <= disk_wordcount;
s_woff <= s_req_woff;
s_blk <= s_req_blk;
s_idx <= 11'd0;
if (s_bad) begin
s_err_q <= 1'b1;
s_code_q <= s_notopen ? `NDS_ERR_NOTOPEN
: s_oor ? `NDS_ERR_RANGE
: `NDS_ERR_WRALIGN; // straddle
s_state <= F_DONE;
end else if (disk_wordcount == 11'd0) begin
s_err_q <= 1'b0; // nothing to move: clean completion
s_code_q <= `NDS_ERR_NONE;
s_state <= F_DONE;
end else if (disk_wr) begin
// the buffer is about to mutate: the cache is invalid until
// the commit lands (re-established at c_done without error)
s_have_blk <= 1'b0;
s_commit <= 1'b0;
if (s_direct || (s_have_blk && (s_cur_blk == s_req_blk))) begin
s_state <= F_PULL1; // cache (or full block): overlay now
end else begin
s_state <= F_CREQ; // RMW pre-read first
end
end else begin
if (s_have_blk && (s_cur_blk == s_req_blk)) begin
s_state <= F_SRV1; // cache hit: serve directly
end else begin
s_state <= F_CREQ; // fetch, then serve
end
end
end
end
// pulse c_req as soon as the port is free (req while busy is lost)
F_CREQ: begin
if (!c_busy) begin
c_req <= 1'b1;
c_wr <= s_op_wr && s_commit;
c_block <= s_blk;
s_state <= F_CWAIT;
end
end
F_CWAIT: begin
if (c_done) begin
if (c_err) begin
s_have_blk <= 1'b0; // cache is suspect: drop it
s_err_q <= 1'b1;
s_code_q <= c_err_code; // pass the storage stack's reason on
s_state <= F_DONE;
end else if (s_op_wr && s_commit) begin
s_have_blk <= 1'b1; // committed: buffer == block content
s_cur_blk <= s_blk;
s_err_q <= 1'b0;
s_code_q <= `NDS_ERR_NONE;
s_state <= F_DONE;
end else if (s_op_wr) begin
s_state <= F_PULL1; // RMW pre-read landed: overlay next
end else begin
s_have_blk <= 1'b1; // read fetch landed
s_cur_blk <= s_blk;
s_state <= F_SRV1;
end
end
end
// ---- read serve: local buffer -> device buffer, 2 cycles/word ----
F_SRV1: begin
s_word <= s_blkbuf[s_woff + s_idx[9:0]];
s_state <= F_SRV2;
end
F_SRV2: begin
dbuf_addr <= s_idx[9:0];
dbuf_wdata <= s_word;
dbuf_we <= 1'b1;
if (s_idx + 11'd1 >= s_wc) begin
s_err_q <= 1'b0;
s_code_q <= `NDS_ERR_NONE;
s_state <= F_DONE;
end else begin
s_idx <= s_idx + 11'd1;
s_state <= F_SRV1;
end
end
// ---- write overlay: device buffer -> local buffer, 3 cycles/word --
// (address, settle, sample - the device's dbuf_rdata is
// combinational, a registered backend would answer one cycle later;
// the held address makes both correct)
F_PULL1: begin
dbuf_addr <= s_idx[9:0];
s_state <= F_PULL2;
end
F_PULL2: s_state <= F_PULL3;
F_PULL3: begin
// the buffer write itself happens in the memory block above
if (s_idx + 11'd1 >= s_wc) begin
s_commit <= 1'b1; // overlay complete: commit the block
s_state <= F_CREQ;
end else begin
s_idx <= s_idx + 11'd1;
s_state <= F_PULL1;
end
end
F_DONE: begin
disk_done <= 1'b1;
disk_err <= s_err_q;
disk_err_code <= s_code_q;
dbuf_addr <= 10'd0;
dbuf_wdata <= 16'd0;
s_state <= F_IDLE;
end
default: s_state <= F_IDLE;
endcase
end
end
endmodule
