sd_writer¶
Source: Verilog/SD-FAT/circuit/sd_writer.v
Where it sits (Simulation): ND120_TOP > nd_storage_devices > nd_storage > sd_writer
- instance path: TAPE_SDFAT_SOURCE.u_nd_storage.u_writer
Used in: nd_storage (Simulation, Tang, Nexys, QMTECH)
Contains: no other modules.
Module hierarchy - All modules

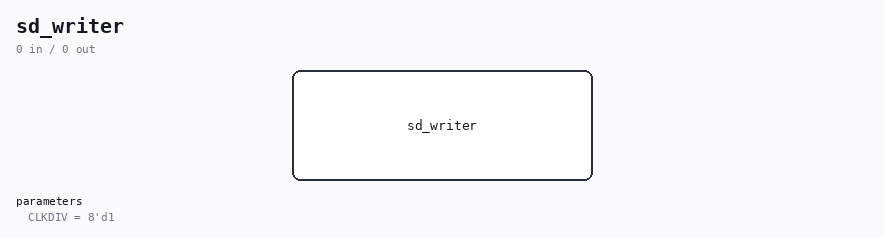

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance TAPE_SDFAT_SOURCE.u_nd_storage.u_writer. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
SD sector read/write engine (single + multi-block, SD-native 1-bit) Reads or writes sectors on an ALREADY-INITIALIZED card: the reader (sd_reader.v) must have brought the card into the transfer state with 512-byte block length before this module is used; the top level then muxes the SD pins from the reader to this engine. Used for the ND-120 in-place file rewrite path (SD-FAT/README.md): data-sector writes plus the FAT/directory read-modify-writes of sd_fat_rewrite.v, and for the CMD18/CMD25 burst speed path of the sd-fat-test menus 6/7. Protocol per SD Physical Layer Simplified Spec: single read: CMD17(sector) -> R1 -> DAT0: start(0)+4096 bits+CRC+end single write: CMD24(sector) -> R1 -> Nwr gap -> DAT0: start(0)+4096 data bits MSB-first + CRC16-CCITT + end(1) -> card CRC status token on DAT0 (start 0, "010" = accepted, end 1) -> card busy (DAT0 low) -> ready. burst read (burst_len>1): CMD18 -> R1 -> blocks stream back-to-back (each start+4096+CRC16+end) -> host stops with CMD12 (R1). burst write (burst_len>1): CMD55(RCA)+ACMD23(count) -> CMD25 -> R1 -> per block: Nwr gap + start+4096+CRC16+end -> CRC status token -> busy release -> next block; burst ends with CMD12 (R1b + final busy). A "101"/"110" status mid-burst aborts via CMD12 and reports err (the caller retries). Per-block caller handshake: rd_addr/rd_data (write source) and rx_we/rx_addr/rx_data (read sink) restart at byte 0 for every block; block_next pulses one cycle between the blocks of a burst so the caller advances its block context (never before block 0 - the first block always uses the context that was valid at start). done fires once, at burst end. burst_len = 0 or 1 (or left unconnected) is EXACTLY the original single-sector CMD17/CMD24 engine - nd_storage and the COPY/WRBLK1 paths use that interface unchanged. 4-bit bus mode (use_4bit=1, speed-plan rung c): every operation is prefixed with CMD55(RCA)+ACMD6(arg 2) - the card may have been re-initialized to 1-bit by the reader between operations, so the switch is repeated per op (two 48-bit commands, negligible against a sector). Data blocks then move as 1024 nibbles on DAT3..DAT0 (MSB nibble first, DAT3 = bit 3): start nibble 0, data, 16 CRC clocks where EACH line carries its own CRC16 over the serial bits that line carried, end nibble F. The CRC status token and ALL busy signalling stay on DAT0 alone (SD Physical Layer spec) - those states are shared with the 1-bit path. use_4bit=0 (or unconnected: an x/z condition is false) is the original 1-bit engine, bit-exact - nd_storage and the Basys3 PMOD (DAT0-only wiring) keep working unchanged. No tristates here (repo rule): the CMD/DAT drivers are exposed as _o/_oe pairs and the single tristate lives at the board top level. DAT1-3 are driven ONLY during the data phase of a 4-bit write (the host never drives any DAT line during reads or status/busy). Burst-read block boundaries: the spec's N_AC minimum is 2 sdclk, so a real card streams blocks nearly back-to-back. The start-bit hunt in R_DWAIT is armed on the sdclk right after the previous end bit, and as belt-and-braces the sdclk LOW phase is stretched a few clocks at each boundary (host-side clock flow control, spec section 4.4 - the card freezes while the clock is held) so no start bit can ever arrive before the hunt is armed. A partial next block streamed by the card before CMD12 lands is ignored by design (the FSM is in the command states; the card releases DAT shortly after the CMD12 end bit). This file is ORIGINAL ND-120 project code (MIT, like the repository); it is intentionally independent of the vendored GPL SD reader. Sector data is fetched through a registered read port (1-clk latency); the SD bit clock is at least two system clocks long, so the fetch pipeline is satisfied even at CLKDIV=1 (16 clk between byte fetches). Last reviewed: 11-JUL-2026 Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
CLKDIV |
8'd1 |
Verilog source¶
Verilog/SD-FAT/circuit/sd_writer.v on GitHub.
Show the Verilog of sd_writer (730 lines)
/****************************************************************************
** SD sector read/write engine (single + multi-block, SD-native 1-bit) **
** **
** Reads or writes sectors on an ALREADY-INITIALIZED card: the reader **
** (sd_reader.v) must have brought the card into the transfer state with **
** 512-byte block length before this module is used; the top level then **
** muxes the SD pins from the reader to this engine. Used for the ND-120 **
** in-place file rewrite path (SD-FAT/README.md): data-sector writes plus **
** the FAT/directory read-modify-writes of sd_fat_rewrite.v, and for the **
** CMD18/CMD25 burst speed path of the sd-fat-test menus 6/7. **
** **
** Protocol per SD Physical Layer Simplified Spec: **
** single read: CMD17(sector) -> R1 -> DAT0: start(0)+4096 bits+CRC+end**
** single write: CMD24(sector) -> R1 -> Nwr gap -> DAT0: start(0)+4096 **
** data bits MSB-first + CRC16-CCITT + end(1) -> card CRC status **
** token on DAT0 (start 0, "010" = accepted, end 1) -> card busy **
** (DAT0 low) -> ready. **
** burst read (burst_len>1): CMD18 -> R1 -> blocks stream back-to-back **
** (each start+4096+CRC16+end) -> host stops with CMD12 (R1). **
** burst write (burst_len>1): CMD55(RCA)+ACMD23(count) -> CMD25 -> R1 **
** -> per block: Nwr gap + start+4096+CRC16+end -> CRC status token **
** -> busy release -> next block; burst ends with CMD12 (R1b + final **
** busy). A "101"/"110" status mid-burst aborts via CMD12 and **
** reports err (the caller retries). **
** **
** Per-block caller handshake: rd_addr/rd_data (write source) and **
** rx_we/rx_addr/rx_data (read sink) restart at byte 0 for every block; **
** block_next pulses one cycle between the blocks of a burst so the **
** caller advances its block context (never before block 0 - the first **
** block always uses the context that was valid at start). done fires **
** once, at burst end. **
** **
** burst_len = 0 or 1 (or left unconnected) is EXACTLY the original **
** single-sector CMD17/CMD24 engine - nd_storage and the COPY/WRBLK1 **
** paths use that interface unchanged. **
** **
** 4-bit bus mode (use_4bit=1, speed-plan rung c): every operation is **
** prefixed with CMD55(RCA)+ACMD6(arg 2) - the card may have been **
** re-initialized to 1-bit by the reader between operations, so the **
** switch is repeated per op (two 48-bit commands, negligible against a **
** sector). Data blocks then move as 1024 nibbles on DAT3..DAT0 (MSB **
** nibble first, DAT3 = bit 3): start nibble 0, data, 16 CRC clocks **
** where EACH line carries its own CRC16 over the serial bits that line **
** carried, end nibble F. The CRC status token and ALL busy signalling **
** stay on DAT0 alone (SD Physical Layer spec) - those states are shared **
** with the 1-bit path. use_4bit=0 (or unconnected: an x/z condition is **
** false) is the original 1-bit engine, bit-exact - nd_storage and the **
** Basys3 PMOD (DAT0-only wiring) keep working unchanged. **
** **
** No tristates here (repo rule): the CMD/DAT drivers are exposed as **
** _o/_oe pairs and the single tristate lives at the board top level. **
** DAT1-3 are driven ONLY during the data phase of a 4-bit write (the **
** host never drives any DAT line during reads or status/busy). **
** **
** Burst-read block boundaries: the spec's N_AC minimum is 2 sdclk, so a **
** real card streams blocks nearly back-to-back. The start-bit hunt in **
** R_DWAIT is armed on the sdclk right after the previous end bit, and **
** as belt-and-braces the sdclk LOW phase is stretched a few clocks at **
** each boundary (host-side clock flow control, spec section 4.4 - the **
** card freezes while the clock is held) so no start bit can ever arrive **
** before the hunt is armed. A partial next block streamed by the card **
** before CMD12 lands is ignored by design (the FSM is in the command **
** states; the card releases DAT shortly after the CMD12 end bit). **
** **
** This file is ORIGINAL ND-120 project code (MIT, like the repository); **
** it is intentionally independent of the vendored GPL SD reader. **
** **
** Sector data is fetched through a registered read port (1-clk latency); **
** the SD bit clock is at least two system clocks long, so the fetch **
** pipeline is satisfied even at CLKDIV=1 (16 clk between byte fetches). **
** **
** Last reviewed: 11-JUL-2026 **
** Ronny Hansen **
*****************************************************************************/
module sd_writer #(
parameter [7:0] CLKDIV = 8'd1, // sdclk = clk / (2*CLKDIV); 27 MHz / 2 = 13.5 MHz
parameter [31:0] BUSY_TIMEOUT = 32'd13_500_000 // sdclk cycles of busy before err (~1 s at 13.5 MHz)
) (
input wire clk,
input wire rst_n,
// SD pins (muxed onto the card at the top level while writing)
output reg sd_clk_o,
input wire sd_cmd_i,
output reg sd_cmd_o,
output reg sd_cmd_oe,
input wire sd_dat0_i,
output reg sd_dat0_o,
output reg sd_dat0_oe,
// DAT1-3 (4-bit bus mode only; unused/undriven when use_4bit=0)
input wire sd_dat1_i,
output reg sd_dat1_o,
output reg sd_dat1_oe,
input wire sd_dat2_i,
output reg sd_dat2_o,
output reg sd_dat2_oe,
input wire sd_dat3_i,
output reg sd_dat3_o,
output reg sd_dat3_oe,
// 1 = 4-bit bus; 0/unconnected = original 1-bit
input wire use_4bit,
// 1 = the card has NOT been re-initialised since the last successful
// ACMD6, so a negotiated 4-bit width still stands and this operation may
// skip the CMD55+ACMD6 prefix. Drive it low whenever anything else can
// re-init the card (a mount, a card swap): CMD0 returns the card to
// 1-bit and the width has to be negotiated again.
// UNCONNECTED IS SAFE: z reads as false, so every operation re-issues
// the prefix - exactly the behaviour before this input existed.
input wire width_hold,
// command interface
input wire start, // 1-cycle pulse; only when busy=0
input wire rd_mode, // 0 = write sectors (CMD24/CMD25), 1 = read (CMD17/CMD18)
input wire [31:0] sector, // SDHC sector number (first sector of a burst)
output wire busy,
output reg done, // 1-cycle pulse: transfer finished OK
output reg err, // 1-cycle pulse: timeout or CRC status rejected
// burst interface (leave unconnected / 0 / 1 for the single-sector path)
input wire [8:0] burst_len, // blocks in the burst; >1 = CMD18/CMD25
input wire [15:0] rca, // card RCA for CMD55 (burst writes only)
output reg block_next, // 1-cycle pulse between the blocks of a burst
// WRITE: sector data source (registered read port, 1-clk latency)
output reg [8:0] rd_addr, // byte 0..511 of the current block
input wire [7:0] rd_data,
// READ: received bytes, streamed out as they arrive
output reg rx_we, // 1-cycle pulse per byte
output reg [8:0] rx_addr, // byte 0..511 of the current block
output reg [7:0] rx_data
);
function [6:0] crc7_step(input [6:0] c, input b);
crc7_step = {c[5:0], 1'b0} ^ (7'h09 & {7{c[6] ^ b}});
endfunction
function [15:0] crc16_step(input [15:0] c, input b);
crc16_step = {c[14:0], 1'b0} ^ (16'h1021 & {16{c[15] ^ b}});
endfunction
// ------------------------------------------------------------- bit clock
reg [7:0] divcnt;
wire tick = (divcnt == CLKDIV - 8'd1); // one system-clock pulse per sdclk half-period
wire fall_tick = tick && sd_clk_o; // next edge will be falling: change outputs
wire rise_tick = tick && !sd_clk_o; // next edge will be rising: sample inputs
// at CLKDIV=1 tick is high every cycle and sdclk toggles every clk;
// fall_tick/rise_tick then alternate cycle by cycle - every state below
// acts on at most one of them per sdclk period, so no CLKDIV>=2
// assumption remains.
// ------------------------------------------------------------- FSM
localparam W_IDLE = 5'd0;
localparam W_CMD = 5'd1; // shift out a 48-bit command
localparam W_R1WAIT = 5'd2; // wait for the response start bit
localparam W_R1 = 5'd3; // skip the rest of the 48-bit R1
localparam W_GAP = 5'd4; // Nwr gap before a data block
localparam W_DSTART = 5'd5; // data start bit
localparam W_DATA = 5'd6; // 4096 data bits
localparam W_CRC = 5'd7; // 16 CRC bits
localparam W_DEND = 5'd8; // end bit, then release DAT0
localparam W_CSWAIT = 5'd9; // wait for the CRC status start bit
localparam W_CS = 5'd10; // 3 status bits + end bit
localparam W_BUSY = 5'd11; // card holds DAT0 low while programming
localparam W_DONE = 5'd12;
localparam W_ERR = 5'd13;
localparam R_DWAIT = 5'd14; // read: wait for the card's data start bit
localparam R_DATA = 5'd15; // read: 4096 data bits + CRC + end
localparam W_CGAP = 5'd16; // burst: 8-clock spacing before the next command
localparam W_STOPB = 5'd17; // burst: CMD12 R1b - let busy assert, then poll
// which command the running W_CMD/W_R1WAIT/W_R1 sequence carries
localparam CP_RW = 3'd0; // CMD17/CMD24/CMD18/CMD25 - response leads to data
localparam CP_C55 = 3'd1; // CMD55 (APP_CMD prefix of ACMD23)
localparam CP_A23 = 3'd2; // ACMD23 (pre-erase block count)
localparam CP_STOP = 3'd3; // CMD12 (stop transmission)
localparam CP_C55W = 3'd4; // CMD55 (APP_CMD prefix of ACMD6, 4-bit switch)
localparam CP_A6 = 3'd5; // ACMD6 (bus width 2 = 4-bit)
reg [4:0] state;
reg rd_r; // latched rd_mode
reg multi; // latched burst mode (burst_len > 1)
reg wide; // latched use_4bit (clean 0/1, never x/z)
reg wide_ok; // a 4-bit width is negotiated and still valid
reg err_pending; // burst aborted: err (not done) after CMD12 completes
reg [2:0] cphase;
reg [8:0] blen_r; // latched burst_len (ACMD23 argument)
reg [8:0] blkleft; // blocks remaining AFTER the current one
reg [31:0] sector_r; // latched first sector (CMD25 is sent after ACMD23)
reg [47:0] cmdreg;
reg [6:0] crc7;
reg [15:0] crc16; // TX/1-bit CRC16; line DAT0 in 4-bit mode
reg [15:0] crc16_1; // 4-bit mode: per-line CRC16 for DAT1
reg [15:0] crc16_2; // 4-bit mode: per-line CRC16 for DAT2
reg [15:0] crc16_3; // 4-bit mode: per-line CRC16 for DAT3
reg [12:0] bitcnt;
reg [45:0] r1sr; // R1 capture: first received bit ends at [45],
// card status = r1sr[38:7] (see W_R1)
reg [7:0] shreg;
reg [31:0] toctr;
reg [3:0] csbits;
reg [7:0] s_pause; // sdclk low-phase stretch (host-side flow control)
assign busy = (state != W_IDLE);
// read-path geometry: 4-bit = 1024 nibble samples, 1-bit = 4096 bit samples
wire [12:0] s_rx_nsmp = wide ? 13'd1024 : 13'd4096;
wire [12:0] s_rx_end = wide ? (13'd1024 + 13'd16) : (13'd4096 + 13'd16);
wire [3:0] s_rx_nib = {sd_dat3_i, sd_dat2_i, sd_dat1_i, sd_dat0_i};
always @(posedge clk) begin
if (!rst_n) begin
state <= W_IDLE;
divcnt <= 0;
sd_clk_o <= 1'b0;
sd_cmd_o <= 1'b1;
sd_cmd_oe <= 1'b0;
sd_dat0_o <= 1'b1;
sd_dat0_oe <= 1'b0;
sd_dat1_o <= 1'b1;
sd_dat1_oe <= 1'b0;
sd_dat2_o <= 1'b1;
sd_dat2_oe <= 1'b0;
sd_dat3_o <= 1'b1;
sd_dat3_oe <= 1'b0;
done <= 1'b0;
err <= 1'b0;
block_next <= 1'b0;
rd_addr <= 0;
rx_we <= 1'b0;
rx_addr <= 0;
rx_data <= 0;
rd_r <= 1'b0;
multi <= 1'b0;
wide <= 1'b0;
wide_ok <= 1'b0;
err_pending <= 1'b0;
cphase <= CP_RW;
blen_r <= 9'd1;
blkleft <= 9'd0;
sector_r <= 0;
cmdreg <= 0;
crc7 <= 0;
crc16 <= 0;
crc16_1 <= 0;
crc16_2 <= 0;
crc16_3 <= 0;
bitcnt <= 0;
shreg <= 0;
toctr <= 0;
csbits <= 0;
s_pause <= 0;
end else begin
// A negotiated 4-bit width survives only while the holder says the card
// has not been re-initialised (CMD0 returns a card to 1-bit). Cleared
// here, set where ACMD6 is acknowledged. width_hold low - including an
// unconnected input, which is not 1 - means renegotiate every operation.
if (width_hold != 1'b1) wide_ok <= 1'b0;
done <= 1'b0;
err <= 1'b0;
rx_we <= 1'b0;
block_next <= 1'b0;
if (state == W_IDLE) begin
divcnt <= 0;
sd_clk_o <= 1'b0;
sd_cmd_oe <= 1'b0;
sd_dat0_oe <= 1'b0;
sd_dat1_oe <= 1'b0;
sd_dat2_oe <= 1'b0;
sd_dat3_oe <= 1'b0;
s_pause <= 8'd0;
if (start) begin
// 48-bit command: start(0) host(1) index(6) arg(32) crc7 end(1);
// CRC7 is accumulated while shifting (over the first 40 bits)
rd_r <= rd_mode;
crc7 <= 0;
bitcnt <= 0;
rd_addr <= 0;
err_pending <= 1'b0;
sector_r <= sector;
cphase <= CP_RW;
// burst_len 0/1 (or unconnected: the != comparison of an x/z
// value is false) keeps the original single-sector behavior
if (burst_len[8:1] != 8'd0) begin
multi <= 1'b1;
blen_r <= burst_len;
blkleft <= burst_len - 9'd1;
end else begin
multi <= 1'b0;
blen_r <= 9'd1;
blkleft <= 9'd0;
end
// an unconnected use_4bit is x/z: the if condition is then false,
// so the latched wide flag is a clean 0 (original 1-bit engine)
if (use_4bit && wide_ok) begin
// The width is already negotiated and nothing has re-initialised
// the card since, so go straight to the data command. This is
// what makes 4-bit cost two commands per MOUNT instead of two
// per operation.
wide <= 1'b1;
if (burst_len[8:1] != 8'd0) begin
if (rd_mode) begin
cmdreg <= {2'b01, 6'd18, sector, 7'b0000000, 1'b1};
end else begin
cmdreg <= {2'b01, 6'd55, rca, 16'h0000, 7'b0000000, 1'b1};
cphase <= CP_C55;
end
end else begin
cmdreg <= {2'b01, rd_mode ? 6'd17 : 6'd24, sector, 7'b0000000, 1'b1};
end
end else if (use_4bit) begin
// 4-bit, width not established: switch it first (CMD55 -> ACMD6);
// the main command chain continues from the CP_A6 routing below
wide <= 1'b1;
cmdreg <= {2'b01, 6'd55, rca, 16'h0000, 7'b0000000, 1'b1};
cphase <= CP_C55W;
end else begin
wide <= 1'b0;
if (burst_len[8:1] != 8'd0) begin
if (rd_mode) begin
cmdreg <= {2'b01, 6'd18, sector, 7'b0000000, 1'b1};
end else begin
// CMD55 first (ACMD23 prefix); the write chain continues
// ACMD23 -> CMD25 through the cphase routing below
cmdreg <= {2'b01, 6'd55, rca, 16'h0000, 7'b0000000, 1'b1};
cphase <= CP_C55;
end
end else begin
cmdreg <= {2'b01, rd_mode ? 6'd17 : 6'd24, sector, 7'b0000000, 1'b1};
end
end
state <= W_CMD;
end
end else begin
// bit clock while active. The HOST owns sdclk and may pause it at
// any time at default speed - the card freezes and waits (SD spec
// section 4.4: clock control as flow control). At every burst-read
// block boundary the low phase is stretched by a few system clocks
// (s_pause), so the next block's start bit CANNOT arrive before the
// start-bit hunt is re-armed, whatever the FSM's re-arm latency -
// the spec allows the card to present it as little as N_AC = 2
// clocks after the previous end bit.
if (s_pause != 8'd0 && !sd_clk_o) begin
s_pause <= s_pause - 8'd1; // hold sdclk LOW: card is frozen
divcnt <= 8'd0;
end else begin
divcnt <= tick ? 8'd0 : divcnt + 8'd1;
if (tick) sd_clk_o <= ~sd_clk_o;
end
case (state)
// ---- command phase --------------------------------------------
W_CMD:
if (fall_tick) begin
if (bitcnt < 13'd40) begin
sd_cmd_oe <= 1'b1;
sd_cmd_o <= cmdreg[47];
crc7 <= crc7_step(crc7, cmdreg[47]);
cmdreg <= {cmdreg[46:0], 1'b1};
end else if (bitcnt < 13'd47) begin
sd_cmd_o <= crc7[6]; // the 7 CRC bits
crc7 <= {crc7[5:0], 1'b0};
end else begin
sd_cmd_o <= 1'b1; // end bit
end
if (bitcnt == 13'd47) begin
bitcnt <= 0;
toctr <= 0;
state <= W_R1WAIT;
end else bitcnt <= bitcnt + 13'd1;
end
W_R1WAIT: begin
if (fall_tick) sd_cmd_oe <= 1'b0; // release CMD after the end bit
if (rise_tick && !sd_cmd_oe) begin
if (sd_cmd_i == 1'b0) begin
bitcnt <= 0;
state <= W_R1;
end else if (toctr == 32'd500) state <= W_ERR;
else toctr <= toctr + 1;
end
end
W_R1: // receive the remaining 47 bits of the R1 response
if (rise_tick) begin
// capture as we go. After the shift at bitcnt 45 the register
// holds 46 of the 47 bits (only the end bit is still to come),
// first received bit at [45]: [45]=transmission, [44:39]=command
// index, [38:7]=card status, [6:0]=CRC7.
r1sr <= {r1sr[44:0], sd_cmd_i};
if (bitcnt == 13'd46) begin
bitcnt <= 0;
toctr <= 0;
case (cphase)
CP_C55W: begin
// CMD55 must be ACKNOWLEDGED before ACMD6 means anything.
// Card status bit 5 (APP_CMD) = r1sr[7+5] = r1sr[12] says
// the card will interpret the NEXT command as an ACMD. If
// it is clear the card did not accept CMD55 as addressed to
// it - the classic cause being a wrong or zero RCA in the
// argument - and ACMD6 would be taken as plain CMD6. Going
// wide anyway is the dangerous case: the host would drive
// and sample DAT3..DAT0 while the card still answers on
// DAT0 alone, which reads as data corruption rather than as
// a rejected command. Fail loudly instead.
if (!r1sr[12]) begin
wide <= 1'b0;
state <= W_ERR;
end else begin
// ACMD6: bus width in arg[1:0], 10 = 4 bits
cmdreg <= {2'b01, 6'd6, 32'h0000_0002, 7'b0000000, 1'b1};
crc7 <= 0;
cphase <= CP_A6;
state <= W_CGAP;
end
end
CP_A6: begin
// ACMD6 answered. Card status bit 22 (ILLEGAL_COMMAND) =
// r1sr[29] and bit 23 (COM_CRC_ERROR) = r1sr[30]; either
// means the width switch did not happen, so do NOT go wide.
if (r1sr[29] || r1sr[30]) begin
wide <= 1'b0;
wide_ok <= 1'b0;
state <= W_ERR;
end else begin
wide_ok <= 1'b1; // negotiated: later operations may skip
// bus is 4-bit now: issue the main command (the same
// routing the 1-bit path performs directly at start)
crc7 <= 0;
if (multi) begin
if (rd_r) begin
cmdreg <= {2'b01, 6'd18, sector_r, 7'b0000000, 1'b1};
cphase <= CP_RW;
end else begin
cmdreg <= {2'b01, 6'd55, rca, 16'h0000, 7'b0000000, 1'b1};
cphase <= CP_C55;
end
end else begin
cmdreg <= {2'b01, rd_r ? 6'd17 : 6'd24, sector_r,
7'b0000000, 1'b1};
cphase <= CP_RW;
end
state <= W_CGAP;
end
end
CP_C55: begin
// ACMD23: pre-erase block count in arg[22:0]
cmdreg <= {2'b01, 6'd23, 9'd0, 14'd0, blen_r, 7'b0000000, 1'b1};
crc7 <= 0;
cphase <= CP_A23;
state <= W_CGAP;
end
CP_A23: begin
cmdreg <= {2'b01, 6'd25, sector_r, 7'b0000000, 1'b1};
crc7 <= 0;
cphase <= CP_RW;
state <= W_CGAP;
end
CP_STOP: state <= W_STOPB;
default: state <= rd_r ? R_DWAIT : W_GAP;
endcase
end else bitcnt <= bitcnt + 13'd1;
end
W_CGAP: // NCC command spacing: 8 clocks with CMD released
if (fall_tick) begin
if (bitcnt == 13'd7) begin
bitcnt <= 0;
state <= W_CMD;
end else bitcnt <= bitcnt + 13'd1;
end
// ---- read: receive the card's data block(s) --------------------
// the start-bit hunt is armed CONTINUOUSLY in this state - every
// sdclk rising edge samples the DAT lines; in 4-bit mode the
// start token is nibble 0x0 on ALL FOUR lines (spec 3.6.1), so
// requiring all four low rejects single-line glitches
R_DWAIT:
if (rise_tick) begin
if (wide ? (s_rx_nib == 4'h0) : (sd_dat0_i == 1'b0)) begin
bitcnt <= 0;
shreg <= 0;
state <= R_DATA;
end else if (toctr == 32'd1_000_000) begin
if (multi) begin // abort the open CMD18 stream, then err
err_pending <= 1'b1;
cmdreg <= {2'b01, 6'd12, 32'd0, 7'b0000000, 1'b1};
crc7 <= 0;
bitcnt <= 0;
cphase <= CP_STOP;
state <= W_CGAP;
end else state <= W_ERR;
end else toctr <= toctr + 1;
end
R_DATA:
if (rise_tick) begin
if (bitcnt < s_rx_nsmp) begin
if (wide) begin
// two nibbles per byte, MSB nibble first (DAT3 = bit 3)
if (!bitcnt[0]) shreg[7:4] <= s_rx_nib;
else begin
rx_we <= 1'b1;
rx_addr <= bitcnt[9:1];
rx_data <= {shreg[7:4], s_rx_nib};
end
end else begin
shreg <= {shreg[6:0], sd_dat0_i};
if (bitcnt[2:0] == 3'd7) begin
rx_we <= 1'b1;
rx_addr <= bitcnt[11:3];
rx_data <= {shreg[6:0], sd_dat0_i};
end
end
bitcnt <= bitcnt + 13'd1;
end else if (bitcnt == s_rx_end) begin // CRC skipped, end bit
if (multi && blkleft != 9'd0) begin
blkleft <= blkleft - 9'd1;
block_next <= 1'b1; // caller advances to its next block
toctr <= 0;
s_pause <= 8'd4; // stretch the low phase: flow control
state <= R_DWAIT;
end else if (multi) begin
cmdreg <= {2'b01, 6'd12, 32'd0, 7'b0000000, 1'b1};
crc7 <= 0;
bitcnt <= 0;
cphase <= CP_STOP;
state <= W_CGAP;
end else state <= W_DONE;
end else bitcnt <= bitcnt + 13'd1;
end
// ---- data block ------------------------------------------------
W_GAP: // Nwr >= 2 clocks; use 8
if (fall_tick) begin
if (bitcnt == 13'd7) begin
bitcnt <= 0;
state <= W_DSTART;
end else bitcnt <= bitcnt + 13'd1;
end
W_DSTART:
if (fall_tick) begin
sd_dat0_oe <= 1'b1;
sd_dat0_o <= 1'b0; // data start bit / start nibble bit 0
if (wide) begin // start nibble 0x0 on all four lines
sd_dat1_oe <= 1'b1;
sd_dat1_o <= 1'b0;
sd_dat2_oe <= 1'b1;
sd_dat2_o <= 1'b0;
sd_dat3_oe <= 1'b1;
sd_dat3_o <= 1'b0;
end
shreg <= rd_data; // byte 0 (rd_addr has been 0 long enough)
rd_addr <= 9'd1;
crc16 <= 0;
crc16_1 <= 0;
crc16_2 <= 0;
crc16_3 <= 0;
bitcnt <= 0;
state <= W_DATA;
end
W_DATA:
if (fall_tick) begin
if (wide) begin
// one nibble per sdclk, MSB nibble first; each line's CRC16
// accumulates only the serial bits that line carries
sd_dat3_o <= bitcnt[0] ? shreg[3] : shreg[7];
sd_dat2_o <= bitcnt[0] ? shreg[2] : shreg[6];
sd_dat1_o <= bitcnt[0] ? shreg[1] : shreg[5];
sd_dat0_o <= bitcnt[0] ? shreg[0] : shreg[4];
crc16_3 <= crc16_step(crc16_3, bitcnt[0] ? shreg[3] : shreg[7]);
crc16_2 <= crc16_step(crc16_2, bitcnt[0] ? shreg[2] : shreg[6]);
crc16_1 <= crc16_step(crc16_1, bitcnt[0] ? shreg[1] : shreg[5]);
crc16 <= crc16_step(crc16, bitcnt[0] ? shreg[0] : shreg[4]);
if (bitcnt[0]) begin
shreg <= rd_data; // next byte (fetched 2 sdclk ago)
rd_addr <= rd_addr + 9'd1;
end
if (bitcnt == 13'd1023) begin
bitcnt <= 0;
state <= W_CRC;
end else bitcnt <= bitcnt + 13'd1;
end else begin
sd_dat0_o <= shreg[7];
crc16 <= crc16_step(crc16, shreg[7]);
if (bitcnt[2:0] == 3'd7) begin
shreg <= rd_data; // next byte (fetched 8 ticks ago)
rd_addr <= rd_addr + 9'd1;
end else shreg <= {shreg[6:0], 1'b0};
if (bitcnt == 13'd4095) begin
bitcnt <= 0;
state <= W_CRC;
end else bitcnt <= bitcnt + 13'd1;
end
end
W_CRC:
if (fall_tick) begin
sd_dat0_o <= crc16[15];
crc16 <= {crc16[14:0], 1'b0};
if (wide) begin // 16 CRC clocks: every line shifts its own CRC16
sd_dat1_o <= crc16_1[15];
crc16_1 <= {crc16_1[14:0], 1'b0};
sd_dat2_o <= crc16_2[15];
crc16_2 <= {crc16_2[14:0], 1'b0};
sd_dat3_o <= crc16_3[15];
crc16_3 <= {crc16_3[14:0], 1'b0};
end
if (bitcnt == 13'd15) begin
bitcnt <= 0;
state <= W_DEND;
end else bitcnt <= bitcnt + 13'd1;
end
W_DEND:
if (fall_tick) begin
if (bitcnt == 13'd0) begin
sd_dat0_o <= 1'b1; // end bit / end nibble 0xF
if (wide) begin
sd_dat1_o <= 1'b1;
sd_dat2_o <= 1'b1;
sd_dat3_o <= 1'b1;
end
bitcnt <= 13'd1;
end else begin
sd_dat0_oe <= 1'b0; // release the DAT lines to the card
sd_dat1_oe <= 1'b0;
sd_dat2_oe <= 1'b0;
sd_dat3_oe <= 1'b0;
toctr <= 0;
bitcnt <= 0;
state <= W_CSWAIT;
end
end
// ---- CRC status + busy ----------------------------------------
W_CSWAIT:
if (rise_tick) begin
if (sd_dat0_i == 1'b0) begin // status token start bit
bitcnt <= 0;
csbits <= 0;
state <= W_CS;
end else if (toctr == 32'd500) begin
if (multi) begin // abort the open CMD25 burst, then err
err_pending <= 1'b1;
cmdreg <= {2'b01, 6'd12, 32'd0, 7'b0000000, 1'b1};
crc7 <= 0;
bitcnt <= 0;
cphase <= CP_STOP;
state <= W_CGAP;
end else state <= W_ERR;
end else toctr <= toctr + 1;
end
W_CS: // 3 status bits, then the token end bit
if (rise_tick) begin
if (bitcnt == 13'd3) begin
// csbits[2:0] holds the 3 status bits; this sample is the end
// bit. "010" = data accepted; anything else = CRC/write error.
toctr <= 0;
if (csbits[2:0] == 3'b010) state <= W_BUSY;
else if (multi) begin
// "101"/"110" mid-burst: stop the transfer, then report err
err_pending <= 1'b1;
cmdreg <= {2'b01, 6'd12, 32'd0, 7'b0000000, 1'b1};
crc7 <= 0;
bitcnt <= 0;
cphase <= CP_STOP;
state <= W_CGAP;
end else state <= W_ERR;
end else begin
csbits <= {csbits[2:0], sd_dat0_i};
bitcnt <= bitcnt + 13'd1;
end
end
W_STOPB: // CMD12 R1b: let the card assert busy before polling ready
if (fall_tick) begin
if (bitcnt == 13'd7) begin
bitcnt <= 0;
toctr <= 0;
state <= W_BUSY;
end else bitcnt <= bitcnt + 13'd1;
end
W_BUSY:
if (rise_tick) begin
if (sd_dat0_i == 1'b1) begin // programming finished
if (cphase == CP_STOP) state <= err_pending ? W_ERR : W_DONE;
else if (multi && blkleft != 9'd0) begin
blkleft <= blkleft - 9'd1;
block_next <= 1'b1; // caller advances to its next block
rd_addr <= 0;
bitcnt <= 0;
state <= W_GAP;
end else if (multi) begin
// burst complete: CMD12 (R1b + final busy), then done
cmdreg <= {2'b01, 6'd12, 32'd0, 7'b0000000, 1'b1};
crc7 <= 0;
bitcnt <= 0;
cphase <= CP_STOP;
state <= W_CGAP;
end else state <= W_DONE;
end else if (toctr == BUSY_TIMEOUT) state <= W_ERR;
else toctr <= toctr + 1;
end
W_DONE: begin
done <= 1'b1;
state <= W_IDLE;
end
W_ERR: begin
err <= 1'b1;
state <= W_IDLE;
end
default: state <= W_IDLE;
endcase
end
end
end
endmodule
