nd_storage_engine¶
Source: Verilog/SD-FAT/circuit/nd_storage_engine.v
Where it sits (Simulation): ND120_TOP > nd_storage_devices > nd_storage > nd_storage_engine
- instance path: TAPE_SDFAT_SOURCE.u_nd_storage.u_engine
Used in: nd_storage (Simulation, Tang, Nexys, QMTECH)
Contains: nds_sync_level x6, nds_sync_pulse x42
Module hierarchy - All modules

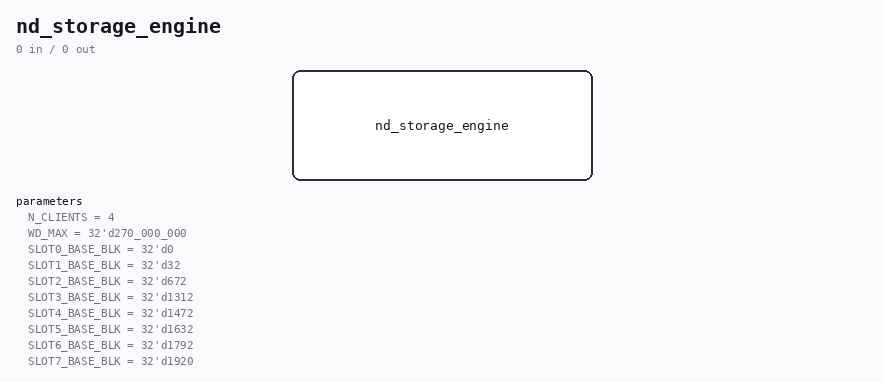

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance TAPE_SDFAT_SOURCE.u_nd_storage.u_engine. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Parameters¶
| Parameter | Default |
|---|---|
N_CLIENTS |
4 |
WD_MAX |
32'd270_000_000 |
SLOT0_BASE_BLK |
32'd0 |
SLOT1_BASE_BLK |
32'd32 |
SLOT2_BASE_BLK |
32'd672 |
SLOT3_BASE_BLK |
32'd1312 |
SLOT4_BASE_BLK |
32'd1472 |
SLOT5_BASE_BLK |
32'd1632 |
SLOT6_BASE_BLK |
32'd1792 |
SLOT7_BASE_BLK |
32'd1920 |
Verilog source¶
Verilog/SD-FAT/circuit/nd_storage_engine.v on GitHub.
Show the Verilog of nd_storage_engine (1374 lines)
`include "nd_storage_status.vh"
/****************************************************************************
** nd_storage block engine: arbiter, client front-ends, CDC word bridge **
** **
** Core of the multi-client storage facade (docs/nd-storage-design.md **
** section 2.2; binding contract docs/nd-storage-interface-spec.md). **
** Serves N_CLIENTS client ports (clk_cpu domain) with 2048-byte block **
** operations against the abstract mem port (clk_stor domain, SDRAM **
** device region behind the board glue, nds_mem_model.v in sim): **
** **
** - Round-robin arbiter: per-client pending latches, one request per **
** client (no queue), scan starts at ptr+1 and the pointer advances **
** past the winner at op completion - starvation impossible. **
** - Per-client front-ends (generate, clk_cpu): latch {wr, block} on **
** req, flip the request toggle, master the CLIENT's buffer through **
** buf_addr/buf_wdata/buf_we (read) and buf_rdata (write: address **
** presented in cycle A, one wait cycle for a registered BRAM read, **
** data sampled in cycle C - also correct for combinational reads). **
** - CDC word bridge: one 16-bit word at a time, toggle handshake in **
** each direction via nds_sync.v; data crosses as stable payload. **
** - READ path: 512 mem-port reads, each 32-bit word pushed as two **
** big-endian client words (word 2m = mem[31:16]). **
** - WRITE path: 1024 words pulled from the client into the 512x32 **
** staging BRAM, then 4 CMD24 sectors through the sd_writer command **
** port (sdw_*), then 512 mem-port writes. Ordering rule: card **
** first, SDRAM second, done last - a failed CMD24 leaves the SDRAM **
** copy untouched. The staging BRAM is a documented deviation from **
** the "nd_storage never stores payload" rationale: one shared 2 KB **
** block avoids pulling the client buffer twice over the CDC and **
** makes the card-first ordering natural. **
** - Range check: block >= n_blocks[c] answers done+err with ZERO **
** mem/SD traffic. **
** - Open requests are handed to the mount FSM (mnt_* port, **
** nd_storage_mount.v); geometry (n_blocks, first_sector) and the **
** open_ok/open_err/size levels are inputs from the mount logic. **
** **
** Step-4 change (the one flagged in docs/nd-storage-design.md for the **
** step-4 implementer): N_CLIENTS grows to 7 (owner file set TAPE.BPUN, **
** FLOPPY1/2.IMG, SMD0-3.IMG), so every 2-bit client index (grant, **
** round-robin pointer, mnt_client, the synced grant id) widened to 3 **
** bits and the slot-base table gained SLOT4..6. No behavior change for **
** N_CLIENTS <= 4 (the step-2/3 testbenches still pass unmodified). **
** **
** Every wait state carries the WD_MAX watchdog; a timeout ends the op **
** with done+err and raises the sticky eng_wd_err level (the top folds **
** it into sd_status = SD_ERROR). **
** **
** The W_SEC card phase drives the sdw_* command port (shaped like **
** sd_writer's start/busy/done/err interface); the sd_writer byte fetch **
** is served from the staging BRAM through a 2-stage registered read **
** (word + lane latch, then byte mux) - well inside sd_writer's 8-bit- **
** tick fetch spacing. Exercised against the real sd_writer + card **
** model in nd_storage_write_tb.v (sim step 3). **
** **
** Last reviewed: 11-JUL-2026 **
** Ronny Hansen **
*****************************************************************************/
module nd_storage_engine #(
parameter N_CLIENTS = 4, // 1..8
parameter [31:0] WD_MAX = 32'd270_000_000,
parameter [31:0] SLOT0_BASE_BLK = 32'd0,
parameter [31:0] SLOT1_BASE_BLK = 32'd32,
parameter [31:0] SLOT2_BASE_BLK = 32'd672,
parameter [31:0] SLOT3_BASE_BLK = 32'd1312,
parameter [31:0] SLOT4_BASE_BLK = 32'd1472,
parameter [31:0] SLOT5_BASE_BLK = 32'd1632,
parameter [31:0] SLOT6_BASE_BLK = 32'd1792,
parameter [31:0] SLOT7_BASE_BLK = 32'd1920,
// Phase 4. CACHE_MASK[c] = 1 -> client c goes through the shared cache
// directory (nd_storage_cache.v): its image may be ANY size, the region
// holds only the working set. 0 -> DIRECT: the client gets one fixed
// staging line and every block request fetches from the card. Tape and
// floppy are DIRECT (the card is quick enough and they would only spend
// region); the disc classes are CACHED. Nothing is ever preloaded.
parameter [7:0] CACHE_MASK = 8'b00000000,
// First region block of the per-client DIRECT staging lines (one each).
parameter [31:0] STAGE_BASE_BLK = 32'd0
) (
input wire clk_stor,
input wire rst_stor_n,
input wire clk_cpu,
input wire rst_cpu_n,
// ---- mem port (clk_stor; SDRAM device region / nds_mem_model) ----
output reg mem_start, // 1-cycle pulse, only when mem_busy=0
output reg mem_we,
output reg [19:0] mem_addr, // {blk_abs[10:0], word[8:0]}
output reg [31:0] mem_wdata,
input wire [31:0] mem_rdata, // valid at mem_done, then held
input wire mem_busy,
input wire mem_done, // 1-cycle pulse
// ---- mount handoff (clk_stor; nd_storage_mount in step 4) ----
output reg mnt_start, // 1-cycle pulse per granted open
output wire [2:0] mnt_client, // which client is being opened
input wire mnt_done, // 1-cycle pulse: mount finished
input wire mnt_err, // valid with mnt_done
input wire mnt_nocard, // valid with mnt_done: the open failed
// because there is no card, not because
// the file is missing
// ---- per-client geometry / open status from mount (clk_stor) ----
// quasi-static: stable whenever open_ok_stor[c] is high
input wire [N_CLIENTS-1:0] open_ok_stor,
input wire [N_CLIENTS-1:0] open_err_stor,
input wire [N_CLIENTS*32-1:0] size_bytes_stor,
input wire [N_CLIENTS*16-1:0] n_blocks, // ceil(size/2048) per client
input wire [N_CLIENTS*32-1:0] first_sector, // file first SD sector
// ---- FAT-walk geometry (clk_stor; runtime chain walking, no
// contiguity requirement - docs/nd-storage-design.md section 2.2) ----
input wire [N_CLIENTS*28-1:0] first_cluster, // file first FAT cluster
input wire [7:0] fat_spc, // sectors/cluster (power of 2)
input wire [31:0] fat0_sector, // first FAT sector (volume)
input wire fat_is_fat32, // 1 = FAT32, 0 = FAT16
// ---- sd_writer command port (clk_stor; wired by the top, step 3) ----
output reg sdw_start,
output reg [31:0] sdw_sector,
input wire sdw_busy,
//! DEBUG (24-AUG-2026) stage-timer taps: is the card being read, and is a
//! cache lookup outstanding. Used to find where a disc operation's time goes.
output wire dbg_sd_busy,
output wire dbg_cache_pend,
input wire sdw_done,
input wire sdw_err,
input wire [8:0] sdw_rd_addr, // sd_writer byte fetch (2-clk registered)
output reg [7:0] sdw_rd_data,
// sd_writer is a sector READ/WRITE engine: rd_mode 1 = CMD17/CMD18. The
// cache fill path uses it, so no new SD protocol logic exists anywhere.
output reg sdw_rd_mode,
output reg [8:0] sdw_burst_len,
// Fill-path diagnostic seam - see the assignments near s_rx_byte. Pure
// observation; leave unconnected in any build that does not probe it.
output wire dbg_rx_stb,
output wire [7:0] dbg_rx_raw,
output wire [7:0] dbg_rx_byte,
// Live engine state, for the Tang capture ring. Three probe generations
// (09-AUG-2026) reported an empty ring and each time the honest reading
// was "the instrument may be dead", not "the card delivered nothing".
// Watching the state machine itself settles which states an operation
// actually visits instead of inferring it from a byte strobe.
output wire [4:0] dbg_state,
// The card sector the engine is about to read. A HELD value, unlike the
// byte strobe, so the Tang ring can sample it across the clk_stor ->
// clk2x boundary the same way it samples dbg_state.
output wire [31:0] dbg_lba,
// The word being written into the region during W_MEM. Held across the
// W_MEM/W_MEM_WAIT pair, so the Tang ring samples it reliably across the
// clk_stor -> clk2x boundary - the property that separated every probe
// that worked from every one that did not.
output wire [15:0] dbg_wdata,
// What the REGION RETURNS on a read. Sampled at R_PUSH_HI, where the
// engine pushes mem_rdata[31:16] to the client, so the value is valid.
output wire [15:0] dbg_rdata,
// The word handed to the GRANTED CLIENT'S buffer, and its write enable.
// This is the last unmeasured signal in the read chain: the region read is
// proven good and the adapter is proven to forward zeros, so the loss is
// here or in the adapter. clk_cpu is HALF of clk2x, so unlike the
// clk_stor-domain strobes this write enable is two clk2x cycles wide and
// is observable by the capture ring.
output wire [15:0] dbg_bufw,
output wire dbg_bufwe,
// The MOUNT's first_sector for the granted client. Block 0 of a file must
// be fetched from exactly this sector, so comparing it against dbg_lba
// settles whether the resolve is right without needing to know the card's
// layout. 10-AUG-2026: client 6 reads real data from a small file and
// zeros from the 75 MB one, with no error raised - a silent wrong-address
// read is the shape of that, and this is the address it should have used.
output wire [15:0] dbg_fsec,
output wire dbg_past_eof,
output wire [2:0] dbg_grant,
input wire sdw_rx_we, // 1-cycle pulse per received byte
input wire [8:0] sdw_rx_addr, // byte 0..511 of the current sector
input wire [7:0] sdw_rx_data,
// ---- cache directory (clk_stor; nd_storage_cache.v) ----
output reg cache_lookup_req,
output reg [2:0] cache_lookup_client,
output reg [15:0] cache_lookup_block,
input wire cache_lookup_done,
input wire cache_lookup_hit,
input wire [2:0] cache_lookup_way,
input wire [10:0] cache_lookup_line,
output reg cache_alloc_req,
output reg [2:0] cache_alloc_client,
output reg [15:0] cache_alloc_block,
output reg [2:0] cache_alloc_way,
input wire cache_alloc_done,
// ---- status ----
output reg eng_wd_err, // sticky until the next grant: watchdog fired
// ---- client ports (clk_cpu, flattened per spec section 4) ----
input wire [N_CLIENTS-1:0] open_req,
output wire [N_CLIENTS-1:0] open_ok,
output wire [N_CLIENTS-1:0] open_err,
output wire [N_CLIENTS*32-1:0] size_bytes,
input wire [N_CLIENTS-1:0] req,
input wire [N_CLIENTS-1:0] wr,
input wire [N_CLIENTS*16-1:0] block,
output wire [N_CLIENTS-1:0] busy,
output wire [N_CLIENTS-1:0] done,
output wire [N_CLIENTS-1:0] err,
// WHY it failed - valid with done when err=1 (nd_storage_status.vh).
// One bit of err could never tell "no card" from "file not on the
// card" from "block past the end of the image".
output wire [N_CLIENTS*4-1:0] err_code,
output wire [N_CLIENTS*10-1:0] buf_addr,
output wire [N_CLIENTS*16-1:0] buf_wdata,
output wire [N_CLIENTS-1:0] buf_we,
input wire [N_CLIENTS*16-1:0] buf_rdata
);
// ------------------------------------------------------------- slot map
function [31:0] slot_base;
input [2:0] c;
begin
case (c)
3'd0: slot_base = SLOT0_BASE_BLK;
3'd1: slot_base = SLOT1_BASE_BLK;
3'd2: slot_base = SLOT2_BASE_BLK;
3'd3: slot_base = SLOT3_BASE_BLK;
3'd4: slot_base = SLOT4_BASE_BLK;
3'd5: slot_base = SLOT5_BASE_BLK;
3'd6: slot_base = SLOT6_BASE_BLK;
default: slot_base = SLOT7_BASE_BLK;
endcase
end
endfunction
// ------------------------------------------------------------- engine FSM
localparam [3:0] E_IDLE = 4'd0;
localparam [3:0] E_GRANT = 4'd1;
localparam [3:0] E_OPEN = 4'd2;
localparam [3:0] R_MEM = 4'd3;
localparam [3:0] R_WAIT = 4'd4;
localparam [3:0] R_PUSH_HI = 4'd5;
localparam [3:0] R_PUSH_LO = 4'd6;
localparam [3:0] W_PULL = 4'd7;
localparam [3:0] W_SEC_GO = 4'd8;
localparam [3:0] W_SEC_WAIT = 4'd9;
localparam [3:0] W_MEM = 4'd10;
localparam [3:0] W_MEM_WAIT = 4'd11;
localparam [3:0] E_DONE = 4'd12;
// Phase-4 cache states.
localparam [4:0] C_LOOK = 5'd13; // tag lookup
localparam [4:0] C_SEC_GO = 5'd14; // card read of one sector of the line
localparam [4:0] C_SEC_WAIT = 5'd15;
localparam [4:0] C_ALLOC = 5'd16; // publish the filled line
// FAT-chain resolve states (per card sector; memo makes in-cluster free)
localparam [4:0] F_RES = 5'd17; // pick start point (memo or chain head)
localparam [4:0] F_STEP = 5'd18; // at target? publish : hop
localparam [4:0] F_FAT_GO = 5'd19; // CMD17 of the FAT sector of cur cluster
localparam [4:0] F_FAT_WAIT = 5'd20; // capture the 2/4 entry bytes in-stream
reg [4:0] s_state;
reg s_filling; // this op is a cache line fill
reg s_need_alloc; // publish the tag when the line is written
reg [2:0] s_cache_way;
reg [2:0] s_grant; // granted client
reg [2:0] s_ptr; // round-robin pointer
reg [N_CLIENTS-1:0] s_pend_open;
reg [N_CLIENTS-1:0] s_pend_blk;
reg s_op_wr [0:N_CLIENTS-1]; // latched with the request
reg [15:0] s_op_block [0:N_CLIENTS-1];
reg [10:0] s_blk_abs; // slot base + block
reg [8:0] s_wcnt; // SDRAM word m, 0..511
reg [9:0] s_pull_cnt; // client word k, 0..1023
reg [1:0] s_sec; // sector within block
reg s_phase; // per-state sub-phase
reg s_err_c; // op error, done_tgl payload
reg [3:0] s_err_code; // WHY (nd_storage_status.vh)
reg [31:0] s_rdata_lat; // mem word being pushed
reg [15:0] s_stage_hi; // even pull word (high half)
// ---- FAT-walk state (docs/nd-storage-design.md section 2.2) ----
reg [N_CLIENTS-1:0] s_m_val; // per-client memo valid
reg [19:0] s_m_idx [0:N_CLIENTS-1]; // memo: cluster idx in file
reg [27:0] s_m_clu [0:N_CLIENTS-1]; // memo: FAT cluster number
reg [19:0] s_cur_idx; // walk position
reg [27:0] s_cur_clu;
reg [31:0] s_res_lba; // resolved card sector
reg s_res_valid; // s_res_lba is for THIS sector
reg s_ret_wr; // resolve return: 1 = W_SEC_GO
reg s_res_skip; // past-EOF: skip the CMD24
reg [31:0] s_fat_acc; // FAT entry byte assembly
reg [31:0] s_data_start; // volume data region, granted client
reg [2:0] s_l2c; // log2(fat_spc)
reg [17:0] s_hops; // corrupt-chain cap (see fatchk)
// log2 of the sectors-per-cluster one-hot (power of two by FAT rules)
function [2:0] l2spc;
input [7:0] v;
begin
casez (v)
8'b1???????: l2spc = 3'd7;
8'b01??????: l2spc = 3'd6;
8'b001?????: l2spc = 3'd5;
8'b0001????: l2spc = 3'd4;
8'b00001???: l2spc = 3'd3;
8'b000001??: l2spc = 3'd2;
8'b0000001?: l2spc = 3'd1;
default: l2spc = 3'd0;
endcase
end
endfunction
// Target of the resolve: the card sector currently being fetched/written,
// expressed as (cluster index within the file, sector within that cluster).
wire [17:0] s_fsec = {s_op_block[s_grant], 2'b00} + {16'd0, s_sec};
wire [19:0] s_tgt_idx = {2'd0, s_fsec} >> s_l2c;
wire [7:0] s_within = s_fsec[7:0] & (fat_spc - 8'd1);
// FAT sector + in-sector byte offset of the current cluster's entry
wire [31:0] s_fat_sec = fat0_sector + (fat_is_fat32 ? {7'd0, s_cur_clu[27:7]}
: {12'd0, s_cur_clu[27:8]});
// In-sector chain following (24-AUG-2026): the entry value being completed
// THIS cycle - its last byte is on sdw_rx_data, the rest already in the
// accumulator - and whether the cluster it names lives later in this same
// FAT sector, which is what makes a bufferless multi-hop pass possible.
reg s_insec; // this pass already advanced
wire [31:0] s_nxt32 = {sdw_rx_data, s_fat_acc[23:0]};
wire [15:0] s_nxt16 = {sdw_rx_data, s_fat_acc[7:0]};
wire [27:0] s_nxt_clu = fat_is_fat32 ? s_nxt32[27:0] : {12'd0, s_nxt16};
// same 512-byte FAT sector? FAT32 packs 128 entries (clu[27:7]), FAT16 256
wire s_nxt_same_sec = fat_is_fat32
? (s_nxt_clu[27:7] == s_cur_clu[27:7])
: (s_nxt_clu[27:8] == s_cur_clu[27:8]);
wire [8:0] s_nxt_off = fat_is_fat32 ? {s_nxt_clu[6:0], 2'b00}
: {s_nxt_clu[7:0], 1'b0};
// only follow FORWARD within the pass - an earlier offset has already
// streamed past and would need another read anyway
wire s_nxt_later = (s_nxt_off > sdw_rx_addr);
wire [8:0] s_ent_off = fat_is_fat32 ? {s_cur_clu[6:0], 2'b00}
: {s_cur_clu[7:0], 1'b0};
wire [27:0] s_fclu_g = first_cluster[28*s_grant +: 28];
// Sectors the FILE actually has. A block's tail sectors can lie past the
// end of the FAT chain (e.g. a 3001-byte file: 6 sectors, but its second
// 2048-byte block spans file sectors 4..7). Reads of those must serve
// ZEROS (the s_past_eof byte gate already guarantees that - any fetched
// sector's bytes are zeroed); writes of those are DROPPED: the old
// contiguity arithmetic wrote them into whatever followed on the card,
// which on a 1-sector-per-cluster volume is the NEXT FILE.
wire [22:0] s_file_secs = size_bytes_stor[32*s_grant+9 +: 23]
+ {22'd0, |size_bytes_stor[32*s_grant +: 9]};
wire s_past_file = {5'd0, s_fsec} >= s_file_secs;
assign mnt_client = s_grant;
// ------------------------------------------------------------- word bridge
// stor -> cpu: toggles + stable data (design section 4.4)
reg [15:0] s_bridge_rd_data; // stable one clk_stor before the flip
reg s_rd_have_tgl;
reg s_wr_want_tgl;
reg [N_CLIENTS-1:0] s_done_tgl;
// cpu -> stor answers, per client (only the granted client flips)
wire [N_CLIENTS-1:0] fe_open_tgl;
wire [N_CLIENTS-1:0] fe_req_tgl;
wire [N_CLIENTS-1:0] fe_ack_tgl;
wire [N_CLIENTS-1:0] fe_have_tgl;
wire [N_CLIENTS-1:0] fe_wr_lat;
wire [N_CLIENTS*16-1:0] fe_block_lat;
wire [N_CLIENTS*16-1:0] fe_wrdata;
// synchronized pulses / levels
wire [N_CLIENTS-1:0] s_open_pulse; // clk_stor
wire [N_CLIENTS-1:0] s_req_pulse; // clk_stor
wire [N_CLIENTS-1:0] s_ack_pulse_v; // clk_stor, per client
wire [N_CLIENTS-1:0] s_wr_have_pulse_v; // clk_stor, per client
wire [N_CLIENTS-1:0] c_done_pulse; // clk_cpu
wire c_rd_have_pulse; // clk_cpu
wire c_wr_want_pulse; // clk_cpu
wire [2:0] c_grant_sync; // clk_cpu
wire c_err_sync; // clk_cpu
wire [3:0] c_err_code_sync; // clk_cpu, rides with c_err_sync
wire [N_CLIENTS-1:0] c_open_ok_sync; // clk_cpu
wire [N_CLIENTS-1:0] c_open_err_sync; // clk_cpu
// pulse mux by the (stable-during-op) grant: each toggle has its own
// synchronizer, so a grant change can never manufacture an edge
wire s_ack_pulse = s_ack_pulse_v[s_grant];
wire s_wr_have_pulse = s_wr_have_pulse_v[s_grant];
wire [15:0] s_wr_data_sel = fe_wrdata[16*s_grant +: 16];
nds_sync_pulse u_sync_rhave (
.clk_dst(clk_cpu), .rst_dst_n(rst_cpu_n),
.tgl_src(s_rd_have_tgl), .pulse_dst(c_rd_have_pulse)
);
nds_sync_pulse u_sync_want (
.clk_dst(clk_cpu), .rst_dst_n(rst_cpu_n),
.tgl_src(s_wr_want_tgl), .pulse_dst(c_wr_want_pulse)
);
nds_sync_level #(.WIDTH(3)) u_sync_grant (
.clk_dst(clk_cpu), .rst_dst_n(rst_cpu_n),
.d_src(s_grant), .q_dst(c_grant_sync)
);
nds_sync_level #(.WIDTH(1)) u_sync_err (
.clk_dst(clk_cpu), .rst_dst_n(rst_cpu_n),
.d_src(s_err_c), .q_dst(c_err_sync)
);
// Same shape as the err level above: the code is settled long before the
// done toggle is sent, and the front-end samples it only on the done
// pulse, so this is the ordinary data-with-handshake crossing.
nds_sync_level #(.WIDTH(4)) u_sync_errcode (
.clk_dst(clk_cpu), .rst_dst_n(rst_cpu_n),
.d_src(s_err_code), .q_dst(c_err_code_sync)
);
nds_sync_level #(.WIDTH(N_CLIENTS)) u_sync_ok (
.clk_dst(clk_cpu), .rst_dst_n(rst_cpu_n),
.d_src(open_ok_stor), .q_dst(c_open_ok_sync)
);
nds_sync_level #(.WIDTH(N_CLIENTS)) u_sync_oerr (
.clk_dst(clk_cpu), .rst_dst_n(rst_cpu_n),
.d_src(open_err_stor), .q_dst(c_open_err_sync)
);
// "there is no card" as a LEVEL the clk_cpu front-end can read. Without
// it, the front-end's local refusal below could only ever say NOTOPEN,
// so an empty card slot reported "the file is not on the card" for every
// client at once - the single most misleading answer available, and
// exactly the kind of confusion the reason codes exist to remove.
// mnt_nocard is held by nd_storage_mount.v from its M_FAIL/M_OK verdict,
// so it is stable except around a mount, and the front-end reads it only
// when it is about to refuse.
wire c_nocard_sync;
nds_sync_level #(.WIDTH(1)) u_sync_nocard (
.clk_dst(clk_cpu), .rst_dst_n(rst_cpu_n),
.d_src(mnt_nocard), .q_dst(c_nocard_sync)
);
assign open_ok = c_open_ok_sync;
assign open_err = c_open_err_sync;
// ------------------------------------------------------------- arbiter scan
// first pending client at ptr+1, ptr+2, ... ptr (mod N_CLIENTS)
reg s_scan_v;
reg [2:0] s_scan_id;
reg [3:0] s_scan_t;
integer k;
always @(*) begin
s_scan_v = 1'b0;
s_scan_id = 3'd0;
s_scan_t = 4'd0;
for (k = 1; k <= N_CLIENTS; k = k + 1) begin
s_scan_t = {1'b0, s_ptr} + k[3:0];
if (s_scan_t >= N_CLIENTS[3:0]) s_scan_t = s_scan_t - N_CLIENTS[3:0];
if (!s_scan_v && (s_pend_open[s_scan_t[2:0]] || s_pend_blk[s_scan_t[2:0]])) begin
s_scan_v = 1'b1;
s_scan_id = s_scan_t[2:0];
end
end
end
wire [31:0] s_slot_base_g = slot_base(s_grant);
// ------------------------------------------------------------- watchdog
reg [4:0] s_state_q;
reg [31:0] s_wd;
always @(posedge clk_stor) begin
if (!rst_stor_n) begin
s_state_q <= E_IDLE;
s_wd <= 32'd0;
end else begin
s_state_q <= s_state;
if (s_state != s_state_q || s_state == E_IDLE) s_wd <= 32'd0;
else s_wd <= s_wd + 32'd1;
end
end
wire s_wd_hit = (s_wd >= WD_MAX);
// ------------------------------------------------------------- staging BRAM
// 512 x 32, write side fed by W_PULL, read side shared between the
// sd_writer byte fetch (W_SEC phase) and the W_MEM writeback
reg [31:0] s_staging [0:511];
reg [31:0] s_stg_rdata;
reg [1:0] s_sdw_lane;
// Card bytes arrive one at a time during a fill; pack four into a word and
// write it once, so the staging BRAM needs no byte enables. Byte 4m of a
// word is dq[31:24] - the same order the write path already uses to feed
// sd_writer, so a block written and then re-read comes back identical.
reg [23:0] s_rx_acc;
wire s_rx_active = (s_state == C_SEC_WAIT);
wire s_rx_word_done = s_rx_active && sdw_rx_we && (sdw_rx_addr[1:0] == 2'd3);
// Bytes past end-of-file read as ZERO. A fetch pulls whole 2048-byte
// blocks off the card, so the last block of a file that is not a multiple
// of 2048 also drags in whatever follows it inside the same cluster. v1
// zero-padded that tail (its preload packer stopped at the file size), and
// clients are entitled to the same answer - a 3001-byte TAPE.BPUN must not
// start returning cluster slack at byte 3001 just because the region
// became a cache.
wire [31:0] s_fill_byte_off = {5'd0, s_op_block[s_grant], 11'd0}
+ {21'd0, s_sec, 9'd0}
+ {23'd0, sdw_rx_addr};
wire s_past_eof = s_fill_byte_off >= size_bytes_stor[32*s_grant +: 32];
wire [7:0] s_rx_byte = s_past_eof ? 8'd0 : sdw_rx_data;
// ---- diagnostic seam (09-AUG-2026) -------------------------------------
// The silicon zero-read has been narrowed to the FILL: the SDRAM region
// reads back zeros (63/63 D0000 on a hardware probe), so the staging ->
// region write carried nothing, so staging itself was filled with zeros.
// Two ways that happens, and they need telling apart:
// - the card genuinely delivered zeros -> dbg_rx_raw is 0
// - the s_past_eof gate zeroed real bytes -> dbg_rx_raw is NOT 0 while
// dbg_rx_byte is 0, and dbg_past_eof is high
// Pure observation: no existing signal is altered, and with the seam
// unconnected these are optimised away.
// EVERY received card byte, in EVERY state - NOT gated on s_rx_active, so
// FAT-chain bytes (F_FAT_WAIT) and any future path are recorded too, not
// just the sector fill. This is a superset of the old gated version.
//
// NOTE, so the next reader does not repeat a wrong turn taken 09-AUG-2026:
// the gate was NOT the reason the Tang probe came back empty. It is easy to
// assume s_rx_active == (s_state == C_SEC_WAIT) only covers CACHED clients,
// because C_SEC_GO/C_SEC_WAIT sit under the C_LOOK cache-fill arm. They do
// not. A DIRECT client (CACHE_MASK bit clear) jumps straight to C_SEC_GO
// from E_GRANT, so it passes through exactly the same two states. Both
// gated and ungated versions see a direct read.
assign dbg_state = s_state;
assign dbg_lba = sdw_sector;
assign dbg_wdata = mem_wdata[15:0];
assign dbg_rdata = mem_rdata[31:16];
assign dbg_bufw = buf_wdata[16*c_grant_sync +: 16];
assign dbg_bufwe = buf_we[c_grant_sync];
// HIGH half. The low half proved first_sector and the fetched sector agree,
// but they agree by construction (the LBA derives from first_sector), so the
// low compare cannot see a wrong high half. A first_sector 64K sectors off
// would read blank card space and produce exactly the observed symptom:
// right-looking low bits, clean completion, no error, all zeros.
assign dbg_fsec = first_sector[32*s_grant + 16 +: 16];
assign dbg_rx_stb = sdw_rx_we;
assign dbg_rx_raw = sdw_rx_data;
assign dbg_rx_byte = s_rx_byte;
assign dbg_past_eof = s_past_eof;
assign dbg_grant = s_grant;
wire s_stg_we = ((s_state == W_PULL) && s_phase && s_wr_have_pulse
&& s_pull_cnt[0]) || s_rx_word_done;
wire [8:0] s_stg_waddr = s_rx_word_done ? {s_sec, sdw_rx_addr[8:2]}
: s_pull_cnt[9:1];
wire [31:0] s_stg_wdata = s_rx_word_done ? {s_rx_acc, s_rx_byte}
: {s_stage_hi, s_wr_data_sel};
wire [8:0] s_stg_raddr = (s_state == W_MEM || s_state == W_MEM_WAIT)
? s_wcnt
: {s_sec, sdw_rd_addr[8:2]};
always @(posedge clk_stor) begin
if (s_rx_active && sdw_rx_we) s_rx_acc <= {s_rx_acc[15:0], s_rx_byte};
if (s_stg_we) s_staging[s_stg_waddr] <= s_stg_wdata;
// stage 1: word + byte lane
s_stg_rdata <= s_staging[s_stg_raddr];
s_sdw_lane <= sdw_rd_addr[1:0];
// stage 2: byte mux (byte 4m of SDRAM word m is dq[31:24])
case (s_sdw_lane)
2'd0: sdw_rd_data <= s_stg_rdata[31:24];
2'd1: sdw_rd_data <= s_stg_rdata[23:16];
2'd2: sdw_rd_data <= s_stg_rdata[15:8];
2'd3: sdw_rd_data <= s_stg_rdata[7:0];
endcase
end
// ------------------------------------------------------------- engine
integer i;
always @(posedge clk_stor) begin
if (!rst_stor_n) begin
s_state <= E_IDLE;
s_m_val <= {N_CLIENTS{1'b0}};
s_res_valid <= 1'b0;
s_res_skip <= 1'b0;
s_ret_wr <= 1'b0;
s_hops <= 18'd0;
s_cur_idx <= 20'd0;
s_cur_clu <= 28'd0;
s_res_lba <= 32'd0;
s_fat_acc <= 32'd0;
s_data_start <= 32'd0;
s_l2c <= 3'd0;
s_insec <= 1'b0;
s_grant <= 3'd0;
// client 0 scanned first. The truncation is SAFE here and only here:
// at N_CLIENTS==8, N_CLIENTS[2:0] is 3'b000 and 0-1 wraps to 7, which
// still makes client 0 the next one scanned. Do not copy this pattern -
// the same truncation in nd_storage_mount's range guard would break
// mounting outright, which is why that one compares at full width.
s_ptr <= N_CLIENTS[2:0] - 3'd1;
s_pend_open <= {N_CLIENTS{1'b0}};
s_pend_blk <= {N_CLIENTS{1'b0}};
s_blk_abs <= 11'd0;
s_wcnt <= 9'd0;
s_pull_cnt <= 10'd0;
s_sec <= 2'd0;
s_phase <= 1'b0;
s_err_c <= 1'b0;
s_err_code <= `NDS_ERR_NONE;
s_rdata_lat <= 32'd0;
s_stage_hi <= 16'd0;
s_bridge_rd_data <= 16'd0;
s_rd_have_tgl <= 1'b0;
s_wr_want_tgl <= 1'b0;
s_done_tgl <= {N_CLIENTS{1'b0}};
mem_start <= 1'b0;
mem_we <= 1'b0;
mem_addr <= 20'd0;
mem_wdata <= 32'd0;
mnt_start <= 1'b0;
sdw_start <= 1'b0;
sdw_sector <= 32'd0;
sdw_rd_mode <= 1'b0;
sdw_burst_len <= 9'd1;
s_filling <= 1'b0;
s_need_alloc <= 1'b0;
s_cache_way <= 3'd0;
cache_lookup_req <= 1'b0;
cache_alloc_req <= 1'b0;
eng_wd_err <= 1'b0;
for (i = 0; i < N_CLIENTS; i = i + 1) begin
s_op_wr[i] <= 1'b0;
s_op_block[i] <= 16'd0;
end
end else begin
mem_start <= 1'b0;
mnt_start <= 1'b0;
sdw_start <= 1'b0;
cache_lookup_req <= 1'b0;
cache_alloc_req <= 1'b0;
// pending latches: set on the synced request toggles, cleared at op
// end (a client is busy until done, so set and clear never collide)
for (i = 0; i < N_CLIENTS; i = i + 1) begin
if (s_open_pulse[i]) s_pend_open[i] <= 1'b1;
if (s_req_pulse[i]) begin
s_pend_blk[i] <= 1'b1;
s_op_wr[i] <= fe_wr_lat[i];
s_op_block[i] <= fe_block_lat[16*i +: 16];
end
end
case (s_state)
E_IDLE: begin
s_phase <= 1'b0;
if (s_scan_v) begin
s_grant <= s_scan_id;
s_state <= E_GRANT;
end
end
E_GRANT: begin
s_wcnt <= 9'd0;
s_pull_cnt <= 10'd0;
s_sec <= 2'd0;
s_phase <= 1'b0;
eng_wd_err <= 1'b0;
s_filling <= 1'b0;
s_need_alloc <= 1'b0;
s_res_valid <= 1'b0;
s_res_skip <= 1'b0;
s_hops <= 18'd0;
s_l2c <= l2spc(fat_spc);
// data region start of the volume, derived per client:
// first_sector = data_start + (first_cluster-2)*spc
s_data_start <= first_sector[32*s_grant +: 32]
- ({4'd0, first_cluster[28*s_grant +: 28] - 28'd2}
<< l2spc(fat_spc));
s_err_code <= `NDS_ERR_NONE; // cleared on EVERY start, so a
// stale code can never survive into
// a successful operation
if (s_pend_open[s_grant]) begin
s_err_c <= 1'b0;
s_state <= E_OPEN;
end else if (s_op_block[s_grant] >= n_blocks[16*s_grant +: 16]) begin
// out of range: done+err with ZERO mem/SD traffic
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_RANGE;
s_state <= E_DONE;
end else begin
s_err_c <= 1'b0;
// Phase 4. The v1 line here was
// s_blk_abs <= s_slot_base_g + s_op_block[s_grant];
// a 1:1 map of image block onto region block, which is exactly
// why an image could never be larger than its slot. The region
// is now a CACHE, so where a block LIVES is a lookup.
if (CACHE_MASK[s_grant]) begin
s_state <= C_LOOK;
end else begin
// DIRECT: ONE SHARED staging line. Per-client lines would
// need N blocks reserved and would collide with POOL_BASE_BLK
// (the pool starts right after the single line); sharing is
// safe because the arbiter grants one client at a time and a
// DIRECT op fetches AND serves inside its own grant, so the
// line never has to survive past it.
s_blk_abs <= STAGE_BASE_BLK[10:0];
if (s_op_wr[s_grant]) begin
s_state <= W_PULL;
end else begin
s_filling <= 1'b1;
s_state <= C_SEC_GO;
end
end
end
end
// ---- cache: where does this block live? --------------------------
C_LOOK: begin
if (!s_phase) begin
cache_lookup_req <= 1'b1;
cache_lookup_client <= s_grant;
cache_lookup_block <= s_op_block[s_grant];
s_phase <= 1'b1;
end else if (cache_lookup_done) begin
s_blk_abs <= cache_lookup_line;
s_cache_way <= cache_lookup_way;
s_phase <= 1'b0;
if (s_op_wr[s_grant]) begin
// Write-allocate: the block is written to the card and to the
// region either way; on a miss the tag is published after, so
// a line is never advertised before it holds the data.
s_need_alloc <= !cache_lookup_hit;
s_state <= W_PULL;
end else if (cache_lookup_hit) begin
s_state <= R_MEM; // resident: no card traffic
end else begin
s_filling <= 1'b1;
s_need_alloc <= 1'b1;
s_state <= C_SEC_GO;
end
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_phase <= 1'b0;
s_state <= E_DONE;
end
end
// ---- cache fill: 4 card sectors -> staging -----------------------
// The card sector comes from the FAT-chain resolve (F_RES...), never
// from contiguity arithmetic - fragmented files are simply correct.
C_SEC_GO: begin
if (!s_res_valid) begin
s_ret_wr <= 1'b0;
s_state <= F_RES;
end else if (!sdw_busy) begin
sdw_start <= 1'b1;
sdw_rd_mode <= 1'b1;
sdw_burst_len <= 9'd1;
sdw_sector <= s_res_lba;
s_res_valid <= 1'b0;
s_state <= C_SEC_WAIT;
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end
end
C_SEC_WAIT: begin
if (sdw_err) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_CARDIO;
s_state <= E_DONE;
end else if (sdw_done) begin
if (s_sec == 2'd3) begin
s_wcnt <= 9'd0;
s_phase <= 1'b0;
s_state <= W_MEM; // staging -> region, shared with write
end else begin
s_sec <= s_sec + 2'd1;
s_state <= C_SEC_GO;
end
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end
end
// ---- cache: publish the line -------------------------------------
C_ALLOC: begin
if (!s_phase) begin
cache_alloc_req <= 1'b1;
cache_alloc_client <= s_grant;
cache_alloc_block <= s_op_block[s_grant];
cache_alloc_way <= s_cache_way;
s_phase <= 1'b1;
end else if (cache_alloc_done) begin
s_phase <= 1'b0;
s_need_alloc <= 1'b0;
if (s_filling) begin
s_wcnt <= 9'd0;
s_filling <= 1'b0;
s_state <= R_MEM; // now serve the client from the line
end else begin
s_state <= E_DONE;
end
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_phase <= 1'b0;
s_state <= E_DONE;
end
end
// ---- open: hand to the mount FSM --------------------------------
E_OPEN: begin
if (!s_phase) begin
mnt_start <= 1'b1;
s_phase <= 1'b1;
s_m_val[s_grant] <= 1'b0; // remount: old memo cluster is invalid
end else if (mnt_done) begin
s_err_c <= mnt_err;
// An open can fail two ways the operator must be able to tell
// apart: there is no card at all, or the card is fine and the
// file this client wants is not on it.
s_err_code <= !mnt_err ? `NDS_ERR_NONE
: mnt_nocard ? `NDS_ERR_NOCARD
: `NDS_ERR_NOTOPEN;
s_phase <= 1'b0;
s_state <= E_DONE;
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_phase <= 1'b0;
s_state <= E_DONE;
end
end
// ---- block read: SDRAM word -> two client words ------------------
R_MEM: begin
if (!mem_busy) begin
mem_start <= 1'b1;
mem_we <= 1'b0;
mem_addr <= {s_blk_abs, s_wcnt};
s_state <= R_WAIT;
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end
end
R_WAIT: begin
if (mem_done) begin
s_rdata_lat <= mem_rdata;
s_bridge_rd_data <= mem_rdata[31:16]; // client word 2m first
s_phase <= 1'b0;
s_state <= R_PUSH_HI;
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end
end
R_PUSH_HI: begin
if (!s_phase) begin
// data was set one clk_stor earlier - flip now
s_rd_have_tgl <= ~s_rd_have_tgl;
s_phase <= 1'b1;
end else if (s_ack_pulse) begin
s_bridge_rd_data <= s_rdata_lat[15:0]; // client word 2m+1
s_phase <= 1'b0;
s_state <= R_PUSH_LO;
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_phase <= 1'b0;
s_state <= E_DONE;
end
end
R_PUSH_LO: begin
if (!s_phase) begin
s_rd_have_tgl <= ~s_rd_have_tgl;
s_phase <= 1'b1;
end else if (s_ack_pulse) begin
s_phase <= 1'b0;
if (s_wcnt == 9'd511) s_state <= E_DONE;
else begin
s_wcnt <= s_wcnt + 9'd1;
s_state <= R_MEM;
end
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_phase <= 1'b0;
s_state <= E_DONE;
end
end
// ---- block write phase 1: pull 1024 words into staging ----------
W_PULL: begin
if (!s_phase) begin
s_wr_want_tgl <= ~s_wr_want_tgl;
s_phase <= 1'b1;
end else if (s_wr_have_pulse) begin
s_phase <= 1'b0;
if (!s_pull_cnt[0]) s_stage_hi <= s_wr_data_sel; // even word: high half
// odd word: staging write via s_stg_we (this cycle)
if (s_pull_cnt == 10'd1023) s_state <= W_SEC_GO;
else s_pull_cnt <= s_pull_cnt + 10'd1;
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_phase <= 1'b0;
s_state <= E_DONE;
end
end
// ---- block write phase 2: 4 CMD24 sectors (card FIRST) ----------
// Card sector via the FAT-chain resolve, as in C_SEC_GO.
W_SEC_GO: begin
if (!s_res_valid) begin
s_ret_wr <= 1'b1;
s_state <= F_RES;
end else if (s_res_skip) begin
// past-EOF sector: dropped, advance as if the card write finished
s_res_valid <= 1'b0;
s_res_skip <= 1'b0;
if (s_sec == 2'd3) begin
s_wcnt <= 9'd0;
s_phase <= 1'b0;
s_state <= W_MEM;
end else begin
s_sec <= s_sec + 2'd1;
s_state <= W_SEC_GO;
end
end else if (!sdw_busy) begin
sdw_start <= 1'b1;
sdw_rd_mode <= 1'b0;
sdw_burst_len <= 9'd1;
sdw_sector <= s_res_lba;
s_res_valid <= 1'b0;
s_state <= W_SEC_WAIT;
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end
end
W_SEC_WAIT: begin
if (sdw_err) begin
s_err_c <= 1'b1; // card failed: SDRAM copy stays untouched
s_err_code <= `NDS_ERR_CARDIO;
s_state <= E_DONE;
end else if (sdw_done) begin
if (s_sec == 2'd3) begin
s_wcnt <= 9'd0;
s_phase <= 1'b0;
s_state <= W_MEM;
end else begin
s_sec <= s_sec + 2'd1;
s_state <= W_SEC_GO;
end
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end
end
// ---- block write phase 3: staging -> SDRAM (then done) ----------
W_MEM: begin
if (!s_phase) begin
s_phase <= 1'b1; // one cycle for the registered staging read
end else if (!mem_busy) begin
mem_start <= 1'b1;
mem_we <= 1'b1;
mem_addr <= {s_blk_abs, s_wcnt};
mem_wdata <= s_stg_rdata;
s_phase <= 1'b0;
s_state <= W_MEM_WAIT;
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_phase <= 1'b0;
s_state <= E_DONE;
end
end
W_MEM_WAIT: begin
if (mem_done) begin
if (s_wcnt == 9'd511) begin
// Region copy complete. A miss still has to publish its tag; a
// fill then goes on to serve the client from the line it just
// wrote. A DIRECT fill has no tag to publish.
if (s_need_alloc) s_state <= C_ALLOC;
else if (s_filling) begin
s_wcnt <= 9'd0;
s_filling <= 1'b0;
s_state <= R_MEM;
end else s_state <= E_DONE;
end
else begin
s_wcnt <= s_wcnt + 9'd1;
s_state <= W_MEM;
end
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end
end
// ---- completion --------------------------------------------------
// ---- FAT-chain resolve (docs/nd-storage-design.md section 2.2) -----------
F_RES: begin
if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end else if (s_past_file) begin
// Past the end of the file: no chain to walk. Reads fetch the
// data-region start sector (bytes zeroed by s_past_eof); writes
// skip the card entirely.
s_res_lba <= s_data_start;
s_res_skip <= s_ret_wr;
s_res_valid <= 1'b1;
s_state <= s_ret_wr ? W_SEC_GO : C_SEC_GO;
end else if (s_m_val[s_grant] && s_m_idx[s_grant] <= s_tgt_idx) begin
s_cur_idx <= s_m_idx[s_grant]; // resume from the memo
s_cur_clu <= s_m_clu[s_grant];
s_state <= F_STEP;
end else begin
s_cur_idx <= 20'd0; // backward seek: chain head
s_cur_clu <= s_fclu_g;
s_state <= F_STEP;
end
end
F_STEP: begin
if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end else if (s_cur_idx == s_tgt_idx) begin
s_m_val[s_grant] <= 1'b1; // memoize the landing point
s_m_idx[s_grant] <= s_cur_idx;
s_m_clu[s_grant] <= s_cur_clu;
s_res_lba <= s_data_start
+ ({4'd0, s_cur_clu - 28'd2} << s_l2c)
+ {24'd0, s_within};
s_res_valid <= 1'b1;
`ifdef ND_STORAGE_FATWALK_DEBUG
$display("[FATWALK] g=%0d blk=%0d sec=%0d fsec=%0d tgt=%0d clu=%0d l2c=%0d within=%0d dstart=%0d lba=%0d",
s_grant, s_op_block[s_grant], s_sec, s_fsec, s_tgt_idx,
s_cur_clu, s_l2c, s_within, s_data_start,
s_data_start + ({4'd0, s_cur_clu - 28'd2} << s_l2c)
+ {24'd0, s_within});
`endif
s_state <= s_ret_wr ? W_SEC_GO : C_SEC_GO;
end else if (&s_hops) begin
// corrupt/circular chain: the watchdog resets on every state
// change, so the loop needs its own cap (same idea as fatchk's
// HOP_CAP). Fail the op honestly.
s_m_val[s_grant] <= 1'b0;
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_FATCHAIN;
s_state <= E_DONE;
end else begin
s_state <= F_FAT_GO;
end
end
F_FAT_GO: begin
if (!sdw_busy) begin
sdw_start <= 1'b1;
sdw_rd_mode <= 1'b1;
sdw_burst_len <= 9'd1;
sdw_sector <= s_fat_sec;
s_fat_acc <= 32'd0;
s_insec <= 1'b0;
s_state <= F_FAT_WAIT;
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end
end
F_FAT_WAIT: begin
// Capture the entry's bytes as the sector streams by - no FAT sector
// buffer anywhere (LUT/BSRAM budget).
//
// IN-SECTOR CHAIN FOLLOWING (24-AUG-2026). The original design took
// ONE hop per card read, on the assumption that access is sequential
// and the per-client memo makes the steady state 0..1 hops
// (docs/nd-storage-design.md section 2.2). SINTRAN's demand paging is RANDOM,
// so nearly every access is a backward seek that restarts at the
// chain head - hundreds of hops, each its own CMD17. Measured on
// silicon: 351 ms of the 362 ms a disc operation costs is SD read
// time, ~200x the wire rate.
//
// The fix needs no buffer. FAT32 packs 128 entries per 512-byte
// sector, and for a contiguous run the next cluster's entry lies
// LATER IN THE SAME SECTOR. So when an entry completes mid-stream,
// advance the walk immediately: s_ent_off is combinational from
// s_cur_clu, so the capture retargets itself and the same pass keeps
// following the chain. One card read can now cover up to a whole
// sector's worth of hops instead of one.
//
// Escape hatch: -DND_STORAGE_FAT_ONEHOP restores one hop per read.
if (sdw_rx_we) begin
if (sdw_rx_addr == s_ent_off)
s_fat_acc[7:0] <= sdw_rx_data;
if (sdw_rx_addr == s_ent_off + 9'd1)
s_fat_acc[15:8] <= sdw_rx_data;
if (fat_is_fat32 && sdw_rx_addr == s_ent_off + 9'd2)
s_fat_acc[23:16] <= sdw_rx_data;
if (fat_is_fat32 && sdw_rx_addr == s_ent_off + 9'd3)
s_fat_acc[31:24] <= sdw_rx_data;
`ifndef ND_STORAGE_FAT_ONEHOP
// The entry completes on its last byte; that byte is on sdw_rx_data
// this cycle, so form the value here rather than a cycle later.
if (fat_is_fat32 ? (sdw_rx_addr == s_ent_off + 9'd3)
: (sdw_rx_addr == s_ent_off + 9'd1)) begin
if (!(fat_is_fat32
? (s_nxt32[27:0] >= 28'hFFFFFF7 || s_nxt32[27:0] < 28'd2)
: (s_nxt16 >= 16'hFFF7 || s_nxt16 < 16'd2))
&& (s_cur_idx != s_tgt_idx)
&& s_nxt_same_sec && s_nxt_later) begin
s_cur_clu <= fat_is_fat32 ? s_nxt32[27:0] : {12'd0, s_nxt16};
s_cur_idx <= s_cur_idx + 20'd1;
s_hops <= s_hops + 18'd1;
s_fat_acc <= 32'd0;
s_insec <= 1'b1; // this pass already advanced
end
end
`endif
end
if (sdw_err) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_CARDIO;
s_state <= E_DONE;
end else if (sdw_done && s_insec) begin
// This pass already followed the chain in-sector; the walk state
// is current, so just re-evaluate (F_STEP either finishes or reads
// the next FAT sector).
s_insec <= 1'b0;
s_state <= F_STEP;
end else if (sdw_done) begin
// FAT16 EOC: masked >= FFF7; FAT32: bits[27:0] >= 0FFFFF7 with
// the top nibble ignored (same shapes as nd_storage_fatchk.v).
if (fat_is_fat32
? (s_fat_acc[27:0] >= 28'h FFFFFF7 || s_fat_acc[27:0] < 28'd2)
: (s_fat_acc[15:0] >= 16'h FFF7 || s_fat_acc[15:0] < 16'd2)) begin
s_m_val[s_grant] <= 1'b0; // chain ended before the target
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_FATCHAIN;
s_state <= E_DONE;
end else begin
s_cur_clu <= fat_is_fat32 ? s_fat_acc[27:0]
: {12'd0, s_fat_acc[15:0]};
s_cur_idx <= s_cur_idx + 20'd1;
s_hops <= s_hops + 18'd1;
s_state <= F_STEP;
end
end else if (s_wd_hit) begin
s_err_c <= 1'b1;
s_err_code <= `NDS_ERR_TIMEOUT;
eng_wd_err <= 1'b1;
s_state <= E_DONE;
end
end
E_DONE: begin
if (!s_phase) begin
s_phase <= 1'b1; // err level settles >= 2 clk_stor before flip
end else begin
s_done_tgl[s_grant] <= ~s_done_tgl[s_grant];
s_pend_open[s_grant] <= 1'b0;
s_pend_blk[s_grant] <= 1'b0;
s_ptr <= s_grant; // advance past the winner
s_phase <= 1'b0;
s_state <= E_IDLE;
end
end
default: s_state <= E_IDLE;
endcase
end
end
// ------------------------------------------------------------- front-ends
genvar gc;
generate
for (gc = 0; gc < N_CLIENTS; gc = gc + 1) begin : g_fe
// request toggles into clk_stor
nds_sync_pulse u_sync_open (
.clk_dst(clk_stor), .rst_dst_n(rst_stor_n),
.tgl_src(fe_open_tgl[gc]), .pulse_dst(s_open_pulse[gc])
);
nds_sync_pulse u_sync_req (
.clk_dst(clk_stor), .rst_dst_n(rst_stor_n),
.tgl_src(fe_req_tgl[gc]), .pulse_dst(s_req_pulse[gc])
);
// bridge answers into clk_stor (one synchronizer per toggle: a
// grant change can never manufacture an edge)
nds_sync_pulse u_sync_ack (
.clk_dst(clk_stor), .rst_dst_n(rst_stor_n),
.tgl_src(fe_ack_tgl[gc]), .pulse_dst(s_ack_pulse_v[gc])
);
nds_sync_pulse u_sync_whave (
.clk_dst(clk_stor), .rst_dst_n(rst_stor_n),
.tgl_src(fe_have_tgl[gc]), .pulse_dst(s_wr_have_pulse_v[gc])
);
// completion into clk_cpu
nds_sync_pulse u_sync_done (
.clk_dst(clk_cpu), .rst_dst_n(rst_cpu_n),
.tgl_src(s_done_tgl[gc]), .pulse_dst(c_done_pulse[gc])
);
reg r_busy;
reg r_open_tgl;
reg r_req_tgl;
reg r_ack_tgl;
reg r_have_tgl;
reg r_wr;
reg [15:0] r_block;
reg [9:0] r_cnt;
reg [15:0] r_wrdata;
reg [1:0] r_wrphase;
reg r_err;
reg [3:0] r_err_code;
reg r_done;
reg [9:0] r_buf_addr;
reg [15:0] r_buf_wdata;
reg r_buf_we;
reg r_ok_q;
reg [31:0] r_size;
always @(posedge clk_cpu) begin
if (!rst_cpu_n) begin
r_busy <= 1'b0;
r_open_tgl <= 1'b0;
r_req_tgl <= 1'b0;
r_ack_tgl <= 1'b0;
r_have_tgl <= 1'b0;
r_wr <= 1'b0;
r_block <= 16'd0;
r_cnt <= 10'd0;
r_wrdata <= 16'd0;
r_wrphase <= 2'd0;
r_err <= 1'b0;
r_err_code <= `NDS_ERR_NONE;
r_done <= 1'b0;
r_buf_addr <= 10'd0;
r_buf_wdata <= 16'd0;
r_buf_we <= 1'b0;
r_ok_q <= 1'b0;
r_size <= 32'd0;
end else begin
r_done <= 1'b0;
r_buf_we <= 1'b0;
// size_bytes is stable long before open_ok rises (mount rule)
r_ok_q <= c_open_ok_sync[gc];
if (c_open_ok_sync[gc] && !r_ok_q)
r_size <= size_bytes_stor[32*gc +: 32];
// A request while BUSY is still ignored - that is the client
// breaking the contract, and it already has busy to look at.
//
// A request without open_ok is NOT ignored any more. It used to
// fall off the end of this chain: r_busy never rose, no toggle was
// sent to the engine, and done NEVER PULSED - so a controller that
// waits for done (ND_WINCHESTER's E_DISK_RD has no timeout) waited
// for a completion that could not arrive, and the guest saw a card
// stuck ACTIVE forever. An unmounted client is a perfectly ordinary
// condition (no SD card, or the file is not on it); it must be
// ANSWERED, with an error and a reason, not left hanging.
if (open_req[gc] && !r_busy) begin
r_busy <= 1'b1;
r_open_tgl <= ~r_open_tgl;
end else if (req[gc] && !r_busy && c_open_ok_sync[gc]) begin
r_busy <= 1'b1;
r_wr <= wr[gc];
r_block <= block[16*gc +: 16];
r_req_tgl <= ~r_req_tgl;
end else if (req[gc] && !r_busy) begin
// not mounted: complete locally, next cycle, with the reason.
// No engine round trip - there is nothing for the engine to do.
// NOCARD and NOTOPEN are different problems for whoever has to
// fix them ("put a card in" vs "put the file on the card"), so
// they must not collapse into one answer here either.
r_err <= 1'b1;
r_err_code <= c_nocard_sync ? `NDS_ERR_NOCARD
: `NDS_ERR_NOTOPEN;
r_done <= 1'b1;
end
// read stream: block data into the client's buffer
if (r_busy && !r_wr && c_rd_have_pulse && (c_grant_sync == gc[2:0])) begin
r_buf_addr <= r_cnt;
r_buf_wdata <= s_bridge_rd_data; // stable while the flip crosses
r_buf_we <= 1'b1;
r_cnt <= r_cnt + 10'd1;
r_ack_tgl <= ~r_ack_tgl;
end
// write stream: present the address (cycle A), give a registered
// BRAM one cycle to fetch (cycle B: addr committed at the end of
// A is clocked by the BRAM at the end of B), sample and answer on
// cycle C - correct for registered BRAMs and for the floppy's
// combinational dbuf_rdata alike (the address is held, so a
// combinational read is simply valid early)
if (r_busy && r_wr && c_wr_want_pulse && (c_grant_sync == gc[2:0])) begin
r_buf_addr <= r_cnt; // cycle A
r_wrphase <= 2'd1;
end else if (r_wrphase == 2'd1) begin
r_wrphase <= 2'd2; // cycle B: BRAM read commits
end else if (r_wrphase == 2'd2) begin
r_wrdata <= buf_rdata[16*gc +: 16]; // cycle C
r_have_tgl <= ~r_have_tgl;
r_cnt <= r_cnt + 10'd1;
r_wrphase <= 2'd0;
end
// completion: err rides the done_tgl flip as a settled level
if (c_done_pulse[gc]) begin
r_err <= c_err_sync;
r_err_code <= c_err_code_sync;
r_done <= 1'b1;
r_busy <= 1'b0;
r_cnt <= 10'd0;
r_wrphase <= 2'd0;
end
end
end
assign fe_open_tgl[gc] = r_open_tgl;
assign fe_req_tgl[gc] = r_req_tgl;
assign fe_ack_tgl[gc] = r_ack_tgl;
assign fe_have_tgl[gc] = r_have_tgl;
assign fe_wr_lat[gc] = r_wr;
assign fe_block_lat[16*gc +: 16] = r_block;
assign fe_wrdata[16*gc +: 16] = r_wrdata;
assign busy[gc] = r_busy;
assign done[gc] = r_done;
assign err[gc] = r_err;
assign err_code[4*gc +: 4] = r_err_code;
assign buf_addr[10*gc +: 10] = r_buf_addr;
assign buf_wdata[16*gc +: 16] = r_buf_wdata;
assign buf_we[gc] = r_buf_we;
assign size_bytes[32*gc +: 32] = r_size;
end
endgenerate
assign dbg_sd_busy = sdw_busy;
assign dbg_cache_pend = cache_lookup_req;
endmodule
