nd_storage_hps¶
Source: Verilog/fpga/mister/rtl/nd_storage_hps.v
Where it sits (MiSTer): emu > nd_storage_mister_devices > nd_storage_hps
- instance path: STORAGE.u_hps
Used in: nd_storage_mister_devices (MiSTer)
Contains: no other modules.
Module hierarchy - All modules

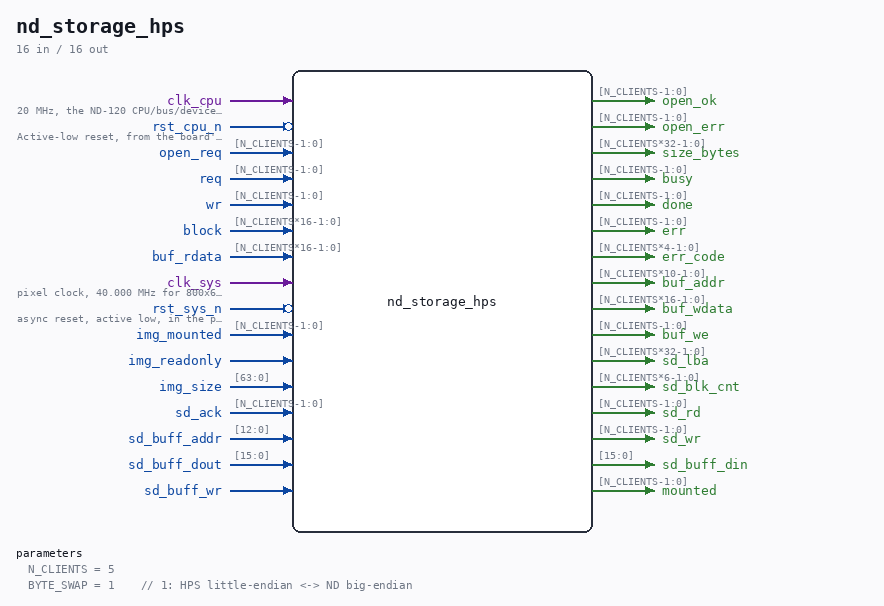

Schematic¶
Drawn from the Verilog: the yosys netlist of the MiSTer build, instance STORAGE.u_hps. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Parameters¶
| Parameter | Default |
|---|---|
N_CLIENTS |
5 |
BYTE_SWAP |
1 // 1: HPS little-endian <-> ND big-endian |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk_cpu |
20 MHz, the ND-120 CPU/bus/device domain (from pll_cpu.outclk_0) |
| input | 1 |
rst_cpu_n (active low) |
Active-low reset, from the board's power-on reset (same net as ND120_CORE.sys_rst_n) |
| input | [N_CLIENTS-1:0] |
open_req |
|
| output | [N_CLIENTS-1:0] |
open_ok |
|
| output | [N_CLIENTS-1:0] |
open_err |
|
| output | [N_CLIENTS*32-1:0] |
size_bytes |
|
| input | [N_CLIENTS-1:0] |
req |
|
| input | [N_CLIENTS-1:0] |
wr |
|
| input | [N_CLIENTS*16-1:0] |
block |
|
| output | [N_CLIENTS-1:0] |
busy |
|
| output | [N_CLIENTS-1:0] |
done |
|
| output | [N_CLIENTS-1:0] |
err |
|
| output | [N_CLIENTS*4-1:0] |
err_code |
|
| output | [N_CLIENTS*10-1:0] |
buf_addr |
|
| output | [N_CLIENTS*16-1:0] |
buf_wdata |
|
| output | [N_CLIENTS-1:0] |
buf_we |
|
| input | [N_CLIENTS*16-1:0] |
buf_rdata |
|
| input | 1 |
clk_sys |
pixel clock, 40.000 MHz for 800x600@60 (same net as nd120_console_mister.clk) |
| input | 1 |
rst_sys_n (active low) |
async reset, active low, in the pixel domain (same net as nd120_console_mister.rst_n) |
| input | [N_CLIENTS-1:0] |
img_mounted |
|
| input | 1 |
img_readonly |
|
| input | [63:0] |
img_size |
|
| output | [N_CLIENTS*32-1:0] |
sd_lba |
|
| output | [N_CLIENTS*6-1:0] |
sd_blk_cnt |
|
| output | [N_CLIENTS-1:0] |
sd_rd |
|
| output | [N_CLIENTS-1:0] |
sd_wr |
|
| input | [N_CLIENTS-1:0] |
sd_ack |
|
| input | [12:0] |
sd_buff_addr |
|
| input | [15:0] |
sd_buff_dout |
|
| output | [15:0] |
sd_buff_din |
|
| input | 1 |
sd_buff_wr |
|
| output | [N_CLIENTS-1:0] |
mounted |
Verilog source¶
Verilog/fpga/mister/rtl/nd_storage_hps.v on GitHub.
Show the Verilog of nd_storage_hps (549 lines)
`include "nd_storage_status.vh"
/****************************************************************************
** nd_storage_hps - the ND-120 storage client bus served by the MiSTer HPS **
** **
** WHAT THIS IS **
** **
** The MiSTer replacement for nd_storage (Verilog/SD-FAT/circuit/ **
** nd_storage.v). It presents the SAME flattened client port - spec **
** Verilog/docs/nd-storage-interface-spec.md section 4: one request moves **
** ONE 2048-byte block (1024 ND words) by file-relative 16-bit block **
** number, and the backend masters the client's own buffer through **
** buf_addr / buf_wdata / buf_we (reads) and buf_rdata (writes) - so the **
** controller-facing adapters (nd_storage_floppy_adapter, **
** nd_storage_disc_adapter, nd_storage_tape_adapter) are reused unchanged. **
** On the other side there is no SD card, no SPI, no FAT: the images are **
** FILES the user mounts from the MiSTer OSD, and the HPS (the ARM side) **
** serves them through hps_io's block interface. One client = one OSD **
** mount slot ("S<n>" line in CONF_STR) = one file. **
** **
** THE HPS BLOCK INTERFACE, AS IT REALLY BEHAVES (read from the official **
** docs, Main_MiSTer/user_io.cpp and sys/hps_io.sv on 01-SEP-2026; the **
** rules below are what the design is built on, not guesses): **
** - The ARM POLLS. It never sees sd_rd change; it reads a status word, **
** picks ONE slot with a request pending (rotating round-robin), **
** samples that slot's sd_lba in the same transaction, and later runs **
** ONE data transaction with sd_ack[slot] high for its whole length. **
** So: hold sd_rd/sd_wr until sd_ack RISES, then drop it (the official **
** sys/sd_card.sv does exactly this); the FALLING edge of sd_ack means **
** "block done". sd_lba and sd_blk_cnt must be stable from request to **
** ack. **
** - sd_blk_cnt = 3 with BLKSZ = 2 (512-byte blocks) makes one 2048-byte **
** transaction, one ack, sd_buff_addr running 0..1023 words in WIDE **
** (16-bit) mode. Exactly one client block. **
** - Data arrives at the HPS SPI rate, many clk_sys cycles per word: **
** sd_buff_wr pulses one cycle per word, sd_buff_addr increments two **
** cycles after it. For WRITES the core must present sd_buff_din = **
** buffer[sd_buff_addr] from address 0 the moment ack rises; the ARM **
** reads it on its own strobe and bumps the address. **
** - The buffer bus (sd_buff_addr/dout/wr) is BROADCAST to every slot. **
** This module only ever has ONE transaction in flight, so it **
** qualifies by "the slot I asked for" rather than by a per-slot ack. **
** - A read on an UNMOUNTED slot is still acked and returns zeros. The **
** only way to know there is no image is the mount pulse: img_mounted **
** [n] pulses a few cycles, img_size / img_readonly are valid during **
** it (the size is sent first), and an UNMOUNT is the same pulse with **
** img_size == 0. So a request on an unmounted slot never reaches the **
** HPS here: it completes at once with err + NDS_ERR_NOTOPEN, per the **
** rule in nd_storage_status.vh (never done-without-error on a fault, **
** never done-never). **
** - Writes go to the file immediately (O_SYNC on the ARM). A write past **
** the end of the file is trimmed and the image cannot grow, so a **
** write whose block does not lie entirely inside the file is refused **
** here with NDS_ERR_RANGE. Read-only is only REPORTED by the HPS **
** (img_readonly); enforcing it is our job: NDS_ERR_WRPROT. **
** **
** CLOCKS. The client port is the CPU domain (clk_cpu, 20 MHz on this **
** board); hps_io is clk_sys (40 MHz, and it must be >= 20 MHz per the **
** MiSTer maintainer). They are two PLL outputs and are treated as **
** asynchronous. Each block goes through a staging buffer of this module's **
** own - rbuf for reads (written on clk_sys by the HPS stream, read on **
** clk_cpu into the client), wbuf for writes (filled on clk_cpu from the **
** client, read on clk_sys by the HPS) - and one 4-phase go/done handshake **
** carries the request across. Two simple-dual-port 1024x16 RAMs rather **
** than one true-dual-port RAM: one write port each is what every tool **
** infers without argument. The mount records cross the other way on a **
** per-slot toggle: the clk_sys side latches mounted/size/readonly on the **
** img_mounted pulse and flips the toggle; the clk_cpu side copies the **
** (long since stable) record when it sees the toggle change. **
** **
** BYTE ORDER. ND image words are big-endian bytes: word w = {byte 2w, **
** byte 2w+1} (nd_storage_disc_adapter.v, and the nd_storage engine packs **
** them that way, so one image file works in Verilator, on the Tang/Nexys **
** card and here). hps_io in WIDE mode hands over the file as 16-bit **
** little-endian words, {byte 2w+1, byte 2w}. BYTE_SWAP = 1 swaps once in **
** each direction. It is a parameter because the HPS word order is taken **
** from reading the framework, not from a measurement on this board; the **
** Phase-4 byte-order check on real hardware is the proof, and if it says **
** otherwise this is the one line to flip. **
** **
** Port shapes: everything per-slot is FLATTENED (slot n in bits **
** [n*W +: W]) because this is plain Verilog; nd120.sv unpacks into the **
** SystemVerilog arrays hps_io wants. sd_buff_din is ONE value: only one **
** transaction is ever in flight, so every hps_io slot can be fed the same **
** word. **
** **
** Ronny Hansen, 01-SEP-2026 **
*****************************************************************************/
module nd_storage_hps #(
parameter integer N_CLIENTS = 5, // = hps_io VDNUM; slot n = client n
parameter integer BYTE_SWAP = 1 // 1: HPS little-endian <-> ND big-endian
) (
// ---- client ports (clk_cpu domain, flattened; spec section 4) ----
input wire clk_cpu, //! 20 MHz, the ND-120 CPU/bus/device domain (from pll_cpu.outclk_0)
input wire rst_cpu_n, //! Active-low reset, from the board's power-on reset (same net as ND120_CORE.sys_rst_n)
input wire [N_CLIENTS-1:0] open_req,
output wire [N_CLIENTS-1:0] open_ok,
output wire [N_CLIENTS-1:0] open_err,
output wire [N_CLIENTS*32-1:0] size_bytes,
input wire [N_CLIENTS-1:0] req,
input wire [N_CLIENTS-1:0] wr,
input wire [N_CLIENTS*16-1:0] block,
output wire [N_CLIENTS-1:0] busy,
output reg [N_CLIENTS-1:0] done,
output reg [N_CLIENTS-1:0] err,
output wire [N_CLIENTS*4-1:0] err_code,
output wire [N_CLIENTS*10-1:0] buf_addr,
output wire [N_CLIENTS*16-1:0] buf_wdata,
output wire [N_CLIENTS-1:0] buf_we,
input wire [N_CLIENTS*16-1:0] buf_rdata,
// ---- hps_io block interface (clk_sys domain) ----
input wire clk_sys, //! pixel clock, 40.000 MHz for 800x600@60 (same net as nd120_console_mister.clk)
input wire rst_sys_n, //! async reset, active low, in the pixel domain (same net as nd120_console_mister.rst_n)
input wire [N_CLIENTS-1:0] img_mounted,
input wire img_readonly,
input wire [63:0] img_size,
output wire [N_CLIENTS*32-1:0] sd_lba,
output wire [N_CLIENTS*6-1:0] sd_blk_cnt,
output reg [N_CLIENTS-1:0] sd_rd,
output reg [N_CLIENTS-1:0] sd_wr,
input wire [N_CLIENTS-1:0] sd_ack,
input wire [12:0] sd_buff_addr,
input wire [15:0] sd_buff_dout,
output wire [15:0] sd_buff_din,
input wire sd_buff_wr,
// ---- diagnostics (clk_cpu domain): which slots hold a file ----
output wire [N_CLIENTS-1:0] mounted
);
localparam integer N = N_CLIENTS;
// one client block = 4 HPS blocks of 512 bytes, sent as ONE transaction
localparam [5:0] BLK_CNT_M1 = 6'd3;
function [15:0] swap16(input [15:0] w);
swap16 = (BYTE_SWAP != 0) ? {w[7:0], w[15:8]} : w;
endfunction
// =======================================================================
// clk_sys side: mount records + the HPS transaction
// =======================================================================
// ---- mount records, latched on the rising edge of img_mounted[n] ------
// hps_io holds img_mounted for the rest of its SPI transaction (several
// clk_sys cycles), so it is edge-detected. img_size was loaded by the
// PREVIOUS transaction and is stable here; img_readonly rides in the
// same word as the mount bit.
reg [N-1:0] m_mounted;
reg [N-1:0] m_ro;
reg [N*32-1:0] m_size;
reg [N-1:0] m_tgl; // flips once per mount/unmount event
reg [N-1:0] img_mounted_d;
integer n;
always @(posedge clk_sys or negedge rst_sys_n) begin
if (!rst_sys_n) begin
m_mounted <= {N{1'b0}};
m_ro <= {N{1'b0}};
m_size <= {(N*32){1'b0}};
m_tgl <= {N{1'b0}};
img_mounted_d <= {N{1'b0}};
end else begin
img_mounted_d <= img_mounted;
for (n = 0; n < N; n = n + 1) begin
if (img_mounted[n] && !img_mounted_d[n]) begin
m_mounted[n] <= |img_size; // size 0 = unmount
m_ro[n] <= img_readonly;
m_size[n*32 +: 32] <= img_size[31:0];
m_tgl[n] <= ~m_tgl[n];
end
end
end
end
// ---- request fields, written by the clk_cpu side, stable while t_go ---
reg t_go; // clk_cpu: request handed to the HPS side
reg t_wr;
reg [31:0] t_lba;
reg [N-1:0] t_sel; // one-hot slot
// go -> clk_sys, done -> clk_cpu, 4-phase
reg [1:0] go_s; // clk_sys copy of t_go
reg h_done; // clk_sys: transaction finished
reg [1:0] hd_s; // clk_cpu copy of h_done
// hps_io wants a per-slot array; every slot carries the same request,
// only the selected slot's sd_rd/sd_wr bit is raised.
genvar gs;
generate
for (gs = 0; gs < N; gs = gs + 1) begin : g_lba
assign sd_lba[gs*32 +: 32] = t_lba;
assign sd_blk_cnt[gs*6 +: 6] = BLK_CNT_M1;
end
endgenerate
// ---- the two staging buffers ------------------------------------------
reg [15:0] rbuf[0:1023]; // HPS -> client: written on clk_sys
reg [15:0] wbuf[0:1023]; // client -> HPS: written on clk_cpu
reg [15:0] wbuf_q; // clk_sys registered read of wbuf
reg [15:0] rbuf_q; // clk_cpu registered read of rbuf
wire ack_sel = |(sd_ack & t_sel);
// read direction: every word the HPS strobes lands in rbuf. Only the
// low 10 address bits matter (1024 words); hps_io's counter saturates and
// never wraps, so a longer transaction than asked for cannot alias.
always @(posedge clk_sys) begin
if (ack_sel && sd_buff_wr && !t_wr) rbuf[sd_buff_addr[9:0]] <= swap16(sd_buff_dout);
wbuf_q <= wbuf[sd_buff_addr[9:0]];
end
// write direction: the ARM reads sd_buff_din on its own strobe, many
// clk_sys cycles apart, so the one-cycle registered read above is ready
// long before each strobe - including the first, at address 0.
assign sd_buff_din = swap16(wbuf_q);
// ---- HPS transaction FSM ----------------------------------------------
localparam [1:0] H_IDLE = 2'd0, // wait for go
H_REQ = 2'd1, // sd_rd/sd_wr raised, wait ack rising
H_XFER = 2'd2, // ack high: the stream runs
H_DONE = 2'd3; // tell the client side; wait go low
reg [1:0] h_state;
reg ack_sel_d;
always @(posedge clk_sys or negedge rst_sys_n) begin
if (!rst_sys_n) begin
go_s <= 2'b00;
h_state <= H_IDLE;
h_done <= 1'b0;
sd_rd <= {N{1'b0}};
sd_wr <= {N{1'b0}};
ack_sel_d <= 1'b0;
end else begin
go_s <= {go_s[0], t_go};
ack_sel_d <= ack_sel;
case (h_state)
H_IDLE: begin
if (go_s[1]) begin
// t_wr / t_lba / t_sel have been stable since before t_go rose
if (t_wr) sd_wr <= t_sel;
else sd_rd <= t_sel;
h_state <= H_REQ;
end
end
H_REQ: begin
// the request is held until the ARM has picked it up (ack rises),
// then dropped so the next poll does not run it a second time
if (ack_sel) begin
sd_rd <= {N{1'b0}};
sd_wr <= {N{1'b0}};
h_state <= H_XFER;
end
end
H_XFER: begin
// the data moves in the always block above; the falling edge of
// ack is the end of the transaction
if (!ack_sel && ack_sel_d) begin
h_done <= 1'b1;
h_state <= H_DONE;
end
end
H_DONE: begin
if (!go_s[1]) begin
h_done <= 1'b0;
h_state <= H_IDLE;
end
end
endcase
end
end
// =======================================================================
// clk_cpu side: mount copy, arbiter, client streaming
// =======================================================================
// ---- mount records copied over on the toggle ---------------------------
reg [N-1:0] tgl_s1, tgl_s2, tgl_seen;
reg [N-1:0] c_mounted;
reg [N-1:0] c_ro;
reg [N*32-1:0] c_size;
reg [N-1:0] c_open_seen; // an open_req was issued (for open_err)
always @(posedge clk_cpu or negedge rst_cpu_n) begin
if (!rst_cpu_n) begin
tgl_s1 <= {N{1'b0}};
tgl_s2 <= {N{1'b0}};
tgl_seen <= {N{1'b0}};
c_mounted <= {N{1'b0}};
c_ro <= {N{1'b0}};
c_size <= {(N*32){1'b0}};
c_open_seen <= {N{1'b0}};
end else begin
tgl_s1 <= m_tgl;
tgl_s2 <= tgl_s1;
for (n = 0; n < N; n = n + 1) begin
if (tgl_s2[n] != tgl_seen[n]) begin
// the record was written >= 2 clk_sys cycles before the toggle
// reached here and only changes on the next mount event, so a
// plain copy across the domains is safe
tgl_seen[n] <= tgl_s2[n];
c_mounted[n] <= m_mounted[n];
c_ro[n] <= m_ro[n];
c_size[n*32 +: 32] <= m_size[n*32 +: 32];
end
if (open_req[n]) c_open_seen[n] <= 1'b1;
end
end
end
// open semantics (spec: open_req pulse -> open_ok / open_err LEVELS).
// There is nothing to "open": the file is whatever the OSD mounted. So
// open_ok simply reports the mount, and open_err reports "you asked and
// there is no file", which clears itself the moment one is mounted.
assign open_ok = c_mounted;
assign open_err = c_open_seen & ~c_mounted;
assign size_bytes = c_size;
assign mounted = c_mounted;
// ---- per-client request latch + round-robin arbiter --------------------
reg [N-1:0] pend;
reg [N-1:0] pend_wr;
reg [N*16-1:0] pend_blk;
reg [N*4-1:0] code_q; // err_code per client, valid with done
assign err_code = code_q;
localparam integer SW = (N <= 2) ? 1 : (N <= 4) ? 2 : (N <= 8) ? 3 : 4;
reg [SW-1:0] rr; // next slot to look at first
reg [SW-1:0] g; // granted client
reg g_act; // a grant is being processed
// the pick: first pending client at or after rr, wrapping
reg [SW-1:0] pick;
reg pick_ok;
integer k, m;
always @(*) begin
pick = {SW{1'b0}};
pick_ok = 1'b0;
m = 0;
for (k = N - 1; k >= 0; k = k - 1) begin
m = k + {{(32-SW){1'b0}}, rr};
if (m >= N) m = m - N;
if (pend[m]) begin
pick = m[SW-1:0];
pick_ok = 1'b1;
end
end
end
assign busy = pend;
// ---- client-side FSM ---------------------------------------------------
localparam [2:0] C_IDLE = 3'd0, // pick a pending client, check it
C_PULL = 3'd1, // write: client buffer -> wbuf
C_GO = 3'd2, // hand to the HPS side, wait h_done
C_STREAM = 3'd3, // read: rbuf -> client buffer
C_DONE = 3'd4; // pulse done (+err)
reg [2:0] c_state;
reg g_wr;
reg [15:0] g_blk;
reg [10:0] idx; // word walk, 0..1024
reg g_err;
reg [3:0] g_code;
// the granted client's block-end check, 32-bit bytes
wire [31:0] g_size = c_size[g*32 +: 32];
wire [31:0] blk_start = {5'd0, g_blk, 11'd0}; // block * 2048
wire [31:0] blk_end = blk_start + 32'd2048;
// buffer mastering, one client at a time (all others parked at 0 so the
// per-controller OR in the aggregators stays clean)
reg [9:0] o_addr;
reg o_we;
reg [15:0] o_wdata; // registered with o_we: same-cycle pair
wire [15:0] g_rdata = buf_rdata[g*16 +: 16];
genvar gc;
generate
for (gc = 0; gc < N; gc = gc + 1) begin : g_bus
assign buf_addr [gc*10 +: 10] = (g_act && (g == gc)) ? o_addr : 10'd0;
assign buf_wdata[gc*16 +: 16] = (g_act && (g == gc)) ? o_wdata : 16'd0;
assign buf_we [gc] = (g_act && (g == gc)) ? o_we : 1'b0;
end
endgenerate
// rbuf registered read for the STREAM walk: address idx this cycle, word
// out next cycle, written to the client at address idx-1
//
// wbuf write for the PULL walk. o_addr <= idx is registered, so the
// client SEES address idx one cycle later, and its buffer read is itself
// registered (every adapter: nd_storage_floppy_adapter's c_buf_rdata <=
// s_blkbuf[c_buf_addr]; the disc adapter passes the controller's
// registered dbuf_rdata straight through), so the word for address idx
// is on buf_rdata TWO cycles after idx was set. Hence wbuf[idx-2].
always @(posedge clk_cpu) begin
rbuf_q <= rbuf[idx[9:0]];
if ((c_state == C_PULL) && (idx >= 11'd2)) wbuf[idx[9:0] - 10'd2] <= g_rdata;
end
always @(posedge clk_cpu or negedge rst_cpu_n) begin
if (!rst_cpu_n) begin
pend <= {N{1'b0}};
pend_wr <= {N{1'b0}};
pend_blk <= {(N*16){1'b0}};
code_q <= {(N*4){1'b0}};
done <= {N{1'b0}};
err <= {N{1'b0}};
rr <= {SW{1'b0}};
g <= {SW{1'b0}};
g_act <= 1'b0;
g_wr <= 1'b0;
g_blk <= 16'd0;
idx <= 11'd0;
g_err <= 1'b0;
g_code <= `NDS_ERR_NONE;
o_addr <= 10'd0;
o_we <= 1'b0;
o_wdata <= 16'd0;
t_go <= 1'b0;
t_wr <= 1'b0;
t_lba <= 32'd0;
t_sel <= {N{1'b0}};
hd_s <= 2'b00;
c_state <= C_IDLE;
end else begin
done <= {N{1'b0}};
err <= {N{1'b0}};
o_we <= 1'b0;
hd_s <= {hd_s[0], h_done};
// latch requests (spec: a req while busy may be ignored - it is)
for (n = 0; n < N; n = n + 1) begin
if (req[n] && !pend[n]) begin
pend[n] <= 1'b1;
pend_wr[n] <= wr[n];
pend_blk[n*16 +: 16] <= block[n*16 +: 16];
end
end
case (c_state)
C_IDLE: begin
if (pick_ok) begin
g <= pick;
g_act <= 1'b1;
g_wr <= pend_wr[pick];
g_blk <= pend_blk[pick*16 +: 16];
idx <= 11'd0;
g_err <= 1'b0;
g_code <= `NDS_ERR_NONE;
// advance the scan past the winner: no starvation
rr <= ({{(32-SW){1'b0}}, pick} == N - 1) ? {SW{1'b0}} : pick + 1'b1;
c_state <= C_GO; // provisional; the checks below override
// the three refusals, each with its reason
if (!c_mounted[pick]) begin
g_err <= 1'b1; g_code <= `NDS_ERR_NOTOPEN; c_state <= C_DONE;
end else if (pend_wr[pick] && c_ro[pick]) begin
g_err <= 1'b1; g_code <= `NDS_ERR_WRPROT; c_state <= C_DONE;
end else if (pend_wr[pick]) begin
c_state <= C_PULL; // range check follows in C_PULL's first cycle
end
end
end
// ---- write: walk the client buffer into wbuf, 1 word/cycle ------
// (the range check sits here so g_* are registered when it runs)
C_PULL: begin
if ((idx == 11'd0) && (blk_end > g_size)) begin
// a write must lie entirely inside the file: the HPS trims a
// write past EOF and the image cannot grow through the core
g_err <= 1'b1; g_code <= `NDS_ERR_RANGE; c_state <= C_DONE;
end else begin
if (idx < 11'd1024) o_addr <= idx[9:0];
idx <= idx + 11'd1;
if (idx == 11'd1025) begin
// the word for address 1023 landed this cycle (see the wbuf
// write above); now hand the block to the HPS side
t_wr <= 1'b1;
t_lba <= {14'd0, g_blk, 2'b00}; // block * 4 HPS blocks
t_sel <= {{(N-1){1'b0}}, 1'b1} << g;
t_go <= 1'b1;
c_state <= C_GO;
end
end
end
// ---- reads arrive here straight from C_IDLE ----------------------
C_GO: begin
if (!t_go && !g_wr) begin
if (blk_start >= g_size) begin
// the block starts past the end of the file
g_err <= 1'b1; g_code <= `NDS_ERR_RANGE; c_state <= C_DONE;
end else begin
t_wr <= 1'b0;
t_lba <= {14'd0, g_blk, 2'b00};
t_sel <= {{(N-1){1'b0}}, 1'b1} << g;
t_go <= 1'b1;
end
end else if (hd_s[1]) begin
// the HPS side is finished: release the handshake
t_go <= 1'b0;
idx <= 11'd0;
if (g_wr) c_state <= C_DONE;
else c_state <= C_STREAM;
end
end
// ---- read: walk rbuf into the client buffer, 1 word/cycle --------
C_STREAM: begin
// rbuf_q holds word idx-1 this cycle (registered read above);
// address, data and strobe are registered TOGETHER so the client
// sees them in the same cycle (the strobe alone registered, with
// the data taken live, delivered word k+1 at address k - caught by
// nd_storage_hps_tb test 3)
idx <= idx + 11'd1;
if (idx != 11'd0) begin
o_addr <= idx[9:0] - 10'd1;
o_wdata <= rbuf_q;
o_we <= 1'b1;
end
if (idx == 11'd1024) c_state <= C_DONE;
end
C_DONE: begin
// wait for the HPS side to have dropped h_done before the next
// request can raise go again (4-phase discipline)
if (!hd_s[1]) begin
done[g] <= 1'b1;
err[g] <= g_err;
code_q[g*4 +: 4] <= g_err ? g_code : `NDS_ERR_NONE;
pend[g] <= 1'b0;
g_act <= 1'b0;
o_addr <= 10'd0;
c_state <= C_IDLE;
end
end
default: c_state <= C_IDLE;
endcase
end
end
endmodule
