hex_dumper¶
Source: Verilog/fpga/tang-nano-20k/sd-fat-test/src/hex_dumper.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules

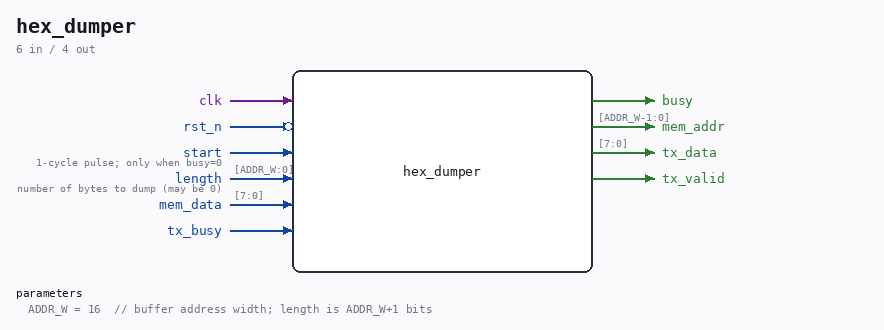

Schematic¶
Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
Hex/octal dumper for the SD-FAT test Streams the contents of a byte buffer (BRAM read port, 1-cycle read latency) as an ASCII dump through the shared uart_tx: 000000: 8D 0A 30 30 36 30 30 30 30 8D 0A B1 36 B4 33 B1 ... (16 bytes/line, extra space after byte 8, a space after EVERY byte incl. the last) OCTAL WORDS AFTER LEADER: 105015 030060 ... (first 8 words from the first NONZERO byte - BPUN tapes begin with a zero leader) LENGTH: 000000002342 BYTES DONE The octal line prints the first min(8, length/2) 16-bit words, MSB-first byte order (BPUN fields are 16-bit MSB-first words). All line ends are CR LF. Plain ASCII only. NOTE: \r is not a legal Verilog string escape - CR must be octal \015. Last reviewed: 10-JUL-2026 Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
ADDR_W |
16 // buffer address width; length is ADDR_W+1 bits |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk |
|
| input | 1 |
rst_n (active low) |
|
| input | 1 |
start |
1-cycle pulse; only when busy=0 |
| input | [ADDR_W:0] |
length |
number of bytes to dump (may be 0) |
| output | 1 |
busy |
|
| output | [ADDR_W-1:0] |
mem_addr |
|
| input | [7:0] |
mem_data |
|
| output | [7:0] |
tx_data |
|
| output | 1 |
tx_valid |
|
| input | 1 |
tx_busy |
Verilog source¶
Verilog/fpga/tang-nano-20k/sd-fat-test/src/hex_dumper.v on GitHub.
Show the Verilog of hex_dumper (401 lines)
/****************************************************************************
** Hex/octal dumper for the SD-FAT test **
** **
** Streams the contents of a byte buffer (BRAM read port, 1-cycle read **
** latency) as an ASCII dump through the shared uart_tx: **
** **
** 000000: 8D 0A 30 30 36 30 30 30 30 8D 0A B1 36 B4 33 B1 **
** ... (16 bytes/line, extra space after byte 8, **
** a space after EVERY byte incl. the last) **
** OCTAL WORDS AFTER LEADER: 105015 030060 ... (first 8 words from **
** the first NONZERO byte - BPUN tapes **
** begin with a zero leader) **
** LENGTH: 000000002342 BYTES **
** DONE **
** **
** The octal line prints the first min(8, length/2) 16-bit words, **
** MSB-first byte order (BPUN fields are 16-bit MSB-first words). **
** All line ends are CR LF. Plain ASCII only. **
** **
** NOTE: \r is not a legal Verilog string escape - CR must be octal \015. **
** **
** Last reviewed: 10-JUL-2026 **
** Ronny Hansen **
*****************************************************************************/
module hex_dumper #(
parameter ADDR_W = 16 // buffer address width; length is ADDR_W+1 bits
) (
input clk,
input rst_n,
input start, // 1-cycle pulse; only when busy=0
input [ADDR_W:0] length, // number of bytes to dump (may be 0)
output busy,
// buffer read port (registered BRAM: data valid 1 clk after addr)
output reg [ADDR_W-1:0] mem_addr,
input [7:0] mem_data,
// handshake to the shared uart_tx (top level muxes this with status_printer)
output reg [7:0] tx_data,
output reg tx_valid,
input tx_busy
);
localparam S_OCT = "OCTAL WORDS AFTER LEADER: ";
localparam S_LEN = "LENGTH: ";
localparam S_BYT = " BYTES\015\012";
localparam S_DONE = "DONE\015\012";
localparam S_CRLF = "\015\012";
localparam S_COL = ": ";
function [7:0] hexd(input [3:0] n);
hexd = (n < 4'd10) ? (8'h30 + {4'b0, n}) : (8'h37 + {4'b0, n}); // '0'-'9','A'-'F'
endfunction
// pick character idx (0-based) out of a string literal; 0 terminates
function [7:0] strchar(input [8*32-1:0] s, input integer len, input integer i);
strchar = (i < len) ? s[8*(len-1-i)+:8] : 8'h00;
endfunction
// powers of ten for the 12-digit decimal LENGTH field (needs 40 bits)
function [39:0] pow10(input [3:0] i);
case (i)
4'd0: pow10 = 40'd1;
4'd1: pow10 = 40'd10;
4'd2: pow10 = 40'd100;
4'd3: pow10 = 40'd1000;
4'd4: pow10 = 40'd10000;
4'd5: pow10 = 40'd100000;
4'd6: pow10 = 40'd1000000;
4'd7: pow10 = 40'd10000000;
4'd8: pow10 = 40'd100000000;
4'd9: pow10 = 40'd1000000000;
4'd10: pow10 = 40'd10000000000;
default: pow10 = 40'd100000000000;
endcase
endfunction
// ------------------------------------------------------------------ FSM
localparam ST_IDLE = 5'd0;
localparam ST_LINE = 5'd1; // decide: next dump line or octal section
localparam ST_ADDR_DIG = 5'd2; // 6 hex digits of the line offset
localparam ST_COLON = 5'd3; // ": "
localparam ST_BYTE_SET = 5'd4; // present buffer address
localparam ST_BYTE_WAIT = 5'd5; // BRAM read latency
localparam ST_BYTE_HI = 5'd6;
localparam ST_BYTE_LO = 5'd7;
localparam ST_BYTE_SP = 5'd8; // space after the byte
localparam ST_BYTE_SP2 = 5'd9; // extra space after byte 8
localparam ST_OCT_HDR = 5'd10;
localparam ST_OCT_SET_HI = 5'd11;
localparam ST_OCT_WAIT_HI= 5'd12;
localparam ST_OCT_LAT_HI = 5'd13;
localparam ST_OCT_SET_LO = 5'd14;
localparam ST_OCT_WAIT_LO= 5'd15;
localparam ST_OCT_LAT_LO = 5'd16;
localparam ST_OCT_DIG = 5'd17; // 6 octal digits of the word
localparam ST_OCT_SP = 5'd18;
localparam ST_LINE_CRLF = 5'd19;
localparam ST_LEN_HDR = 5'd20;
localparam ST_LEN_DIG = 5'd21; // 12 decimal digits, repeated subtraction
localparam ST_LEN_TAIL = 5'd22; // " BYTES\r\n"
localparam ST_DONE_STR = 5'd23;
localparam ST_STR = 5'd24; // generic string emitter (str_sel)
localparam ST_SEND = 5'd25; // char handshake to uart_tx
localparam ST_GAP = 5'd26; // one cycle for tx_busy to assert
localparam ST_OSCAN_SET = 5'd27; // find the first nonzero byte (BPUN
localparam ST_OSCAN_WAIT = 5'd28; // tapes start with a zero leader -
localparam ST_OSCAN_CHK = 5'd29; // octal words start after it)
// string selector for ST_STR
localparam SEL_OCT = 3'd0;
localparam SEL_LEN = 3'd1;
localparam SEL_BYT = 3'd2;
localparam SEL_DONE = 3'd3;
localparam SEL_CRLF = 3'd4;
localparam SEL_COL = 3'd5;
reg [4:0] state, ret_state, str_ret;
reg [2:0] str_sel;
reg [5:0] sidx; // index into the selected string
reg [ADDR_W:0] len_r; // latched length
reg [ADDR_W:0] offs; // current line offset
reg [ADDR_W:0] obase; // octal section: first byte after the zero leader
reg [4:0] bidx; // byte index within the line (0..15)
reg [2:0] digidx; // hex/octal digit counter
reg [15:0] word; // octal section: current 16-bit word
reg [3:0] widx; // octal section: word index (0..7)
reg [3:0] wcnt; // octal section: number of words to print
reg [39:0] decval; // decimal conversion remainder
reg [3:0] decdig; // current decimal digit value
reg [3:0] decpow; // current power-of-ten index (11..0)
wire [23:0] offs24 = {{(24-ADDR_W-1){1'b0}}, offs};
wire [ADDR_W:0] orem = len_r - obase; // bytes after the zero leader
assign busy = (state != ST_IDLE);
// character of the selected string at sidx
reg [7:0] str_ch;
always @(*) begin
case (str_sel)
SEL_OCT: str_ch = strchar({8'b0, S_OCT}, $bits(S_OCT)/8, sidx);
SEL_LEN: str_ch = strchar({8'b0, S_LEN}, $bits(S_LEN)/8, sidx);
SEL_BYT: str_ch = strchar({8'b0, S_BYT}, $bits(S_BYT)/8, sidx);
SEL_DONE: str_ch = strchar({8'b0, S_DONE}, $bits(S_DONE)/8, sidx);
SEL_CRLF: str_ch = strchar({8'b0, S_CRLF}, $bits(S_CRLF)/8, sidx);
default: str_ch = strchar({8'b0, S_COL}, $bits(S_COL)/8, sidx);
endcase
end
always @(posedge clk) begin
if (!rst_n) begin
state <= ST_IDLE;
ret_state <= ST_IDLE;
str_ret <= ST_IDLE;
str_sel <= SEL_CRLF;
sidx <= 0;
tx_valid <= 1'b0;
tx_data <= 0;
mem_addr <= 0;
len_r <= 0;
offs <= 0;
obase <= 0;
bidx <= 0;
digidx <= 0;
word <= 0;
widx <= 0;
wcnt <= 0;
decval <= 0;
decdig <= 0;
decpow <= 0;
end else begin
tx_valid <= 1'b0;
case (state)
ST_IDLE:
if (start) begin
len_r <= length;
offs <= 0;
digidx <= 0;
state <= ST_LINE;
end
// ---- hex dump lines -------------------------------------------
ST_LINE:
if (offs >= len_r) begin
obase <= 0;
state <= (len_r == 0) ? ST_OCT_HDR : ST_OSCAN_SET;
if (len_r == 0) begin
str_sel <= SEL_OCT;
sidx <= 0;
str_ret <= ST_OCT_HDR;
state <= ST_STR;
end
end else begin
digidx <= 0;
state <= ST_ADDR_DIG;
end
ST_ADDR_DIG: begin
tx_data <= hexd(offs24[23-4*digidx-:4]);
ret_state <= (digidx == 3'd5) ? ST_COLON : ST_ADDR_DIG;
digidx <= digidx + 3'd1;
state <= ST_SEND;
end
ST_COLON: begin
str_sel <= SEL_COL;
sidx <= 0;
str_ret <= ST_BYTE_SET;
bidx <= 0;
state <= ST_STR;
end
ST_BYTE_SET: begin
mem_addr <= offs[ADDR_W-1:0] + {{(ADDR_W-5){1'b0}}, bidx};
state <= ST_BYTE_WAIT;
end
ST_BYTE_WAIT: state <= ST_BYTE_HI;
ST_BYTE_HI: begin
tx_data <= hexd(mem_data[7:4]);
ret_state <= ST_BYTE_LO;
state <= ST_SEND;
end
ST_BYTE_LO: begin
tx_data <= hexd(mem_data[3:0]);
ret_state <= ST_BYTE_SP;
state <= ST_SEND;
end
ST_BYTE_SP: begin
// space after byte bidx; then: end of line (16 bytes or end of
// data) -> CRLF; after byte 8 -> one extra space; else next byte
tx_data <= " ";
if ((bidx == 5'd15) || (offs + {{(ADDR_W-4){1'b0}}, bidx} + 1 >= len_r))
ret_state <= ST_LINE_CRLF;
else if (bidx == 5'd7)
ret_state <= ST_BYTE_SP2;
else
ret_state <= ST_BYTE_SET;
bidx <= bidx + 5'd1;
state <= ST_SEND;
end
ST_BYTE_SP2: begin
tx_data <= " ";
ret_state <= ST_BYTE_SET;
state <= ST_SEND;
end
// ---- find the end of the zero leader ----------------------------
ST_OSCAN_SET: begin
mem_addr <= obase[ADDR_W-1:0];
state <= ST_OSCAN_WAIT;
end
ST_OSCAN_WAIT: state <= ST_OSCAN_CHK;
ST_OSCAN_CHK:
if (mem_data != 8'h00 || obase + 1 >= len_r) begin
str_sel <= SEL_OCT;
sidx <= 0;
str_ret <= ST_OCT_HDR;
state <= ST_STR;
end else begin
obase <= obase + 1;
state <= ST_OSCAN_SET;
end
// ---- octal words section --------------------------------------
ST_OCT_HDR: begin
// words available after the leader: min(8, remaining/2)
wcnt <= (orem >= 16) ? 4'd8 : orem[3:1];
widx <= 0;
state <= ST_OCT_SET_HI;
end
ST_OCT_SET_HI:
if (widx >= wcnt) begin
str_sel <= SEL_CRLF;
sidx <= 0;
str_ret <= ST_LEN_HDR;
state <= ST_STR;
end else begin
mem_addr <= obase[ADDR_W-1:0] + {{(ADDR_W-5){1'b0}}, widx, 1'b0};
state <= ST_OCT_WAIT_HI;
end
ST_OCT_WAIT_HI: state <= ST_OCT_LAT_HI;
ST_OCT_LAT_HI: begin
word[15:8] <= mem_data;
mem_addr <= obase[ADDR_W-1:0] + {{(ADDR_W-5){1'b0}}, widx, 1'b1};
state <= ST_OCT_WAIT_LO;
end
ST_OCT_WAIT_LO: state <= ST_OCT_LAT_LO;
ST_OCT_LAT_LO: begin
word[7:0] <= mem_data;
digidx <= 0;
state <= ST_OCT_DIG;
end
ST_OCT_DIG: begin
case (digidx)
3'd0: tx_data <= 8'h30 + {7'b0, word[15]};
3'd1: tx_data <= 8'h30 + {5'b0, word[14:12]};
3'd2: tx_data <= 8'h30 + {5'b0, word[11:9]};
3'd3: tx_data <= 8'h30 + {5'b0, word[8:6]};
3'd4: tx_data <= 8'h30 + {5'b0, word[5:3]};
default: tx_data <= 8'h30 + {5'b0, word[2:0]};
endcase
ret_state <= (digidx == 3'd5) ? ST_OCT_SP : ST_OCT_DIG;
digidx <= digidx + 3'd1;
state <= ST_SEND;
end
ST_OCT_SP: begin
tx_data <= " ";
widx <= widx + 4'd1;
ret_state <= ST_OCT_SET_HI;
state <= ST_SEND;
end
ST_LINE_CRLF: begin // end of a dump line
str_sel <= SEL_CRLF;
sidx <= 0;
str_ret <= ST_LINE;
offs <= offs + 16;
state <= ST_STR;
end
// ---- LENGTH line ----------------------------------------------
ST_LEN_HDR: begin
str_sel <= SEL_LEN;
sidx <= 0;
str_ret <= ST_LEN_DIG;
decval <= {{(40-ADDR_W-1){1'b0}}, len_r};
decpow <= 4'd11;
decdig <= 4'd0;
state <= ST_STR;
end
ST_LEN_DIG:
if (decval >= pow10(decpow)) begin
decval <= decval - pow10(decpow);
decdig <= decdig + 4'd1;
end else begin
tx_data <= 8'h30 + {4'b0, decdig};
decdig <= 4'd0;
if (decpow == 4'd0) begin
str_sel <= SEL_BYT;
sidx <= 0;
str_ret <= ST_DONE_STR;
ret_state <= ST_STR;
end else begin
decpow <= decpow - 4'd1;
ret_state <= ST_LEN_DIG;
end
state <= ST_SEND;
end
ST_DONE_STR: begin
str_sel <= SEL_DONE;
sidx <= 0;
str_ret <= ST_IDLE;
state <= ST_STR;
end
// ---- generic string emitter ------------------------------------
ST_STR:
if (str_ch == 8'h00) begin
state <= str_ret;
end else begin
tx_data <= str_ch;
sidx <= sidx + 6'd1;
ret_state <= ST_STR;
state <= ST_SEND;
end
// ---- single-character handshake to uart_tx ----------------------
ST_SEND:
if (!tx_busy) begin
tx_valid <= 1'b1;
state <= ST_GAP;
end
ST_GAP: state <= ret_state;
default: state <= ST_IDLE;
endcase
end
end
endmodule
