sdram_test_top¶
Source: Verilog/fpga/tang-nano-20k/sdram-test/src/sdram_test_top.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules

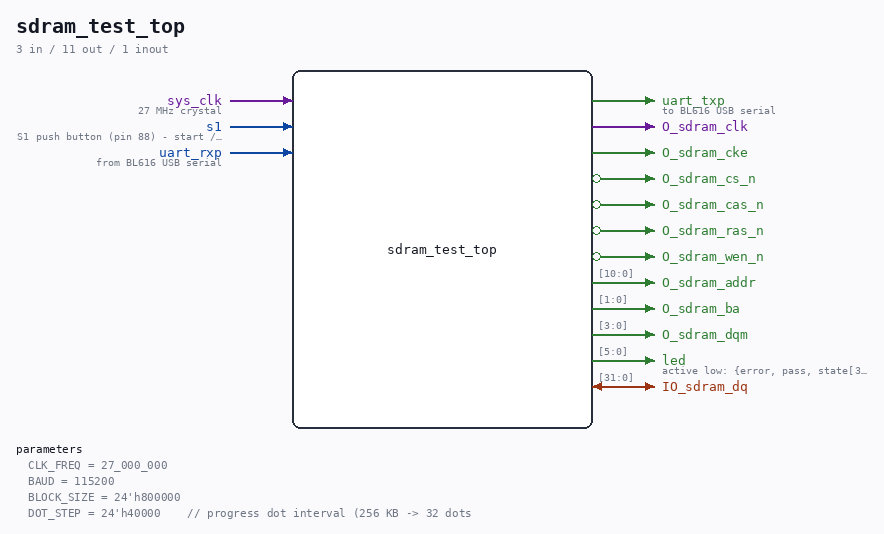

Schematic¶
Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
Tang Nano 20K embedded-SDRAM test Exercises the 8 MB on-package SDRAM (64 Mbit, 32-bit SDR) through the nand2mario byte-based controller (src/sdram.v) and reports every step over UART at 115200 baud 8N1 so the read/write behaviour is visible on a terminal (the BL616 USB serial port of the board). Test sequence (started by pressing S1 or sending any UART character): 1. Verbose demo: write 4 bytes to 4 spread addresses (different banks, first/last byte), read them back; every operation is printed as "W aaaaaa=dd" / "R aaaaaa=dd OK". 2. Block test: write ALL 8 MB with an address-derived pattern, then read and verify every byte. A progress dot is printed every DOT_STEP bytes. Ends with PASS or FAIL. SDRAM auto-refresh runs continuously (one refresh per 15 us). Last reviewed: 8-JUL-2026 Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
CLK_FREQ |
27_000_000 |
BAUD |
115200 |
BLOCK_SIZE |
24'h800000 |
DOT_STEP |
24'h40000 // progress dot interval (256 KB -> 32 dots |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sys_clk |
27 MHz crystal |
| input | 1 |
s1 |
S1 push button (pin 88) - start / restart |
| input | 1 |
uart_rxp |
from BL616 USB serial |
| output | 1 |
uart_txp |
to BL616 USB serial |
| output | 1 |
O_sdram_clk |
|
| output | 1 |
O_sdram_cke |
|
| output | 1 |
O_sdram_cs_n (active low) |
|
| output | 1 |
O_sdram_cas_n (active low) |
|
| output | 1 |
O_sdram_ras_n (active low) |
|
| output | 1 |
O_sdram_wen_n (active low) |
|
| inout | [31:0] |
IO_sdram_dq |
|
| output | [10:0] |
O_sdram_addr |
|
| output | [1:0] |
O_sdram_ba |
|
| output | [3:0] |
O_sdram_dqm |
|
| output | [5:0] |
led |
active low: |
Verilog source¶
Verilog/fpga/tang-nano-20k/sdram-test/src/sdram_test_top.v on GitHub.
Show the Verilog of sdram_test_top (481 lines)
/****************************************************************************
** Tang Nano 20K embedded-SDRAM test **
** **
** Exercises the 8 MB on-package SDRAM (64 Mbit, 32-bit SDR) through the **
** nand2mario byte-based controller (src/sdram.v) and reports every step **
** over UART at 115200 baud 8N1 so the read/write behaviour is visible on a**
** terminal (the BL616 USB serial port of the board). **
** **
** Test sequence (started by pressing S1 or sending any UART character): **
** 1. Verbose demo: write 4 bytes to 4 spread addresses (different **
** banks, first/last byte), read them back; every operation is **
** printed as "W aaaaaa=dd" / "R aaaaaa=dd OK". **
** 2. Block test: write ALL 8 MB with an address-derived pattern, then **
** read and verify every byte. A progress dot is printed every **
** DOT_STEP bytes. Ends with PASS or FAIL. **
** SDRAM auto-refresh runs continuously (one refresh per 15 us). **
** **
** Last reviewed: 8-JUL-2026 **
** Ronny Hansen **
*****************************************************************************/
module sdram_test_top #(
parameter CLK_FREQ = 27_000_000, // PLL clkout frequency (see gowin_rpll.v)
parameter BAUD = 115200, // 27 MHz / 115200 = 234 clks/bit (-0.16%)
parameter BLOCK_SIZE = 24'h800000, // block test size in bytes (full 8 MB), power of 2
parameter DOT_STEP = 24'h40000 // progress dot interval (256 KB -> 32 dots), power of 2
) (
input sys_clk, // 27 MHz crystal
input s1, // S1 push button (pin 88) - start / restart
input uart_rxp, // from BL616 USB serial
output uart_txp, // to BL616 USB serial
// "Magic" port names - the Gowin toolchain connects these to the
// on-package SDRAM die. For the OSS flow the same names are pinned
// explicitly in sdram_pins_oss.cst.
output O_sdram_clk,
output O_sdram_cke,
output O_sdram_cs_n,
output O_sdram_cas_n,
output O_sdram_ras_n,
output O_sdram_wen_n,
inout [31:0] IO_sdram_dq,
output [10:0] O_sdram_addr,
output [ 1:0] O_sdram_ba,
output [ 3:0] O_sdram_dqm,
output [5:0] led // active low: {error, pass, state[3:0]}
);
localparam DELAY_FRAMES = CLK_FREQ / BAUD;
/*******************************************************************************
** Clocking: rPLL gives clk (27 MHz) plus a 180-degree shifted SDRAM clock **
*******************************************************************************/
wire clk, clk_sdram, pll_lock;
`ifdef SIM
// Simulation: no rPLL primitive; a plain inverted clock is exactly 180 degrees
assign clk = sys_clk;
assign clk_sdram = ~sys_clk;
assign pll_lock = 1'b1;
`else
Gowin_rPLL pll (
.clkout (clk), // 27 MHz main clock
.clkoutp(clk_sdram), // phase shifted clock for the SDRAM
.lock (pll_lock),
.reset (1'b0),
.clkin (sys_clk)
);
`endif
// Power-on reset: hold everything ~1k cycles after PLL lock
reg [10:0] rst_cnt = 0;
reg rst_n = 0;
always @(posedge clk) begin
if (!pll_lock) begin
rst_cnt <= 0;
rst_n <= 0;
end else if (!rst_cnt[10]) begin
rst_cnt <= rst_cnt + 1;
rst_n <= 0;
end else begin
rst_n <= 1;
end
end
/*******************************************************************************
** Start events: S1 button (synchronized) or any received UART byte **
*******************************************************************************/
reg s1_r1, s1_r2, s1_r3;
always @(posedge clk) begin
s1_r1 <= s1;
s1_r2 <= s1_r1;
s1_r3 <= s1_r2;
end
wire s1_press = s1_r2 & ~s1_r3;
wire [7:0] rx_data; // received byte (only used as a start trigger)
wire rx_valid;
uart_rx #(
.DELAY_FRAMES(DELAY_FRAMES)
) u_rx (
.clk(clk),
.rst_n(rst_n),
.rxd(uart_rxp),
.rx_data(rx_data),
.rx_valid(rx_valid)
);
wire start_evt = s1_press | rx_valid;
/*******************************************************************************
** UART message printer (115200 8N1) **
*******************************************************************************/
localparam MSG_BANNER = 4'd0;
localparam MSG_PROMPT = 4'd1;
localparam MSG_WRITE = 4'd2;
localparam MSG_READ_OK = 4'd3;
localparam MSG_READ_ERR = 4'd4;
localparam MSG_BLOCK = 4'd5;
localparam MSG_VERIFY = 4'd6;
localparam MSG_DOT = 4'd7;
localparam MSG_PASS = 4'd8;
localparam MSG_FAIL = 4'd9;
reg p_start;
reg [ 3:0] p_msg;
reg [22:0] p_addr;
reg [ 7:0] p_data;
wire p_busy;
msg_printer #(
.DELAY_FRAMES(DELAY_FRAMES)
) u_printer (
.clk(clk),
.rst_n(rst_n),
.start(p_start),
.msg(p_msg),
.addr(p_addr),
.data(p_data),
.busy(p_busy),
.txd(uart_txp)
);
/*******************************************************************************
** SDRAM controller (vendored nand2mario, byte-based, CL=2) **
*******************************************************************************/
reg rd, wr, refresh;
reg [22:0] mem_addr;
reg [ 7:0] mem_din;
wire [7:0] dout;
wire data_ready, busy;
sdram #(
.FREQ(CLK_FREQ)
) u_sdram (
.clk(clk),
.clk_sdram(clk_sdram),
.resetn(rst_n),
.addr(mem_addr),
.rd(rd),
.wr(wr),
.refresh(refresh),
.din(mem_din),
.dout(dout),
.dout32(),
.data_ready(data_ready),
.busy(busy),
.SDRAM_DQ(IO_sdram_dq),
.SDRAM_A(O_sdram_addr),
.SDRAM_BA(O_sdram_ba),
.SDRAM_nCS(O_sdram_cs_n),
.SDRAM_nWE(O_sdram_wen_n),
.SDRAM_nRAS(O_sdram_ras_n),
.SDRAM_nCAS(O_sdram_cas_n),
.SDRAM_CLK(O_sdram_clk),
.SDRAM_CKE(O_sdram_cke),
.SDRAM_DQM(O_sdram_dqm)
);
/*******************************************************************************
** Refresh scheduling: request one auto-refresh every 15 us **
*******************************************************************************/
localparam REFRESH_INTERVAL = CLK_FREQ / 1_000_000 * 15; // cycles per 15 us
reg [9:0] ref_cnt;
reg refresh_needed;
always @(posedge clk) begin
if (!rst_n) begin
ref_cnt <= 0;
refresh_needed <= 0;
end else begin
ref_cnt <= ref_cnt + 1;
if (ref_cnt >= REFRESH_INTERVAL[9:0]) refresh_needed <= 1;
if (refresh) begin
ref_cnt <= 0;
refresh_needed <= 0;
end
end
end
/*******************************************************************************
** Test state machine **
*******************************************************************************/
localparam ST_RESET = 5'd0;
localparam ST_BANNER = 5'd1;
localparam ST_PROMPT = 5'd2;
localparam ST_WAIT = 5'd3;
localparam ST_WR = 5'd4;
localparam ST_WR_WAIT = 5'd5;
localparam ST_RD = 5'd6;
localparam ST_RD_WAIT = 5'd7;
localparam ST_RD_PRINT = 5'd8;
localparam ST_BLOCK_MSG = 5'd9;
localparam ST_BW = 5'd10;
localparam ST_BW_WAIT = 5'd11;
localparam ST_VER_MSG = 5'd12;
localparam ST_VR = 5'd13;
localparam ST_VR_WAIT = 5'd14;
localparam ST_ERR_PRINT = 5'd15;
localparam ST_PASS = 5'd16;
localparam ST_FAIL = 5'd17;
localparam ST_DONE = 5'd18;
// Verbose demo: 4 spread addresses (bank 0 / bank 1 / last byte) and values
function [22:0] demo_addr(input [1:0] i);
case (i)
2'd0: demo_addr = 23'h000000;
2'd1: demo_addr = 23'h000001;
2'd2: demo_addr = 23'h200000; // bank 1
2'd3: demo_addr = 23'h7FFFFF; // last byte of the 8 MB
endcase
endfunction
function [7:0] demo_data(input [1:0] i);
case (i)
2'd0: demo_data = 8'hA5;
2'd1: demo_data = 8'h5A;
2'd2: demo_data = 8'h3E;
2'd3: demo_data = 8'hED;
endcase
endfunction
// Address-derived pattern for the block test
function [7:0] pattern(input [22:0] a);
pattern = a[7:0] ^ a[15:8] ^ {1'b0, a[22:16]};
endfunction
reg [ 4:0] state;
reg [ 1:0] demo_i;
reg [23:0] taddr; // one bit wider than the address so it can reach BLOCK_SIZE = 8 MB
reg [ 7:0] actual;
reg error_f, pass_f, dot_pending;
// Issue a rd/wr only when the controller is free and no refresh is pending
wire can_op = !busy && !refresh_needed && !wr && !rd && !refresh;
// A print may be started only when the printer is free (and no start in flight)
wire can_print = !p_busy && !p_start;
assign led = ~{error_f, pass_f, state[3:0]};
always @(posedge clk) begin
if (!rst_n) begin
state <= ST_RESET;
wr <= 0;
rd <= 0;
refresh <= 0;
p_start <= 0;
p_msg <= MSG_BANNER;
p_addr <= 0;
p_data <= 0;
mem_addr <= 0;
mem_din <= 0;
demo_i <= 0;
taddr <= 0;
actual <= 0;
error_f <= 0;
pass_f <= 0;
dot_pending <= 0;
end else begin
// command outputs are 1-cycle pulses
wr <= 0;
rd <= 0;
refresh <= 0;
p_start <= 0;
// global refresh: runs in every state, whenever the controller is free.
// can_op excludes refresh_needed, so this never collides with a rd/wr.
if (refresh_needed && !busy && !wr && !rd && !refresh) refresh <= 1;
case (state)
// wait for the SDRAM init/config sequence (~200 us) to finish
ST_RESET: if (!busy) state <= ST_BANNER;
ST_BANNER:
if (can_print) begin
p_start <= 1;
p_msg <= MSG_BANNER;
state <= ST_PROMPT;
end
ST_PROMPT:
if (can_print) begin
p_start <= 1;
p_msg <= MSG_PROMPT;
state <= ST_WAIT;
end
ST_WAIT:
if (start_evt) begin
demo_i <= 0;
error_f <= 0;
pass_f <= 0;
dot_pending <= 0;
state <= ST_WR;
end
// ---- verbose demo: 4 writes, each printed ----
ST_WR:
if (can_op && can_print) begin
wr <= 1;
mem_addr <= demo_addr(demo_i);
mem_din <= demo_data(demo_i);
p_start <= 1;
p_msg <= MSG_WRITE;
p_addr <= demo_addr(demo_i);
p_data <= demo_data(demo_i);
state <= ST_WR_WAIT;
end
ST_WR_WAIT:
if (!wr && !busy) begin
if (demo_i == 2'd3) begin
demo_i <= 0;
state <= ST_RD;
end else begin
demo_i <= demo_i + 1;
state <= ST_WR;
end
end
// ---- verbose demo: 4 reads, each printed with OK/ERR ----
ST_RD:
if (can_op) begin
rd <= 1;
mem_addr <= demo_addr(demo_i);
state <= ST_RD_WAIT;
end
ST_RD_WAIT:
if (data_ready) begin
actual <= dout;
state <= ST_RD_PRINT;
end
ST_RD_PRINT:
if (can_print && !busy) begin
p_start <= 1;
p_addr <= demo_addr(demo_i);
p_data <= actual;
if (actual == demo_data(demo_i)) begin
p_msg <= MSG_READ_OK;
end else begin
p_msg <= MSG_READ_ERR;
error_f <= 1;
end
if (demo_i == 2'd3) begin
state <= (error_f || (actual != demo_data(demo_i))) ? ST_FAIL : ST_BLOCK_MSG;
end else begin
demo_i <= demo_i + 1;
state <= ST_RD;
end
end
// ---- block test: write BLOCK_SIZE bytes ----
ST_BLOCK_MSG:
if (can_print) begin
p_start <= 1;
p_msg <= MSG_BLOCK;
taddr <= 0;
state <= ST_BW;
end
ST_BW:
if (dot_pending) begin
if (can_print) begin
p_start <= 1;
p_msg <= MSG_DOT;
dot_pending <= 0;
end
end else if (taddr == BLOCK_SIZE) begin
taddr <= 0;
state <= ST_VER_MSG;
end else if (can_op) begin
wr <= 1;
mem_addr <= taddr[22:0];
mem_din <= pattern(taddr[22:0]);
state <= ST_BW_WAIT;
end
ST_BW_WAIT:
if (!wr && !busy) begin
taddr <= taddr + 1;
if (((taddr + 24'd1) & (DOT_STEP - 24'd1)) == 0) dot_pending <= 1;
state <= ST_BW;
end
// ---- block test: read back and verify ----
ST_VER_MSG:
if (can_print) begin
p_start <= 1;
p_msg <= MSG_VERIFY;
state <= ST_VR;
end
ST_VR:
if (dot_pending) begin
if (can_print) begin
p_start <= 1;
p_msg <= MSG_DOT;
dot_pending <= 0;
end
end else if (taddr == BLOCK_SIZE) begin
state <= ST_PASS;
end else if (can_op) begin
rd <= 1;
mem_addr <= taddr[22:0];
state <= ST_VR_WAIT;
end
ST_VR_WAIT:
if (data_ready) begin
if (dout != pattern(taddr[22:0])) begin
actual <= dout;
error_f <= 1;
state <= ST_ERR_PRINT;
end else begin
taddr <= taddr + 1;
if (((taddr + 24'd1) & (DOT_STEP - 24'd1)) == 0) dot_pending <= 1;
state <= ST_VR;
end
end
ST_ERR_PRINT:
if (can_print && !busy) begin
p_start <= 1;
p_msg <= MSG_READ_ERR;
p_addr <= taddr[22:0];
p_data <= actual;
state <= ST_FAIL;
end
// ---- result ----
ST_PASS:
if (can_print) begin
p_start <= 1;
p_msg <= MSG_PASS;
pass_f <= 1;
state <= ST_DONE;
end
ST_FAIL:
if (can_print) begin
p_start <= 1;
p_msg <= MSG_FAIL;
state <= ST_DONE;
end
ST_DONE:
if (start_evt && !p_busy) begin
state <= ST_BANNER;
end
default: state <= ST_RESET;
endcase
end
end
endmodule
