uart_tx

Source: Verilog/fpga/tang-nano-20k/sd-fat-test/src/uart_tx.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

Module hierarchy - All modules

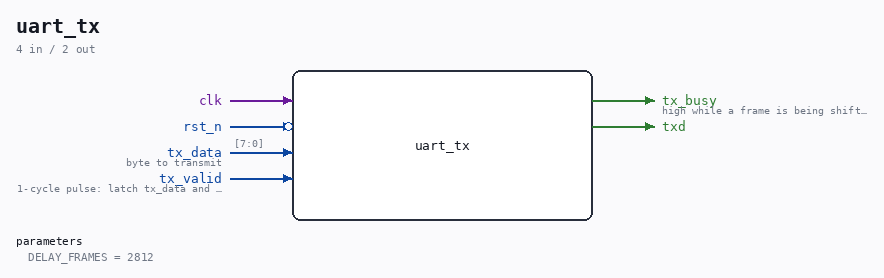

Schematic

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

UART transmitter (8N1) TX state machine borrowed from the ND-120 SC2661 EPCI model (Verilog/Shared/support/SC2661_UART.v), with the EPCI register interface stripped away. Same states, same bit timing. Last reviewed: 8-JUL-2026 Ronny Hansen

Parameters

Parameter	Default
DELAY_FRAMES	2812

Ports

Direction	Width	Name	Description
input	1	clk
input	1	rst_n (active low)
input	[7:0]	tx_data	byte to transmit
input	1	tx_valid	1-cycle pulse: latch tx_data and start (only when tx_busy=0)
output	1	tx_busy	high while a frame is being shifted out
output	1	txd

Verilog source

Verilog/fpga/tang-nano-20k/sd-fat-test/src/uart_tx.v on GitHub.

Show the Verilog of uart_tx (86 lines)

/****************************************************************************
** UART transmitter (8N1)                                                  **
**                                                                         **
** TX state machine borrowed from the ND-120 SC2661 EPCI model             **
** (Verilog/Shared/support/SC2661_UART.v), with the EPCI register          **
** interface stripped away. Same states, same bit timing.                  **
**                                                                         **
** Last reviewed: 8-JUL-2026                                               **
** Ronny Hansen                                                            **
*****************************************************************************/

module uart_tx #(
    // Clock cycles per bit. 27 MHz / 9600 baud = 2812 (-0.02% error)
    parameter DELAY_FRAMES = 2812
) (
    input clk,
    input rst_n,

    input [7:0] tx_data,   // byte to transmit
    input       tx_valid,  // 1-cycle pulse: latch tx_data and start (only when tx_busy=0)
    output      tx_busy,   // high while a frame is being shifted out

    output reg txd
);

  localparam TX_STATE_IDLE      = 3'b000;
  localparam TX_STATE_START_BIT = 3'b001;
  localparam TX_STATE_WRITE     = 3'b010;
  localparam TX_STATE_STOP_BIT  = 3'b011;

  reg [ 2:0] txState;
  reg [31:0] txCounter;
  reg [ 2:0] txBitNumber;
  reg [ 7:0] txShift;

  assign tx_busy = (txState != TX_STATE_IDLE);

  always @(posedge clk) begin
    if (!rst_n) begin
      txState     <= TX_STATE_IDLE;
      txd         <= 1'b1;  // line idles at MARK
      txCounter   <= 0;
      txBitNumber <= 0;
      txShift     <= 8'b0;
    end else begin
      case (txState)
        TX_STATE_IDLE: begin
          txd <= 1'b1;
          if (tx_valid) begin
            txShift   <= tx_data;
            txCounter <= 0;
            txState   <= TX_STATE_START_BIT;
          end
        end
        TX_STATE_START_BIT: begin
          txd <= 1'b0;
          if ((txCounter + 1) == DELAY_FRAMES) begin
            txState     <= TX_STATE_WRITE;
            txBitNumber <= 0;
            txCounter   <= 0;
          end else txCounter <= txCounter + 1;
        end
        TX_STATE_WRITE: begin
          txd <= txShift[txBitNumber];  // LSB first
          if ((txCounter + 1) == DELAY_FRAMES) begin
            if (txBitNumber == 3'b111) begin
              txState <= TX_STATE_STOP_BIT;
            end else begin
              txBitNumber <= txBitNumber + 1;
            end
            txCounter <= 0;
          end else txCounter <= txCounter + 1;
        end
        TX_STATE_STOP_BIT: begin
          txd <= 1'b1;
          if ((txCounter + 1) == DELAY_FRAMES) begin
            txState   <= TX_STATE_IDLE;
            txCounter <= 0;
          end else txCounter <= txCounter + 1;
        end
        default: txState <= TX_STATE_IDLE;
      endcase
    end
  end

endmodule
