nd_ddr2_arb¶
Source: Verilog/fpga/nexys4ddr/ddr2/nd_ddr2_arb.v
Where it sits (Nexys): nd120_nexys4ddr_top > nd_ddr2_arb
- instance path: u_arb
Used in: nd120_nexys4ddr_top (Nexys)
Contains: no other modules.
Module hierarchy - All modules

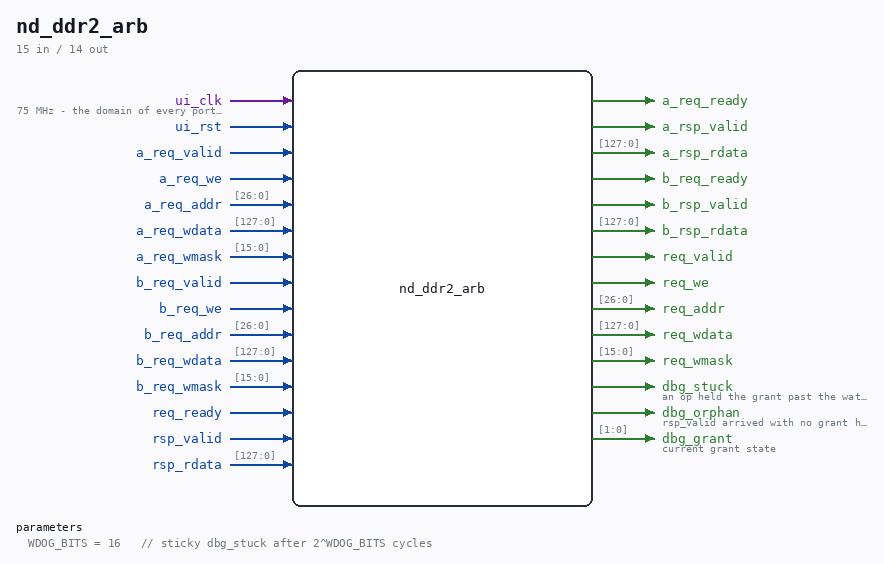

Schematic¶
Drawn from the Verilog: the yosys netlist of the Nexys 4 DDR build, instance u_arb. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
nd_ddr2_arb - two clients on one nd_ddr2_port Client A: ND-120 main memory (MEM_RAM_49_DDR2) - bottom 4 MiB region. Client B: nd_ddr2_storage - region at REGION_BASE_UNITS (64 MiB in). Regions never overlap, so the arbiter only serializes access, it never translates addresses. Everything is in the ui_clk domain. Each client already holds req_valid until req_ready and runs ONE operation at a time, so the arbiter is a plain two-way lock: grab the port for whichever client asks (ties alternate between the clients), hold it until that operation's rsp_valid, then free it. rsp_valid is steered back to the owning client only. Fairness: when BOTH clients ask in the same idle cycle, the grant goes to the one that did NOT run last, so a back-to-back stream from one client (every CPU write is a write-through) cannot starve the other. A lone requester is granted immediately either way. Watchdog: an operation holding the grant for 2^WDOG_BITS ui_clk cycles (default 2^16 = 874 us at 75 MHz, orders of magnitude past any MIG refresh/ZQ blackout) sets the sticky dbg_stuck flag. The grant is NOT released and no response is faked: a made-up completion handed to MEM_RAM_49_DDR2 mid-operation is the 25-AUG stale-word corruption class all over again. The flag turns a silent freeze into a diagnosable one. Orphan responses: rsp_valid with no grant held is steered to nobody by construction; sticky dbg_orphan records that it happened at all. Last reviewed: 25-AUG-2026 Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
WDOG_BITS |
16 // sticky dbg_stuck after 2^WDOG_BITS cycles |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
ui_clk |
75 MHz - the domain of every port signal below (from nd_ddr2_port.ui_clk) |
| input | 1 |
ui_rst |
|
| input | 1 |
a_req_valid |
|
| input | 1 |
a_req_we |
|
| input | [26:0] |
a_req_addr |
|
| input | [127:0] |
a_req_wdata |
|
| input | [15:0] |
a_req_wmask |
|
| output | 1 |
a_req_ready |
|
| output | 1 |
a_rsp_valid |
|
| output | [127:0] |
a_rsp_rdata |
|
| input | 1 |
b_req_valid |
|
| input | 1 |
b_req_we |
|
| input | [26:0] |
b_req_addr |
|
| input | [127:0] |
b_req_wdata |
|
| input | [15:0] |
b_req_wmask |
|
| output | 1 |
b_req_ready |
|
| output | 1 |
b_rsp_valid |
|
| output | [127:0] |
b_rsp_rdata |
|
| output | 1 |
req_valid |
|
| output | 1 |
req_we |
|
| output | [26:0] |
req_addr |
|
| output | [127:0] |
req_wdata |
|
| output | [15:0] |
req_wmask |
|
| input | 1 |
req_ready |
|
| input | 1 |
rsp_valid |
|
| input | [127:0] |
rsp_rdata |
|
| output | 1 |
dbg_stuck |
an op held the grant past the watchdog |
| output | 1 |
dbg_orphan |
rsp_valid arrived with no grant held |
| output | [1:0] |
dbg_grant |
current grant state |
Verilog source¶
Verilog/fpga/nexys4ddr/ddr2/nd_ddr2_arb.v on GitHub.
Show the Verilog of nd_ddr2_arb (150 lines)
/****************************************************************************
** nd_ddr2_arb - two clients on one nd_ddr2_port **
** **
** Client A: ND-120 main memory (MEM_RAM_49_DDR2) - bottom 4 MiB region. **
** Client B: nd_ddr2_storage - region at REGION_BASE_UNITS (64 MiB in). **
** Regions never overlap, so the arbiter only serializes access, it never **
** translates addresses. **
** **
** Everything is in the ui_clk domain. Each client already holds **
** req_valid until req_ready and runs ONE operation at a time, so the **
** arbiter is a plain two-way lock: grab the port for whichever client **
** asks (ties alternate between the clients), hold it until that **
** operation's rsp_valid, then free it. rsp_valid is steered back to the **
** owning client only. **
** **
** Fairness: when BOTH clients ask in the same idle cycle, the grant goes **
** to the one that did NOT run last, so a back-to-back stream from one **
** client (every CPU write is a write-through) cannot starve the other. **
** A lone requester is granted immediately either way. **
** **
** Watchdog: an operation holding the grant for 2^WDOG_BITS ui_clk cycles **
** (default 2^16 = 874 us at 75 MHz, orders of magnitude past any MIG **
** refresh/ZQ blackout) sets the sticky dbg_stuck flag. The grant is NOT **
** released and no response is faked: a made-up completion handed to **
** MEM_RAM_49_DDR2 mid-operation is the 25-AUG stale-word corruption **
** class all over again. The flag turns a silent freeze into a **
** diagnosable one. **
** **
** Orphan responses: rsp_valid with no grant held is steered to nobody by **
** construction; sticky dbg_orphan records that it happened at all. **
** **
** Last reviewed: 25-AUG-2026 **
** Ronny Hansen **
*****************************************************************************/
`default_nettype none
module nd_ddr2_arb #(
parameter WDOG_BITS = 16 // sticky dbg_stuck after 2^WDOG_BITS cycles
) (
input wire ui_clk, //! 75 MHz - the domain of every port signal below (from nd_ddr2_port.ui_clk)
input wire ui_rst,
// client A: main memory
input wire a_req_valid,
input wire a_req_we,
input wire [ 26:0] a_req_addr,
input wire [127:0] a_req_wdata,
input wire [ 15:0] a_req_wmask,
output wire a_req_ready,
output wire a_rsp_valid,
output wire [127:0] a_rsp_rdata,
// client B: storage region
input wire b_req_valid,
input wire b_req_we,
input wire [ 26:0] b_req_addr,
input wire [127:0] b_req_wdata,
input wire [ 15:0] b_req_wmask,
output wire b_req_ready,
output wire b_rsp_valid,
output wire [127:0] b_rsp_rdata,
// downstream: nd_ddr2_port
output wire req_valid,
output wire req_we,
output wire [ 26:0] req_addr,
output wire [127:0] req_wdata,
output wire [ 15:0] req_wmask,
input wire req_ready,
input wire rsp_valid,
input wire [127:0] rsp_rdata,
// debug/health (sticky until ui_rst; for ILA probes or an LED)
output reg dbg_stuck, // an op held the grant past the watchdog
output reg dbg_orphan, // rsp_valid arrived with no grant held
output wire [ 1:0] dbg_grant // current grant state
);
localparam G_IDLE = 2'd0;
localparam G_A = 2'd1;
localparam G_B = 2'd2;
reg [1:0] grant;
reg last_was_a; // fairness: a tie goes to the other one
reg [WDOG_BITS-1:0] wdog;
assign dbg_grant = grant;
always @(posedge ui_clk) begin
if (ui_rst) begin
grant <= G_IDLE;
last_was_a <= 1'b0;
wdog <= {WDOG_BITS{1'b0}};
dbg_stuck <= 1'b0;
dbg_orphan <= 1'b0;
end else begin
case (grant)
G_IDLE: begin
wdog <= {WDOG_BITS{1'b0}};
if (a_req_valid && b_req_valid) begin
// both waiting: whoever did NOT run last goes first
if (last_was_a) grant <= G_B;
else grant <= G_A;
end else if (a_req_valid) grant <= G_A;
else if (b_req_valid) grant <= G_B;
// a response with no owner would be steered to nobody - record it
if (rsp_valid) dbg_orphan <= 1'b1;
end
// hold the port until the owning operation completes
G_A:
if (rsp_valid) begin
grant <= G_IDLE;
last_was_a <= 1'b1;
end else begin
wdog <= wdog + 1'b1;
if (&wdog) dbg_stuck <= 1'b1;
end
G_B:
if (rsp_valid) begin
grant <= G_IDLE;
last_was_a <= 1'b0;
end else begin
wdog <= wdog + 1'b1;
if (&wdog) dbg_stuck <= 1'b1;
end
default: grant <= G_IDLE;
endcase
end
end
wire sel_a = (grant == G_A);
wire sel_b = (grant == G_B);
assign req_valid = (sel_a & a_req_valid) | (sel_b & b_req_valid);
assign req_we = sel_a ? a_req_we : b_req_we;
assign req_addr = sel_a ? a_req_addr : b_req_addr;
assign req_wdata = sel_a ? a_req_wdata : b_req_wdata;
assign req_wmask = sel_a ? a_req_wmask : b_req_wmask;
assign a_req_ready = sel_a & req_ready;
assign b_req_ready = sel_b & req_ready;
assign a_rsp_valid = sel_a & rsp_valid;
assign b_rsp_valid = sel_b & rsp_valid;
assign a_rsp_rdata = rsp_rdata;
assign b_rsp_rdata = rsp_rdata;
endmodule
`default_nettype wire
