SevenSegDebug8

Source: Verilog/fpga/nexys4ddr/SevenSegDebug8.v

Where it sits (Nexys): nd120_nexys4ddr_top > SevenSegDebug8 - instance path: SEVEN_SEG

Used in: nd120_nexys4ddr_top (Nexys)

Contains: no other modules.

Module hierarchy - All modules

Schematic

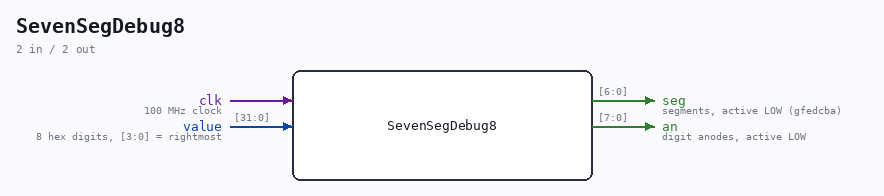

Drawn from the Verilog: the yosys netlist of the Nexys 4 DDR build, instance SEVEN_SEG. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

8-digit 7-segment multiplexer for the Nexys 4 DDR Same segment decode and refresh scheme as Shared/support/ SevenSegDebug.v (the Basys3 4-digit version), widened to the Nexys' 8 digits: value[31:0] shown in hex, digit 0 (value[3:0]) rightmost. Segments and anodes are active LOW. Last reviewed: 25-AUG-2026 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	clk	100 MHz clock
input	[31:0]	value	8 hex digits, [3:0] = rightmost
output	[6:0]	seg	segments, active LOW (gfedcba)
output	[7:0]	an	digit anodes, active LOW

Verilog source

Verilog/fpga/nexys4ddr/SevenSegDebug8.v on GitHub.

Show the Verilog of SevenSegDebug8 (60 lines)

/**************************************************************************
** 8-digit 7-segment multiplexer for the Nexys 4 DDR                     **
**                                                                       **
** Same segment decode and refresh scheme as Shared/support/             **
** SevenSegDebug.v (the Basys3 4-digit version), widened to the Nexys'   **
** 8 digits: value[31:0] shown in hex, digit 0 (value[3:0]) rightmost.   **
** Segments and anodes are active LOW.                                   **
**                                                                       **
** Last reviewed: 25-AUG-2026                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module SevenSegDebug8 (
    input wire clk,             // 100 MHz clock
    input wire [31:0] value,    // 8 hex digits, [3:0] = rightmost

    output reg [6:0] seg,       // segments, active LOW (gfedcba)
    output reg [7:0] an         // digit anodes, active LOW
);

  // 100 MHz / 2^14 = ~6.1 kHz digit steps, ~763 Hz full 8-digit sweep
  reg [16:0] refresh_counter = 0;
  wire [2:0] digit_select;

  always @(posedge clk)
    refresh_counter <= refresh_counter + 1;

  assign digit_select = refresh_counter[16:14];

  reg [3:0] hex_digit;

  always @(*) begin
    an = 8'b11111111;
    an[digit_select] = 1'b0;
    hex_digit = value[4*digit_select +: 4];
  end

  // Hex to 7-segment decoder (active LOW: 0=ON), same table as the 4-digit
  always @(*) begin
    case (hex_digit)
      4'h0: seg = 7'b1000000;
      4'h1: seg = 7'b1111001;
      4'h2: seg = 7'b0100100;
      4'h3: seg = 7'b0110000;
      4'h4: seg = 7'b0011001;
      4'h5: seg = 7'b0010010;
      4'h6: seg = 7'b0000010;
      4'h7: seg = 7'b1111000;
      4'h8: seg = 7'b0000000;
      4'h9: seg = 7'b0010000;
      4'hA: seg = 7'b0001000;
      4'hB: seg = 7'b0000011;
      4'hC: seg = 7'b1000110;
      4'hD: seg = 7'b0100001;
      4'hE: seg = 7'b0000110;
      4'hF: seg = 7'b0001110;
    endcase
  end

endmodule
