floppy_seam_top¶
Source: Verilog/fpga/nexys4ddr/floppy-seam-test/floppy_seam_top.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules

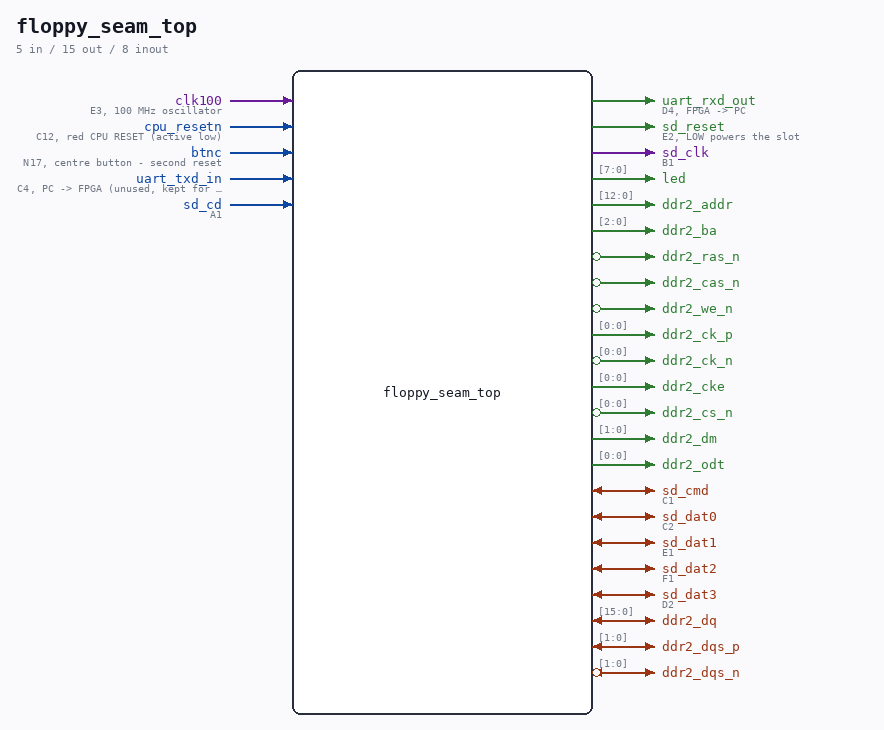

Schematic¶
Schematic not generated: netlistsvg failed: RangeError: Maximum call stack size exceeded.
Description¶
floppy_seam_top - autonomous silicon probe for the Nexys 4 DDR floppy seam fault (see ../HANDOFF-floppy-dma-investigation.md, retired - git c4896a4). WHAT IT IS: the EXACT storage configuration of the ND-120 top (nd120_nexys4ddr_top.v) - nd_storage at the same parameters, the same MMCM clocks (clk_cpu 12.5 MHz, clk_stor 27.027 MHz, DDR2 ui 75 MHz), the same nd_ddr2_storage/nd_ddr2_port region, the real SD card - but with the CPU replaced by a reporter FSM that owns the UART (9600 8N1) and prints, in an endless ~2 s loop: S=s O=hh E=hh Z0=xxxxxxxx Z1=xxxxxxxx Z6=xxxxxxxx R0=ec wwww wwww (FDISK read sector 0, fmt 3, 512 words: R1=ec wwww wwww e=err flag, c=err code, then device-buffer R2=ec wwww wwww words 0 and 1) R3=ec wwww wwww so the open question "does the clk_cpu side see size_bytes = 0 for the floppy client, and why is a sector-0 read answered RANGE" is measured with no buttons, switches or eyes - build, JTAG-program, read the UART. The floppy path uses the REAL nd_storage_floppy_adapter on client 1, driven exactly like ND_FLOPPY_DMA drives it. Clients 0 (BOOT.TAP) and 6 (WD0.IMG) are opened the same way the devices wrapper opens them, so the mount sequence matches the ND-120 build. Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk100 |
E3, 100 MHz oscillator |
| input | 1 |
cpu_resetn |
C12, red CPU RESET (active low) |
| input | 1 |
btnc |
N17, centre button - second reset |
| input | 1 |
uart_txd_in |
C4, PC -> FPGA (unused, kept for the pinout) |
| output | 1 |
uart_rxd_out |
D4, FPGA -> PC |
| output | 1 |
sd_reset |
E2, LOW powers the slot |
| input | 1 |
sd_cd |
A1 |
| output | 1 |
sd_clk |
B1 |
| inout | 1 |
sd_cmd |
C1 |
| inout | 1 |
sd_dat0 |
C2 |
| inout | 1 |
sd_dat1 |
E1 |
| inout | 1 |
sd_dat2 |
F1 |
| inout | 1 |
sd_dat3 |
D2 |
| output | [7:0] |
led |
|
| inout | [15:0] |
ddr2_dq |
|
| inout | [1:0] |
ddr2_dqs_p |
|
| inout | [1:0] |
ddr2_dqs_n (active low) |
|
| output | [12:0] |
ddr2_addr |
|
| output | [2:0] |
ddr2_ba |
|
| output | 1 |
ddr2_ras_n (active low) |
|
| output | 1 |
ddr2_cas_n (active low) |
|
| output | 1 |
ddr2_we_n (active low) |
|
| output | [0:0] |
ddr2_ck_p |
|
| output | [0:0] |
ddr2_ck_n (active low) |
|
| output | [0:0] |
ddr2_cke |
|
| output | [0:0] |
ddr2_cs_n (active low) |
|
| output | [1:0] |
ddr2_dm |
|
| output | [0:0] |
ddr2_odt |
Verilog source¶
Verilog/fpga/nexys4ddr/floppy-seam-test/floppy_seam_top.v on GitHub.
Show the Verilog of floppy_seam_top (528 lines)
/****************************************************************************
** floppy_seam_top - autonomous silicon probe for the Nexys 4 DDR floppy **
** seam fault (see ../HANDOFF-floppy-dma-investigation.md, retired - **
** git c4896a4). **
** **
** WHAT IT IS: the EXACT storage configuration of the ND-120 top **
** (nd120_nexys4ddr_top.v) - nd_storage at the same parameters, the same **
** MMCM clocks (clk_cpu 12.5 MHz, clk_stor 27.027 MHz, DDR2 ui 75 MHz), **
** the same nd_ddr2_storage/nd_ddr2_port region, the real SD card - but **
** with the CPU replaced by a reporter FSM that owns the UART (9600 8N1) **
** and prints, in an endless ~2 s loop: **
** **
** S=s O=hh E=hh Z0=xxxxxxxx Z1=xxxxxxxx Z6=xxxxxxxx **
** R0=ec wwww wwww (FDISK read sector 0, fmt 3, 512 words: **
** R1=ec wwww wwww e=err flag, c=err code, then device-buffer **
** R2=ec wwww wwww words 0 and 1) **
** R3=ec wwww wwww **
** **
** so the open question "does the clk_cpu side see size_bytes = 0 for the **
** floppy client, and why is a sector-0 read answered RANGE" is measured **
** with no buttons, switches or eyes - build, JTAG-program, read the UART. **
** **
** The floppy path uses the REAL nd_storage_floppy_adapter on client 1, **
** driven exactly like ND_FLOPPY_DMA drives it. Clients 0 (BOOT.TAP) and **
** 6 (WD0.IMG) are opened the same way the devices wrapper opens them, so **
** the mount sequence matches the ND-120 build. **
** **
** Ronny Hansen **
*****************************************************************************/
`default_nettype none
module floppy_seam_top (
input wire clk100, // E3, 100 MHz oscillator
input wire cpu_resetn, // C12, red CPU RESET (active low)
input wire btnc, // N17, centre button - second reset
input wire uart_txd_in, // C4, PC -> FPGA (unused, kept for the pinout)
output wire uart_rxd_out, // D4, FPGA -> PC
output wire sd_reset, // E2, LOW powers the slot
input wire sd_cd, // A1
output wire sd_clk, // B1
inout wire sd_cmd, // C1
inout wire sd_dat0, // C2
inout wire sd_dat1, // E1
inout wire sd_dat2, // F1
inout wire sd_dat3, // D2
output wire [7:0] led,
inout wire [15:0] ddr2_dq,
inout wire [ 1:0] ddr2_dqs_p,
inout wire [ 1:0] ddr2_dqs_n,
output wire [12:0] ddr2_addr,
output wire [ 2:0] ddr2_ba,
output wire ddr2_ras_n,
output wire ddr2_cas_n,
output wire ddr2_we_n,
output wire [ 0:0] ddr2_ck_p,
output wire [ 0:0] ddr2_ck_n,
output wire [ 0:0] ddr2_cke,
output wire [ 0:0] ddr2_cs_n,
output wire [ 1:0] ddr2_dm,
output wire [ 0:0] ddr2_odt
);
/*********************************************
* Clocks - same values as the ND-120 build *
* (build.tcl clk=12: MMCM VCO 1000 MHz) *
**********************************************/
`ifndef SEAM_CPU_DIV
`define SEAM_CPU_DIV 80.0
`endif
wire clk_cpu_pre, clk_stor_pre, clk200_pre, clkfb_out, clkfb_in, mmcm_locked;
wire clk_cpu, clk_stor, clk200;
MMCME2_BASE #(
.BANDWIDTH ("OPTIMIZED"),
.CLKFBOUT_MULT_F (10.0), // 100 MHz x10 = 1000 MHz VCO
.CLKIN1_PERIOD (10.0),
.CLKOUT0_DIVIDE_F(`SEAM_CPU_DIV), // 1000/80 = 12.5 MHz (ND-120 clk=12)
.CLKOUT1_DIVIDE (37), // 27.027 MHz - SD/FAT stack
.CLKOUT2_DIVIDE (5), // 200 MHz - DDR2 controller
.DIVCLK_DIVIDE (1)
) mmcm (
.CLKIN1 (clk100),
.CLKFBIN (clkfb_in),
.CLKFBOUT(clkfb_out),
.CLKOUT0 (clk_cpu_pre),
.CLKOUT1 (clk_stor_pre),
.CLKOUT2 (clk200_pre),
.LOCKED (mmcm_locked),
.PWRDWN (1'b0),
.RST (1'b0),
.CLKOUT0B(), .CLKOUT1B(), .CLKOUT2B(), .CLKOUT3(), .CLKOUT3B(),
.CLKOUT4(), .CLKOUT5(), .CLKOUT6(), .CLKFBOUTB()
);
BUFG bufg_fb (.I(clkfb_out), .O(clkfb_in));
BUFG bufg_cpu (.I(clk_cpu_pre), .O(clk_cpu));
BUFG bufg_st (.I(clk_stor_pre), .O(clk_stor));
BUFG bufg_200 (.I(clk200_pre), .O(clk200));
wire rst_req_n = cpu_resetn & ~btnc & mmcm_locked;
reg [3:0] rst_cpu_sh = 4'd0;
always @(posedge clk_cpu)
if (!rst_req_n) rst_cpu_sh <= 4'd0;
else rst_cpu_sh <= {rst_cpu_sh[2:0], 1'b1};
wire rst_cpu_n = rst_cpu_sh[3];
reg [3:0] rst_st_sh = 4'd0;
always @(posedge clk_stor)
if (!rst_req_n) rst_st_sh <= 4'd0;
else rst_st_sh <= {rst_st_sh[2:0], 1'b1};
wire rst_stor_n = rst_st_sh[3];
/*********************************************
* SD pads - same tristate rule as the top *
**********************************************/
assign sd_reset = 1'b0;
wire s_sd_clk_o, s_sd_cmd_o, s_sd_cmd_oe, s_sd_dat0_o, s_sd_dat0_oe;
assign sd_clk = s_sd_clk_o;
assign sd_cmd = s_sd_cmd_oe ? s_sd_cmd_o : 1'bz;
assign sd_dat0 = s_sd_dat0_oe ? s_sd_dat0_o : 1'bz;
assign sd_dat1 = 1'bz;
assign sd_dat2 = 1'bz;
assign sd_dat3 = 1'bz;
/*********************************************
* DDR2 region - identical to the ND-120 top *
**********************************************/
wire mem_start, mem_we, mem_busy, mem_done;
wire [19:0] mem_addr;
wire [31:0] mem_wdata, mem_rdata;
wire ui_clk, ui_rst, calib_done;
wire req_valid, req_we, req_ready, rsp_valid;
wire [ 26:0] req_addr;
wire [127:0] req_wdata, rsp_rdata;
wire [ 15:0] req_wmask;
nd_ddr2_storage u_region (
.stor_clk(clk_stor), .stor_rst_n(rst_stor_n),
.mem_start(mem_start), .mem_we(mem_we), .mem_addr(mem_addr),
.mem_wdata(mem_wdata), .mem_rdata(mem_rdata),
.mem_busy(mem_busy), .mem_done(mem_done),
.ui_clk(ui_clk), .ui_rst(ui_rst),
.req_valid(req_valid), .req_we(req_we), .req_addr(req_addr),
.req_wdata(req_wdata), .req_wmask(req_wmask), .req_ready(req_ready),
.rsp_valid(rsp_valid), .rsp_rdata(rsp_rdata)
);
nd_ddr2_port u_ddr2 (
.sys_clk_200(clk200), .rst_n(rst_req_n),
.ui_clk(ui_clk), .ui_rst(ui_rst), .calib_done(calib_done),
.req_valid(req_valid), .req_we(req_we), .req_addr(req_addr),
.req_wdata(req_wdata), .req_wmask(req_wmask), .req_ready(req_ready),
.rsp_valid(rsp_valid), .rsp_rdata(rsp_rdata),
.ddr2_dq(ddr2_dq), .ddr2_dqs_p(ddr2_dqs_p), .ddr2_dqs_n(ddr2_dqs_n),
.ddr2_addr(ddr2_addr), .ddr2_ba(ddr2_ba), .ddr2_ras_n(ddr2_ras_n),
.ddr2_cas_n(ddr2_cas_n), .ddr2_we_n(ddr2_we_n),
.ddr2_ck_p(ddr2_ck_p), .ddr2_ck_n(ddr2_ck_n), .ddr2_cke(ddr2_cke),
.ddr2_cs_n(ddr2_cs_n), .ddr2_dm(ddr2_dm), .ddr2_odt(ddr2_odt)
);
/*********************************************
* nd_storage - same parameters the ND-120 *
* build resolves to (wrapper INCLUDE_TAPE/ *
* FLOPPY/WD => CACHE_MASK 11000000, *
* FILE0 = BOOT.TAP) *
**********************************************/
localparam N = 8;
wire [N-1:0] open_req_w, open_ok_w, open_err_w, req_w, wr_w;
wire [N-1:0] busy_w, done_w, err_w, buf_we_w;
wire [N*4-1:0] err_code_w;
wire [N*32-1:0] size_bytes_w;
wire [N*16-1:0] block_w, buf_wdata_w, buf_rdata_w;
wire [N*10-1:0] buf_addr_w;
wire [1:0] sd_status;
nd_storage #(
.SIMULATE (0),
.CACHE_MASK (8'b11000000),
.FILE0_NAME ("BOOT.TAP"), .FILE0_LEN(8'd8)
) u_nd_storage (
.clk_stor (clk_stor),
.rst_stor_n(rst_stor_n),
.clk_cpu (clk_cpu),
.rst_cpu_n (rst_cpu_n),
.sd_clk_o (s_sd_clk_o),
.sd_cmd_i (sd_cmd),
.sd_cmd_o (s_sd_cmd_o),
.sd_cmd_oe (s_sd_cmd_oe),
.sd_dat0_i (sd_dat0),
.sd_dat0_o (s_sd_dat0_o),
.sd_dat0_oe(s_sd_dat0_oe),
.mem_start (mem_start),
.mem_we (mem_we),
.mem_addr (mem_addr),
.mem_wdata (mem_wdata),
.mem_rdata (mem_rdata),
.mem_busy (mem_busy),
.mem_done (mem_done),
.open_req (open_req_w),
.open_ok (open_ok_w),
.open_err (open_err_w),
.size_bytes(size_bytes_w),
.req (req_w),
.wr (wr_w),
.block (block_w),
.busy (busy_w),
.done (done_w),
.err (err_w),
.err_code (err_code_w),
.dbg_state(), .dbg_lba(), .dbg_wdata(), .dbg_rdata(), .dbg_bufw(),
.dbg_bufwe(), .dbg_fsec(), .dbg_rx_stb(), .dbg_rx_raw(),
.dbg_rx_byte(), .dbg_past_eof(), .dbg_grant(),
.buf_addr (buf_addr_w),
.buf_wdata (buf_wdata_w),
.buf_we (buf_we_w),
.buf_rdata (buf_rdata_w),
.sd_status (sd_status),
.card_type (),
.fs_type ()
);
// Client 1 = the real floppy adapter (driven by the FSM below).
reg fd_req = 1'b0, fd_wr = 1'b0;
reg [15:0] fd_lsect = 16'd0;
reg [ 1:0] fd_format = 2'd3;
reg [10:0] fd_wc = 11'd512;
wire fd_done, fd_err;
wire [3:0] fd_code;
wire [9:0] fdb_addr;
wire [15:0] fdb_wdata;
wire fdb_we;
wire f_open_req, f_req, f_wr;
wire [15:0] f_block, f_buf_rdata;
// held open, exactly like the devices wrapper (gen_floppy)
reg s_fopened = 1'b0;
always @(posedge clk_cpu or negedge rst_cpu_n)
if (!rst_cpu_n) s_fopened <= 1'b0;
else if (open_ok_w[1]) s_fopened <= 1'b1;
wire s_fopen_pulse = !s_fopened;
nd_storage_floppy_adapter #(.DRIVE(2'd0)) u_floppy_adapter (
.clk_cpu (clk_cpu),
.rst_n (rst_cpu_n),
.disk_req (fd_req),
.disk_wr (fd_wr),
.disk_lsect (fd_lsect),
.disk_format (fd_format),
.disk_drive (2'd0),
.disk_wordcount(fd_wc),
.disk_done (fd_done),
.disk_err (fd_err),
.disk_err_code (fd_code),
.dbuf_addr (fdb_addr),
.dbuf_wdata (fdb_wdata),
.dbuf_we (fdb_we),
.dbuf_rdata (16'd0),
.open_start (s_fopen_pulse),
.c_open_req (f_open_req),
.c_open_ok (open_ok_w[1]),
.c_open_err (open_err_w[1]),
.c_size_bytes (size_bytes_w[63:32]),
.c_req (f_req),
.c_wr (f_wr),
.c_block (f_block),
.c_busy (busy_w[1]),
.c_done (done_w[1]),
.c_err (err_w[1]),
.c_err_code (err_code_w[7:4]),
.c_buf_addr (buf_addr_w[19:10]),
.c_buf_wdata (buf_wdata_w[31:16]),
.c_buf_we (buf_we_w[1]),
.c_buf_rdata (f_buf_rdata)
);
// Clients 0 (tape) and 6 (WD): held opens like the wrapper's sequencers.
reg s_topened = 1'b0, s_wopened = 1'b0;
always @(posedge clk_cpu or negedge rst_cpu_n)
if (!rst_cpu_n) begin s_topened <= 1'b0; s_wopened <= 1'b0; end
else begin
if (open_ok_w[0]) s_topened <= 1'b1;
if (open_ok_w[6]) s_wopened <= 1'b1;
end
assign open_req_w = {1'b0, !s_wopened, 4'b0000, f_open_req, !s_topened};
assign req_w = {6'b0, f_req, 1'b0};
assign wr_w = {6'b0, f_wr, 1'b0};
assign block_w = {96'd0, f_block, 16'd0};
assign buf_rdata_w= {96'd0, f_buf_rdata, 16'd0};
// Device sector buffer (stands in for ND_FLOPPY_DMA's 1024x16 buffer):
// captures the adapter's dbuf writes; words 0 and 1 are printed.
reg [15:0] devbuf0 = 16'd0, devbuf1 = 16'd0;
always @(posedge clk_cpu) begin
if (fdb_we && fdb_addr == 10'd0) devbuf0 <= fdb_wdata;
if (fdb_we && fdb_addr == 10'd1) devbuf1 <= fdb_wdata;
end
/*********************************************
* UART reporter, 9600 8N1 on clk_cpu *
**********************************************/
localparam integer CPU_HZ = 12_500_000;
wire tx_busy;
reg [7:0] tx_data = 8'd0;
reg tx_valid = 1'b0;
uart_tx #(.DELAY_FRAMES(CPU_HZ / 9600)) u_tx (
.clk(clk_cpu), .rst_n(rst_cpu_n),
.tx_data(tx_data), .tx_valid(tx_valid), .tx_busy(tx_busy),
.txd(uart_rxd_out)
);
function [7:0] hx(input [3:0] n);
hx = (n < 4'd10) ? (8'h30 + {4'd0, n}) : (8'h41 + {4'd0, n} - 8'd10);
endfunction
// latched values for one report round
reg [1:0] v_st;
reg [7:0] v_ok, v_er;
reg [31:0] v_z0, v_z1, v_z6;
reg v_rderr;
reg [3:0] v_rdcode;
reg [15:0] v_w0, v_w1;
reg [1:0] v_sect;
// status line: S=s O=hh E=hh Z0=xxxxxxxx Z1=xxxxxxxx Z6=xxxxxxxx\r\n
function [7:0] stat_char(input [5:0] i);
case (i)
6'd0: stat_char = "S"; 6'd1: stat_char = "=";
6'd2: stat_char = hx({2'b0, v_st});
6'd3: stat_char = " "; 6'd4: stat_char = "O"; 6'd5: stat_char = "=";
6'd6: stat_char = hx(v_ok[7:4]); 6'd7: stat_char = hx(v_ok[3:0]);
6'd8: stat_char = " "; 6'd9: stat_char = "E"; 6'd10: stat_char = "=";
6'd11: stat_char = hx(v_er[7:4]); 6'd12: stat_char = hx(v_er[3:0]);
6'd13: stat_char = " "; 6'd14: stat_char = "Z"; 6'd15: stat_char = "0";
6'd16: stat_char = "=";
6'd17: stat_char = hx(v_z0[31:28]); 6'd18: stat_char = hx(v_z0[27:24]);
6'd19: stat_char = hx(v_z0[23:20]); 6'd20: stat_char = hx(v_z0[19:16]);
6'd21: stat_char = hx(v_z0[15:12]); 6'd22: stat_char = hx(v_z0[11:8]);
6'd23: stat_char = hx(v_z0[7:4]); 6'd24: stat_char = hx(v_z0[3:0]);
6'd25: stat_char = " "; 6'd26: stat_char = "Z"; 6'd27: stat_char = "1";
6'd28: stat_char = "=";
6'd29: stat_char = hx(v_z1[31:28]); 6'd30: stat_char = hx(v_z1[27:24]);
6'd31: stat_char = hx(v_z1[23:20]); 6'd32: stat_char = hx(v_z1[19:16]);
6'd33: stat_char = hx(v_z1[15:12]); 6'd34: stat_char = hx(v_z1[11:8]);
6'd35: stat_char = hx(v_z1[7:4]); 6'd36: stat_char = hx(v_z1[3:0]);
6'd37: stat_char = " "; 6'd38: stat_char = "Z"; 6'd39: stat_char = "6";
6'd40: stat_char = "=";
6'd41: stat_char = hx(v_z6[31:28]); 6'd42: stat_char = hx(v_z6[27:24]);
6'd43: stat_char = hx(v_z6[23:20]); 6'd44: stat_char = hx(v_z6[19:16]);
6'd45: stat_char = hx(v_z6[15:12]); 6'd46: stat_char = hx(v_z6[11:8]);
6'd47: stat_char = hx(v_z6[7:4]); 6'd48: stat_char = hx(v_z6[3:0]);
6'd49: stat_char = 8'h0D;
default: stat_char = 8'h0A;
endcase
endfunction
localparam [5:0] STAT_LAST = 6'd50;
// read line: Rn=ec wwww wwww\r\n
function [7:0] rd_char(input [4:0] i);
case (i)
5'd0: rd_char = "R";
5'd1: rd_char = hx({2'b0, v_sect});
5'd2: rd_char = "=";
5'd3: rd_char = v_rderr ? "1" : "0";
5'd4: rd_char = hx(v_rdcode);
5'd5: rd_char = " ";
5'd6: rd_char = hx(v_w0[15:12]); 5'd7: rd_char = hx(v_w0[11:8]);
5'd8: rd_char = hx(v_w0[7:4]); 5'd9: rd_char = hx(v_w0[3:0]);
5'd10: rd_char = " ";
5'd11: rd_char = hx(v_w1[15:12]); 5'd12: rd_char = hx(v_w1[11:8]);
5'd13: rd_char = hx(v_w1[7:4]); 5'd14: rd_char = hx(v_w1[3:0]);
5'd15: rd_char = 8'h0D;
default: rd_char = 8'h0A;
endcase
endfunction
localparam [4:0] RD_LAST = 5'd16;
localparam P_WAIT = 3'd0; // post-reset settle (mounts run meanwhile)
localparam P_STATL = 3'd1; // latch + print the status line
localparam P_RDGO = 3'd2; // pulse one FDISK read
localparam P_RDWAIT = 3'd3; // wait for done (or timeout)
localparam P_RDPR = 3'd4; // print the read line
localparam P_GAP = 3'd5; // ~2 s pause, then loop
reg [2:0] ph = P_WAIT;
reg [27:0] delay = 28'd0;
reg [5:0] ci = 6'd0;
reg sent = 1'b0; // one char handed to the uart, awaiting !busy
always @(posedge clk_cpu) begin
if (!rst_cpu_n) begin
ph <= P_WAIT; delay <= 28'd0; ci <= 6'd0; sent <= 1'b0;
fd_req <= 1'b0; tx_valid <= 1'b0;
v_sect <= 2'd0;
end else begin
tx_valid <= 1'b0;
fd_req <= 1'b0;
case (ph)
P_WAIT: begin
delay <= delay + 28'd1;
if (delay == 28'd62_500_000) begin // 5 s: mounts done
delay <= 28'd0;
ph <= P_STATL;
ci <= 6'd0;
end
end
P_STATL: begin
if (ci == 6'd0 && !sent) begin
v_st <= sd_status;
v_ok <= open_ok_w;
v_er <= open_err_w;
v_z0 <= size_bytes_w[31:0];
v_z1 <= size_bytes_w[63:32];
v_z6 <= size_bytes_w[223:192];
end
if (!sent && !tx_busy) begin
tx_data <= stat_char(ci);
tx_valid <= 1'b1;
sent <= 1'b1;
end else if (sent && tx_busy) begin
sent <= 1'b0; // uart took it; wait for the frame
end else if (!sent && tx_busy) begin
// frame in flight - wait
end
if (sent && tx_busy) begin
if (ci == STAT_LAST) begin
ci <= 6'd0;
v_sect <= 2'd0;
ph <= P_RDGO;
end else ci <= ci + 6'd1;
end
end
P_RDGO: begin
fd_lsect <= {14'd0, v_sect};
fd_format <= 2'd3;
fd_wc <= 11'd512;
fd_wr <= 1'b0;
fd_req <= 1'b1;
delay <= 28'd0;
ph <= P_RDWAIT;
end
P_RDWAIT: begin
delay <= delay + 28'd1;
if (fd_done) begin
v_rderr <= fd_err;
v_rdcode <= fd_code;
v_w0 <= devbuf0;
v_w1 <= devbuf1;
ci <= 6'd0;
ph <= P_RDPR;
end else if (delay == 28'd150_000_000) begin // 12 s: wedge marker
v_rderr <= 1'b1;
v_rdcode <= 4'hF; // F = never completed
v_w0 <= 16'hDEAD;
v_w1 <= 16'hDEAD;
ci <= 6'd0;
ph <= P_RDPR;
end
end
P_RDPR: begin
if (!sent && !tx_busy) begin
tx_data <= rd_char(ci[4:0]);
tx_valid <= 1'b1;
sent <= 1'b1;
end else if (sent && tx_busy) begin
sent <= 1'b0;
end
if (sent && tx_busy) begin
if (ci[4:0] == RD_LAST) begin
ci <= 6'd0;
if (v_sect == 2'd3) begin
delay <= 28'd0;
ph <= P_GAP;
end else begin
v_sect <= v_sect + 2'd1;
ph <= P_RDGO;
end
end else ci <= ci + 6'd1;
end
end
P_GAP: begin
delay <= delay + 28'd1;
if (delay == 28'd25_000_000) begin // 2 s
delay <= 28'd0;
ci <= 6'd0;
ph <= P_STATL;
end
end
default: ph <= P_WAIT;
endcase
end
end
assign led[0] = mmcm_locked;
assign led[1] = calib_done;
assign led[2] = sd_status[0];
assign led[3] = open_ok_w[0];
assign led[4] = open_ok_w[1];
assign led[5] = open_ok_w[6];
assign led[6] = |open_err_w;
assign led[7] = sd_cd;
/* verilator lint_off UNUSEDSIGNAL */
wire _unused = &{1'b0, uart_txd_in, sd_dat1, sd_dat2, sd_dat3,
busy_w, done_w[0], done_w[7:2], err_w[0], err_w[7:2],
err_code_w[3:0], err_code_w[31:8], size_bytes_w,
block_w, buf_addr_w, buf_wdata_w, buf_we_w, fdb_addr,
fdb_wdata, fdb_we, open_ok_w, open_err_w, ui_rst, 1'b0};
/* verilator lint_on UNUSEDSIGNAL */
endmodule
`default_nettype wire
