nd120_errfa_wdiox_ring¶
Source: Verilog/fpga/nexys4ddr/nd120_errfa_wdiox_ring.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules

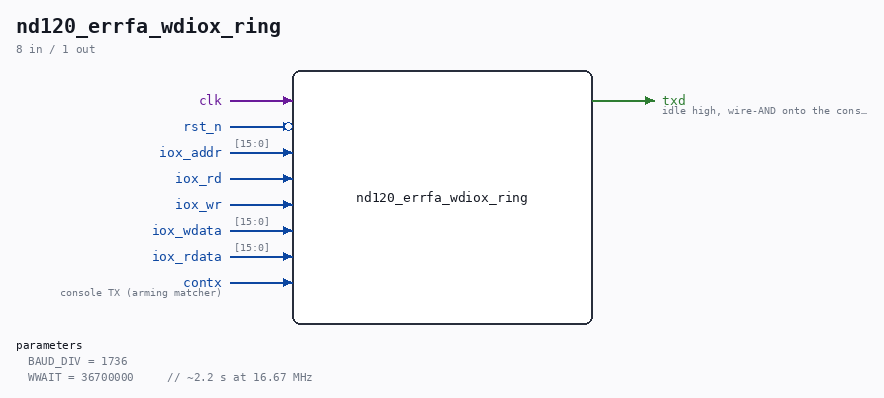

Schematic¶
Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 Nexys 4 DDR - Winchester IOX ring for the ERRFA evidence probe
Captures the last 48 IOX accesses to the Winchester card (IOX
500-507): direction, register, and the data word (write data for a
write, the card's answer for a read, sampled at the end of the
strobe). Freezes when the console TX line spells "ERRFA" (SINTRAN's
own crash announcement - the same arming rule as the RAM-side probe)
and then prints the ring ONCE as
W R4 060005 W5 000105 ... & boot dies in the Winchester
driver with varying verdicts whose shared signature is device state
inconsistent within one driver pass. This ring shows the actual
register traffic - interleaved GO words, device clears, status
answers - at the moment of death.
Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
BAUD_DIV |
1736 |
WWAIT |
36700000 // ~2.2 s at 16.67 MHz |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk |
|
| input | 1 |
rst_n (active low) |
|
| input | [15:0] |
iox_addr |
|
| input | 1 |
iox_rd |
|
| input | 1 |
iox_wr |
|
| input | [15:0] |
iox_wdata |
|
| input | [15:0] |
iox_rdata |
|
| input | 1 |
contx |
console TX (arming matcher) |
| output | 1 |
txd |
idle high, wire-AND onto the console |
Verilog source¶
Verilog/fpga/nexys4ddr/nd120_errfa_wdiox_ring.v on GitHub.
Show the Verilog of nd120_errfa_wdiox_ring (206 lines)
/**************************************************************************
** ND120 Nexys 4 DDR - Winchester IOX ring for the ERRFA evidence probe **
** **
** Captures the last 48 IOX accesses to the Winchester card (IOX **
** 500-507): direction, register, and the data word (write data for a **
** write, the card's answer for a read, sampled at the end of the **
** strobe). Freezes when the console TX line spells "ERRFA" (SINTRAN's **
** own crash announcement - the same arming rule as the RAM-side probe) **
** and then prints the ring ONCE as **
** W R4 060005 W5 000105 ... <CR><LF> **
** (oldest first, R=read W=write, register digit, data in octal) on its **
** own 9600-baud TX, wire-ANDed onto the console by the top. The print **
** starts ~2.2 s after the match - after the RAM probe's P line **
** (~0.5-1.5 s) and the first EF line (~2.0 s), before the second EF **
** line (~4.1 s). **
** **
** Purpose (24-AUG-2026): the SINTRAN `&` boot dies in the Winchester **
** driver with varying verdicts whose shared signature is device state **
** inconsistent within one driver pass. This ring shows the actual **
** register traffic - interleaved GO words, device clears, status **
** answers - at the moment of death. **
** **
** Ronny Hansen **
***************************************************************************/
module nd120_errfa_wdiox_ring #(
parameter integer BAUD_DIV = 1736, // clk / 9600
parameter integer WWAIT = 36700000 // ~2.2 s at 16.67 MHz
) (
input wire clk,
input wire rst_n,
input wire [15:0] iox_addr,
input wire iox_rd,
input wire iox_wr,
input wire [15:0] iox_wdata,
input wire [15:0] iox_rdata,
input wire contx, // console TX (arming matcher)
output wire txd // idle high, wire-AND onto the console
);
// ---- capture: one entry per IOX strobe to 500-507, on the strobe's
// falling edge with the values seen while it was high ----
wire w_sel = (iox_addr[15:3] == 13'o0050); // 0o500-0o507
wire w_stb = w_sel & (iox_rd | iox_wr);
reg w_stb_d;
reg w_dir_q; // 1 = write
reg [2:0] w_reg_q;
reg [15:0] w_data_q;
reg [24:0] ring[0:47]; // {dt_log2[4:0], dir, reg[2:0], data[15:0]}
reg [31:0] dt_cnt; // cycles since the previous recorded entry
reg [5:0] wp;
reg frozen;
// ---- "ERRFA" matcher (same rule as the RAM probe) ----
reg [11:0] rxbaud;
reg [ 3:0] rxbit;
reg [ 7:0] rxsh;
reg [39:0] rxtxt;
reg armed;
// ---- printer ----
// line = "W " + 48 x "Dr dddddd tt " (13 chars) + CR LF = 628 chars
// tt = floor(log2(cycles since previous entry)) in octal (24-25 = 1-2 s)
reg sending, done;
reg [25:0] wwait;
reg [ 9:0] pchar;
reg [ 3:0] pbit;
reg [11:0] pbaud;
reg ptxd;
// floor(log2(x)) in 5 bits: 0..31. At 16.67 MHz: 24 = ~1 s, 25 = ~2 s.
function [4:0] dt_log2(input [31:0] x);
integer k;
begin
dt_log2 = 5'd0;
for (k = 31; k >= 0; k = k - 1)
if (x[k] && dt_log2 == 5'd0) dt_log2 = k[4:0];
end
endfunction
function [7:0] octdig(input [15:0] w, input [2:0] d);
case (d)
3'd0: octdig = 8'h30 + {7'b0, w[15]};
3'd1: octdig = 8'h30 + {5'b0, w[14:12]};
3'd2: octdig = 8'h30 + {5'b0, w[11:9]};
3'd3: octdig = 8'h30 + {5'b0, w[8:6]};
3'd4: octdig = 8'h30 + {5'b0, w[5:3]};
default: octdig = 8'h30 + {5'b0, w[2:0]};
endcase
endfunction
wire [9:0] prel = pchar - 10'd2;
wire [9:0] pg10 = prel / 10'd13; // entry 0..47
wire [9:0] pd10 = prel % 10'd13; // char within entry
wire [5:0] pidx = wp + pg10[5:0]; // oldest first (6-bit wrap is NOT
// mod 48 - handled below)
// 48 is not a power of two: wrap by subtraction
wire [5:0] pslot = (pidx >= 6'd48) ? (pidx - 6'd48) : pidx;
wire [24:0] pent = ring[pslot];
reg [7:0] pch;
always @(*) begin
if (pchar == 10'd0) pch = "W";
else if (pchar == 10'd1) pch = " ";
else if (pchar == 10'd626) pch = 8'h0D;
else if (pchar == 10'd627) pch = 8'h0A;
else if (pd10 == 10'd0) pch = pent[19] ? "W" : "R";
else if (pd10 == 10'd1) pch = 8'h30 + {5'b0, pent[18:16]};
else if (pd10 == 10'd2) pch = " ";
else if (pd10 == 10'd9) pch = " ";
else if (pd10 == 10'd10) pch = 8'h30 + {6'b0, pent[24:23]}; // dt hi
else if (pd10 == 10'd11) pch = 8'h30 + {5'b0, pent[22:20]}; // dt lo
else if (pd10 == 10'd12) pch = " ";
else pch = octdig(pent[15:0], pd10[2:0] - 3'd3);
end
always @(posedge clk) begin
if (!rst_n) begin
w_stb_d <= 1'b0;
wp <= 6'd0;
dt_cnt <= 32'd0;
frozen <= 1'b0;
rxbaud <= 12'd0;
rxbit <= 4'd0;
rxsh <= 8'd0;
rxtxt <= 40'd0;
armed <= 1'b0;
sending <= 1'b0;
done <= 1'b0;
wwait <= 26'd0;
pchar <= 10'd0;
pbit <= 4'd0;
pbaud <= 12'd0;
ptxd <= 1'b1;
end else begin
w_stb_d <= w_stb;
if (dt_cnt != 32'hFFFFFFFF) dt_cnt <= dt_cnt + 32'd1;
if (w_stb) begin
w_dir_q <= iox_wr;
w_reg_q <= iox_addr[2:0];
w_data_q <= iox_wr ? iox_wdata : iox_rdata;
end
if (w_stb_d && !w_stb && !frozen) begin
ring[wp] <= {dt_log2(dt_cnt), w_dir_q, w_reg_q, w_data_q};
wp <= (wp == 6'd47) ? 6'd0 : wp + 6'd1;
dt_cnt <= 32'd0;
end
// matcher
if (rxbit == 4'd0) begin
if (!contx) begin
rxbit <= 4'd1;
rxbaud <= BAUD_DIV[11:0] + BAUD_DIV[11:0] / 12'd2 - 12'd1;
end
end else if (rxbaud != 12'd0) begin
rxbaud <= rxbaud - 12'd1;
end else if (rxbit <= 4'd8) begin
rxsh <= {contx, rxsh[7:1]};
rxbit <= rxbit + 4'd1;
rxbaud <= BAUD_DIV[11:0] - 12'd1;
end else begin
rxbit <= 4'd0;
rxtxt <= {rxtxt[31:0], rxsh};
if ({rxtxt[31:0], rxsh} == {"E", "R", "R", "F", "A"}) begin
armed <= 1'b1;
frozen <= 1'b1;
end
end
// wait, then print once
if (armed && !sending && !done) begin
wwait <= wwait + 26'd1;
if (wwait == WWAIT[25:0]) begin
sending <= 1'b1;
pchar <= 10'd0;
pbit <= 4'd0;
pbaud <= 12'd0;
end
end
if (sending) begin
if (pbaud == BAUD_DIV[11:0] - 12'd1) begin
pbaud <= 12'd0;
if (pbit == 4'd9) begin
pbit <= 4'd0;
ptxd <= 1'b1;
if (pchar == 10'd627) begin
sending <= 1'b0;
done <= 1'b1;
end else pchar <= pchar + 10'd1;
end else begin
pbit <= pbit + 4'd1;
if (pbit == 4'd0) ptxd <= 1'b0;
else if (pbit <= 4'd8) ptxd <= pch[pbit-1];
else ptxd <= 1'b1;
end
end else pbaud <= pbaud + 12'd1;
end
end
end
assign txd = ptxd;
endmodule
