nd_memtest_mux¶
Source: Verilog/fpga/nexys4ddr/sd-fat-test/nd_memtest_mux.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules

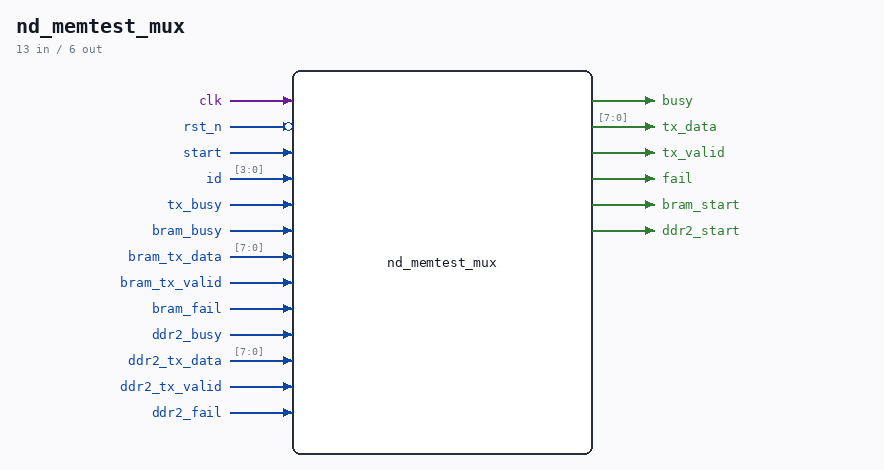

Schematic¶
Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
Dispatcher for the SD-FAT test's external memory commands sd_fat_test_top (built with SDFAT_EXT_TEST) hands out a command id and waits for busy to clear, while the selected test prints through the shared UART. This module routes the id to the right test and answers for the ones that are not compiled into this bitstream, so an unimplemented command prints a line instead of hanging the menu. id 0 M DDR2 - only present when NEXYS_DDR2_TEST is defined id 1 B ND-120 memory path (MEM_RAM_49 on BRAM), always present Only one test can run at a time: the menu waits for busy to clear before it accepts another key, so the character mux is a plain priority select with no arbitration needed. Last reviewed: 20-AUG-2026 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk |
|
| input | 1 |
rst_n (active low) |
|
| input | 1 |
start |
|
| input | [3:0] |
id |
|
| output | 1 |
busy |
|
| output | [7:0] |
tx_data |
|
| output | 1 |
tx_valid |
|
| input | 1 |
tx_busy |
|
| output | 1 |
fail |
|
| output | 1 |
bram_start |
|
| input | 1 |
bram_busy |
|
| input | [7:0] |
bram_tx_data |
|
| input | 1 |
bram_tx_valid |
|
| input | 1 |
bram_fail |
|
| output | 1 |
ddr2_start |
|
| input | 1 |
ddr2_busy |
|
| input | [7:0] |
ddr2_tx_data |
|
| input | 1 |
ddr2_tx_valid |
|
| input | 1 |
ddr2_fail |
Verilog source¶
Verilog/fpga/nexys4ddr/sd-fat-test/nd_memtest_mux.v on GitHub.
Show the Verilog of nd_memtest_mux (156 lines)
/****************************************************************************
** Dispatcher for the SD-FAT test's external memory commands **
** **
** sd_fat_test_top (built with SDFAT_EXT_TEST) hands out a command id and **
** waits for busy to clear, while the selected test prints through the **
** shared UART. This module routes the id to the right test and answers **
** for the ones that are not compiled into this bitstream, so an **
** unimplemented command prints a line instead of hanging the menu. **
** **
** id 0 M DDR2 - only present when NEXYS_DDR2_TEST is defined **
** id 1 B ND-120 memory path (MEM_RAM_49 on BRAM), always present **
** **
** Only one test can run at a time: the menu waits for busy to clear **
** before it accepts another key, so the character mux is a plain priority **
** select with no arbitration needed. **
** **
** Last reviewed: 20-AUG-2026 **
** Ronny Hansen **
*****************************************************************************/
`default_nettype none
module nd_memtest_mux (
input wire clk,
input wire rst_n,
input wire start,
input wire [3:0] id,
output wire busy,
output wire [7:0] tx_data,
output wire tx_valid,
input wire tx_busy,
output wire fail,
// ND-120 BRAM path test
output wire bram_start,
input wire bram_busy,
input wire [7:0] bram_tx_data,
input wire bram_tx_valid,
input wire bram_fail,
// DDR2 test (inputs tied off by the caller when it is not built)
output wire ddr2_start,
input wire ddr2_busy,
input wire [7:0] ddr2_tx_data,
input wire ddr2_tx_valid,
input wire ddr2_fail
);
assign bram_start = start && (id == 4'd1);
`ifdef NEXYS_DDR2_TEST
assign ddr2_start = start && (id == 4'd0);
`else
assign ddr2_start = 1'b0;
`endif
/*******************************************************************
* "DDR2 NOT IN BUILD" reply, for a command this bitstream lacks
*******************************************************************/
localparam NB_LEN = 6'd18;
reg [5:0] nb_ptr;
reg nb_run;
reg [7:0] nb_data;
reg nb_valid;
reg [7:0] nb_ch;
always @(*) begin
case (nb_ptr)
6'd0: nb_ch = "D";
6'd1: nb_ch = "D";
6'd2: nb_ch = "R";
6'd3: nb_ch = "2";
6'd4: nb_ch = " ";
6'd5: nb_ch = "N";
6'd6: nb_ch = "O";
6'd7: nb_ch = "T";
6'd8: nb_ch = " ";
6'd9: nb_ch = "I";
6'd10: nb_ch = "N";
6'd11: nb_ch = " ";
6'd12: nb_ch = "B";
6'd13: nb_ch = "U";
6'd14: nb_ch = "I";
6'd15: nb_ch = "L";
6'd16: nb_ch = "D";
default: nb_ch = 8'h0D;
endcase
end
// one extra character after the ROM: the line feed
always @(posedge clk) begin
if (!rst_n) begin
nb_run <= 1'b0;
nb_ptr <= 6'd0;
nb_valid <= 1'b0;
nb_data <= 8'd0;
end else begin
nb_valid <= 1'b0;
if (start && !nb_run) begin
`ifndef NEXYS_DDR2_TEST
if (id == 4'd0) begin
nb_run <= 1'b1;
nb_ptr <= 6'd0;
end
`endif
end else if (nb_run && !tx_busy && !nb_valid) begin
if (nb_ptr == NB_LEN) begin
nb_data <= 8'h0A; // LF closes the line
nb_valid <= 1'b1;
nb_run <= 1'b0;
end else begin
nb_data <= nb_ch;
nb_valid <= 1'b1;
nb_ptr <= nb_ptr + 6'd1;
end
end
end
end
/*******************************************************************
* Outputs
*******************************************************************/
assign tx_data = bram_tx_valid ? bram_tx_data
: ddr2_tx_valid ? ddr2_tx_data
: nb_data;
assign tx_valid = bram_tx_valid | ddr2_tx_valid | nb_valid;
// A test in another clock domain (DDR2 runs on the controller's 75 MHz
// ui_clk) cannot raise its busy flag in the same cycle it is started - the
// synchronisers take a few cycles. Without this latch the menu would see
// "not busy" right after the kick and declare the command finished before
// the test had begun. pend covers the gap: set on start, cleared once the
// test's own busy has been seen and released again.
reg pend, seen;
always @(posedge clk) begin
if (!rst_n) begin
pend <= 1'b0;
seen <= 1'b0;
end else if (start) begin
pend <= 1'b1;
seen <= 1'b0;
end else if (pend) begin
if (bram_busy | ddr2_busy) seen <= 1'b1;
else if (seen) pend <= 1'b0;
end
end
assign busy = bram_busy | ddr2_busy | nb_run | nb_valid | pend;
assign fail = bram_fail | ddr2_fail;
endmodule
`default_nettype wire
