floppy_hwtest_core¶
Source: Verilog/fpga/nexys4ddr/floppy-hw-test/floppy_hwtest_core.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules

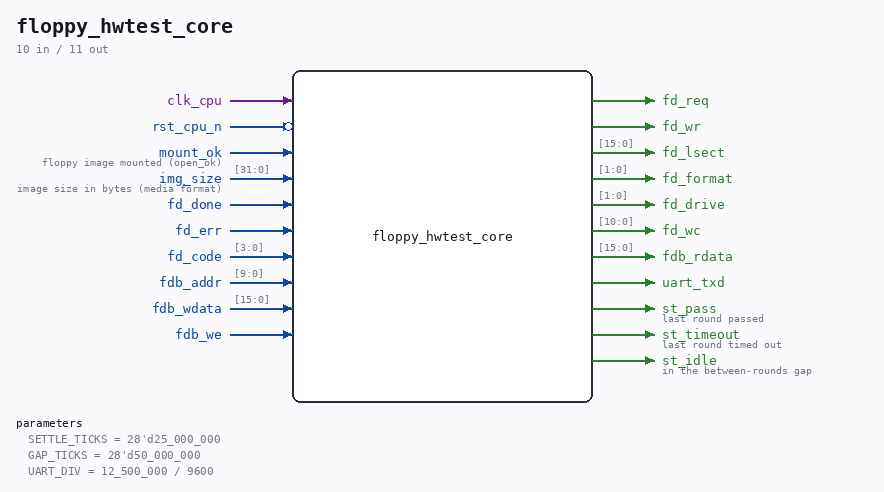

Schematic¶
Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
floppy_hwtest_core - the self-checking floppy DMA hardware test proper: ND_FLOPPY_DMA + ND_DMA_MASTER + block-RAM main memory answering the ND-bus handshake + the CPU-fetch CONTENTION INJECTOR + the IOX driver FSM + checksum + UART printer. Board-independent: floppy_hwtest_top wires it to the real SD storage adapter on the Nexys 4 DDR; the testbench (sim/floppy_hwtest_core_tb.v) wires it to a fake disk backend. See the header of floppy_hwtest_top.v for the output format and golden values. Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
SETTLE_TICKS |
28'd25_000_000 |
GAP_TICKS |
28'd50_000_000 |
UART_DIV |
12_500_000 / 9600 |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk_cpu |
|
| input | 1 |
rst_cpu_n (active low) |
|
| input | 1 |
mount_ok |
floppy image mounted (open_ok) |
| input | [31:0] |
img_size |
image size in bytes (media format) |
| output | 1 |
fd_req |
|
| output | 1 |
fd_wr |
|
| output | [15:0] |
fd_lsect |
|
| output | [1:0] |
fd_format |
|
| output | [1:0] |
fd_drive |
|
| output | [10:0] |
fd_wc |
|
| input | 1 |
fd_done |
|
| input | 1 |
fd_err |
|
| input | [3:0] |
fd_code |
|
| input | [9:0] |
fdb_addr |
|
| input | [15:0] |
fdb_wdata |
|
| input | 1 |
fdb_we |
|
| output | [15:0] |
fdb_rdata |
|
| output | 1 |
uart_txd |
|
| output | 1 |
st_pass |
last round passed |
| output | 1 |
st_timeout |
last round timed out |
| output | 1 |
st_idle |
in the between-rounds gap |
Verilog source¶
Verilog/fpga/nexys4ddr/floppy-hw-test/floppy_hwtest_core.v on GitHub.
Show the Verilog of floppy_hwtest_core (493 lines)
/****************************************************************************
** floppy_hwtest_core - the self-checking floppy DMA hardware test proper: **
** ND_FLOPPY_DMA + ND_DMA_MASTER + block-RAM main memory answering the **
** ND-bus handshake + the CPU-fetch CONTENTION INJECTOR + the IOX driver **
** FSM + checksum + UART printer. Board-independent: floppy_hwtest_top **
** wires it to the real SD storage adapter on the Nexys 4 DDR; the **
** testbench (sim/floppy_hwtest_core_tb.v) wires it to a fake disk **
** backend. See the header of floppy_hwtest_top.v for the output format **
** and golden values. **
** **
** Ronny Hansen **
*****************************************************************************/
`default_nettype none
module floppy_hwtest_core #(
// settle after mount and gap between rounds; the tb shortens both
parameter [27:0] SETTLE_TICKS = 28'd25_000_000,
parameter [27:0] GAP_TICKS = 28'd50_000_000,
parameter integer UART_DIV = 12_500_000 / 9600
) (
input wire clk_cpu,
input wire rst_cpu_n,
input wire mount_ok, // floppy image mounted (open_ok)
input wire [31:0] img_size, // image size in bytes (media format)
// disk backend seam (the controller's disk_*/dbuf_* ports)
output wire fd_req,
output wire fd_wr,
output wire [15:0] fd_lsect,
output wire [ 1:0] fd_format,
output wire [ 1:0] fd_drive,
output wire [10:0] fd_wc,
input wire fd_done,
input wire fd_err,
input wire [3:0] fd_code,
input wire [9:0] fdb_addr,
input wire [15:0] fdb_wdata,
input wire fdb_we,
output wire [15:0] fdb_rdata,
output wire uart_txd,
output wire st_pass, // last round passed
output wire st_timeout, // last round timed out
output wire st_idle // in the between-rounds gap
);
// media format from the image size, matching nd_storage_devices.v
wire [3:0] f_media = (img_size == 32'd315392) ? 4'h0 : 4'hF;
/*********************************************
* The RTL under test: ND_FLOPPY_DMA and its *
* ND_DMA_MASTER, wired as in ND120_CORE *
**********************************************/
reg [15:0] iox_addr = 16'd0, iox_wdata = 16'd0;
reg iox_wr = 1'b0, iox_rd = 1'b0;
wire [15:0] iox_rdata;
wire c_dma_req, c_dma_wr, c_dma_ack, c_dma_err, c_dma_busy;
wire [23:0] c_dma_addr;
wire [15:0] c_dma_wdata, c_dma_rdata;
ND_FLOPPY_DMA #(
.BASE_ADDR (16'o001560),
.IDENT_CODE(16'o000021),
.INT_LEVEL (4'd11)
) u_floppy (
.sysclk(clk_cpu), .sys_rst_n(rst_cpu_n),
.iox_addr(iox_addr), .iox_wr(iox_wr), .iox_wdata(iox_wdata),
.iox_rd(iox_rd), .iox_rdata(iox_rdata), .iox_sel(),
.int_pending(),
.ident_strobe(1'b0), .ident_level(4'd0),
.ident_grant_in(1'b0), .ident_grant_out(), .ident_hit(),
.ident_code(),
.dma_req(c_dma_req), .dma_wr(c_dma_wr), .dma_addr(c_dma_addr),
.dma_wdata(c_dma_wdata), .dma_rdata(c_dma_rdata),
.dma_ack(c_dma_ack), .dma_err(c_dma_err), .dma_busy(c_dma_busy),
.disk_req(fd_req), .disk_wr(fd_wr), .disk_lsect(fd_lsect),
.disk_format(fd_format), .disk_drive(fd_drive),
.disk_wordcount(fd_wc), .disk_done(fd_done), .disk_err_in(fd_err),
.disk_err_code(fd_code), .disk_media_fmt(f_media),
.dbuf_addr(fdb_addr), .dbuf_wdata(fdb_wdata), .dbuf_we(fdb_we),
.dbuf_rdata(fdb_rdata)
);
wire m_breq_n, m_bapr_n, m_binput_n, m_bdap_n;
wire [23:0] m_bd_out_n;
reg bmem_n = 1'b1, grant_n = 1'b1, bdry_n = 1'b1;
reg [23:0] slave_bd_n = 24'hFFFFFF;
wire [23:0] bd_bus_n = m_bd_out_n & slave_bd_n;
ND_DMA_MASTER #(
.TIMEOUT_TICKS(16'd8192)
) u_master (
.sysclk(clk_cpu), .sys_rst_n(rst_cpu_n),
.dma_req(c_dma_req), .dma_wr(c_dma_wr), .dma_addr(c_dma_addr),
.dma_wdata(c_dma_wdata), .dma_rdata(c_dma_rdata),
.dma_ack(c_dma_ack), .dma_err(c_dma_err), .dma_busy(c_dma_busy),
.BREQ_n(m_breq_n),
.INGRANT_n(grant_n), .OUTGRANT_n(),
.BMEM_n(bmem_n),
.BD_23_0_n_OUT(m_bd_out_n), .BD_23_0_n_IN(bd_bus_n),
.BAPR_n(m_bapr_n), .BINPUT_n(m_binput_n), .BDAP_n(m_bdap_n),
.BDRY_n(bdry_n)
);
/*********************************************
* Main memory: 16K x 16 block RAM answering *
* the ND-bus handshake, with the measured *
* CPU-fetch FLICKER injected before every *
* read answer (two ticks of a rotating *
* instruction word on BD, then the data, *
* released at the BDRY edge). *
**********************************************/
(* ram_style = "block" *) reg [15:0] mem[0:16383];
// port A: the bus slave
reg [13:0] ma_addr = 14'd0;
reg [15:0] ma_wdata = 16'd0;
reg ma_we = 1'b0;
reg [15:0] ma_q = 16'd0;
always @(posedge clk_cpu) begin
if (ma_we) mem[ma_addr] <= ma_wdata;
ma_q <= mem[ma_addr];
end
// port B: the driver FSM (command-block init, preseed, checksum)
reg [13:0] mb_addr = 14'd0;
reg [15:0] mb_wdata = 16'd0;
reg mb_we = 1'b0;
reg [15:0] mb_q = 16'd0;
always @(posedge clk_cpu) begin
if (mb_we) mem[mb_addr] <= mb_wdata;
mb_q <= mem[mb_addr];
end
// rotating fetch words - the values measured leaking from the CPU's
// polling loop on the failing system
reg [1:0] flick_sel = 2'd0;
reg [15:0] flick_word;
always @(*) begin
case (flick_sel)
2'd0: flick_word = 16'o165562; // IOX 1562
2'd1: flick_word = 16'o004151; // STA
2'd2: flick_word = 16'o044132; // LDA
default: flick_word = 16'o156475; // SHA
endcase
end
localparam M_IDLE = 3'd0;
localparam M_ARB = 3'd1;
localparam M_WAITA = 3'd2;
localparam M_WAITD = 3'd3;
localparam M_FLICK = 3'd4;
localparam M_DATA = 3'd5;
localparam M_REPLY = 3'd6;
localparam M_REL = 3'd7;
reg [2:0] m_state = M_IDLE;
reg [3:0] m_cnt = 4'd0;
reg m_write = 1'b0;
always @(posedge clk_cpu or negedge rst_cpu_n) begin
if (!rst_cpu_n) begin
m_state <= M_IDLE; bmem_n <= 1'b1; grant_n <= 1'b1; bdry_n <= 1'b1;
slave_bd_n <= 24'hFFFFFF; ma_we <= 1'b0; m_cnt <= 4'd0;
m_write <= 1'b0; flick_sel <= 2'd0;
end else begin
ma_we <= 1'b0;
case (m_state)
M_IDLE: begin
if (!m_breq_n) begin m_cnt <= 4'd2; m_state <= M_ARB; end
end
M_ARB: begin
if (m_cnt != 0) m_cnt <= m_cnt - 4'd1;
else begin bmem_n <= 1'b0; grant_n <= 1'b0; m_state <= M_WAITA; end
end
M_WAITA: begin
if (!m_bapr_n) begin
ma_addr <= ~bd_bus_n[13:0];
m_write <= !m_binput_n;
m_state <= M_WAITD;
end
end
M_WAITD: begin
if (!m_bdap_n) begin
if (m_write) begin
ma_wdata <= ~bd_bus_n[15:0];
ma_we <= 1'b1;
bdry_n <= 1'b0;
grant_n <= 1'b1;
m_state <= M_REPLY;
end else begin
// READ: first the contention flicker, then the data
slave_bd_n <= ~{8'd0, flick_word};
flick_sel <= flick_sel + 2'd1;
m_cnt <= 4'd1; // 2 ticks of flicker
m_state <= M_FLICK;
end
end
end
M_FLICK: begin
if (m_cnt != 0) m_cnt <= m_cnt - 4'd1;
else begin
slave_bd_n <= ~{8'd0, ma_q}; // real data (a zero word
m_cnt <= 4'd5; // drives ~0 = FFFFFF = idle)
m_state <= M_DATA;
end
end
M_DATA: begin
if (m_cnt != 0) m_cnt <= m_cnt - 4'd1;
else begin
slave_bd_n <= 24'hFFFFFF; // release AT the BDRY edge
bdry_n <= 1'b0;
grant_n <= 1'b1;
m_state <= M_REPLY;
end
end
M_REPLY: begin
if (m_bdap_n) begin
bdry_n <= 1'b1;
bmem_n <= 1'b1;
slave_bd_n <= 24'hFFFFFF;
m_state <= M_REL;
end
end
M_REL: m_state <= M_IDLE;
default: m_state <= M_IDLE;
endcase
end
end
/*********************************************
* Driver FSM: emulates the CPU's IOX *
* accesses, preseeds/checks memory, prints *
**********************************************/
localparam [13:0] CB_A = 14'o3000;
localparam [13:0] TGT_A = 14'o20000;
localparam [15:0] GOLDEN = 16'o125441;
function [15:0] cb_word(input [3:0] i);
case (i)
4'd0: cb_word = 16'o007400; // READ, drive 0, format 3
4'd3: cb_word = {2'd0, TGT_A}; // memory address = 20000 (octal)
4'd4: cb_word = 16'o100000; // bit 15: WORD-COUNT mode
4'd5: cb_word = 16'o002000; // 1024 words
default: cb_word = 16'd0;
endcase
endfunction
localparam D_WAIT = 4'd0;
localparam D_SEED = 4'd1;
localparam D_CB = 4'd2;
localparam D_IOX = 4'd3;
localparam D_POLL = 4'd4;
localparam D_POLLW = 4'd5;
localparam D_RD1 = 4'd6;
localparam D_RD2 = 4'd7;
localparam D_CKS = 4'd8;
localparam D_PRINT = 4'd9;
localparam D_GAP = 4'd10;
reg [3:0] d_state = D_WAIT;
reg [27:0] d_delay = 28'd0;
reg [10:0] d_idx = 11'd0;
reg [1:0] d_iox_step = 2'd0;
reg [25:0] d_tmo = 26'd0;
reg d_timeout = 1'b0;
reg [1:0] d_ph = 2'd0;
reg [15:0] v_s, v_e, v_f, v_b0, v_b1, v_b2, v_b3, v_c;
reg [15:0] d_sum = 16'd0;
reg pr_go = 1'b0;
wire pr_done;
always @(posedge clk_cpu or negedge rst_cpu_n) begin
if (!rst_cpu_n) begin
d_state <= D_WAIT; d_delay <= 28'd0; d_idx <= 11'd0;
d_iox_step <= 2'd0; d_tmo <= 26'd0; d_timeout <= 1'b0;
iox_wr <= 1'b0; iox_rd <= 1'b0; mb_we <= 1'b0; pr_go <= 1'b0;
d_ph <= 2'd0; d_sum <= 16'd0;
v_s <= 16'd0; v_e <= 16'd0; v_f <= 16'd0; v_c <= 16'd0;
v_b0 <= 16'd0; v_b1 <= 16'd0; v_b2 <= 16'd0; v_b3 <= 16'd0;
end else begin
iox_wr <= 1'b0; iox_rd <= 1'b0; mb_we <= 1'b0; pr_go <= 1'b0;
case (d_state)
// wait for the floppy mount plus a settle margin
D_WAIT: begin
if (mount_ok) d_delay <= d_delay + 28'd1;
if (d_delay >= SETTLE_TICKS) begin
d_idx <= 11'd0; d_state <= D_SEED;
end
end
// preseed the 1024-word target so a missing write is detectable
D_SEED: begin
mb_addr <= TGT_A + d_idx[9:0];
mb_wdata <= 16'o052525;
mb_we <= 1'b1;
d_idx <= d_idx + 11'd1;
if (d_idx == 11'd1023) begin d_idx <= 11'd0; d_state <= D_CB; end
end
// write the 12-word command block at 3000 octal
D_CB: begin
mb_addr <= CB_A + d_idx[3:0];
mb_wdata <= cb_word(d_idx[3:0]);
mb_we <= 1'b1;
d_idx <= d_idx + 11'd1;
if (d_idx == 11'd11) begin
d_idx <= 11'd0; d_iox_step <= 2'd0; d_state <= D_IOX;
end
end
// IOX kick: reg5 <= 0, reg7 <= 3000, reg3 <= 400 (octal)
D_IOX: begin
d_idx <= d_idx + 11'd1;
if (d_idx == 11'd8) begin // one write every 8 ticks
d_idx <= 11'd0;
iox_wr <= 1'b1;
case (d_iox_step)
2'd0: begin iox_addr <= 16'o001565; iox_wdata <= 16'd0; end
2'd1: begin iox_addr <= 16'o001567; iox_wdata <= {2'd0, CB_A}; end
default: begin iox_addr <= 16'o001563; iox_wdata <= 16'o000400; end
endcase
if (d_iox_step == 2'd2) begin
d_tmo <= 26'd0; d_timeout <= 1'b0; d_state <= D_POLL;
end else d_iox_step <= d_iox_step + 2'd1;
end
end
// poll status word 1 (IOX 1562) for ready-for-transfer (bit 3)
D_POLL: begin
iox_addr <= 16'o001562;
iox_rd <= 1'b1;
d_state <= D_POLLW;
end
D_POLLW: begin
v_s <= iox_rdata; // iox_rdata is valid with iox_rd
d_tmo <= d_tmo + 26'd1;
if (iox_rdata[3]) begin
mb_addr <= CB_A + 14'd6; d_ph <= 2'd0; d_state <= D_RD1;
end else if (d_tmo >= 26'd62_000_000 - 26'd1) begin
d_timeout <= 1'b1;
mb_addr <= CB_A + 14'd6; d_ph <= 2'd0; d_state <= D_RD1;
end else if (d_tmo[5:0] == 6'd63) d_state <= D_POLL;
end
// collect E, F, B0..B3 (two-cycle BRAM reads)
D_RD1: begin d_ph <= 2'd1; d_state <= D_RD2; end
D_RD2: begin
case (d_idx[2:0])
3'd0: v_e <= mb_q;
3'd1: v_f <= mb_q;
3'd2: v_b0 <= mb_q;
3'd3: v_b1 <= mb_q;
3'd4: v_b2 <= mb_q;
default: v_b3 <= mb_q;
endcase
if (d_idx[2:0] == 3'd5) begin
d_idx <= 11'd0; d_sum <= 16'd0;
mb_addr <= TGT_A; d_state <= D_CKS; d_ph <= 2'd0;
end else begin
d_idx <= d_idx + 11'd1;
case (d_idx[2:0])
3'd0: mb_addr <= CB_A + 14'd7;
3'd1: mb_addr <= TGT_A;
3'd2: mb_addr <= TGT_A + 14'd1;
3'd3: mb_addr <= TGT_A + 14'd2;
default: mb_addr <= TGT_A + 14'd3;
endcase
d_state <= D_RD1;
end
end
// checksum all 1024 transferred words (pipelined 2-phase read)
D_CKS: begin
if (d_ph == 2'd0) d_ph <= 2'd1;
else begin
d_ph <= 2'd0;
d_sum <= d_sum + mb_q;
d_idx <= d_idx + 11'd1;
mb_addr <= TGT_A + d_idx[9:0] + 14'd1;
if (d_idx == 11'd1023) begin
d_state <= D_PRINT;
end
end
end
D_PRINT: begin
v_c <= d_sum;
pr_go <= 1'b1;
d_state <= D_GAP; d_delay <= 28'd0;
end
D_GAP: begin
if (pr_done) d_delay <= d_delay + 28'd1;
if (d_delay >= GAP_TICKS) begin
d_idx <= 11'd0; d_state <= D_SEED;
end
end
default: d_state <= D_WAIT;
endcase
end
end
wire pass = !d_timeout && (v_e[14:9] == 6'd0) &&
(v_b0 == 16'o000060) && (v_c == GOLDEN);
/*********************************************
* UART printer, 9600 8N1 *
* S ssssss E eeeeee F ffffff B b0 b1 b2 b3 *
* C cccccc P|F|T *
**********************************************/
wire tx_busy;
reg [7:0] tx_data = 8'd0;
reg tx_valid = 1'b0;
uart_tx #(.DELAY_FRAMES(UART_DIV)) u_tx (
.clk(clk_cpu), .rst_n(rst_cpu_n),
.tx_data(tx_data), .tx_valid(tx_valid), .tx_busy(tx_busy),
.txd(uart_txd)
);
reg [2:0] pr_f = 3'd0;
reg [3:0] pr_p = 4'd0; // 0 prefix, 1..6 digits, 7 trailing space
reg [1:0] pr_tail = 2'd0;
reg pr_run = 1'b0, pr_end = 1'b0;
assign pr_done = !pr_run && !pr_go;
// field f = prefix char + 6 octal digits + trailing space
reg [15:0] pv;
always @(*) begin
case (pr_f)
3'd0: pv = v_s; 3'd1: pv = v_e; 3'd2: pv = v_f;
3'd3: pv = v_b0; 3'd4: pv = v_b1; 3'd5: pv = v_b2;
3'd6: pv = v_b3; default: pv = v_c;
endcase
end
reg [7:0] pfx;
always @(*) begin
case (pr_f)
3'd0: pfx = "S"; 3'd1: pfx = "E"; 3'd2: pfx = "F"; 3'd3: pfx = "B";
3'd7: pfx = "C"; default: pfx = " ";
endcase
end
reg [7:0] pr_ch;
always @(*) begin
if (pr_end) begin
case (pr_tail)
2'd0: pr_ch = d_timeout ? "T" : (pass ? "P" : "F");
2'd1: pr_ch = 8'h0D;
default: pr_ch = 8'h0A;
endcase
end else if (pr_p == 4'd0) pr_ch = pfx;
else if (pr_p == 4'd7) pr_ch = " ";
else begin
case (pr_p)
4'd1: pr_ch = 8'h30 + {5'd0, pv[15]};
4'd2: pr_ch = 8'h30 + {4'd0, pv[14:12]};
4'd3: pr_ch = 8'h30 + {4'd0, pv[11:9]};
4'd4: pr_ch = 8'h30 + {4'd0, pv[8:6]};
4'd5: pr_ch = 8'h30 + {4'd0, pv[5:3]};
default: pr_ch = 8'h30 + {4'd0, pv[2:0]};
endcase
end
end
always @(posedge clk_cpu or negedge rst_cpu_n) begin
if (!rst_cpu_n) begin
pr_run <= 1'b0; pr_end <= 1'b0; pr_f <= 3'd0; pr_p <= 4'd0;
pr_tail <= 2'd0; tx_valid <= 1'b0; tx_data <= 8'd0;
end else begin
tx_valid <= 1'b0;
if (pr_go && !pr_run) begin
pr_run <= 1'b1; pr_end <= 1'b0; pr_f <= 3'd0; pr_p <= 4'd0;
pr_tail <= 2'd0;
end else if (pr_run && !tx_busy && !tx_valid) begin
tx_data <= pr_ch;
tx_valid <= 1'b1;
if (pr_end) begin
if (pr_tail == 2'd2) pr_run <= 1'b0;
else pr_tail <= pr_tail + 2'd1;
end else if (pr_p == 4'd7) begin
pr_p <= 4'd0;
if (pr_f == 3'd7) pr_end <= 1'b1;
else pr_f <= pr_f + 3'd1;
end else pr_p <= pr_p + 4'd1;
end
end
end
assign st_pass = pass;
assign st_timeout = d_timeout;
assign st_idle = (d_state == D_GAP);
/* verilator lint_off UNUSEDSIGNAL */
wire _core_unused = &{1'b0, bd_bus_n[23:16], c_dma_busy, ma_q, 1'b0};
/* verilator lint_on UNUSEDSIGNAL */
endmodule
`default_nettype wire
