floppy_hwtest_top¶
Source: Verilog/fpga/nexys4ddr/floppy-hw-test/floppy_hwtest_top.v
Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).
Module hierarchy - All modules

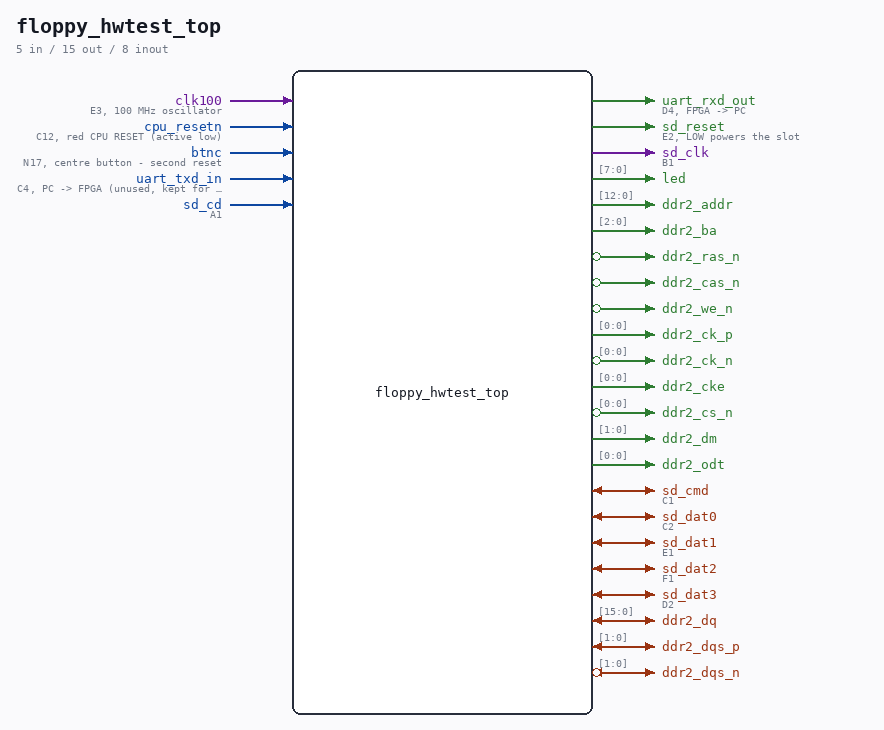

Schematic¶
Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
floppy_hwtest_top - SELF-CHECKING VERILOG TEST PROGRAM ON THE REAL NEXYS 4 DDR HARDWARE for the floppy DMA path (root cause + fix: ../HANDOFF-floppy-dma-investigation.md PART 0, retired - git c4896a4). WHAT IT CONTAINS - the real RTL under test, no CPU: ND_FLOPPY_DMA (the floppy controller) ND_DMA_MASTER (the bus master whose read capture had the fault) nd_storage + nd_storage_floppy_adapter + DDR2 + real SD card a block-RAM main memory answering the real ND-bus handshake a CONTENTION INJECTOR: before every memory read answer it drives two clock ticks of a rotating "CPU instruction fetch" word onto the shared BD lines - the exact flicker measured on the failing system (165562 = IOX 1562 etc.). This is what the CPU's polling loop does on the real board; without it a zero-word read cannot corrupt and the test would prove nothing. WHAT IT DOES, forever, ~ every 4 s: an FSM emulates the CPU's IOX accesses - preseeds memory, writes the 12-word command block at 3000 (octal; READ fmt 3, diskAddress 0, WORD-COUNT mode 1024 words, target 20000 octal - the exact first operation of the 1560& boot), kicks IOX 1565/1567/1563, polls IOX 1562 for ready, then checksums ALL 1024 transferred words in hardware and prints on the UART (9600 8N1): S ssssss E eeeeee F ffffff B b0 b1 b2 b3 C cccccc P (same field layout as tests/floppy-dma-test; P = HW-PASS, F = HW-FAIL, T = timeout). Golden values from the nd100x oracle: S 1000x0 E 000010 F 000000 B 000060 000057 000062 000015 C 125441 PASS requires: not timed out, error code bits 14:9 of E all zero, B0 = 000060, checksum = 125441. On the PRE-FIX ND_DMA_MASTER this test FAILS (the injector corrupts the zero-valued command-block words exactly as the CPU did); on the fixed RTL it PASSES. Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
clk100 |
E3, 100 MHz oscillator |
| input | 1 |
cpu_resetn |
C12, red CPU RESET (active low) |
| input | 1 |
btnc |
N17, centre button - second reset |
| input | 1 |
uart_txd_in |
C4, PC -> FPGA (unused, kept for the pinout) |
| output | 1 |
uart_rxd_out |
D4, FPGA -> PC |
| output | 1 |
sd_reset |
E2, LOW powers the slot |
| input | 1 |
sd_cd |
A1 |
| output | 1 |
sd_clk |
B1 |
| inout | 1 |
sd_cmd |
C1 |
| inout | 1 |
sd_dat0 |
C2 |
| inout | 1 |
sd_dat1 |
E1 |
| inout | 1 |
sd_dat2 |
F1 |
| inout | 1 |
sd_dat3 |
D2 |
| output | [7:0] |
led |
|
| inout | [15:0] |
ddr2_dq |
|
| inout | [1:0] |
ddr2_dqs_p |
|
| inout | [1:0] |
ddr2_dqs_n (active low) |
|
| output | [12:0] |
ddr2_addr |
|
| output | [2:0] |
ddr2_ba |
|
| output | 1 |
ddr2_ras_n (active low) |
|
| output | 1 |
ddr2_cas_n (active low) |
|
| output | 1 |
ddr2_we_n (active low) |
|
| output | [0:0] |
ddr2_ck_p |
|
| output | [0:0] |
ddr2_ck_n (active low) |
|
| output | [0:0] |
ddr2_cke |
|
| output | [0:0] |
ddr2_cs_n (active low) |
|
| output | [1:0] |
ddr2_dm |
|
| output | [0:0] |
ddr2_odt |
Verilog source¶
Verilog/fpga/nexys4ddr/floppy-hw-test/floppy_hwtest_top.v on GitHub.
Show the Verilog of floppy_hwtest_top (360 lines)
/****************************************************************************
** floppy_hwtest_top - SELF-CHECKING VERILOG TEST PROGRAM ON THE REAL **
** NEXYS 4 DDR HARDWARE for the floppy DMA path (root cause + fix: **
** ../HANDOFF-floppy-dma-investigation.md PART 0, retired - git c4896a4). **
** **
** WHAT IT CONTAINS - the real RTL under test, no CPU: **
** ND_FLOPPY_DMA (the floppy controller) **
** ND_DMA_MASTER (the bus master whose read capture had the fault) **
** nd_storage + nd_storage_floppy_adapter + DDR2 + real SD card **
** a block-RAM main memory answering the real ND-bus handshake **
** a CONTENTION INJECTOR: before every memory read answer it drives **
** two clock ticks of a rotating "CPU instruction fetch" word onto **
** the shared BD lines - the exact flicker measured on the failing **
** system (165562 = IOX 1562 etc.). This is what the CPU's polling **
** loop does on the real board; without it a zero-word read cannot **
** corrupt and the test would prove nothing. **
** **
** WHAT IT DOES, forever, ~ every 4 s: an FSM emulates the CPU's IOX **
** accesses - preseeds memory, writes the 12-word command block at 3000 **
** (octal; READ fmt 3, diskAddress 0, WORD-COUNT mode 1024 words, target **
** 20000 octal - the exact first operation of the 1560& boot), kicks IOX **
** 1565/1567/1563, polls IOX 1562 for ready, then checksums ALL 1024 **
** transferred words in hardware and prints on the UART (9600 8N1): **
** **
** S ssssss E eeeeee F ffffff B b0 b1 b2 b3 C cccccc P **
** **
** (same field layout as tests/floppy-dma-test; P = HW-PASS, F = HW-FAIL, **
** T = timeout). Golden values from the nd100x oracle: **
** S 1000x0 E 000010 F 000000 B 000060 000057 000062 000015 **
** C 125441 **
** PASS requires: not timed out, error code bits 14:9 of E all zero, **
** B0 = 000060, checksum = 125441. On the PRE-FIX ND_DMA_MASTER this **
** test FAILS (the injector corrupts the zero-valued command-block words **
** exactly as the CPU did); on the fixed RTL it PASSES. **
** **
** Ronny Hansen **
*****************************************************************************/
`default_nettype none
module floppy_hwtest_top (
input wire clk100, // E3, 100 MHz oscillator
input wire cpu_resetn, // C12, red CPU RESET (active low)
input wire btnc, // N17, centre button - second reset
input wire uart_txd_in, // C4, PC -> FPGA (unused, kept for the pinout)
output wire uart_rxd_out, // D4, FPGA -> PC
output wire sd_reset, // E2, LOW powers the slot
input wire sd_cd, // A1
output wire sd_clk, // B1
inout wire sd_cmd, // C1
inout wire sd_dat0, // C2
inout wire sd_dat1, // E1
inout wire sd_dat2, // F1
inout wire sd_dat3, // D2
output wire [7:0] led,
inout wire [15:0] ddr2_dq,
inout wire [ 1:0] ddr2_dqs_p,
inout wire [ 1:0] ddr2_dqs_n,
output wire [12:0] ddr2_addr,
output wire [ 2:0] ddr2_ba,
output wire ddr2_ras_n,
output wire ddr2_cas_n,
output wire ddr2_we_n,
output wire [ 0:0] ddr2_ck_p,
output wire [ 0:0] ddr2_ck_n,
output wire [ 0:0] ddr2_cke,
output wire [ 0:0] ddr2_cs_n,
output wire [ 1:0] ddr2_dm,
output wire [ 0:0] ddr2_odt
);
/*********************************************
* Clocks - same values as the ND-120 build *
* (build.tcl clk=12: MMCM VCO 1000 MHz) *
**********************************************/
`ifndef HWTEST_CPU_DIV
`define HWTEST_CPU_DIV 80.0
`endif
wire clk_cpu_pre, clk_stor_pre, clk200_pre, clkfb_out, clkfb_in, mmcm_locked;
wire clk_cpu, clk_stor, clk200;
MMCME2_BASE #(
.BANDWIDTH ("OPTIMIZED"),
.CLKFBOUT_MULT_F (10.0), // 100 MHz x10 = 1000 MHz VCO
.CLKIN1_PERIOD (10.0),
.CLKOUT0_DIVIDE_F(`HWTEST_CPU_DIV), // 1000/80 = 12.5 MHz (ND-120 clk=12)
.CLKOUT1_DIVIDE (37), // 27.027 MHz - SD/FAT stack
.CLKOUT2_DIVIDE (5), // 200 MHz - DDR2 controller
.DIVCLK_DIVIDE (1)
) mmcm (
.CLKIN1 (clk100),
.CLKFBIN (clkfb_in),
.CLKFBOUT(clkfb_out),
.CLKOUT0 (clk_cpu_pre),
.CLKOUT1 (clk_stor_pre),
.CLKOUT2 (clk200_pre),
.LOCKED (mmcm_locked),
.PWRDWN (1'b0),
.RST (1'b0),
.CLKOUT0B(), .CLKOUT1B(), .CLKOUT2B(), .CLKOUT3(), .CLKOUT3B(),
.CLKOUT4(), .CLKOUT5(), .CLKOUT6(), .CLKFBOUTB()
);
BUFG bufg_fb (.I(clkfb_out), .O(clkfb_in));
BUFG bufg_cpu (.I(clk_cpu_pre), .O(clk_cpu));
BUFG bufg_st (.I(clk_stor_pre), .O(clk_stor));
BUFG bufg_200 (.I(clk200_pre), .O(clk200));
wire rst_req_n = cpu_resetn & ~btnc & mmcm_locked;
reg [3:0] rst_cpu_sh = 4'd0;
always @(posedge clk_cpu)
if (!rst_req_n) rst_cpu_sh <= 4'd0;
else rst_cpu_sh <= {rst_cpu_sh[2:0], 1'b1};
wire rst_cpu_n = rst_cpu_sh[3];
reg [3:0] rst_st_sh = 4'd0;
always @(posedge clk_stor)
if (!rst_req_n) rst_st_sh <= 4'd0;
else rst_st_sh <= {rst_st_sh[2:0], 1'b1};
wire rst_stor_n = rst_st_sh[3];
/*********************************************
* SD pads - same tristate rule as the top *
**********************************************/
assign sd_reset = 1'b0;
wire s_sd_clk_o, s_sd_cmd_o, s_sd_cmd_oe, s_sd_dat0_o, s_sd_dat0_oe;
assign sd_clk = s_sd_clk_o;
assign sd_cmd = s_sd_cmd_oe ? s_sd_cmd_o : 1'bz;
assign sd_dat0 = s_sd_dat0_oe ? s_sd_dat0_o : 1'bz;
assign sd_dat1 = 1'bz;
assign sd_dat2 = 1'bz;
assign sd_dat3 = 1'bz;
/*********************************************
* DDR2 region - identical to the ND-120 top *
**********************************************/
wire mem_start, mem_we, mem_busy, mem_done;
wire [19:0] mem_addr;
wire [31:0] mem_wdata, mem_rdata;
wire ui_clk, ui_rst, calib_done;
wire req_valid, req_we, req_ready, rsp_valid;
wire [ 26:0] req_addr;
wire [127:0] req_wdata, rsp_rdata;
wire [ 15:0] req_wmask;
nd_ddr2_storage u_region (
.stor_clk(clk_stor), .stor_rst_n(rst_stor_n),
.mem_start(mem_start), .mem_we(mem_we), .mem_addr(mem_addr),
.mem_wdata(mem_wdata), .mem_rdata(mem_rdata),
.mem_busy(mem_busy), .mem_done(mem_done),
.ui_clk(ui_clk), .ui_rst(ui_rst),
.req_valid(req_valid), .req_we(req_we), .req_addr(req_addr),
.req_wdata(req_wdata), .req_wmask(req_wmask), .req_ready(req_ready),
.rsp_valid(rsp_valid), .rsp_rdata(rsp_rdata)
);
nd_ddr2_port u_ddr2 (
.sys_clk_200(clk200), .rst_n(rst_req_n),
.ui_clk(ui_clk), .ui_rst(ui_rst), .calib_done(calib_done),
.req_valid(req_valid), .req_we(req_we), .req_addr(req_addr),
.req_wdata(req_wdata), .req_wmask(req_wmask), .req_ready(req_ready),
.rsp_valid(rsp_valid), .rsp_rdata(rsp_rdata),
.ddr2_dq(ddr2_dq), .ddr2_dqs_p(ddr2_dqs_p), .ddr2_dqs_n(ddr2_dqs_n),
.ddr2_addr(ddr2_addr), .ddr2_ba(ddr2_ba), .ddr2_ras_n(ddr2_ras_n),
.ddr2_cas_n(ddr2_cas_n), .ddr2_we_n(ddr2_we_n),
.ddr2_ck_p(ddr2_ck_p), .ddr2_ck_n(ddr2_ck_n), .ddr2_cke(ddr2_cke),
.ddr2_cs_n(ddr2_cs_n), .ddr2_dm(ddr2_dm), .ddr2_odt(ddr2_odt)
);
/*********************************************
* nd_storage - same parameters the ND-120 *
* build resolves to (wrapper INCLUDE_TAPE/ *
* FLOPPY/WD => CACHE_MASK 11000000, *
* FILE0 = BOOT.TAP) *
**********************************************/
localparam N = 8;
wire [N-1:0] open_req_w, open_ok_w, open_err_w, req_w, wr_w;
wire [N-1:0] busy_w, done_w, err_w, buf_we_w;
wire [N*4-1:0] err_code_w;
wire [N*32-1:0] size_bytes_w;
wire [N*16-1:0] block_w, buf_wdata_w, buf_rdata_w;
wire [N*10-1:0] buf_addr_w;
wire [1:0] sd_status;
nd_storage #(
.SIMULATE (0),
.CACHE_MASK (8'b11000000),
.FILE0_NAME ("BOOT.TAP"), .FILE0_LEN(8'd8)
) u_nd_storage (
.clk_stor (clk_stor),
.rst_stor_n(rst_stor_n),
.clk_cpu (clk_cpu),
.rst_cpu_n (rst_cpu_n),
.sd_clk_o (s_sd_clk_o),
.sd_cmd_i (sd_cmd),
.sd_cmd_o (s_sd_cmd_o),
.sd_cmd_oe (s_sd_cmd_oe),
.sd_dat0_i (sd_dat0),
.sd_dat0_o (s_sd_dat0_o),
.sd_dat0_oe(s_sd_dat0_oe),
.mem_start (mem_start),
.mem_we (mem_we),
.mem_addr (mem_addr),
.mem_wdata (mem_wdata),
.mem_rdata (mem_rdata),
.mem_busy (mem_busy),
.mem_done (mem_done),
.open_req (open_req_w),
.open_ok (open_ok_w),
.open_err (open_err_w),
.size_bytes(size_bytes_w),
.req (req_w),
.wr (wr_w),
.block (block_w),
.busy (busy_w),
.done (done_w),
.err (err_w),
.err_code (err_code_w),
.dbg_state(), .dbg_lba(), .dbg_wdata(), .dbg_rdata(), .dbg_bufw(),
.dbg_bufwe(), .dbg_fsec(), .dbg_rx_stb(), .dbg_rx_raw(),
.dbg_rx_byte(), .dbg_past_eof(), .dbg_grant(),
.buf_addr (buf_addr_w),
.buf_wdata (buf_wdata_w),
.buf_we (buf_we_w),
.buf_rdata (buf_rdata_w),
.sd_status (sd_status),
.card_type (),
.fs_type ()
);
/*********************************************
* Client 1 = the real floppy adapter, now *
* driven by the REAL ND_FLOPPY_DMA *
**********************************************/
wire fd_req, fd_wr;
wire [15:0] fd_lsect;
wire [ 1:0] fd_format, fd_drive;
wire [10:0] fd_wc;
wire fd_done, fd_err;
wire [3:0] fd_code;
wire [9:0] fdb_addr;
wire [15:0] fdb_wdata;
wire fdb_we;
wire [15:0] fdb_rdata;
wire f_open_req, f_req, f_wr;
wire [15:0] f_block, f_buf_rdata;
// held open, exactly like the devices wrapper (gen_floppy)
reg s_fopened = 1'b0;
always @(posedge clk_cpu or negedge rst_cpu_n)
if (!rst_cpu_n) s_fopened <= 1'b0;
else if (open_ok_w[1]) s_fopened <= 1'b1;
wire s_fopen_pulse = !s_fopened;
nd_storage_floppy_adapter #(.DRIVE(2'd0)) u_floppy_adapter (
.clk_cpu (clk_cpu),
.rst_n (rst_cpu_n),
.disk_req (fd_req),
.disk_wr (fd_wr),
.disk_lsect (fd_lsect),
.disk_format (fd_format),
.disk_drive (fd_drive),
.disk_wordcount(fd_wc),
.disk_done (fd_done),
.disk_err (fd_err),
.disk_err_code (fd_code),
.dbuf_addr (fdb_addr),
.dbuf_wdata (fdb_wdata),
.dbuf_we (fdb_we),
.dbuf_rdata (fdb_rdata),
.open_start (s_fopen_pulse),
.c_open_req (f_open_req),
.c_open_ok (open_ok_w[1]),
.c_open_err (open_err_w[1]),
.c_size_bytes (size_bytes_w[63:32]),
.c_req (f_req),
.c_wr (f_wr),
.c_block (f_block),
.c_busy (busy_w[1]),
.c_done (done_w[1]),
.c_err (err_w[1]),
.c_err_code (err_code_w[7:4]),
.c_buf_addr (buf_addr_w[19:10]),
.c_buf_wdata (buf_wdata_w[31:16]),
.c_buf_we (buf_we_w[1]),
.c_buf_rdata (f_buf_rdata)
);
// Clients 0 (tape) and 6 (WD): held opens like the wrapper's sequencers.
reg s_topened = 1'b0, s_wopened = 1'b0;
always @(posedge clk_cpu or negedge rst_cpu_n)
if (!rst_cpu_n) begin s_topened <= 1'b0; s_wopened <= 1'b0; end
else begin
if (open_ok_w[0]) s_topened <= 1'b1;
if (open_ok_w[6]) s_wopened <= 1'b1;
end
assign open_req_w = {1'b0, !s_wopened, 4'b0000, f_open_req, !s_topened};
assign req_w = {6'b0, f_req, 1'b0};
assign wr_w = {6'b0, f_wr, 1'b0};
assign block_w = {96'd0, f_block, 16'd0};
assign buf_rdata_w= {96'd0, f_buf_rdata, 16'd0};
// media format is derived inside the core from the image size
wire w_pass, w_timeout, w_idle;
floppy_hwtest_core u_core (
.clk_cpu (clk_cpu),
.rst_cpu_n (rst_cpu_n),
.mount_ok (open_ok_w[1]),
.img_size (size_bytes_w[63:32]),
.fd_req (fd_req),
.fd_wr (fd_wr),
.fd_lsect (fd_lsect),
.fd_format (fd_format),
.fd_drive (fd_drive),
.fd_wc (fd_wc),
.fd_done (fd_done),
.fd_err (fd_err),
.fd_code (fd_code),
.fdb_addr (fdb_addr),
.fdb_wdata (fdb_wdata),
.fdb_we (fdb_we),
.fdb_rdata (fdb_rdata),
.uart_txd (uart_rxd_out),
.st_pass (w_pass),
.st_timeout(w_timeout),
.st_idle (w_idle)
);
assign led[0] = mmcm_locked;
assign led[1] = calib_done;
assign led[2] = sd_status[0];
assign led[3] = open_ok_w[1];
assign led[4] = w_idle;
assign led[5] = w_pass;
assign led[6] = w_timeout | (|open_err_w);
assign led[7] = sd_cd;
/* verilator lint_off UNUSEDSIGNAL */
wire _unused = &{1'b0, uart_txd_in, sd_dat1, sd_dat2, sd_dat3,
busy_w[0], busy_w[7:2], done_w[0], done_w[7:2],
err_w[0], err_w[7:2], err_code_w[3:0], err_code_w[31:8],
size_bytes_w[31:0], size_bytes_w[255:64], block_w,
buf_addr_w[9:0], buf_addr_w[159:20],
buf_wdata_w[15:0], buf_wdata_w[127:32],
buf_we_w[0], buf_we_w[7:2], open_ok_w, open_err_w,
ui_rst, 1'b0};
/* verilator lint_on UNUSEDSIGNAL */
endmodule
`default_nettype wire
