PAL_44407A

Source: Verilog/PAL/PAL_44407A.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

Module hierarchy - All modules

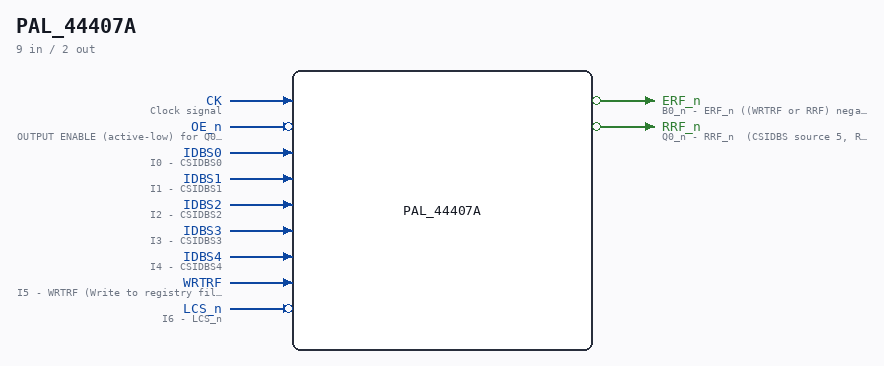

Schematic

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 PALASM CODE CONVERTED TO VERILOG Component PAL 44407A Last reviewed: 1-DEC-2024 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	CK	Clock signal
input	1	OE_n (active low)	OUTPUT ENABLE (active-low) for Q0-Q3
input	1	IDBS0	I0 - CSIDBS0
input	1	IDBS1	I1 - CSIDBS1
input	1	IDBS2	I2 - CSIDBS2
input	1	IDBS3	I3 - CSIDBS3
input	1	IDBS4	I4 - CSIDBS4
input	1	WRTRF	I5 - WRTRF (Write to registry file)
input	1	LCS_n (active low)	I6 - LCS_n
output	1	ERF_n (active low)	B0_n - ERF_n ((WRTRF or RRF) negated) - Enables RAM chips 34F and 35F in CPU_PROC_32.v for read or write of REG
output	1	RRF_n (active low)	Q0_n - RRF_n (CSIDBS source 5, REG)

Verilog source

Verilog/PAL/PAL_44407A.v on GitHub.

Show the Verilog of PAL_44407A (76 lines)

/**********************************************************************************************************
** ND120 PALASM CODE CONVERTED TO VERILOG                                                                **
**                                                                                                       **
** Component PAL 44407A                                                                                  **
**                                                                                                       **
** Last reviewed: 1-DEC-2024                                                                             **
** Ronny Hansen                                                                                          **
***********************************************************************************************************/

// PAL16R4
// JLB 25FEB87
// 44407A,19F ,ERFFIX

// PCB 3202D sheet 34:
//
// PAL input signal PD1 is connected to PAL OE_n (and PD1 to PD4 is ALWAYS 0/FALSE in the 3202 circuit board)
//     input signal CLK is connectec to PAL CK pin

module PAL_44407A (
    input CK,   //! Clock signal
    input OE_n, //! OUTPUT ENABLE (active-low) for Q0-Q3

    input IDBS0,  //! I0 - CSIDBS0
    input IDBS1,  //! I1 - CSIDBS1
    input IDBS2,  //! I2 - CSIDBS2
    input IDBS3,  //! I3 - CSIDBS3
    input IDBS4,  //! I4 - CSIDBS4
    input WRTRF,  //! I5 - WRTRF (Write to registry file)
    input LCS_n,  //! I6 - LCS_n
                  //! I7 - (not connected)

    output ERF_n,  //! B0_n - ERF_n ((WRTRF or RRF) negated) - Enables RAM chips 34F and 35F in CPU_PROC_32.v for read or write of REG
                   //! B1_n - (not connected)

    output RRF_n  //! Q0_n - RRF_n  (CSIDBS source 5, REG)
                  //! Q2_n - (not connected)
                  //! Q3_n - (not connected)
                  //! Q4_n - (not connected)

);

  // Inverted input signals
  wire IDBS4_n = ~IDBS4;
  wire IDBS3_n = ~IDBS3;
  wire IDBS1_n = ~IDBS1;

  reg  RRF_reg;  // Register for RRF_n output

  // Sequential logic triggered on the rising edge of CLK
  always @(posedge CK) begin

    // IDBS = REG FILE = 5

    // Logic for RRF
    RRF_reg <= LCS_n & IDBS4_n & IDBS3_n & IDBS2 & IDBS1_n & IDBS0;

  end

  // Tri-state control for outputs
  // High-impedance state when OE_n is high (active-low)
  assign RRF_n = OE_n ? 1'b0 : ~RRF_reg;


  // Logic for ERF_n (active-low)
  assign ERF_n = OE_n ? 1'b0 : ~(RRF_reg | WRTRF);

endmodule



/*
DESCRIPTION

; 180587 M3202B

*/
