PAL_44407A_EN¶
Source: Verilog/PAL/PAL_44407A_EN.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CMDDEC_34 > PAL_44407A_EN
- instance path: CORE.CPU_BOARD.CPU.PROC.CMDDEC.PAL_44407_UERFIX
Used in: CPU_PROC_CMDDEC_34 (all tops)
Contains: no other modules.
Module hierarchy - All modules

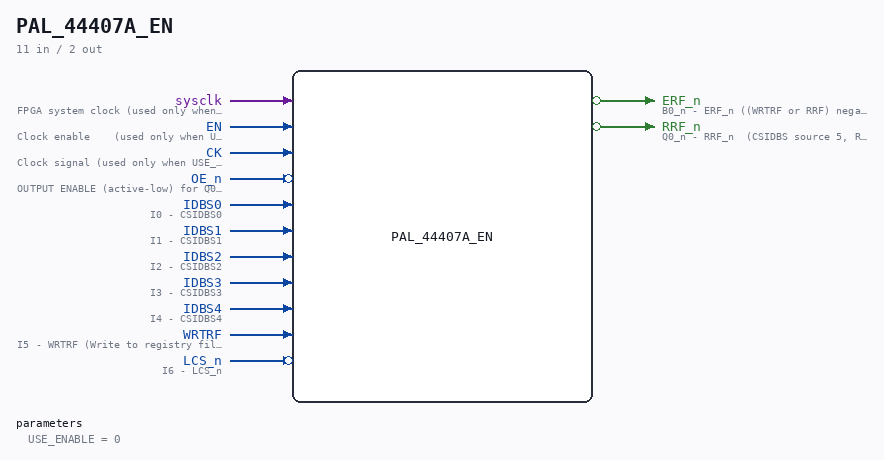

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CMDDEC.PAL_44407_UERFIX. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 PALASM CODE CONVERTED TO VERILOG
Component PAL 44407A (UERFIX) - clock-enable wrapper
USE_ENABLE=0 (default): instantiates the original PAL_44407A untouched
(posedge CK registered outputs).
USE_ENABLE=1: structural copy of PAL_44407A with the registered
equations captured on posedge sysclk + if (EN) (P2 clock-domain
conversion, docs/plan-fix-unconstrained-clocks.md - EN is CYC_36's
CLK_EN pulse aligned with the CLK rise). Equations are line-for-line
identical to PAL_44407A.v; only the flop trigger changes.
The original PAL_44407A.v is generated from PALASM and is never
modified - keep the equations here in sync with it.
Last reviewed: 10-JUL-2026
Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
USE_ENABLE |
0 |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (used only when USE_ENABLE=1) |
| input | 1 |
EN |
Clock enable (used only when USE_ENABLE=1) |
| input | 1 |
CK |
Clock signal (used only when USE_ENABLE=0) |
| input | 1 |
OE_n (active low) |
OUTPUT ENABLE (active-low) for Q0-Q3 |
| input | 1 |
IDBS0 |
I0 - CSIDBS0 |
| input | 1 |
IDBS1 |
I1 - CSIDBS1 |
| input | 1 |
IDBS2 |
I2 - CSIDBS2 |
| input | 1 |
IDBS3 |
I3 - CSIDBS3 |
| input | 1 |
IDBS4 |
I4 - CSIDBS4 |
| input | 1 |
WRTRF |
I5 - WRTRF (Write to registry file) |
| input | 1 |
LCS_n (active low) |
I6 - LCS_n |
| output | 1 |
ERF_n (active low) |
B0_n - ERF_n ((WRTRF or RRF) negated) - Enables RAM chips 34F and 35F in CPU_PROC_32.v for read or write of REG |
| output | 1 |
RRF_n (active low) |
Q0_n - RRF_n (CSIDBS source 5, REG) |
Verilog source¶
Verilog/PAL/PAL_44407A_EN.v on GitHub.
Show the Verilog of PAL_44407A_EN (102 lines)
/**********************************************************************************************************
** ND120 PALASM CODE CONVERTED TO VERILOG **
** **
** Component PAL 44407A (UERFIX) - clock-enable wrapper **
** **
** USE_ENABLE=0 (default): instantiates the original PAL_44407A untouched **
** (posedge CK registered outputs). **
** USE_ENABLE=1: structural copy of PAL_44407A with the registered **
** equations captured on `posedge sysclk + if (EN)` (P2 clock-domain **
** conversion, docs/plan-fix-unconstrained-clocks.md - EN is CYC_36's **
** CLK_EN pulse aligned with the CLK rise). Equations are line-for-line **
** identical to PAL_44407A.v; only the flop trigger changes. **
** **
** The original PAL_44407A.v is generated from PALASM and is never **
** modified - keep the equations here in sync with it. **
** **
** Last reviewed: 10-JUL-2026 **
** Ronny Hansen **
***********************************************************************************************************/
module PAL_44407A_EN #(
parameter integer USE_ENABLE = 0
) (
input sysclk, //! FPGA system clock (used only when USE_ENABLE=1)
input EN, //! Clock enable (used only when USE_ENABLE=1)
input CK, //! Clock signal (used only when USE_ENABLE=0)
input OE_n, //! OUTPUT ENABLE (active-low) for Q0-Q3
input IDBS0, //! I0 - CSIDBS0
input IDBS1, //! I1 - CSIDBS1
input IDBS2, //! I2 - CSIDBS2
input IDBS3, //! I3 - CSIDBS3
input IDBS4, //! I4 - CSIDBS4
input WRTRF, //! I5 - WRTRF (Write to registry file)
input LCS_n, //! I6 - LCS_n
//! I7 - (not connected)
output ERF_n, //! B0_n - ERF_n ((WRTRF or RRF) negated) - Enables RAM chips 34F and 35F in CPU_PROC_32.v for read or write of REG
//! B1_n - (not connected)
output RRF_n //! Q0_n - RRF_n (CSIDBS source 5, REG)
//! Q2_n - (not connected)
//! Q3_n - (not connected)
//! Q4_n - (not connected)
);
generate
if (USE_ENABLE == 1) begin : gen_enable
/* verilator lint_off UNUSEDSIGNAL */
wire unused_clk = CK;
/* verilator lint_on UNUSEDSIGNAL */
// Inverted input signals
wire IDBS4_n = ~IDBS4;
wire IDBS3_n = ~IDBS3;
wire IDBS1_n = ~IDBS1;
reg RRF_reg = 1'b0; // Register for RRF_n output
// Sequential logic - equations identical to PAL_44407A.v,
// captured on the enable instead of posedge CK.
always @(posedge sysclk) begin
if (EN) begin
// IDBS = REG FILE = 5
// Logic for RRF
RRF_reg <= LCS_n & IDBS4_n & IDBS3_n & IDBS2 & IDBS1_n & IDBS0;
end
end
// Tri-state control for outputs
// High-impedance state when OE_n is high (active-low)
assign RRF_n = OE_n ? 1'b0 : ~RRF_reg;
// Logic for ERF_n (active-low)
assign ERF_n = OE_n ? 1'b0 : ~(RRF_reg | WRTRF);
end else begin : gen_orig
/* verilator lint_off UNUSEDSIGNAL */
wire unused_sys = sysclk & EN;
/* verilator lint_on UNUSEDSIGNAL */
PAL_44407A PAL (
.CK(CK),
.OE_n(OE_n),
.IDBS0(IDBS0),
.IDBS1(IDBS1),
.IDBS2(IDBS2),
.IDBS3(IDBS3),
.IDBS4(IDBS4),
.WRTRF(WRTRF),
.LCS_n(LCS_n),
.ERF_n(ERF_n),
.RRF_n(RRF_n)
);
end
endgenerate
endmodule
