PAL_44304E¶

Source: Verilog/PAL/PAL_44304E.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > BIF_5 > BIF_DPATH_9 > BIF_DPATH_LDBCTL_12 > PAL_44304E - instance path: CORE.CPU_BOARD.BIF.DPATH.LDBCTL.PAL_44304_ULBC3

Used in: BIF_DPATH_LDBCTL_12 (all tops)

Contains: no other modules.

Module hierarchy - All modules

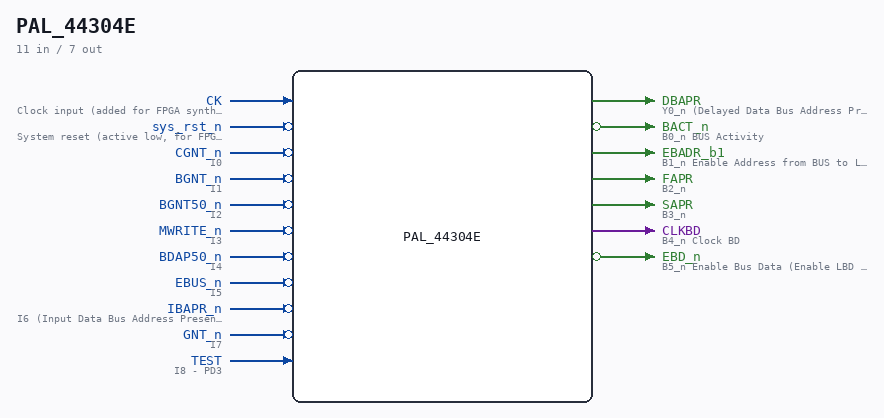

PAL_44304E symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.BIF.DPATH.LDBCTL.PAL_44304_ULBC3. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

ND120 PALASM CODE CONVERTED TO VERILOG Component PAL 44304E Last reviewed: 22-MAR-2025 Ronny Hansen

Ports¶

Direction	Width	Name	Description
input	`1`	`CK`	Clock input (added for FPGA synthesis)
input	`1`	`sys_rst_n` (active low)	System reset (active low, for FPGA synthesis)
input	`1`	`CGNT_n` (active low)	I0
input	`1`	`BGNT_n` (active low)	I1
input	`1`	`BGNT50_n` (active low)	I2
input	`1`	`MWRITE_n` (active low)	I3
input	`1`	`BDAP50_n` (active low)	I4
input	`1`	`EBUS_n` (active low)	I5
input	`1`	`IBAPR_n` (active low)	I6 (Input Data Bus Address Present)
input	`1`	`GNT_n` (active low)	I7
input	`1`	`TEST`	I8 - PD3
output	`1`	`DBAPR`	Y0_n (Delayed Data Bus Address Present)
output	`1`	`BACT_n` (active low)	B0_n BUS Activity
output	`1`	`EBADR_b1`	B1_n Enable Address from BUS to Local Memory
output	`1`	`FAPR`	B2_n
output	`1`	`SAPR`	B3_n
output	`1`	`CLKBD`	B4_n Clock BD
output	`1`	`EBD_n` (active low)	B5_n Enable Bus Data (Enable LBD to BD transceiver)

Verilog source¶

Verilog/PAL/PAL_44304E.v on GitHub.

Show the Verilog of PAL_44304E (150 lines)

/**********************************************************************************************************
** ND120 PALASM CODE CONVERTED TO VERILOG                                                                **
**                                                                                                       **
** Component PAL 44304E                                                                                  **
**                                                                                                       **
** Last reviewed: 22-MAR-2025                                                                            **
** Ronny Hansen                                                                                          **
***********************************************************************************************************/


// PAL16L8
// CJTC 02SEP86
// 44304E,1C,LBC3 - LOCAL DATA BUS CONTROL PAL

// NOTE: PAL16L8 is purely combinational in the original hardware.
// Clock input added for FPGA synthesis to eliminate combinatorial loops.

// Note: Verilator doesnt like signal name "EBADR" therefore its named "EBADR_b1". I dont know why.

// Note2: TEST is connectecd to signal PD3 that is always 0 on the PCB 3202D.
// Note3: Code for TEST removed for clarity as its NEVER used

module PAL_44304E (
    input CK,        //! Clock input (added for FPGA synthesis)
    input sys_rst_n, //! System reset (active low, for FPGA synthesis)

    input CGNT_n,    //! I0
    input BGNT_n,    //! I1
    input BGNT50_n,  //! I2
    input MWRITE_n,  //! I3
    input BDAP50_n,  //! I4
    input EBUS_n,    //! I5
    input IBAPR_n,   //! I6 (Input Data Bus Address Present)
    input GNT_n,     //! I7
    input TEST,      //! I8 - PD3
    //input I9       //! I9

    output DBAPR,     //! Y0_n (Delayed Data Bus Address Present)
    //output Y1_n,    //! Y1_n

    output BACT_n,    //! B0_n BUS Activity
    output EBADR_b1,  //! B1_n Enable Address from BUS to Local Memory
    output FAPR,      //! B2_n
    output SAPR,      //! B3_n
    output CLKBD,     //! B4_n Clock BD
    output EBD_n      //! B5_n Enable Bus Data (Enable LBD to BD transceiver)
);



  // Inverted input signals
  wire BGNT = ~BGNT_n;
  wire BGNT50 = ~BGNT50_n;
  wire BDAP50 = ~BDAP50_n;
  wire EBUS = ~EBUS_n;
  wire SAPR_n = ~SAPR;

  // Output signal logic (self reference)

  reg  BACT_reg;
  reg  EBADR_n_reg;

`ifdef USE_TRANSPARENT_LATCHES
  // Transparent latch (original behavior for simulation)
  /* verilator lint_off LATCH */
  always @(*) begin
    BACT_reg = (BGNT50 & MWRITE_n)
           |   (BACT_reg & BDAP50);

    EBADR_n_reg = (GNT_n & BGNT_n)
             | (IBAPR_n & EBADR_n_reg)
             | (GNT_n & EBADR_n_reg);
  end
  /* verilator lint_on LATCH */
`else
  // Edge-triggered flip-flop (FPGA synthesis)
  always @(posedge CK or negedge sys_rst_n) begin
    if (!sys_rst_n) begin
      BACT_reg <= 1'b0;
      EBADR_n_reg <= 1'b1;  // EBADR_b1 = ~EBADR_n_reg, inactive at reset
    end else begin
      if (BGNT50 & MWRITE_n)
        BACT_reg <= 1'b1;
      else if (!BDAP50)
        BACT_reg <= 1'b0;

      if (GNT_n & BGNT_n)
        EBADR_n_reg <= 1'b1;
      else if (!IBAPR_n & !GNT_n)
        EBADR_n_reg <= 1'b0;
    end
  end
`endif


  assign EBADR_b1 = ~EBADR_n_reg;

  assign BACT_n = ~BACT_reg;  // Output pin Y1_n (BACT_n) is not connected to anything. Sheet 12.



  // EBD - ENABLE BUS DATA. ENABLE LBD TO BD TRANSCEIVER
  // SHOULD BE DISABLED DURING CGNT * /BACT, IE DISABLE WHEN CPU
  // IS ACCESSING LOCAL MEMORY, EXCEPT WHEN TRANSCEIVER IS BEING USED
  // AS A REGISTER TO HOLD DATA FROM A PREVIOUS DMA MEMORY READ.

  assign EBD_n = ~(
      (EBUS & CGNT_n & GNT_n) |
      (EBUS & BGNT) |
      (EBUS & BACT_reg)
      );


  // SLOW INVERSION
  // TODO: Introduce a few nanoseconds delay - IBAPR -- SAPR => DBAPR (??)
  assign FAPR = ~(IBAPR_n);
  assign SAPR = FAPR;
  assign DBAPR = SAPR;


  // CLKBD - CLOCK PULSE TO 648's
  assign CLKBD = ~(
      (SAPR_n & BGNT50_n) |  // Clock addresses on delayed BAPR
      (SAPR_n & BDAP50_n) |  // Clock data 50ns after start of
      (SAPR_n & MWRITE_n)  // BGNT * BDAP on memory writes from DMA
      );



endmodule

/*

DESCRIPTION

; 200387 CJTC:      NEED TO SLOW DOWN APR TO AS648 BUS TCVRS. PUT IT
;                   THROUGH THIS PAL INSTEAD OF F04
; 200387 JLB:       EBADR COMES ON AT BAPR TO AVOID SPIKE ON LBD.
; NEW INPUT CGNT
; 230387 JLB:       APR DELAYED 3XPAL DELAY
; 240387 JLB:       EBD MUST NOT CHANGE WHEN DATA IS CLOCKED IN.
;
; 180587 - 3202B
; 310787 JLB:       BUFFERED DMA WRITE: CLOCK DATA IN 648'S ALSO.

; 040887 JLB:       BUFFERED DMA WRITE: NEED TO ENABLE THE REGISTER IN THE
;                   648'S FOR THE PERIOD OF BGNT.
; 060887 D JLB:     EBADR CHANGED TO MAKE BUFFERED DMA WRITE WORK.
; 090887 E JLB:     TEST MODE FOR C-PRINT.
*/
