PAL_44408B_EN¶

Source: Verilog/PAL/PAL_44408B_EN.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CMDDEC_34 > PAL_44408B_EN - instance path: CORE.CPU_BOARD.CPU.PROC.CMDDEC.PAL_44408B_VEXFIX

Used in: CPU_PROC_CMDDEC_34 (all tops)

Contains: no other modules.

Module hierarchy - All modules

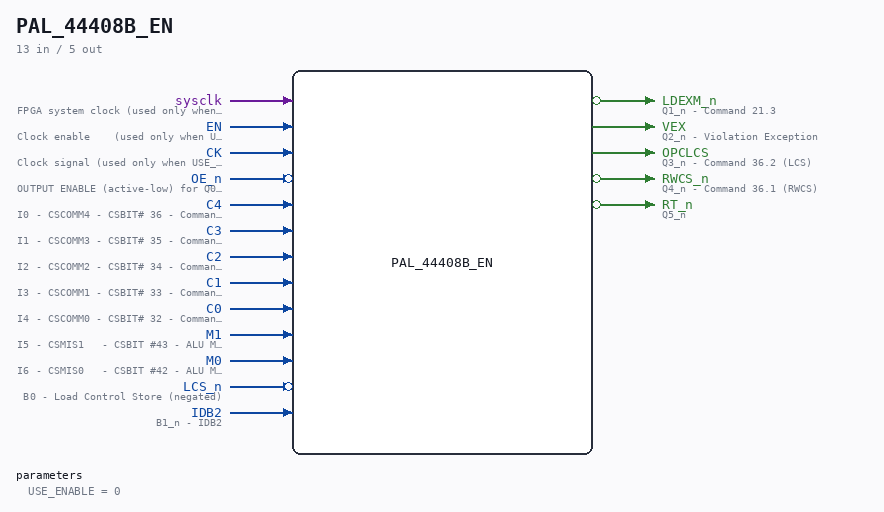

PAL_44408B_EN symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CMDDEC.PAL_44408B_VEXFIX. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

ND120 PALASM CODE CONVERTED TO VERILOG Component PAL 44408B (VEXFIX) - clock-enable wrapper USE_ENABLE=0 (default): instantiates the original PAL_44408B untouched (posedge CK registered outputs). USE_ENABLE=1: structural copy of PAL_44408B with the registered equations captured on posedge sysclk + if (EN) (P2 clock-domain conversion, docs/plan-fix-unconstrained-clocks.md - EN is CYC_36's CLK_EN pulse aligned with the CLK rise). Equations are line-for-line identical to PAL_44408B.v; only the flop trigger changes. The original PAL_44408B.v is generated from PALASM and is never modified - keep the equations here in sync with it. Last reviewed: 10-JUL-2026 Ronny Hansen

Parameters¶

Parameter	Default
`USE_ENABLE`	`0`

Ports¶

Direction	Width	Name	Description
input	`1`	`sysclk`	FPGA system clock (used only when USE_ENABLE=1)
input	`1`	`EN`	Clock enable (used only when USE_ENABLE=1)
input	`1`	`CK`	Clock signal (used only when USE_ENABLE=0)
input	`1`	`OE_n` (active low)	OUTPUT ENABLE (active-low) for Q0-Q3
input	`1`	`C4`	I0 - CSCOMM4 - CSBIT# 36 - Command bit 4
input	`1`	`C3`	I1 - CSCOMM3 - CSBIT# 35 - Command bit 3
input	`1`	`C2`	I2 - CSCOMM2 - CSBIT# 34 - Command bit 2
input	`1`	`C1`	I3 - CSCOMM1 - CSBIT# 33 - Command bit 1
input	`1`	`C0`	I4 - CSCOMM0 - CSBIT# 32 - Command bit 0
input	`1`	`M1`	I5 - CSMIS1 - CSBIT #43 - ALU MIS1 SIGNAL (also used for sub-commands for CSCOMM)
input	`1`	`M0`	I6 - CSMIS0 - CSBIT #42 - ALU MIS0 SIGNAL (also used for sub-commands for CSCOMM)
input	`1`	`LCS_n` (active low)	B0 - Load Control Store (negated)
input	`1`	`IDB2`	B1_n - IDB2
output	`1`	`LDEXM_n` (active low)	Q1_n - Command 21.3
output	`1`	`VEX`	Q2_n - Violation Exception
output	`1`	`OPCLCS`	Q3_n - Command 36.2 (LCS)
output	`1`	`RWCS_n` (active low)	Q4_n - Command 36.1 (RWCS)
output	`1`	`RT_n` (active low)	Q5_n

Verilog source¶

Verilog/PAL/PAL_44408B_EN.v on GitHub.

Show the Verilog of PAL_44408B_EN (125 lines)

/**********************************************************************************************************
** ND120 PALASM CODE CONVERTED TO VERILOG                                                                **
**                                                                                                       **
** Component PAL 44408B (VEXFIX) - clock-enable wrapper                                                  **
**                                                                                                       **
** USE_ENABLE=0 (default): instantiates the original PAL_44408B untouched                                **
**   (posedge CK registered outputs).                                                                    **
** USE_ENABLE=1: structural copy of PAL_44408B with the registered                                       **
**   equations captured on `posedge sysclk + if (EN)` (P2 clock-domain                                   **
**   conversion, docs/plan-fix-unconstrained-clocks.md - EN is CYC_36's                                  **
**   CLK_EN pulse aligned with the CLK rise). Equations are line-for-line                                **
**   identical to PAL_44408B.v; only the flop trigger changes.                                           **
**                                                                                                       **
** The original PAL_44408B.v is generated from PALASM and is never                                       **
** modified - keep the equations here in sync with it.                                                   **
**                                                                                                       **
** Last reviewed: 10-JUL-2026                                                                            **
** Ronny Hansen                                                                                          **
***********************************************************************************************************/

module PAL_44408B_EN #(
    parameter integer USE_ENABLE = 0
) (
    input sysclk,  //! FPGA system clock (used only when USE_ENABLE=1)
    input EN,      //! Clock enable    (used only when USE_ENABLE=1)

    input CK,   //! Clock signal (used only when USE_ENABLE=0)
    input OE_n, //! OUTPUT ENABLE (active-low) for Q0-Q3

    input C4,     //! I0 - CSCOMM4 - CSBIT# 36 - Command bit 4
    input C3,     //! I1 - CSCOMM3 - CSBIT# 35 - Command bit 3
    input C2,     //! I2 - CSCOMM2 - CSBIT# 34 - Command bit 2
    input C1,     //! I3 - CSCOMM1 - CSBIT# 33 - Command bit 1
    input C0,     //! I4 - CSCOMM0 - CSBIT# 32 - Command bit 0
    input M1,     //! I5 - CSMIS1   - CSBIT #43 - ALU MIS1 SIGNAL (also used for sub-commands for CSCOMM)
    input M0,     //! I6 - CSMIS0   - CSBIT #42 - ALU MIS0 SIGNAL (also used for sub-commands for CSCOMM)
                  //! I7 - (not connected)
    input LCS_n,  //! B0 - Load Control Store (negated)
    // B0_n - (not connected)
    input IDB2,   //! B1_n - IDB2

    // Q0_n - (not connected)
    output LDEXM_n,  //! Q1_n - Command 21.3
    output VEX,      //! Q2_n - Violation Exception
    output OPCLCS,   //! Q3_n - Command 36.2 (LCS)
    output RWCS_n,   //! Q4_n - Command 36.1 (RWCS)

    // Pin in 444608 (VXFIX) but not in 44408B
    output RT_n  //! Q5_n

);

  generate
    if (USE_ENABLE == 1) begin : gen_enable
      /* verilator lint_off UNUSEDSIGNAL */
      wire unused_clk = CK;
      /* verilator lint_on UNUSEDSIGNAL */

      // Inverted input signals
      wire LCS = ~LCS_n;

      // Internal signals for outputs
      reg RWCS_int = 1'b0, OPCLCS_n_int = 1'b0, VEX_n_int = 1'b0, LDEXM_int = 1'b0;

      // Sequential logic - equations identical to PAL_44408B.v,
      // captured on the enable instead of posedge CK.
      always @(posedge sysclk) begin
        if (EN) begin
          // Logic for LDEXM
          LDEXM_int <= C4 & ~C3 & ~C2 & ~C1 & C0 & M1 & M0 & LCS_n;  // COMMAND 21.3 LDEXM (validated RH) (Load examine mode in MAC function.)

            // VEX Logic
          if ((LDEXM_int && ~IDB2) || (~LDEXM_int && VEX_n_int) || LCS)
          begin
            VEX_n_int <= 1'b1; // Set /VEX to 1
          end else begin
            VEX_n_int <= 1'b0; // Default: Set /VEX to 0
          end

          // Logic for OPCLCS
          OPCLCS_n_int <= ~C4 | ~C3 | ~C2 | ~C1 | C0 | ~M1 | M0 | LCS;  // COMMAND 36.2 LCS (validated RH) - Load control store from PROM. and perform a Master Clear

          // Logic for RWCS
          RWCS_int <= C4 & C3 & C2 & C1 & ~C0 & ~M1 & M0 & LCS_n;  // COMMAND 36.1 RWCS(validated RH) - Read/write control store as addressed by ADCS command

        end
      end

      // Tri-state control for outputs
      // High-impedance state when OE_n is high (active-low)

      assign RWCS_n = OE_n ? 1'b0 : ~RWCS_int;
      assign OPCLCS = OE_n ? 1'b0 : ~OPCLCS_n_int;
      assign VEX = OE_n ? 1'b0 : ~VEX_n_int;
      assign LDEXM_n = OE_n ? 1'b0 : ~LDEXM_int;


      // Unknown signal in this PAL, set high
      assign RT_n = 1'b1;
    end else begin : gen_orig
      /* verilator lint_off UNUSEDSIGNAL */
      wire unused_sys = sysclk & EN;
      /* verilator lint_on UNUSEDSIGNAL */
      PAL_44408B PAL (
          .CK(CK),
          .OE_n(OE_n),
          .C4(C4),
          .C3(C3),
          .C2(C2),
          .C1(C1),
          .C0(C0),
          .M1(M1),
          .M0(M0),
          .LCS_n(LCS_n),
          .IDB2(IDB2),
          .LDEXM_n(LDEXM_n),
          .VEX(VEX),
          .OPCLCS(OPCLCS),
          .RWCS_n(RWCS_n),
          .RT_n(RT_n)
      );
    end
  endgenerate

endmodule
