PAL_44902A¶
Source: Verilog/PAL/PAL_44902A.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > MEM_43 > MEM_RAMC_50 > PAL_44902A
- instance path: CORE.CPU_BOARD.MEM.RAMC.PAL_44902_URAMC
Used in: MEM_RAMC_50 (all tops)
Contains: no other modules.
Module hierarchy - All modules

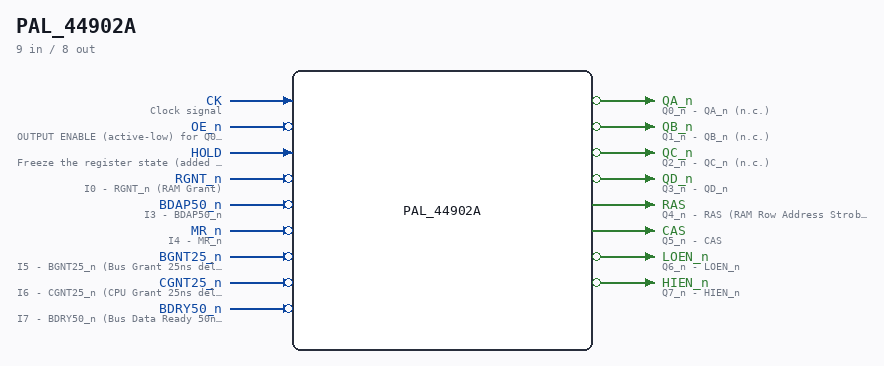

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.MEM.RAMC.PAL_44902_URAMC. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 PALASM CODE CONVERTED TO VERILOG Component PAL 44902A Last reviewed: 14-DEC-2024 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
CK |
Clock signal |
| input | 1 |
OE_n (active low) |
OUTPUT ENABLE (active-low) for Q0-Q5 |
| input | 1 |
HOLD |
Freeze the register state (added 25-AUG-2026 for the |
| input | 1 |
RGNT_n (active low) |
I0 - RGNT_n (RAM Grant) |
| input | 1 |
BDAP50_n (active low) |
I3 - BDAP50_n |
| input | 1 |
MR_n (active low) |
I4 - MR_n |
| input | 1 |
BGNT25_n (active low) |
I5 - BGNT25_n (Bus Grant 25ns delayed) |
| input | 1 |
CGNT25_n (active low) |
I6 - CGNT25_n (CPU Grant 25ns delayed) |
| input | 1 |
BDRY50_n (active low) |
I7 - BDRY50_n (Bus Data Ready 50ns delayed) |
| output | 1 |
QA_n (active low) |
Q0_n - QA_n (n.c.) |
| output | 1 |
QB_n (active low) |
Q1_n - QB_n (n.c.) |
| output | 1 |
QC_n (active low) |
Q2_n - QC_n (n.c.) |
| output | 1 |
QD_n (active low) |
Q3_n - QD_n |
| output | 1 |
RAS |
Q4_n - RAS (RAM Row Address Strobe) |
| output | 1 |
CAS |
Q5_n - CAS |
| output | 1 |
LOEN_n (active low) |
Q6_n - LOEN_n |
| output | 1 |
HIEN_n (active low) |
Q7_n - HIEN_n |
Verilog source¶
Verilog/PAL/PAL_44902A.v on GitHub.
Show the Verilog of PAL_44902A (201 lines)
/**********************************************************************************************************
** ND120 PALASM CODE CONVERTED TO VERILOG **
** **
** Component PAL 44902A **
** **
** Last reviewed: 14-DEC-2024 **
** Ronny Hansen **
***********************************************************************************************************/
// PAL16R8
// ADGD 13/8/86
// 44902A,6F,RAMC (RAM CONTROL)
// RAM CONTROL
// Sheet 50 of 3202D
// PAL16R8 FAMILY
// PAL16R8 has 8 flip-flips, 8 inputs and 8 outputs (negated from flip-flops with 3-state support)
// https://rocelec.widen.net/view/pdf/c6dwcslffz/VANTS00080-1.pdf
// PCB 3202D sheet 50:
//
// PAL input signal PD3 is connected to PAL OE_n pin
// input signal OSC is connectec to PAL CK pin
module PAL_44902A (
input CK, //! Clock signal
input OE_n, //! OUTPUT ENABLE (active-low) for Q0-Q5
input HOLD, //! Freeze the register state (added 25-AUG-2026 for the
//! MAIN_RAM_DDR2 backend: MEM_RAM_49_DDR2 stretches a memory
//! cycle on a cache miss by holding this PAL and PAL_44803A;
//! RAS/CAS/HIEN/LOEN stand still until the miss is served).
//! Tie 0 for the original fixed-length behaviour.
input RGNT_n, //! I0 - RGNT_n (RAM Grant)
//input CGNT_n, //! I1 - CGNT_n (NOT USED!!)
//input BGNT_n, //! I2 - BGNT_n (NOT USED!!)
input BDAP50_n, //! I3 - BDAP50_n
input MR_n, //! I4 - MR_n
input BGNT25_n, //! I5 - BGNT25_n (Bus Grant 25ns delayed)
input CGNT25_n, //! I6 - CGNT25_n (CPU Grant 25ns delayed)
input BDRY50_n, //! I7 - BDRY50_n (Bus Data Ready 50ns delayed)
output QA_n, //! Q0_n - QA_n (n.c.)
output QB_n, //! Q1_n - QB_n (n.c.)
output QC_n, //! Q2_n - QC_n (n.c.)
output QD_n, //! Q3_n - QD_n
output RAS, //! Q4_n - RAS (RAM Row Address Strobe)
output CAS, //! Q5_n - CAS
output LOEN_n, //! Q6_n - LOEN_n
output HIEN_n //! Q7_n - HIEN_n
);
// negated input signals (not used signals are commented out)
wire RGNT = ~RGNT_n; // I0 - RGNT_n
//wire CGNT = ~CGNT_n, // I1 - CGNT_n
//wire BGNT = ~BGNT_n, // I2 - BGNT_n
//wire BDAP50 = ~BDAP50_n, // I3 - BDAP50_n
//wire MR = ~MR_n, // I4 - MR_n
wire BGNT25 = ~BGNT25_n; // I5 - BGNT25_n
//wire CGNT25 = ~CGNT25_n, // I6 - CGNT25_n
//wire BDRY50 = ~BDRY50_n, // I7 - BDRY50_n
wire [3:0] Q; // Enable to Debug to watch the value of Q change
// Internal registers
reg QA_reg; // Q0_n - QA_n (n.c.)
reg QB_reg; // Q1_n - QB_n (n.c.)
reg QC_reg; // Q2_n - QC_n (n.c.)
reg QD_reg; // Q3_n - QD_n
reg RAS_n_reg; // Q4_n - RAS
reg CAS_n_reg; // Q5_n - CAS
reg LOEN_reg; // Q6_n - LOEN_n
reg HIEN_reg; // Q7_n - HIEN_n
// Register signals as wires (to help with the equations) (not used signals are commented out)
wire QA = QA_reg;
wire QB = QB_reg;
wire QC = QC_reg;
wire QD = QD_reg;
//wire RAS_n = RAS_n_reg;
//wire CAS_n = CAS_n_reg;
//wire LOEN = LOEN_reg;
//wire HIEN = HIEN_reg;
//**** Sequential logic triggered on the rising edge of CLK ****
always @(posedge CK) if (!HOLD) begin
// Logic for QA, QB, QC, QD
QA_reg <=
(QD_n & QC_n & QB_n & QA) // 0) 1110 IDLE UNIT NEXT GNT OF ANY TYPE
| ( QD_n & QC_n & QB_n & QA_n ) // 1) 1010
| ( QD & QC_n & QB & QA ) // 2) 1011 PAUSE UNTIL BDAP OCCURS (ONLY ON
| ( QD & QC_n & QB & QA_n); // NO WAIT STATE ON CPU TO MEMORY WRITE
QB_reg <=
(QC & QB & QD) // 3) 1001
| (QC & QB & QD_n) //
| (QC & QB_n & QD) //
| (QC & QB_n & QD_n) //
| (QB & QA_n & QC) // 4) 1000
| (QB & QA_n & QC_n) //
| (QD_n & QA) // 5) 0000
| (QB & BGNT25 & BDAP50_n & MR_n & BDRY50_n); // 6) 0001
// 7) 0011
QC_reg <=
(QD_n & QC & QB ) // 8) 0010
| (QD_n & QC & QB_n )
| (QC & QB_n & QA ) // OTHER STATES WILL GO TO IDLE AFTER 1
| ( QC & QB_n & QA_n )
| ( QC & QA & QD )
| ( QC & QA & QD_n )
| ( QD_n & QB & QA_n )
| ( QC & RGNT_n & CGNT25_n & BGNT25_n );
QD_reg <=
( QC & QD & QB )
| ( QC & QD_n & QB )
| ( QC & QD & QB_n )
| ( QC & QD_n & QB_n )
| ( QB & QA_n & QC )
| ( QB & QA_n & QC_n )
| ( QD & QA & QB )
| ( QD & QA & QB_n );
// Logic for RAS_n, CAS_n, HIEN_n, LOEN_n (active-low)
RAS_n_reg <= // RAS=1,2,3,4,5,6
( QC & QA & QB )
| ( QC & QA_n & QB )
| ( QC & QA & QB_n )
| ( QC & QA_n & QB_n )
| ( QD_n & QA & QD )
| ( QD_n & QA & QD_n )
| ( QD_n & QB & QC )
| ( QD_n & QB & QC_n );
LOEN_reg <= // LOEN=3,4,5,6
(QC_n & QB_n & QA_n & QD)
| (QC_n & QB_n & QA_n & QD_n)
| (QD & QC_n & QA & QB)
| (QD & QC_n & QA & QB_n);
HIEN_reg <= // HIEN=0,1,2,8
(QD & QB & QA_n & QC)
| (QD & QB & QA_n & QC_n)
| (QD_n & QC_n & QB & QA)
| (QD_n & QC_n & QB & QA_n);
CAS_n_reg <= // CAS=4,5,6,7,8
(QB & QA_n & RGNT_n)
| (QD & QB & RGNT_n) // CAS ON REFRESH=1,2,3,4,5
| (QC & QB_n & QA)
| (QC & QB_n & QA_n)
| (QC & QA & QD)
| (QC & QA & QD_n)
| (QD_n & RGNT);
end
// Tri-state control for Q outputs
// Assigning outputs with three-state logic controlled by OE_n
assign QA_n = OE_n ? 1'b0 : ~QA_reg; // Q0_n
assign QB_n = OE_n ? 1'b0 : ~QB_reg; // Q1_n
assign QC_n = OE_n ? 1'b0 : ~QC_reg; // Q2_n
assign QD_n = OE_n ? 1'b0 : ~QD_reg; // Q3_n
assign RAS = OE_n ? 1'b0 : ~RAS_n_reg; // Q4_n
assign CAS = OE_n ? 1'b0 : ~CAS_n_reg; // Q5_n
assign LOEN_n = OE_n ? 1'b0 : ~LOEN_reg; // Q6_n
assign HIEN_n = OE_n ? 1'b0 : ~HIEN_reg; // Q7_n
// Debugging, if you want to se the 4-bit value of Q easier
assign Q = {QD, QC, QB, QA};
endmodule
/*
DESCRIPTION
; 190387 JLB: RAS & CAS INVERTED.
; 190387 JLB: BGNT25 NEW INPUT. USED TO DELAY STATE MACHINE TURN ON 25NS ON
; BUS CYCLES.
; 230387 CJTC: CGNT25 NEW INPUT. USED TO DELAY STATE MACHINE TURN ON 25NS ON
; CPU CYCLES.
; 020487 JLB: BDRY50 WILL GET US OUT OF THE WAIT STATE ON TIMEOUT.
; 180587 M3202B
; 060887 JLB: MAXIMIZE EQUATIONS WITH INTERNAL FEEDBACK TO MATCH CLOCK SKEW.
*/
