PAL_44446B

Source: Verilog/PAL/PAL_44446B.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

Module hierarchy - All modules

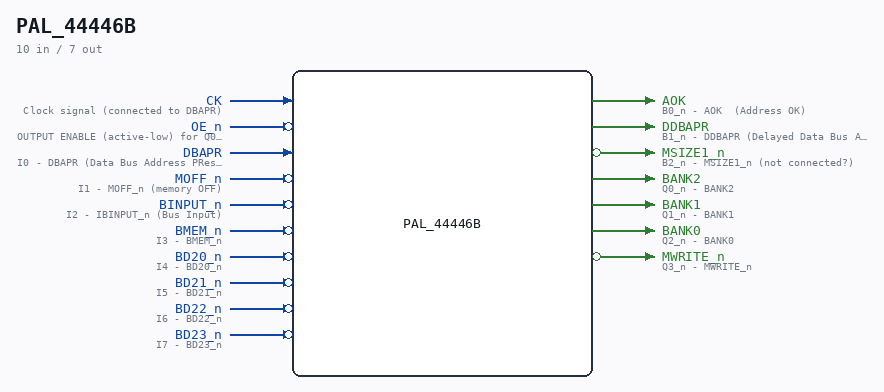

Schematic

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 PALASM CODE CONVERTED TO VERILOG Component PAL 44446B Last reviewed: 22-MAR-2025 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	CK	Clock signal (connected to DBAPR)
input	1	OE_n (active low)	OUTPUT ENABLE (active-low) for Q0-Q3 (connected to BGNT_n)
input	1	DBAPR	I0 - DBAPR (Data Bus Address PResent)
input	1	MOFF_n (active low)	I1 - MOFF_n (memory OFF)
input	1	BINPUT_n (active low)	I2 - IBINPUT_n (Bus Input)
input	1	BMEM_n (active low)	I3 - BMEM_n
input	1	BD20_n (active low)	I4 - BD20_n
input	1	BD21_n (active low)	I5 - BD21_n
input	1	BD22_n (active low)	I6 - BD22_n
input	1	BD23_n (active low)	I7 - BD23_n
output	1	AOK	B0_n - AOK (Address OK)
output	1	DDBAPR	B1_n - DDBAPR (Delayed Data Bus Address Present)
output	1	MSIZE1_n (active low)	B2_n - MSIZE1_n (not connected?)
output	1	BANK2	Q0_n - BANK2
output	1	BANK1	Q1_n - BANK1
output	1	BANK0	Q2_n - BANK0
output	1	MWRITE_n (active low)	Q3_n - MWRITE_n

Verilog source

Verilog/PAL/PAL_44446B.v on GitHub.

Show the Verilog of PAL_44446B (108 lines)

/**********************************************************************************************************
** ND120 PALASM CODE CONVERTED TO VERILOG                                                                **
**                                                                                                       **
** Component PAL 44446B                                                                                  **
**                                                                                                       **
** Last reviewed: 22-MAR-2025                                                                            **
** Ronny Hansen                                                                                          **
***********************************************************************************************************/


// PAL16R4
// ADGD 18/8/86
// 44446B, 6G, BADEC
// DMA ADDRESS DECODE FOR 4MB MEMORY

// PCB 3202D sheet 45:
//
// PAL input signal BGNT_n is connected to PAL OE_n pin
//     input signal DBAPR is connectec to PAL CK pin (AND I0)


module PAL_44446B (
    input CK,   //! Clock signal (connected to DBAPR)
    input OE_n, //! OUTPUT ENABLE (active-low) for Q0-Q3 (connected to BGNT_n)

    input DBAPR,     //! I0 - DBAPR (Data Bus Address PResent)
    input MOFF_n,    //! I1 - MOFF_n (memory OFF)
    input BINPUT_n,  //! I2 - IBINPUT_n (Bus Input)
    input BMEM_n,    //! I3 - BMEM_n
    input BD20_n,    //! I4 - BD20_n
    input BD21_n,    //! I5 - BD21_n
    input BD22_n,    //! I6 - BD22_n
    input BD23_n,    //! I7 - BD23_n

    output AOK,       //! B0_n - AOK  (Address OK)
    output DDBAPR,    //! B1_n - DDBAPR (Delayed Data Bus Address Present)
    output MSIZE1_n,  //! B2_n - MSIZE1_n (not connected?)
    //  input  BD19_n,      //! B3_n - BD19_n (not in use)

    output BANK2,    //! Q0_n - BANK2
    output BANK1,    //! Q1_n - BANK1
    output BANK0,    //! Q2_n - BANK0
    output MWRITE_n  //! Q3_n - MWRITE_n
);

  // Inverted input signals
  wire BD20 = ~BD20_n;
  wire BD21 = ~BD21_n;
  wire BD22 = ~BD22_n;
  wire BD23 = ~BD23_n;
  wire MOFF = ~MOFF_n;
  wire BINPUT = ~BINPUT_n;


  // Internal registers
  reg  BANK0_n_reg;
  reg  BANK1_n_reg;
  reg  BANK2_n_reg;
  reg  MWRITE_reg;


  //**** Sequential logic triggered on the rising edge of CLK ****
  always @(posedge CK) begin

    // Logic for BANK0, BANK1, BANK2
    BANK0_n_reg <= BD21 | BD20;
    BANK2_n_reg <= BD21 | BD20_n;
    BANK1_n_reg <= BD21_n | BD20;

    // Logic for MWRITE
    MWRITE_reg  <= BINPUT;

  end

  // Tri-state control for Q outputs
  // High-impedance state when OE_n is high (active-low)
  assign BANK2 = OE_n ? 1'b0 : ~BANK2_n_reg;
  assign BANK1 = OE_n ? 1'b0 : ~BANK1_n_reg;
  assign BANK0 = OE_n ? 1'b0 : ~BANK0_n_reg;
  assign MWRITE_n = OE_n ? 1'b0 : ~MWRITE_reg;

  //**** Syncronous logic (always running) ****

  // Logic for AOK
  assign AOK = ~(BMEM_n | BD23 | BD22 | BD21 | MOFF);  // 4 MB

  // Logic for DDBAPR_n (active-low)
  assign DDBAPR = DBAPR;


  // MSIZE1 is always low (GND) => MSIZE1_n is always HIGH
  assign MSIZE1_n = 1;  // Active-low representation of a constant low signal



endmodule

/*
DESCRIPTION

; 2/1-860LB: BOTH SIDES OF MWRITE EQUATION INVERTED
; 8/1-87JLB: NEW INPUT /MOFF TO DISBLE THE WHOLE MEMORY, BD18 AND BD19 REMOVED.
; 300387 JLB: BLRQ ASSUMED DATA HOLD TIME AFTER TRAILING EDGF OF BAPR !
; CHANGED TO AOK

; 180587 M3202B
; 060687 JLB: SWAPPED BANK1 AND BANK2 TO PROVIDE ENOUGH SPACE FOR PACKAGES.
*/
