PAL_44403C_EN¶
Source: Verilog/PAL/PAL_44403C_EN.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CYC_36 > PAL_44403C_EN
- instance path: CORE.CPU_BOARD.CYC.PAL_44403_UCYIN0
Used in: CYC_36 (all tops)
Contains: no other modules.
Module hierarchy - All modules

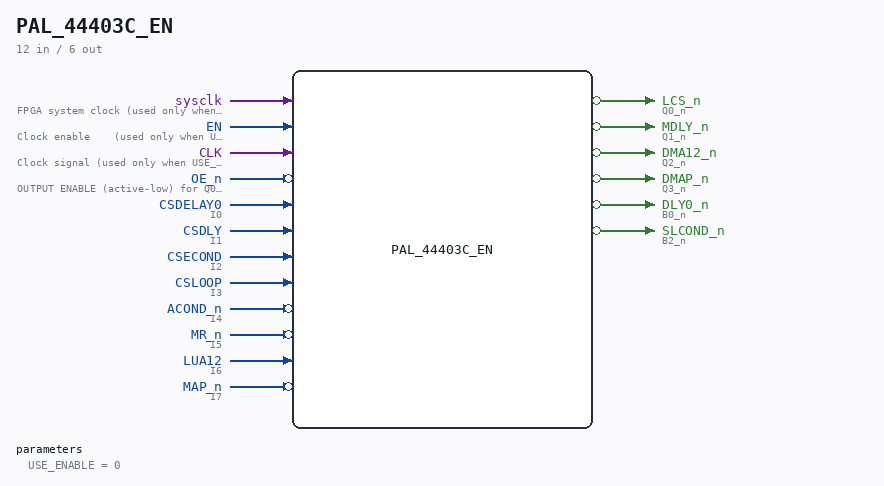

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CYC.PAL_44403_UCYIN0. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 PALASM CODE CONVERTED TO VERILOG
Component PAL 44403C - clock-enable wrapper
USE_ENABLE=0 (default): instantiates the original PAL_44403C untouched
(posedge CLK registered outputs).
USE_ENABLE=1: structural copy of PAL_44403C with the registered
equations captured on posedge sysclk + if (EN) (P2 clock-domain
conversion, docs/plan-fix-unconstrained-clocks.md - EN is CYC_36's
CLK_EN pulse aligned with the CLK rise). Equations are line-for-line
identical to PAL_44403C.v; only the flop trigger changes.
The original PAL_44403C.v is generated from PALASM and is never
modified - keep the equations here in sync with it.
Last reviewed: 10-JUL-2026
Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
USE_ENABLE |
0 |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (used only when USE_ENABLE=1) |
| input | 1 |
EN |
Clock enable (used only when USE_ENABLE=1) |
| input | 1 |
CLK |
Clock signal (used only when USE_ENABLE=0) |
| input | 1 |
OE_n (active low) |
OUTPUT ENABLE (active-low) for Q0-Q3 |
| input | 1 |
CSDELAY0 |
I0 |
| input | 1 |
CSDLY |
I1 |
| input | 1 |
CSECOND |
I2 |
| input | 1 |
CSLOOP |
I3 |
| input | 1 |
ACOND_n (active low) |
I4 |
| input | 1 |
MR_n (active low) |
I5 |
| input | 1 |
LUA12 |
I6 |
| input | 1 |
MAP_n (active low) |
I7 |
| output | 1 |
LCS_n (active low) |
Q0_n |
| output | 1 |
MDLY_n (active low) |
Q1_n |
| output | 1 |
DMA12_n (active low) |
Q2_n |
| output | 1 |
DMAP_n (active low) |
Q3_n |
| output | 1 |
DLY0_n (active low) |
B0_n |
| output | 1 |
SLCOND_n (active low) |
B2_n |
Verilog source¶
Verilog/PAL/PAL_44403C_EN.v on GitHub.
Show the Verilog of PAL_44403C_EN (150 lines)
/**********************************************************************************************************
** ND120 PALASM CODE CONVERTED TO VERILOG **
** **
** Component PAL 44403C - clock-enable wrapper **
** **
** USE_ENABLE=0 (default): instantiates the original PAL_44403C untouched **
** (posedge CLK registered outputs). **
** USE_ENABLE=1: structural copy of PAL_44403C with the registered **
** equations captured on `posedge sysclk + if (EN)` (P2 clock-domain **
** conversion, docs/plan-fix-unconstrained-clocks.md - EN is CYC_36's **
** CLK_EN pulse aligned with the CLK rise). Equations are line-for-line **
** identical to PAL_44403C.v; only the flop trigger changes. **
** **
** The original PAL_44403C.v is generated from PALASM and is never **
** modified - keep the equations here in sync with it. **
** **
** Last reviewed: 10-JUL-2026 **
** Ronny Hansen **
***********************************************************************************************************/
module PAL_44403C_EN #(
parameter integer USE_ENABLE = 0
) (
input sysclk, //! FPGA system clock (used only when USE_ENABLE=1)
input EN, //! Clock enable (used only when USE_ENABLE=1)
input CLK, //! Clock signal (used only when USE_ENABLE=0)
input OE_n, //! OUTPUT ENABLE (active-low) for Q0-Q3
input CSDELAY0, //! I0
input CSDLY, //! I1
input CSECOND, //! I2
input CSLOOP, //! I3
input ACOND_n, //! I4
input MR_n, //! I5
input LUA12, //! I6
input MAP_n, //! I7
output LCS_n, //! Q0_n
output MDLY_n, //! Q1_n
output DMA12_n, //! Q2_n
output DMAP_n, //! Q3_n
output DLY0_n, //! B0_n
output SLCOND_n //! B2_n
);
generate
if (USE_ENABLE == 1) begin : gen_enable
/* verilator lint_off UNUSEDSIGNAL */
wire unused_clk = CLK;
/* verilator lint_on UNUSEDSIGNAL */
reg LCS = 1'b0;
reg MDLY = 1'b0;
reg DMA12 = 1'b0;
reg DMAP = 1'b0;
// Creating non-negated wires for active-low inputs
wire ACOND = ~ACOND_n;
wire MR = ~MR_n;
wire MAP = ~MAP_n;
wire LUA12_n = ~LUA12;
wire s_dma12_n = ~DMA12;
// Flip-flop logic for Q0, Q1, Q2 and Q3 - equations identical to
// PAL_44403C.v, captured on the enable instead of posedge CLK.
always @(posedge sysclk) begin
if (EN) begin
// Q0 flip-flop
// Logic for LCS_n (active-low)
`ifdef SKIP_WCS_LOAD
// WCS is pre-loaded (see docs/skip-wcs-load.md): never enter the
// load phase (see PAL_44403C.v for the full comment).
LCS <= 1'b0;
`else
if (
(MR)
| (s_dma12_n & LUA12_n & LCS) // LCS FROM MR AND UNTIL MA12 HAS GONE HIGH AND
| (DMA12 & LUA12 & LCS) // I.E. LMA COUNTED FROM 0 to 8K.
| (s_dma12_n & LUA12 & LCS))
LCS <= 1'b1;
else LCS <= 1'b0;
`endif
// Q1 flip-flop
// Logic for MDLY
MDLY <= CSDLY;
// Q2 flip-flop
// Logic for DMA12
DMA12 <= LUA12;
// Q3 flip-flop
// Logic for DMAP
DMAP <= MAP;
end
end
// Output logic for Q0_n, Q1_n, Q2_n
assign LCS_n = OE_n ? 1'b0 : ~LCS;
assign MDLY_n = OE_n ? 1'b0 : ~MDLY;
assign DMA12_n = OE_n ? 1'b0 : s_dma12_n;
assign DMAP_n = OE_n ? 1'b0 : ~DMAP;
// B0 pin
// Logic for DLY0_n (active-low)
// PALASM 44403C: DLY0 = MDLY + CSDELAY0 + ACOND*CSECOND + ACOND*CSLOOP
// + LUA12*/DMA12 + /LUA12*DMA12 + DMAP
// Same 30-JUL audit fix as PAL_44403C.v: MDLY_n -> MDLY, XNOR -> XOR
// on the LUA12/DMA12 pair, raw MAP -> registered DMAP.
assign DLY0_n = ~(MDLY | // 25NS DELAY ON MICROCODE REQUEST
CSDELAY0 | // 25NS DELAY ON PREVIOUS CYCLE ON MICROCODE REQ
(ACOND & CSECOND) | // CONDITIONAL MICROSEQUENCING
(ACOND & CSLOOP) | // USING ALU RESULT
(LUA12 & ~DMA12) | // CHANGING FROM LOWER TO UPPER CONTROL STORE A
(~LUA12 & DMA12) | // (one clock after LUA12 changes - XOR)
DMAP); // AFTER MAP TO AVOID CSDELAY BEING TOO LATE
// B2 pin
// Logic for SLCOND_n (active-low)
assign SLCOND_n = ~(ACOND & CSECOND | //
ACOND & CSLOOP); //
end else begin : gen_orig
/* verilator lint_off UNUSEDSIGNAL */
wire unused_sys = sysclk & EN;
/* verilator lint_on UNUSEDSIGNAL */
PAL_44403C PAL (
.CLK(CLK),
.OE_n(OE_n),
.CSDELAY0(CSDELAY0),
.CSDLY(CSDLY),
.CSECOND(CSECOND),
.CSLOOP(CSLOOP),
.ACOND_n(ACOND_n),
.MR_n(MR_n),
.LUA12(LUA12),
.MAP_n(MAP_n),
.LCS_n(LCS_n),
.MDLY_n(MDLY_n),
.DMA12_n(DMA12_n),
.DMAP_n(DMAP_n),
.DLY0_n(DLY0_n),
.SLCOND_n(SLCOND_n)
);
end
endgenerate
endmodule
