PAL_44404C_EN¶
Source: Verilog/PAL/PAL_44404C_EN.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CYC_36 > PAL_44404C_EN
- instance path: CORE.CPU_BOARD.CYC.PAL_44404_UCYIN1
Used in: CYC_36 (all tops)
Contains: no other modules.
Module hierarchy - All modules

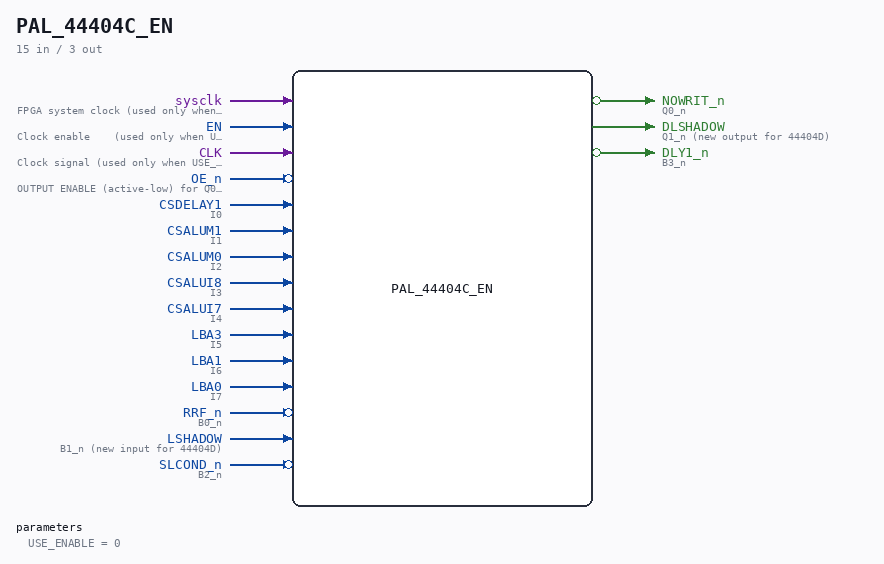

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CYC.PAL_44404_UCYIN1. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 PALASM CODE CONVERTED TO VERILOG
Component PAL 44404C - clock-enable wrapper
USE_ENABLE=0 (default): instantiates the original PAL_44404C untouched
(posedge CLK registered outputs).
USE_ENABLE=1: structural copy of PAL_44404C with the registered
equations captured on posedge sysclk + if (EN) (P2 clock-domain
conversion, docs/plan-fix-unconstrained-clocks.md - EN is CYC_36's
CLK_EN pulse aligned with the CLK rise). Equations are line-for-line
identical to PAL_44404C.v; only the flop trigger changes.
The original PAL_44404C.v is generated from PALASM and is never
modified - keep the equations here in sync with it.
Last reviewed: 10-JUL-2026
Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
USE_ENABLE |
0 |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (used only when USE_ENABLE=1) |
| input | 1 |
EN |
Clock enable (used only when USE_ENABLE=1) |
| input | 1 |
CLK |
Clock signal (used only when USE_ENABLE=0) |
| input | 1 |
OE_n (active low) |
OUTPUT ENABLE (active-low) for Q0-Q3 |
| input | 1 |
CSDELAY1 |
I0 |
| input | 1 |
CSALUM1 |
I1 |
| input | 1 |
CSALUM0 |
I2 |
| input | 1 |
CSALUI8 |
I3 |
| input | 1 |
CSALUI7 |
I4 |
| input | 1 |
LBA3 |
I5 |
| input | 1 |
LBA1 |
I6 |
| input | 1 |
LBA0 |
I7 |
| output | 1 |
NOWRIT_n (active low) |
Q0_n |
| output | 1 |
DLSHADOW |
Q1_n (new output for 44404D) |
| input | 1 |
RRF_n (active low) |
B0_n |
| input | 1 |
LSHADOW |
B1_n (new input for 44404D) |
| input | 1 |
SLCOND_n (active low) |
B2_n |
| output | 1 |
DLY1_n (active low) |
B3_n |
Verilog source¶
Verilog/PAL/PAL_44404C_EN.v on GitHub.
Show the Verilog of PAL_44404C_EN (117 lines)
/**********************************************************************************************************
** ND120 PALASM CODE CONVERTED TO VERILOG **
** **
** Component PAL 44404C - clock-enable wrapper **
** **
** USE_ENABLE=0 (default): instantiates the original PAL_44404C untouched **
** (posedge CLK registered outputs). **
** USE_ENABLE=1: structural copy of PAL_44404C with the registered **
** equations captured on `posedge sysclk + if (EN)` (P2 clock-domain **
** conversion, docs/plan-fix-unconstrained-clocks.md - EN is CYC_36's **
** CLK_EN pulse aligned with the CLK rise). Equations are line-for-line **
** identical to PAL_44404C.v; only the flop trigger changes. **
** **
** The original PAL_44404C.v is generated from PALASM and is never **
** modified - keep the equations here in sync with it. **
** **
** Last reviewed: 10-JUL-2026 **
** Ronny Hansen **
***********************************************************************************************************/
module PAL_44404C_EN #(
parameter integer USE_ENABLE = 0
) (
input sysclk, //! FPGA system clock (used only when USE_ENABLE=1)
input EN, //! Clock enable (used only when USE_ENABLE=1)
input CLK, //! Clock signal (used only when USE_ENABLE=0)
input OE_n, //! OUTPUT ENABLE (active-low) for Q0-Q3
input CSDELAY1, //! I0
input CSALUM1, //! I1
input CSALUM0, //! I2
input CSALUI8, //! I3
input CSALUI7, //! I4
input LBA3, //! I5
input LBA1, //! I6
input LBA0, //! I7
output NOWRIT_n, //! Q0_n
output DLSHADOW, //! Q1_n (new output for 44404D)
input RRF_n, //! B0_n
input LSHADOW, //! B1_n (new input for 44404D)
input SLCOND_n, //! B2_n
output DLY1_n //! B3_n
);
generate
if (USE_ENABLE == 1) begin : gen_enable
/* verilator lint_off UNUSEDSIGNAL */
wire unused_clk = CLK;
/* verilator lint_on UNUSEDSIGNAL */
reg NOWRIT = 1'b0;
reg DLSHADOW_reg = 1'b0;
// Creating non-negated wires for active-low inputs
wire SLCOND = ~SLCOND_n;
wire RRF = ~RRF_n;
// Creating negated wires for active-high inputs
wire CSALUM1_n = ~CSALUM1;
wire CSALUM0_n = ~CSALUM0;
wire CSALUI8_n = ~CSALUI8;
wire CSALUI7_n = ~CSALUI7;
wire LBA3_n = ~LBA3;
// Flip-flop logic for Q0, Q1 - equations identical to PAL_44404C.v,
// captured on the enable instead of posedge CLK.
always @(posedge sysclk) begin
if (EN) begin
// Logic for NOWRIT
NOWRIT <= (CSALUM1_n & CSALUI8_n & CSALUI7_n) | //
(CSALUM0_n & CSALUI8_n & CSALUI7_n); //
// Logic for DLSHADOW (see PAL_44404C.v comment)
DLSHADOW_reg <= LSHADOW;
end
end
// Output logic for Q0_n, Q1_n
//Q0
assign NOWRIT_n = OE_n ? 1'b0 : ~NOWRIT;
// Q1
assign DLSHADOW = OE_n ? 1'b0 : DLSHADOW_reg;
// Logic for DLY1_n (active-low)
assign DLY1_n = ~((CSDELAY1 & LBA3_n & LBA1 & LBA0) | // 25NS DELAY OF PREVIOUS CYCLE
(RRF & SLCOND) // ON MICROCODE REQUEST IN ADDITION TO DLY0
);
end else begin : gen_orig
/* verilator lint_off UNUSEDSIGNAL */
wire unused_sys = sysclk & EN;
/* verilator lint_on UNUSEDSIGNAL */
PAL_44404C PAL (
.CLK(CLK),
.OE_n(OE_n),
.CSDELAY1(CSDELAY1),
.CSALUM1(CSALUM1),
.CSALUM0(CSALUM0),
.CSALUI8(CSALUI8),
.CSALUI7(CSALUI7),
.LBA3(LBA3),
.LBA1(LBA1),
.LBA0(LBA0),
.NOWRIT_n(NOWRIT_n),
.DLSHADOW(DLSHADOW),
.RRF_n(RRF_n),
.LSHADOW(LSHADOW),
.SLCOND_n(SLCOND_n),
.DLY1_n(DLY1_n)
);
end
endgenerate
endmodule
