PAL_44402D_EN¶
Source: Verilog/PAL/PAL_44402D_EN.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_MMU_24 > CPU_MMU_CACHE_25 > PAL_44402D_EN
- instance path: CORE.CPU_BOARD.CPU.MMU.CACHE.PAL_44402_UBITS
Used in: CPU_MMU_CACHE_25 (Simulation, Nexys, MEGA65 R6, MEGA65 R3, QMTECH, Basys3, Cmod)
Contains: no other modules.
Module hierarchy - All modules

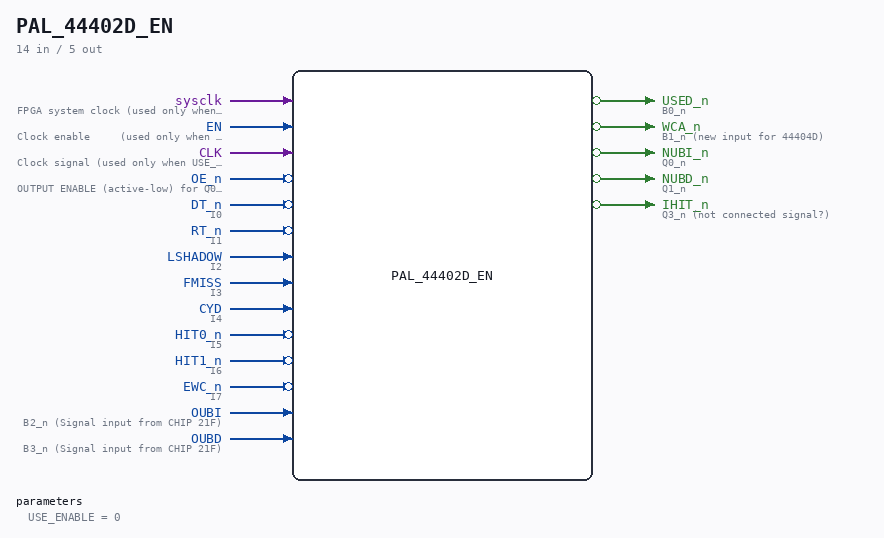

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.MMU.CACHE.PAL_44402_UBITS. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 PALASM CODE CONVERTED TO VERILOG Component PAL 44402D - clock-enable variant Equation copy of PAL_44402D.v (which stays untouched) with an optional sysclk+enable capture mode for the four registered outputs. USE_ENABLE=0 (default): instantiates the original PAL_44402D - posedge CLK, original behaviour. USE_ENABLE=1: the registers capture on posedge sysclk when EN is high (P3 UCLK-domain conversion mode, docs/plan-fix-unconstrained-clocks.md). EN must be the rise-aligned UCLK enable (CYC_36 UCLK_EN). Last reviewed: 10-JUL-2026 Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
USE_ENABLE |
0 |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (used only when USE_ENABLE=1) |
| input | 1 |
EN |
Clock enable (used only when USE_ENABLE=1) |
| input | 1 |
CLK |
Clock signal (used only when USE_ENABLE=0) |
| input | 1 |
OE_n (active low) |
OUTPUT ENABLE (active-low) for Q0-Q3 |
| input | 1 |
DT_n (active low) |
I0 |
| input | 1 |
RT_n (active low) |
I1 |
| input | 1 |
LSHADOW |
I2 |
| input | 1 |
FMISS |
I3 |
| input | 1 |
CYD |
I4 |
| input | 1 |
HIT0_n (active low) |
I5 |
| input | 1 |
HIT1_n (active low) |
I6 |
| input | 1 |
EWC_n (active low) |
I7 |
| output | 1 |
USED_n (active low) |
B0_n |
| output | 1 |
WCA_n (active low) |
B1_n (new input for 44404D) |
| input | 1 |
OUBI |
B2_n (Signal input from CHIP 21F) |
| input | 1 |
OUBD |
B3_n (Signal input from CHIP 21F) |
| output | 1 |
NUBI_n (active low) |
Q0_n |
| output | 1 |
NUBD_n (active low) |
Q1_n |
| output | 1 |
IHIT_n (active low) |
Q3_n (not connected signal?) |
Verilog source¶
Verilog/PAL/PAL_44402D_EN.v on GitHub.
Show the Verilog of PAL_44402D_EN (139 lines)
/**********************************************************************************************************
** ND120 PALASM CODE CONVERTED TO VERILOG **
** **
** Component PAL 44402D - clock-enable variant **
** **
** Equation copy of PAL_44402D.v (which stays untouched) with an optional **
** sysclk+enable capture mode for the four registered outputs. **
** **
** USE_ENABLE=0 (default): instantiates the original PAL_44402D - posedge **
** CLK, original behaviour. **
** USE_ENABLE=1: the registers capture on posedge sysclk when EN is high **
** (P3 UCLK-domain conversion mode, docs/plan-fix-unconstrained-clocks.md). **
** EN must be the rise-aligned UCLK enable (CYC_36 UCLK_EN). **
** **
** Last reviewed: 10-JUL-2026 **
** Ronny Hansen **
***********************************************************************************************************/
module PAL_44402D_EN #(
parameter integer USE_ENABLE = 0
) (
input sysclk, //! FPGA system clock (used only when USE_ENABLE=1)
input EN, //! Clock enable (used only when USE_ENABLE=1)
input CLK, //! Clock signal (used only when USE_ENABLE=0)
input OE_n, //! OUTPUT ENABLE (active-low) for Q0-Q3
input DT_n, //! I0
input RT_n, //! I1
input LSHADOW, //! I2
input FMISS, //! I3
input CYD, //! I4
input HIT0_n, //! I5
input HIT1_n, //! I6
input EWC_n, //! I7
output USED_n, //! B0_n
output WCA_n, //! B1_n (new input for 44404D)
input OUBI, //! B2_n (Signal input from CHIP 21F)
input OUBD, //! B3_n (Signal input from CHIP 21F)
output NUBI_n, //! Q0_n
output NUBD_n, //! Q1_n
//! Q2_n (not connected, no signal)
output IHIT_n //! Q3_n (not connected signal?)
);
generate
if (USE_ENABLE == 1) begin : gen_enable
/* verilator lint_off UNUSEDSIGNAL */
wire unused_clk = CLK;
/* verilator lint_on UNUSEDSIGNAL */
// Registers for CLOCKED signals
reg NUBI_n_reg = 1'b0;
reg NUBD_n_reg = 1'b0;
reg IHIT_reg = 1'b0;
// Creating non-negated wires for active-low inputs
wire DT = ~DT_n;
wire HIT0 = ~HIT0_n;
wire HIT1 = ~HIT1_n;
wire EWC = ~EWC_n;
// Creating negated wires for active-high inputs
wire OUBI_n = ~OUBI;
wire OUBD_n = ~OUBD;
wire RT = ~RT_n;
wire FMISS_n = ~FMISS;
wire LSHADOW_n = ~LSHADOW;
// Registered equations - identical to PAL_44402D, trigger swapped to
// posedge sysclk gated by the rise-aligned UCLK enable.
always @(posedge sysclk) begin
if (EN) begin
// Logic for NUBI_n (Q0 - active-low)
NUBI_n_reg <= (DT & OUBI_n) | // READ OR WRITE KEEP OLD VALUE
(RT_n & DT & HIT0 & HIT1); // CLEAR IF WRITE WITH HIT
// Logic for NUBD_n (Q1 - active-low)
NUBD_n_reg <= (RT & DT_n & OUBD_n); // IF FETCH KEEP OLD VALUE
// Logic for IHIT (Q3)
IHIT_reg <= (HIT1 & HIT0 & OUBI & RT & DT_n & WCA_n) | // FETCH
(HIT1 & HIT0 & OUBD & RT & DT & WCA_n); // READ
end
end
// Q0
// Pin = ~register (PAL16R4 inverts; see PAL_44402D.v 30-JUL audit note)
assign NUBI_n = OE_n ? 1'b0 : ~NUBI_n_reg;
// Q1
assign NUBD_n = OE_n ? 1'b0 : ~NUBD_n_reg;
// Q3
assign IHIT_n = OE_n ? 1'b0 : ~IHIT_reg;
// Logic for USED_n (active-low)
assign USED_n = ~((OUBI & RT & DT_n & WCA_n) | // FETCH
(OUBD & RT & DT & WCA_n) // READ
);
// Logic for WCA_n (active-low)
assign WCA_n = ~((RT_n & DT & EWC & CYD & FMISS_n & LSHADOW_n) | // WRITE OUTSIDE SHADOW
(RT & IHIT_n & EWC & CYD & FMISS_n & LSHADOW_n) // FETCH/READ WITHOUT HIT OUTSIDE SHADOW
);
end else begin : gen_orig
/* verilator lint_off UNUSEDSIGNAL */
wire unused_sys = sysclk & EN;
/* verilator lint_on UNUSEDSIGNAL */
PAL_44402D PAL (
.CLK (CLK),
.OE_n(OE_n),
.DT_n(DT_n),
.RT_n(RT_n),
.LSHADOW(LSHADOW),
.FMISS(FMISS),
.CYD(CYD),
.HIT0_n(HIT0_n),
.HIT1_n(HIT1_n),
.EWC_n(EWC_n),
.USED_n(USED_n),
.WCA_n (WCA_n),
.OUBI (OUBI),
.OUBD (OUBD),
.NUBI_n(NUBI_n),
.NUBD_n(NUBD_n),
.IHIT_n(IHIT_n)
);
end
endgenerate
endmodule
