MEM_RAMC_50¶
Source: Verilog/CPU-BOARD-3202/circuit/MEM_RAMC_50.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > MEM_43 > MEM_RAMC_50
- instance path: CORE.CPU_BOARD.MEM.RAMC
Used in: MEM_43 (all tops)
Contains: PAL_44803A, PAL_44902A
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.MEM.RAMC. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CPU, MM&M MEM/RAMC LOCAL RAM CONTROL SHEET 50 of 50 Last reviewed: 14-DEC-2024 Ronny Hansen

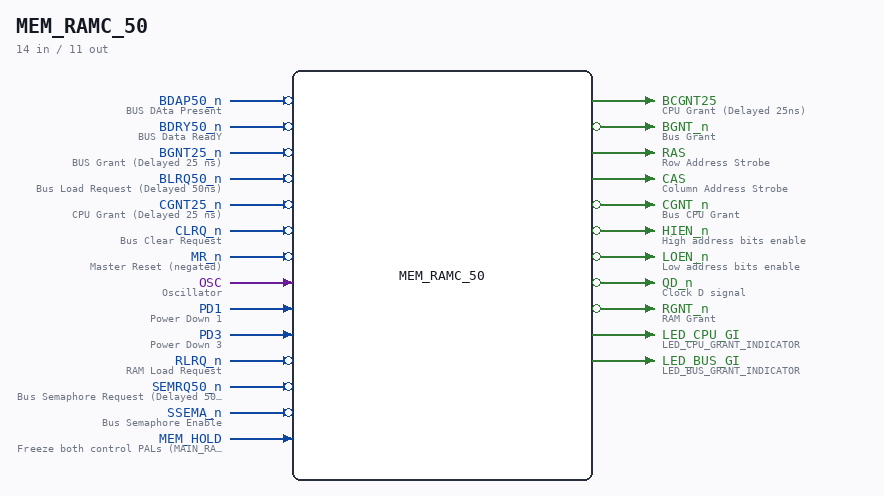

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
BDAP50_n (active low) |
BUS DAta Present |
| input | 1 |
BDRY50_n (active low) |
BUS Data ReadY |
| input | 1 |
BGNT25_n (active low) |
BUS Grant (Delayed 25 ns) |
| input | 1 |
BLRQ50_n (active low) |
Bus Load Request (Delayed 50ns) |
| input | 1 |
CGNT25_n (active low) |
CPU Grant (Delayed 25 ns) |
| input | 1 |
CLRQ_n (active low) |
Bus Clear Request |
| input | 1 |
MR_n (active low) |
Master Reset (negated) |
| input | 1 |
OSC |
Oscillator |
| input | 1 |
PD1 |
Power Down 1 |
| input | 1 |
PD3 |
Power Down 3 |
| input | 1 |
RLRQ_n (active low) |
RAM Load Request |
| input | 1 |
SEMRQ50_n (active low) |
Bus Semaphore Request (Delayed 50ns) |
| input | 1 |
SSEMA_n (active low) |
Bus Semaphore Enable |
| input | 1 |
MEM_HOLD |
Freeze both control PALs (MAIN_RAM_DDR2 cache-miss |
| output | 1 |
BCGNT25 |
CPU Grant (Delayed 25ns) |
| output | 1 |
BGNT_n (active low) |
Bus Grant |
| output | 1 |
RAS |
Row Address Strobe |
| output | 1 |
CAS |
Column Address Strobe |
| output | 1 |
CGNT_n (active low) |
Bus CPU Grant |
| output | 1 |
HIEN_n (active low) |
High address bits enable |
| output | 1 |
LOEN_n (active low) |
Low address bits enable |
| output | 1 |
QD_n (active low) |
Clock D signal |
| output | 1 |
RGNT_n (active low) |
RAM Grant |
| output | 1 |
LED_CPU_GI |
LED_CPU_GRANT_INDICATOR |
| output | 1 |
LED_BUS_GI |
LED_BUS_GRANT_INDICATOR |
Verilog source¶
Verilog/CPU-BOARD-3202/circuit/MEM_RAMC_50.v on GitHub.
Show the Verilog of MEM_RAMC_50 (170 lines)
/**************************************************************************
** ND120 CPU, MM&M **
** MEM/RAMC **
** LOCAL RAM CONTROL **
** SHEET 50 of 50 **
** **
** Last reviewed: 14-DEC-2024 **
** Ronny Hansen **
***************************************************************************/
module MEM_RAMC_50 (
// Input signals
input BDAP50_n, //! BUS DAta Present
input BDRY50_n, //! BUS Data ReadY
input BGNT25_n, //! BUS Grant (Delayed 25 ns)
input BLRQ50_n, //! Bus Load Request (Delayed 50ns)
input CGNT25_n, //! CPU Grant (Delayed 25 ns)
input CLRQ_n, //! Bus Clear Request
input MR_n, //! Master Reset (negated)
input OSC, //! Oscillator
input PD1, //! Power Down 1
input PD3, //! Power Down 3
input RLRQ_n, //! RAM Load Request
input SEMRQ50_n, //! Bus Semaphore Request (Delayed 50ns)
input SSEMA_n, //! Bus Semaphore Enable
input MEM_HOLD, //! Freeze both control PALs (MAIN_RAM_DDR2 cache-miss
//! stretch; tie 0 for the original fixed-length cycle)
// Output signals
output BCGNT25, //! CPU Grant (Delayed 25ns)
output BGNT_n, //! Bus Grant
output RAS, //! Row Address Strobe
output CAS, //! Column Address Strobe
output CGNT_n, //! Bus CPU Grant
output HIEN_n, //! High address bits enable
output LOEN_n, //! Low address bits enable
output QD_n, //! Clock D signal
output RGNT_n, //! RAM Grant
output LED_CPU_GI, //! LED_CPU_GRANT_INDICATOR
output LED_BUS_GI //! LED_BUS_GRANT_INDICATOR
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire s_loen_n;
wire s_bgnt_n;
wire s_rgnt_n;
wire s_mr_n;
wire s_bcgnt25;
wire s_hien_n;
wire s_qd_n;
wire s_ras;
wire s_cas;
wire s_ssema_n;
wire s_semrq50_n;
wire s_rlrq_n;
wire s_bdap50_n;
wire s_clrq_n;
wire s_blrq50_n;
wire s_pd1;
wire s_cgnt_n;
wire s_osc;
wire s_cgnt25_n;
wire s_bdry50_n;
wire s_pd3;
wire s_bgnt25_n;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_mr_n = MR_n;
assign s_ssema_n = SSEMA_n;
assign s_semrq50_n = SEMRQ50_n;
assign s_rlrq_n = RLRQ_n;
assign s_bdap50_n = BDAP50_n;
assign s_clrq_n = CLRQ_n;
assign s_blrq50_n = BLRQ50_n;
assign s_pd1 = PD1;
assign s_osc = OSC;
assign s_cgnt25_n = CGNT25_n;
assign s_bdry50_n = BDRY50_n;
assign s_pd3 = PD3;
assign s_bgnt25_n = BGNT25_n;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign BCGNT25 = s_bcgnt25;
assign BGNT_n = s_bgnt_n;
assign CAS = s_cas;
assign CGNT_n = s_cgnt_n;
assign HIEN_n = s_hien_n;
assign LOEN_n = s_loen_n;
assign QD_n = s_qd_n;
assign RAS = s_ras;
assign RGNT_n = s_rgnt_n;
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// LED: CPU_GRANT_INDICATOR
assign LED_CPU_GI = s_cgnt_n;
// LED: BUS_GRANT_INDICATOR
assign LED_BUS_GI = s_bgnt_n;
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
PAL_44803A PAL_44803_URAMA (
.CK (s_osc),
.OE_n(s_pd1),
.HOLD(MEM_HOLD),
.LOEN_n (s_loen_n), // I0 - LOEN_n
.RLRQ_n (s_rlrq_n), // I1 - RLRQ_n
.MR_n (s_mr_n), // I2 - MR_n
.CLRQ_n (s_clrq_n), // I3 - CLRQ_n
.BLRQ50_n (s_blrq50_n), // I4 - BLRQ50_n
.SSEMA_n (s_ssema_n), // I5 - SSEMA_n
.SEMRQ50_n(s_semrq50_n), // I6 - SEMRQ50_n
//.I7(1'b0), // I7 - (not connected)
.RGNT_n (s_rgnt_n), // Q0_n - RGNT_n
.CGNT_n (s_cgnt_n), // Q1_n - CGNT_n
.BGNT_n (s_bgnt_n), // Q2_n - BGNT_n
.LOEN25_n(), // Q3_n - LOEN25_n (n.c.)
.LDR_n (), // Q4_n - LDR_n (n.c.)
.CSEM_n (), // Q5_n - CSEM_n (n.c.)
.BSEM_n (), // Q6_n - BSEM_n (n.c.)
.BCGNT25 (s_bcgnt25) // Q7_n - BCGNT25
);
PAL_44902A PAL_44902_URAMC (
.CK (s_osc),
.OE_n(s_pd3),
.HOLD(MEM_HOLD),
.RGNT_n (s_rgnt_n), // I0 - RGNT_n (RAM Grant)
//.CGNT_n(s_cgnt_n), // I1 - CGNT_n (NOT USED EXTERN!!) (CPU Grant)
//.BGNT_n(s_bgnt_n), // I2 - BGNT_n (NOT USED EXTERN!!) (BUS Grant)
.BDAP50_n(s_bdap50_n), // I3 - BDAP50_n
.MR_n (s_mr_n), // I4 - MR_n
.BGNT25_n(s_bgnt25_n), // I5 - BGNT25_n
.CGNT25_n(s_cgnt25_n), // I6 - CGNT25_n
.BDRY50_n(s_bdry50_n), // I7 - BDRY50_n
.QA_n (), // QA_n - not connected
.QB_n (), // QB_n - not connected
.QC_n (), // QC_n - not connected
.QD_n (s_qd_n), // Q3_n - QD_n
.RAS (s_ras), // Q4_n - RAS
.CAS (s_cas), // Q5_n - CAS
.LOEN_n(s_loen_n), // Q6_n - LOEN_n
.HIEN_n(s_hien_n) // Q7_n - HIEN_n
);
endmodule
