PAL_44445B_D

Source: Verilog/CPU-BOARD-3202/circuit/PAL_44445B_D.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > MEM_43 > MEM_ADEC_45 > PAL_44445B_D - instance path: CORE.CPU_BOARD.MEM.ADEC.PAL_UCADEC

Used in: MEM_ADEC_45 (all tops)

Contains: no other modules.

Module hierarchy - All modules

Schematic

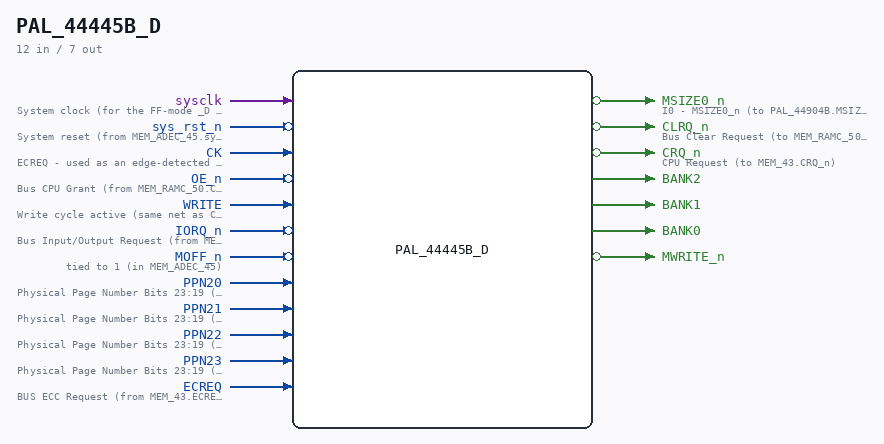

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.MEM.ADEC.PAL_UCADEC. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

PAL_44445B_D - sysclk-domain mirror of PAL_44445B (UCADEC) Same equations; registers sample on sysclk with a rising-edge ENABLE on the original CK (ECREQ) instead of using it as a clock net. PAL file itself untouched. Pattern: CYC_CC_D / CYC_TERM_D. Last reviewed: 8-JUL-2026 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	sysclk	System clock (for the FF-mode _D PAL mirrors) (from MEM_ADEC_45.sysclk)
input	1	sys_rst_n (active low)	System reset (from MEM_ADEC_45.sys_rst_n)
input	1	CK	ECREQ - used as an edge-detected ENABLE here
input	1	OE_n (active low)	Bus CPU Grant (from MEM_RAMC_50.CGNT_n)
input	1	WRITE	Write cycle active (same net as CPU_15.WRITE)
input	1	IORQ_n (active low)	Bus Input/Output Request (from MEM_43.IORQ_n)
input	1	MOFF_n (active low)	tied to 1 (in MEM_ADEC_45)
input	1	PPN20	Physical Page Number Bits 23:19 (from MEM_43.PPN_23_19[1])
input	1	PPN21	Physical Page Number Bits 23:19 (from MEM_43.PPN_23_19[2])
input	1	PPN22	Physical Page Number Bits 23:19 (from MEM_43.PPN_23_19[3])
input	1	PPN23	Physical Page Number Bits 23:19 (from MEM_43.PPN_23_19[4])
output	1	MSIZE0_n (active low)	I0 - MSIZE0_n (to PAL_44904B.MSIZE0_n)
output	1	CLRQ_n (active low)	Bus Clear Request (to MEM_RAMC_50.CLRQ_n)
output	1	CRQ_n (active low)	CPU Request (to MEM_43.CRQ_n)
input	1	ECREQ	BUS ECC Request (from MEM_43.ECREQ)
output	1	BANK2
output	1	BANK1
output	1	BANK0
output	1	MWRITE_n (active low)

Verilog source

Verilog/CPU-BOARD-3202/circuit/PAL_44445B_D.v on GitHub.

Show the Verilog of PAL_44445B_D (67 lines)

/**************************************************************************
** PAL_44445B_D - sysclk-domain mirror of PAL_44445B (UCADEC)            **
** Same equations; registers sample on sysclk with a rising-edge ENABLE  **
** on the original CK (ECREQ) instead of using it as a clock net.        **
** PAL file itself untouched. Pattern: CYC_CC_D / CYC_TERM_D.            **
** Last reviewed: 8-JUL-2026  Ronny Hansen                               **
***************************************************************************/
module PAL_44445B_D (
    input sysclk,   //! System clock (for the FF-mode _D PAL mirrors) (from MEM_ADEC_45.sysclk)
    input sys_rst_n,  //! System reset (from MEM_ADEC_45.sys_rst_n)
    input CK,       // ECREQ - used as an edge-detected ENABLE here
    input OE_n,     //! Bus CPU Grant (from MEM_RAMC_50.CGNT_n)
    input WRITE,    //! Write cycle active (same net as CPU_15.WRITE)
    input IORQ_n,   //! Bus Input/Output Request (from MEM_43.IORQ_n)
    input MOFF_n,   //! tied to 1 (in MEM_ADEC_45)
    input PPN20,    //! Physical Page Number Bits 23:19 (from MEM_43.PPN_23_19[1])
    input PPN21,    //! Physical Page Number Bits 23:19 (from MEM_43.PPN_23_19[2])
    input PPN22,    //! Physical Page Number Bits 23:19 (from MEM_43.PPN_23_19[3])
    input PPN23,    //! Physical Page Number Bits 23:19 (from MEM_43.PPN_23_19[4])
    output MSIZE0_n,  //! I0 - MSIZE0_n (to PAL_44904B.MSIZE0_n)
    output CLRQ_n,  //! Bus Clear Request (to MEM_RAMC_50.CLRQ_n)
    output CRQ_n,   //! CPU Request (to MEM_43.CRQ_n)
    input  ECREQ,   //! BUS ECC Request (from MEM_43.ECREQ)
    output BANK2,
    output BANK1,
    output BANK0,
    output MWRITE_n
);
  wire PPN20_n = ~PPN20;
  wire PPN21_n = ~PPN21;
  wire PPN22_n = ~PPN22;
  wire PPN23_n = ~PPN23;
  wire IORQ = ~IORQ_n;
  wire MOFF = ~MOFF_n;

  reg BANK0_n_reg, BANK1_n_reg, BANK2_n_reg, MWRITE_reg;
  reg ck_d;
  always @(posedge sysclk) begin
    if (!sys_rst_n) begin
      ck_d <= 0;
      BANK0_n_reg <= 1; BANK1_n_reg <= 1; BANK2_n_reg <= 1;
      MWRITE_reg <= 0;
    end else begin
      ck_d <= CK;
      if (CK && !ck_d) begin  // one capture per CK (ECREQ) rise
        BANK0_n_reg <= PPN21 | PPN20;
        BANK2_n_reg <= PPN21 | PPN20_n;
        BANK1_n_reg <= PPN21_n | PPN20;
        MWRITE_reg  <= WRITE;
      end
    end
  end

  assign BANK2 = OE_n ? 1'b0 : ~BANK2_n_reg;
  assign BANK1 = OE_n ? 1'b0 : ~BANK1_n_reg;
  assign BANK0 = OE_n ? 1'b0 : ~BANK0_n_reg;
  assign MWRITE_n = OE_n ? 1'b1 : ~MWRITE_reg;

  // Combinational equations copied VERBATIM from PAL_44445B.v
  assign CLRQ_n = ~(
      (ECREQ & IORQ_n & PPN23_n & PPN22_n & PPN21_n & PPN20_n & MOFF_n) |
      (ECREQ & IORQ_n & PPN23_n & PPN22_n & PPN21_n & PPN20 & MOFF_n)
      );
  assign CRQ_n = ~((ECREQ & IORQ) |
      (ECREQ & MOFF) | (ECREQ & PPN23) | (ECREQ & PPN22) | (ECREQ & PPN21));
  assign MSIZE0_n = 0;
endmodule
