BIF_BCTL_SYNC_8¶

Source: Verilog/CPU-BOARD-3202/circuit/BIF_BCTL_SYNC_8.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > BIF_5 > BIF_BCTL_6 > BIF_BCTL_SYNC_8 - instance path: CORE.CPU_BOARD.BIF.BCTL.SYNC

Used in: BIF_BCTL_6 (all tops)

Contains: AM29C821 x2

Module hierarchy - All modules

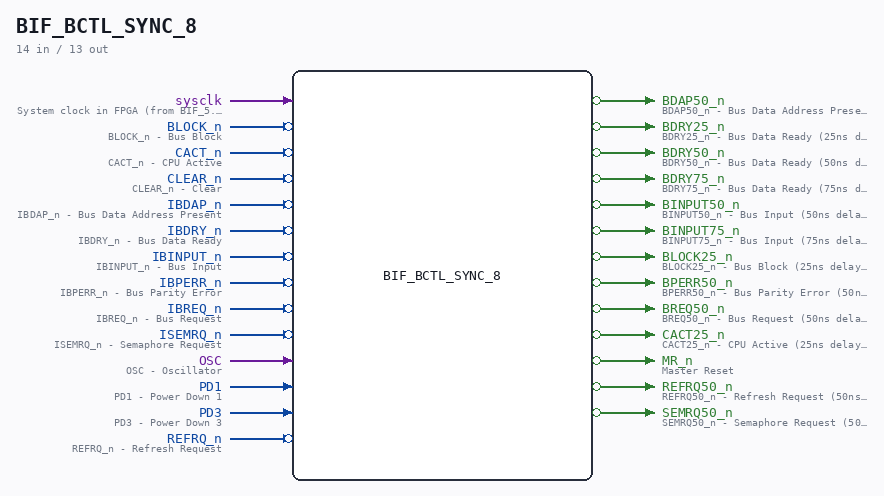

BIF_BCTL_SYNC_8 symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.BIF.BCTL.SYNC. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

ND120 CPU, MM&M BIF/BCTL/SYNC BIF SYNC SHEET 8 of 50 Last reviewed: 14-DEC-2024 Ronny Hansen

Ports¶

Direction	Width	Name	Description
input	`1`	`sysclk`	System clock in FPGA (from BIF_5.sysclk)
input	`1`	`BLOCK_n` (active low)	BLOCK_n - Bus Block
input	`1`	`CACT_n` (active low)	CACT_n - CPU Active
input	`1`	`CLEAR_n` (active low)	CLEAR_n - Clear
input	`1`	`IBDAP_n` (active low)	IBDAP_n - Bus Data Address Present
input	`1`	`IBDRY_n` (active low)	IBDRY_n - Bus Data Ready
input	`1`	`IBINPUT_n` (active low)	IBINPUT_n - Bus Input
input	`1`	`IBPERR_n` (active low)	IBPERR_n - Bus Parity Error
input	`1`	`IBREQ_n` (active low)	IBREQ_n - Bus Request
input	`1`	`ISEMRQ_n` (active low)	ISEMRQ_n - Semaphore Request
input	`1`	`OSC`	OSC - Oscillator
input	`1`	`PD1`	PD1 - Power Down 1
input	`1`	`PD3`	PD3 - Power Down 3
input	`1`	`REFRQ_n` (active low)	REFRQ_n - Refresh Request
output	`1`	`BDAP50_n` (active low)	BDAP50_n - Bus Data Address Present (50ns delayed)
output	`1`	`BDRY25_n` (active low)	BDRY25_n - Bus Data Ready (25ns delayed)
output	`1`	`BDRY50_n` (active low)	BDRY50_n - Bus Data Ready (50ns delayed)
output	`1`	`BDRY75_n` (active low)	BDRY75_n - Bus Data Ready (75ns delayed)
output	`1`	`BINPUT50_n` (active low)	BINPUT50_n - Bus Input (50ns delayed)
output	`1`	`BINPUT75_n` (active low)	BINPUT75_n - Bus Input (75ns delayed)
output	`1`	`BLOCK25_n` (active low)	BLOCK25_n - Bus Block (25ns delayed)
output	`1`	`BPERR50_n` (active low)	BPERR50_n - Bus Parity Error (50ns delayed)
output	`1`	`BREQ50_n` (active low)	BREQ50_n - Bus Request (50ns delayed)
output	`1`	`CACT25_n` (active low)	CACT25_n - CPU Active (25ns delayed)
output	`1`	`MR_n` (active low)	Master Reset
output	`1`	`REFRQ50_n` (active low)	REFRQ50_n - Refresh Request (50ns delayed)
output	`1`	`SEMRQ50_n` (active low)	SEMRQ50_n - Semaphore Request (50ns delayed)

Verilog source¶

Verilog/CPU-BOARD-3202/circuit/BIF_BCTL_SYNC_8.v on GitHub.

Show the Verilog of BIF_BCTL_SYNC_8 (202 lines)

/**************************************************************************
** ND120 CPU, MM&M                                                       **
** BIF/BCTL/SYNC                                                         **
** BIF SYNC                                                              **
** SHEET 8 of 50                                                         **
**                                                                       **
** Last reviewed: 14-DEC-2024                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module BIF_BCTL_SYNC_8 (

    // Inputs signals
    input sysclk,     //! System clock in FPGA (from BIF_5.sysclk)
    input BLOCK_n,    //! BLOCK_n - Bus Block
    input CACT_n,     //! CACT_n - CPU Active
    input CLEAR_n,    //! CLEAR_n - Clear
    input IBDAP_n,    //! IBDAP_n - Bus Data Address Present
    input IBDRY_n,    //! IBDRY_n - Bus Data Ready
    input IBINPUT_n,  //! IBINPUT_n - Bus Input
    input IBPERR_n,   //! IBPERR_n - Bus Parity Error
    input IBREQ_n,    //! IBREQ_n - Bus Request
    input ISEMRQ_n,   //! ISEMRQ_n - Semaphore Request
    input OSC,        //! OSC - Oscillator
    input PD1,        //! PD1 - Power Down 1
    input PD3,        //! PD3 - Power Down 3
    input REFRQ_n,    //! REFRQ_n - Refresh Request

    // Output signals
    output BDAP50_n,    //! BDAP50_n - Bus Data Address Present (50ns delayed)
    output BDRY25_n,    //! BDRY25_n - Bus Data Ready (25ns delayed)
    output BDRY50_n,    //! BDRY50_n - Bus Data Ready (50ns delayed)
    output BDRY75_n,    //! BDRY75_n - Bus Data Ready (75ns delayed)
    output BINPUT50_n,  //! BINPUT50_n - Bus Input (50ns delayed)
    output BINPUT75_n,  //! BINPUT75_n - Bus Input (75ns delayed)
    output BLOCK25_n,   //! BLOCK25_n - Bus Block (25ns delayed)
    output BPERR50_n,   //! BPERR50_n - Bus Parity Error (50ns delayed)
    output BREQ50_n,    //! BREQ50_n - Bus Request (50ns delayed)
    output CACT25_n,    //! CACT25_n - CPU Active (25ns delayed)
    output MR_n,        //! Master Reset
    output REFRQ50_n,   //! REFRQ50_n - Refresh Request (50ns delayed)
    output SEMRQ50_n    //! SEMRQ50_n - Semaphore Request (50ns delayed)
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire s_bdry25_n;
  wire s_binput50_n;
  wire s_osc;
  wire s_pd1;
  wire s_pd3;
  wire s_ibreq_n;
  wire s_block_n;
  wire s_cact_n;
  wire s_ibperr_n;
  wire s_isemrq_n;
  wire s_clear_n;
  wire s_refrq_n;
  wire s_ibinput_n;
  wire s_ibdry_n;
  wire s_ibdap_n;
  wire s_binput75_n;
  wire s_breq50_n;
  wire s_bdap50_n;
  wire s_bdry50_n;
  wire s_bdry75_n;
  wire s_block25_n;
  wire s_cact25_n;
  wire s_mr_n;
  wire s_refrq50_n;
  wire s_semrq50_n;
  wire s_bperr50_n;

  // Intermediate wires for CHIP_3D outputs
  wire s_bdap25_n;
  wire s_breq25_n;
  wire s_bperr25_n;
  wire s_binput25_n;
  wire s_semrq25_n;
  wire s_refrq25_n;
  wire s_clear25_n;

  // Intermediate wires for CHIP_3D and CHIP_4D inputs and outputs
  wire [9:0] input_chip_3d;
  wire [9:0] output_chip_3d;
  wire [9:0] input_chip_4d;
  wire [9:0] output_chip_4d;

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_ibdap_n   = IBDAP_n;
  assign s_block_n   = BLOCK_n;
  assign s_cact_n    = CACT_n;
  assign s_osc       = OSC;
  assign s_ibperr_n  = IBPERR_n;
  assign s_isemrq_n  = ISEMRQ_n;
  assign s_clear_n   = CLEAR_n;
  assign s_refrq_n   = REFRQ_n;
  assign s_ibinput_n = IBINPUT_n;
  assign s_ibdry_n   = IBDRY_n;
  assign s_pd1       = PD1;
  assign s_pd3       = PD3;
  assign s_ibreq_n   = IBREQ_n;

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  assign BDAP50_n    = s_bdap50_n;
  assign BDRY25_n    = s_bdry25_n;
  assign BDRY50_n    = s_bdry50_n;
  assign BDRY75_n    = s_bdry75_n;
  assign BINPUT50_n  = s_binput50_n;
  assign BINPUT75_n  = s_binput75_n;
  assign BLOCK25_n   = s_block25_n;
  assign BPERR50_n   = s_bperr50_n;
  assign BREQ50_n    = s_breq50_n;
  assign CACT25_n    = s_cact25_n;
  assign MR_n        = s_mr_n;
  assign REFRQ50_n   = s_refrq50_n;
  assign SEMRQ50_n   = s_semrq50_n;

  /*******************************************************************************
   ** Here all sub-circuits are defined                                          **
   *******************************************************************************/

  // Bus Driver 10 bits. Positive edge-triggered registers with D-type flip-flops and 3-state
  AM29C821 CHIP_3D (
      .sysclk(sysclk),
      .CK(s_osc),
      .OE_n(s_pd3),
      .D(input_chip_3d),
      .Y(output_chip_3d)
  );

  // Assignments for CHIP_3D inputs and outputs
  assign input_chip_3d = {
    s_block_n,
    s_ibdap_n,
    s_ibreq_n,
    s_cact_n,
    s_ibdry_n,
    s_ibperr_n,
    s_ibinput_n,
    s_isemrq_n,
    s_refrq_n,
    s_clear_n
  };


  assign {
      s_block25_n,
      s_bdap25_n,
      s_breq25_n,
      s_cact25_n,
      s_bdry25_n,
      s_bperr25_n,
      s_binput25_n,
      s_semrq25_n,
      s_refrq25_n,
      s_clear25_n
      } = output_chip_3d;


  // Bus Driver 10 bits. Positive edge-triggered registers with D-type flip-flops and 3-state
  AM29C821 CHIP_4D (
      .sysclk(sysclk),
      .CK(s_osc),
      .OE_n(s_pd1),
      .D(input_chip_4d),
      .Y(output_chip_4d)
  );

  // Assignments for CHIP_4D inputs and outputs
  assign input_chip_4d = {
    s_binput50_n,
    s_bdap25_n,
    s_breq25_n,
    s_bdry50_n,
    s_bdry25_n,
    s_bperr25_n,
    s_binput25_n,
    s_semrq25_n,
    s_refrq25_n,
    s_clear25_n
  };

  assign {
   s_binput75_n,
   s_bdap50_n,
   s_breq50_n,
   s_bdry75_n,
   s_bdry50_n,
   s_bperr50_n,
   s_binput50_n,
   s_semrq50_n,
   s_refrq50_n,
   s_mr_n
   } = output_chip_4d;

endmodule
