CPU_PROC_CGA_33¶

Source: Verilog/CPU-BOARD-3202/circuit/CPU_PROC_CGA_33.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 - instance path: CORE.CPU_BOARD.CPU.PROC.CGA

Used in: CPU_PROC_32 (all tops)

Contains: CGA, TTL_74374

Module hierarchy - All modules

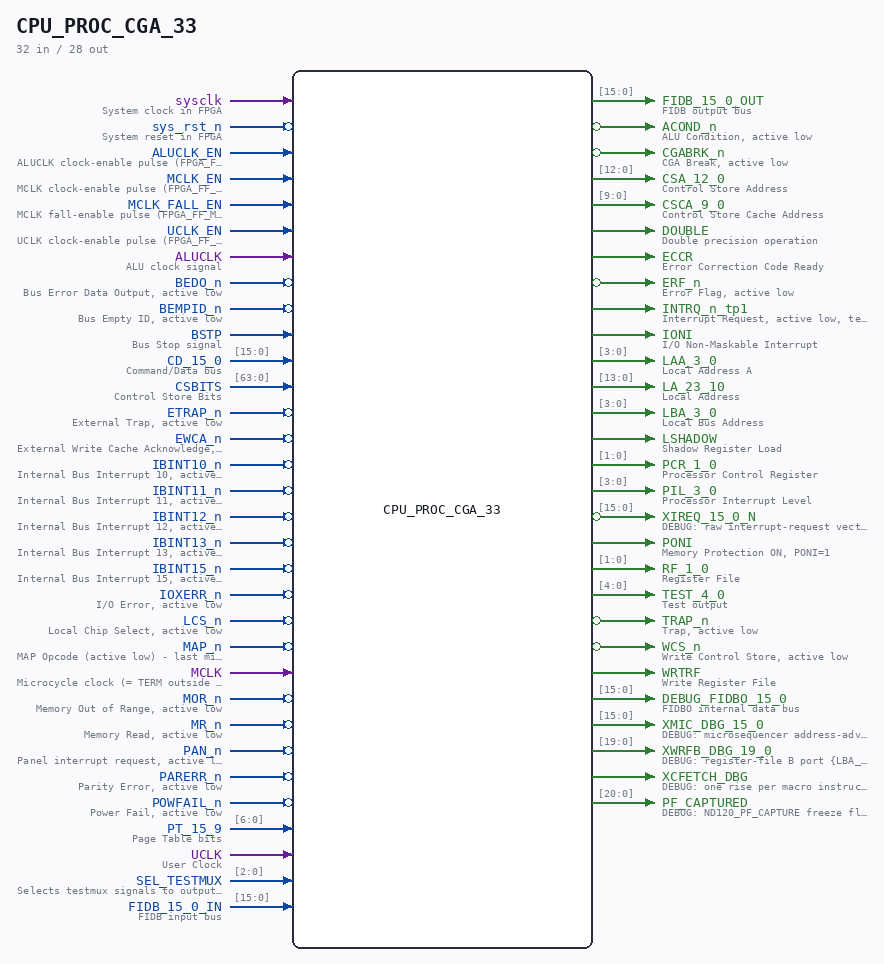

CPU_PROC_CGA_33 symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

ND120 CPU, MM&M CPU/PROC/CGA CPU GATE ARRAY SHEET 33 of 50 Last reviewed: 2-FEB-2025 Ronny Hansen

Ports¶

Direction	Width	Name	Description
input	`1`	`sysclk`	System clock in FPGA
input	`1`	`sys_rst_n` (active low)	System reset in FPGA
input	`1`	`ALUCLK_EN`	ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input	`1`	`MCLK_EN`	MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input	`1`	`MCLK_FALL_EN`	MCLK fall-enable pulse (FPGA_FF_MODE, else 0)
input	`1`	`UCLK_EN`	UCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input	`1`	`ALUCLK`	ALU clock signal
input	`1`	`BEDO_n` (active low)	Bus Error Data Output, active low
input	`1`	`BEMPID_n` (active low)	Bus Empty ID, active low
input	`1`	`BSTP`	Bus Stop signal
input	`[15:0]`	`CD_15_0`	Command/Data bus
input	`[63:0]`	`CSBITS`	Control Store Bits
input	`1`	`ETRAP_n` (active low)	External Trap, active low
input	`1`	`EWCA_n` (active low)	External Write Cache Acknowledge, active low
input	`1`	`IBINT10_n` (active low)	Internal Bus Interrupt 10, active low
input	`1`	`IBINT11_n` (active low)	Internal Bus Interrupt 11, active low
input	`1`	`IBINT12_n` (active low)	Internal Bus Interrupt 12, active low
input	`1`	`IBINT13_n` (active low)	Internal Bus Interrupt 13, active low
input	`1`	`IBINT15_n` (active low)	Internal Bus Interrupt 15, active low
input	`1`	`IOXERR_n` (active low)	I/O Error, active low
input	`1`	`LCS_n` (active low)	Local Chip Select, active low
input	`1`	`MAP_n` (active low)	MAP Opcode (active low) - last microinstruction of every macro instruction
input	`1`	`MCLK`	Microcycle clock (= TERM outside RWCS, stretched during RWCS)
input	`1`	`MOR_n` (active low)	Memory Out of Range, active low
input	`1`	`MR_n` (active low)	Memory Read, active low
input	`1`	`PAN_n` (active low)	Panel interrupt request, active low (to CGA_INTR.PANN)
input	`1`	`PARERR_n` (active low)	Parity Error, active low
input	`1`	`POWFAIL_n` (active low)	Power Fail, active low
input	`[6:0]`	`PT_15_9`	Page Table bits
input	`1`	`UCLK`	User Clock
input	`[2:0]`	`SEL_TESTMUX`	Selects testmux signals to output on TEST_4_0
input	`[15:0]`	`FIDB_15_0_IN`	FIDB input bus
output	`[15:0]`	`FIDB_15_0_OUT`	FIDB output bus
output	`1`	`ACOND_n` (active low)	ALU Condition, active low
output	`1`	`CGABRK_n` (active low)	CGA Break, active low
output	`[12:0]`	`CSA_12_0`	Control Store Address
output	`[9:0]`	`CSCA_9_0`	Control Store Cache Address
output	`1`	`DOUBLE`	Double precision operation
output	`1`	`ECCR`	Error Correction Code Ready
output	`1`	`ERF_n` (active low)	Error Flag, active low
output	`1`	`INTRQ_n_tp1`	Interrupt Request, active low, test point 1
output	`1`	`IONI`	I/O Non-Maskable Interrupt
output	`[3:0]`	`LAA_3_0`	Local Address A
output	`[13:0]`	`LA_23_10`	Local Address
output	`[3:0]`	`LBA_3_0`	Local Bus Address
output	`1`	`LSHADOW`	Shadow Register Load
output	`[1:0]`	`PCR_1_0`	Processor Control Register
output	`[3:0]`	`PIL_3_0`	Processor Interrupt Level
output	`[15:0]`	`XIREQ_15_0_N` (active low)	DEBUG: raw interrupt-request vector (active low)
output	`1`	`PONI`	Memory Protection ON, PONI=1
output	`[1:0]`	`RF_1_0`	Register File
output	`[4:0]`	`TEST_4_0`	Test output
output	`1`	`TRAP_n` (active low)	Trap, active low
output	`1`	`WCS_n` (active low)	Write Control Store, active low
output	`1`	`WRTRF`	Write Register File
output	`[15:0]`	`DEBUG_FIDBO_15_0`	FIDBO internal data bus
output	`[15:0]`	`XMIC_DBG_15_0`	DEBUG: microsequencer address-advance probe (Tang 06000-hang)
output	`[19:0]`	`XWRFB_DBG_19_0`	DEBUG: register-file B port {LBA_3_0, B_15_0} - STERR error number
output	`1`	`XCFETCH_DBG`	DEBUG: one rise per macro instruction (see CGA.v)
output	`[20:0]`	`PF_CAPTURED`	DEBUG: ND120_PF_CAPTURE freeze flag (23-AUG)

Verilog source¶

Verilog/CPU-BOARD-3202/circuit/CPU_PROC_CGA_33.v on GitHub.

Show the Verilog of CPU_PROC_CGA_33 (311 lines)

/**************************************************************************
** ND120 CPU, MM&M                                                       **
** CPU/PROC/CGA                                                          **
** CPU GATE ARRAY                                                        **
** SHEET 33 of 50                                                        **
**                                                                       **
** Last reviewed: 2-FEB-2025                                             **
** Ronny Hansen                                                          **
***************************************************************************/
/* verilator lint_off UNUSED */

module CPU_PROC_CGA_33 (
    input sysclk,    //! System clock in FPGA
    input sys_rst_n, //! System reset in FPGA

    input        ALUCLK_EN,   //! ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
    input        MCLK_EN,     //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
    input        MCLK_FALL_EN, //! MCLK fall-enable pulse (FPGA_FF_MODE, else 0)
    input        UCLK_EN,     //! UCLK clock-enable pulse (FPGA_FF_MODE, else 0)
    input        ALUCLK,      //! ALU clock signal
    input        BEDO_n,      //! Bus Error Data Output, active low
    input        BEMPID_n,    //! Bus Empty ID, active low
    input        BSTP,        //! Bus Stop signal
    input [15:0] CD_15_0,     //! Command/Data bus
    input [63:0] CSBITS,      //! Control Store Bits
    input        ETRAP_n,     //! External Trap, active low
    input        EWCA_n,      //! External Write Cache Acknowledge, active low
    input        IBINT10_n,   //! Internal Bus Interrupt 10, active low
    input        IBINT11_n,   //! Internal Bus Interrupt 11, active low
    input        IBINT12_n,   //! Internal Bus Interrupt 12, active low
    input        IBINT13_n,   //! Internal Bus Interrupt 13, active low
    input        IBINT15_n,   //! Internal Bus Interrupt 15, active low
    input        IOXERR_n,    //! I/O Error, active low
    input        LCS_n,       //! Local Chip Select, active low
    input        MAP_n,       //! MAP Opcode (active low) - last microinstruction of every macro instruction
    input        MCLK,        //! Microcycle clock (= TERM outside RWCS, stretched during RWCS)
    input        MOR_n,       //! Memory Out of Range, active low
    input        MR_n,        //! Memory Read, active low
    input        PAN_n,       //! Panel interrupt request, active low (to CGA_INTR.PANN)
    input        PARERR_n,    //! Parity Error, active low
    input        POWFAIL_n,   //! Power Fail, active low
    input [ 6:0] PT_15_9,     //! Page Table bits
    input        UCLK,        //! User Clock

    input [2:0] SEL_TESTMUX,  //! Selects testmux signals to output on TEST_4_0

    // in and out
    input  [15:0] FIDB_15_0_IN,  //! FIDB input bus
    output [15:0] FIDB_15_0_OUT, //! FIDB output bus

    // Outputs

    output        ACOND_n,    //! ALU Condition, active low
    output        CGABRK_n,   //! CGA Break, active low
    output [12:0] CSA_12_0,   //! Control Store Address
    output [ 9:0] CSCA_9_0,   //! Control Store Cache Address
    output        DOUBLE,     //! Double precision operation
    output        ECCR,       //! Error Correction Code Ready

    //ERF_n - not in use, its fetched from PAL 44407A, pin ERF_n (which seems to have the same logic..)
    output ERF_n,             //! Error Flag, active low

    output        INTRQ_n_tp1, //! Interrupt Request, active low, test point 1
    output        IONI,        //! I/O Non-Maskable Interrupt
    output [ 3:0] LAA_3_0,     //! Local Address A
    output [13:0] LA_23_10,    //! Local Address
    output [ 3:0] LBA_3_0,     //! Local Bus Address
    output        LSHADOW,     //! Shadow Register Load
    output [ 1:0] PCR_1_0,     //! Processor Control Register
    output [ 3:0] PIL_3_0,     //! Processor Interrupt Level
    output [15:0] XIREQ_15_0_N, //! DEBUG: raw interrupt-request vector (active low)
    output        PONI,        //! Memory Protection ON, PONI=1
    output [ 1:0] RF_1_0,      //! Register File
    output [ 4:0] TEST_4_0,    //! Test output
    output        TRAP_n,      //! Trap, active low
    output        WCS_n,       //! Write Control Store, active low
    output        WRTRF,       //! Write Register File

    // Debug
    output [15:0] DEBUG_FIDBO_15_0, //! FIDBO internal data bus
    output [15:0] XMIC_DBG_15_0,    //! DEBUG: microsequencer address-advance probe (Tang 06000-hang)
    output [19:0] XWRFB_DBG_19_0,   //! DEBUG: register-file B port {LBA_3_0, B_15_0} - STERR error number
    output        XCFETCH_DBG,      //! DEBUG: one rise per macro instruction (see CGA.v)
    output [20:0]        PF_CAPTURED       //! DEBUG: ND120_PF_CAPTURE freeze flag (23-AUG)
);


  /*******************************************************************************
   ** Here all sub-circuits are defined                                          **
   *******************************************************************************/



  // Wire's out from the CHIP_34G
  wire s_bint10_n;
  wire s_bint11_n;
  wire s_bint12_n;
  wire s_bint13_n;
  wire s_bint15_n;


  // Connect output signals to the wires
  wire [7:0] chip_34q;
  assign s_bint10_n = chip_34q[7];
  assign s_bint11_n = chip_34q[6];
  assign s_bint12_n = chip_34q[5];
  assign s_bint13_n = chip_34q[4];
  assign s_bint15_n = chip_34q[3];
  // bit 2-0 are not used

  // Code to make LINTER not complaing about bits _not_ read in chip_34q 2:0
  (* keep = "true", DONT_TOUCH = "true" *) wire [2:0] unused_34q_bits;
  assign unused_34q_bits[2:0] =  chip_34q[2:0];


  TTL_74374 CHIP_34G (
      .sysclk(sysclk),
      .CK(~ALUCLK),  //7F (Smith with 1's complement) ?
      .D({
        IBINT10_n, IBINT11_n, IBINT12_n, IBINT13_n, IBINT15_n, 3'b000
      }),  // 8-bit D input, lower 3 bits unused
      .OE_n(1'b0),  // GND
      .Q(chip_34q)  // 8-bit Q output, lower 3 bits ignored
  );


  // *************** MICROCODE INPUTS ***************
  // CSBITS 63-55 => CSALUI_8_0
  wire [8:0] s_CSALUI_8_0;
  assign s_CSALUI_8_0 = CSBITS[63:55];

  // CSBITS 54-53 => CSSTSS_1_0
  wire [1:0] s_CSSTSS_1_0;
  assign s_CSSTSS_1_0 = CSBITS[54:53];

  // CSBITS 52-51 => CSRASEL_1_0
  wire [1:0] s_CSRASEL_1_0;
  assign s_CSRASEL_1_0 = CSBITS[52:51];

  // CSBITS 50 => CSXREF3
  wire s_CSXREF3;
  assign s_CSXREF3 = CSBITS[50];

  // CSBITS 49-48 => CSRBSEL_1_0
  wire [1:0] s_CSRBSEL_1_0;
  assign s_CSRBSEL_1_0 = CSBITS[49:48];

  // CSBITS 47-46 => CSCINSEL_1_0
  wire [1:0] s_CSCINSEL_1_0;
  assign s_CSCINSEL_1_0 = CSBITS[47:46];

  // CSBITS 45-44 => CSALUM_1_0
  wire [1:0] s_CSALUM_1_0;
  assign s_CSALUM_1_0 = CSBITS[45:44];

  // CSBITS 43-42 => CSMIS_1_0
  wire [1:0] s_CSMIS_1_0;
  assign s_CSMIS_1_0 = CSBITS[43:42];

  // CSBITS 41-37 => CSIDBS_4_0
  wire [4:0] s_CSIDBS_4_0;
  assign s_CSIDBS_4_0 = CSBITS[41:37];

  // CSBITS 36-32 => CSCOMM_4_0
  wire [4:0] s_CSCOMM_4_0;
  assign s_CSCOMM_4_0 = CSBITS[36:32];

  // CSBITS 31-28 => CSTS_6_3
  wire [3:0] s_CSTS_6_3;
  assign s_CSTS_6_3 = CSBITS[31:28];

  // CSBITS 27-26 => CSDELAY_1_0 (Not used by CGA, its used outside to control the clock cycles ?)
  //wire [1:0] s_CSDELAY_1_0;
  //assign s_CSDELAY_1_0 = CSBITS[27:26];

  // CSBITS 25 => CSVECT
  wire s_CSVECT;
  assign s_CSVECT = CSBITS[25];

  // CSBITS 24 => CSSCOND
  wire s_CSSCOND;
  assign s_CSSCOND = CSBITS[24];

  // CSBITS 23 => CSECOND
  wire s_CSECOND;
  assign s_CSECOND = CSBITS[23];

  // CSBITS 22 => CSLOOP
  wire s_CSLOOP;
  assign s_CSLOOP = CSBITS[22];

  // CSBITS 21 => CSDLY (Not used by CGA, its used outside to control the clock cycles ?)
  //wire s_CSDLY;
  //assign s_CSDLY = CSBITS[21];

  // CSBITS 20 => CSBIT20
  wire s_CSBIT20;
  assign s_CSBIT20 = CSBITS[20];

  // CSBITS 19-16 => CSRB_3_0
  wire [3:0] s_CSRB_3_0;
  assign s_CSRB_3_0 = CSBITS[19:16];

  // CSBITS 15-0 => CSBIT_15_0
  wire [15:0] s_CSBIT_15_0;
  assign s_CSBIT_15_0 = CSBITS[15:0];


  // ************ END OF MICROCODE INPUTS ************

  CGA DELILAH (
      .sysclk(sysclk),  // System clock in FPGA
      .sys_rst_n(sys_rst_n),  // System reset in FPGA

      /************ INPUT SIGNALS ********************/
      .XALUCLK_EN(ALUCLK_EN),
      .XMCLK_EN(MCLK_EN),
      .XMCLK_FALL_EN(MCLK_FALL_EN),
      .XTCLK_EN(UCLK_EN),
      .XALUCLK(ALUCLK),
      .XBINT10N(s_bint10_n),
      .XBINT11N(s_bint11_n),
      .XBINT12N(s_bint12_n),
      .XBINT13N(s_bint13_n),
      .XBINT15N(s_bint15_n),
      .XCD_15_0(CD_15_0),

      // *** CSBITS 63-0 (ND-120/CX 64-bit Microcode input to CGA) ***
      .XCSALUI_8_0(s_CSALUI_8_0),
      .XCSSST_1_0(s_CSSTSS_1_0),
      .XCSRASEL_1_0(s_CSRASEL_1_0),
      .XCSXRF3(s_CSXREF3),
      .XCSRBSEL_1_0(s_CSRBSEL_1_0),
      .XCSCINSEL_1_0(s_CSCINSEL_1_0),
      .XCSALUM_1_0(s_CSALUM_1_0),
      .XCSMIS_1_0(s_CSMIS_1_0),
      .XCSIDBS_4_0(s_CSIDBS_4_0),
      .XCSCOMM_4_0(s_CSCOMM_4_0),
      .XCSTS_6_3(s_CSTS_6_3),
      //.XCSDELAY_1_0(s_CSDELAY_1_0),
      .XCSVECT(s_CSVECT),
      .XCSSCOND(s_CSSCOND),
      .XCSECOND(s_CSECOND),
      .XCSLOOP(s_CSLOOP),
      // .XCSDLY(s_CSDLY),
      .XCSBIT20(s_CSBIT20),
      .XCSRB_3_0(s_CSRB_3_0),
      .XCSBIT_15_0(s_CSBIT_15_0),
      // *** CSBITS 63-0 (END) ***

      .XEDON(BEDO_n),
      .XEMPIDN(BEMPID_n),
      .XETRAPN(ETRAP_n),
      .XEWCAN(EWCA_n),
      .XFIDB_15_0_IN(FIDB_15_0_IN),
      .XFIDB_15_0_OUT(FIDB_15_0_OUT),
      .XFTRAPN(1'b1),
      .XVTRAPN(1'b1),
      .XILCSN(LCS_n),
      .XIOXERRN(IOXERR_n),
      .XMAPN(MAP_n),
      .XMCLK(MCLK),
      .XMORN(MOR_n),
      .XMRN(MR_n),
      .XPANN(PAN_n),
      .XPARERRN(PARERR_n),
      .XPOWFAILN(POWFAIL_n),
      .XPTSTN(1'b1),
      .XPT_9_15(PT_15_9),
      .XSPARE(1'b1),
      .XSTP(BSTP),
      .XTCLK(UCLK),
      .XTSEL_2_0(SEL_TESTMUX),  // Selects testmux signals to output


      /************ OUTPUT SIGNALS ********************/

      .XACONDN(ACOND_n),
      .XBRKN  (CGABRK_n),
      .XDOUBLE(DOUBLE),
      .XECCR  (ECCR),

      // XERFN - Not in use (not connected) - Signals is instead fetched from PAL 44407A, pin ERF_n (which seems to have the same logic..)
      .XERFN(ERF_n),

      .XINTRQN(INTRQ_n_tp1),
      .XIONI(IONI),
      .XLAA_3_0(LAA_3_0),
      .XLA_23_10(LA_23_10),
      .XLBA_3_0(LBA_3_0),
      .XLSHADOW(LSHADOW),
      .XMA_12_0(CSA_12_0),
      .XMCA_9_0(CSCA_9_0),
      .XPCR_1_0(PCR_1_0),
      .XPIL_3_0(PIL_3_0),
      .XIREQ_15_0_N(XIREQ_15_0_N),
      .XPONI(PONI),
      .XRF_1_0(RF_1_0),
      .XTEST_4_0(TEST_4_0),
      .XTRAPN(TRAP_n),
      .XWCSN(WCS_n),
      .XWRTRF(WRTRF),

      .DEBUG_FIDBO_15_0(DEBUG_FIDBO_15_0),
      .XMIC_DBG_15_0(XMIC_DBG_15_0),
      .XWRFB_DBG_19_0(XWRFB_DBG_19_0),
      .XCFETCH_DBG(XCFETCH_DBG),
      .PF_CAPTURED(PF_CAPTURED)
  );

endmodule
