CPU_CS_WCS_21_22

Source: Verilog/CPU-BOARD-3202/circuit/CPU_CS_WCS_21_22.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_CS_16 > CPU_CS_WCS_21_22 - instance path: CORE.CPU_BOARD.CPU.CS.WCS

Used in: CPU_CS_16 (all tops)

Contains: IDT6168A_20 x32

Module hierarchy - All modules

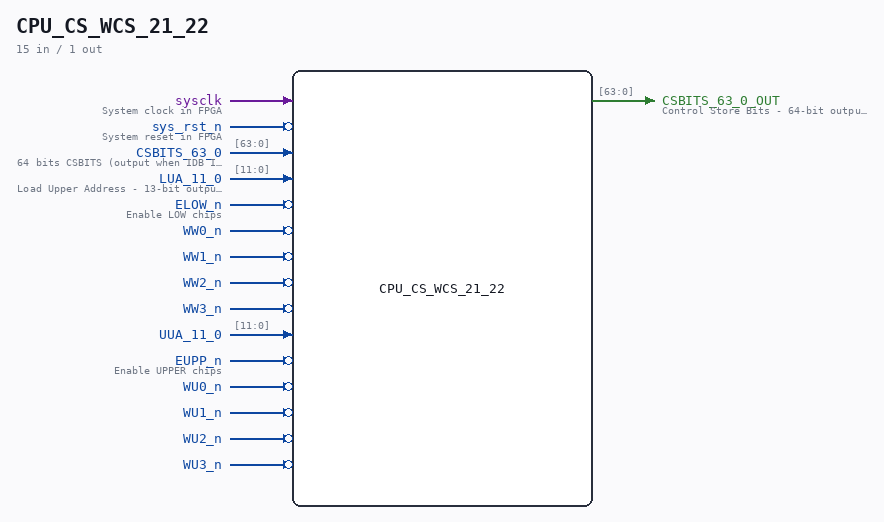

Schematic

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.CS.WCS. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 CPU, MM&M CPU/CS/WCS Writable Control Store SHEET 21 and 22 of 50 This module has 16 RAM CHIPS of type 16K (4Kx4) Static RAM for LUA (4KByte Microcode) This module has 16 RAM CHIPS of type 16K (4Kx4) Static RAM for UUA (4KByte for Writable Control Store?) Last reviewed: 9-NOV-2024 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	sysclk	System clock in FPGA
input	1	sys_rst_n (active low)	System reset in FPGA
input	[63:0]	CSBITS_63_0	64 bits CSBITS (output when IDB IN writes a 16 bit part to the CSBITS) (from CPU_CS_TCV_20.CSBITS_OUT)
output	[63:0]	CSBITS_63_0_OUT	Control Store Bits - 64-bit output containing the control store data/instructions (to CPU_CS_16.CSBITS)
input	[11:0]	LUA_11_0	Load Upper Address - 13-bit output for upper address bits of control store (same net as CPU_CS_16.LUA_12_0[11:0])
input	1	ELOW_n (active low)	Enable LOW chips
input	1	WW0_n (active low)
input	1	WW1_n (active low)
input	1	WW2_n (active low)
input	1	WW3_n (active low)
input	[11:0]	UUA_11_0
input	1	EUPP_n (active low)	Enable UPPER chips
input	1	WU0_n (active low)
input	1	WU1_n (active low)
input	1	WU2_n (active low)
input	1	WU3_n (active low)

Verilog source

Verilog/CPU-BOARD-3202/circuit/CPU_CS_WCS_21_22.v on GitHub.

Show the Verilog of CPU_CS_WCS_21_22 (449 lines)

/**************************************************************************
** ND120 CPU, MM&M                                                       **
** CPU/CS/WCS                                                            **
** Writable Control Store                                                **
** SHEET 21 and 22 of 50                                                 **
**                                                                       **
** This module has 16 RAM CHIPS of type 16K (4Kx4) Static RAM for LUA    **
** (4KByte Microcode)                                                    **
**                                                                       **
** This module has 16 RAM CHIPS of type 16K (4Kx4) Static RAM for UUA    **
** (4KByte for Writable Control Store?)                                  **
**                                                                       **
** Last reviewed: 9-NOV-2024                                             **
** Ronny Hansen                                                          **
***************************************************************************/

module CPU_CS_WCS_21_22 (
    input sysclk,    // System clock in FPGA
    input sys_rst_n, // System reset in FPGA

    input  [63:0] CSBITS_63_0,  //! 64 bits CSBITS (output when IDB IN writes a 16 bit part to the CSBITS) (from CPU_CS_TCV_20.CSBITS_OUT)
    output [63:0] CSBITS_63_0_OUT,  //! Control Store Bits - 64-bit output containing the control store data/instructions (to CPU_CS_16.CSBITS)

    input [11:0] LUA_11_0,  //! Load Upper Address - 13-bit output for upper address bits of control store (same net as CPU_CS_16.LUA_12_0[11:0])
    input        ELOW_n,    //! Enable LOW chips
    input        WW0_n,
    input        WW1_n,
    input        WW2_n,
    input        WW3_n,


    input [11:0] UUA_11_0,
    input        EUPP_n,    //! Enable UPPER chips
    input        WU0_n,
    input        WU1_n,
    input        WU2_n,
    input        WU3_n
);


// REFACTOR possibility: SWITCH to ONE big DRAM logic

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire [63:0] s_lua_csbits_in;
  wire [63:0] s_lua_csbits_out;
  wire [11:0] s_lua_address;
  wire        s_elow_n;

  wire        s_ww3_n;
  wire        s_ww2_n;
  wire        s_ww1_n;
  wire        s_ww0_n;

  wire [63:0] s_uua_csbits_in;
  wire [63:0] s_uua_csbits_out;
  wire [11:0] s_uua_address;
  wire        s_eupp_n;
  wire        s_wu3_n;
  wire        s_wu2_n;
  wire        s_wu1_n;
  wire        s_wu0_n;



  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/

  // LUA
  assign s_lua_csbits_in[63:0] = CSBITS_63_0;
  assign s_lua_address[11:0] = LUA_11_0;

  assign s_elow_n = ELOW_n;  // Enable LUA RAM chips
  assign s_ww0_n = WW0_n;  // Enable write for LUA bits 15-0
  assign s_ww1_n = WW1_n;  // Enable write for LUA bits 31-16
  assign s_ww2_n = WW2_n;  // Enable write for LUA bits 47-32
  assign s_ww3_n = WW3_n;  // Enable write for LUA bits 63-48


  // UUA
  assign s_uua_csbits_in[63:0] = CSBITS_63_0;
  assign s_uua_address[11:0] = UUA_11_0;

  assign s_eupp_n = EUPP_n;  // Enable UUA RAM chips
  assign s_wu0_n = WU0_n;  // Enable write for UUA bits 15-0
  assign s_wu1_n = WU1_n;  // Enable write for UUA bits 31-16
  assign s_wu2_n = WU2_n;  // Enable write for UUA bits 47-32
  assign s_wu3_n = WU3_n;  // Enable write for UUA bits 63-48




  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  // ELOW_n = 0 means ENABLE LUA RAM CHIPS
  // EUPP_n = 0 means ENABLE UUA RAM CHIPS

  // mux data out?
  //assign CSBITS_63_0_OUT = (!s_elow_n) ?  s_lua_csbits_out[63:0] : (!s_eupp_n) ? s_uua_csbits_out[63:0] : 64'b0;
  // or data out
  assign CSBITS_63_0_OUT       = s_lua_csbits_out[63:0] | s_uua_csbits_out[63:0];

  /*******************************************************************************
   ** Here all sub-circuits are defined                                          **
   *******************************************************************************/

  // Announce the WCS mode at sim start so there is no ambiguity about whether
  // the WCS was pre-loaded (SKIP_WCS_LOAD) or filled by the runtime load phase.
  initial begin
`ifdef SKIP_WCS_LOAD
    $display("[ND120] WCS mode: PRELOADED (SKIP_WCS_LOAD) - runtime microcode load phase bypassed");
`else
    $display("[ND120] WCS mode: RUNTIME LOAD (normal PROM->WCS copy)");
`endif
  end

  // Lower address: 0x0000-0x0FFF

  IDT6168A_20 #(.INIT_FILE("wcs_16C.hex")) CHIP_16C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[63:60]),
      .D_3_0_OUT(s_lua_csbits_out[63:60]),
      .WE_n(s_ww3_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_17C.hex")) CHIP_17C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[59:56]),
      .D_3_0_OUT(s_lua_csbits_out[59:56]),
      .WE_n(s_ww3_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_18C.hex")) CHIP_18C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[55:52]),
      .D_3_0_OUT(s_lua_csbits_out[55:52]),
      .WE_n(s_ww3_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_19C.hex")) CHIP_19C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[51:48]),
      .D_3_0_OUT(s_lua_csbits_out[51:48]),
      .WE_n(s_ww3_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_20C.hex")) CHIP_20C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[47:44]),
      .D_3_0_OUT(s_lua_csbits_out[47:44]),
      .WE_n(s_ww2_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_21C.hex")) CHIP_21C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[43:40]),
      .D_3_0_OUT(s_lua_csbits_out[43:40]),
      .WE_n(s_ww2_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_22C.hex")) CHIP_22C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[39:36]),
      .D_3_0_OUT(s_lua_csbits_out[39:36]),
      .WE_n(s_ww2_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_23C.hex")) CHIP_23C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[35:32]),
      .D_3_0_OUT(s_lua_csbits_out[35:32]),
      .WE_n(s_ww2_n)
  );


  IDT6168A_20 #(.INIT_FILE("wcs_24C.hex")) CHIP_24C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[31:28]),
      .D_3_0_OUT(s_lua_csbits_out[31:28]),
      .WE_n(s_ww1_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_25C.hex")) CHIP_25C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[27:24]),
      .D_3_0_OUT(s_lua_csbits_out[27:24]),
      .WE_n(s_ww1_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_26C.hex")) CHIP_26C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[23:20]),
      .D_3_0_OUT(s_lua_csbits_out[23:20]),
      .WE_n(s_ww1_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_27C.hex")) CHIP_27C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[19:16]),
      .D_3_0_OUT(s_lua_csbits_out[19:16]),
      .WE_n(s_ww1_n)
  );


  IDT6168A_20 #(.INIT_FILE("wcs_28C.hex")) CHIP_28C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[15:12]),
      .D_3_0_OUT(s_lua_csbits_out[15:12]),
      .WE_n(s_ww0_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_29C.hex")) CHIP_29C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[11:8]),
      .D_3_0_OUT(s_lua_csbits_out[11:8]),
      .WE_n(s_ww0_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_30C.hex")) CHIP_30C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[7:4]),
      .D_3_0_OUT(s_lua_csbits_out[7:4]),
      .WE_n(s_ww0_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_31C.hex")) CHIP_31C (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_lua_address[11:0]),
      .CE_n(s_elow_n),
      .D_3_0_IN(s_lua_csbits_in[3:0]),
      .D_3_0_OUT(s_lua_csbits_out[3:0]),
      .WE_n(s_ww0_n)
  );


  // Upper address: 0x1000-0x1FFF

  IDT6168A_20 #(.INIT_FILE("wcs_16D.hex")) CHIP_16D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[63:60]),
      .D_3_0_OUT(s_uua_csbits_out[63:60]),
      .WE_n(s_wu3_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_17D.hex")) CHIP_17D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[59:56]),
      .D_3_0_OUT(s_uua_csbits_out[59:56]),
      .WE_n(s_wu3_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_18D.hex")) CHIP_18D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[55:52]),
      .D_3_0_OUT(s_uua_csbits_out[55:52]),
      .WE_n(s_wu3_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_19D.hex")) CHIP_19D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[51:48]),
      .D_3_0_OUT(s_uua_csbits_out[51:48]),
      .WE_n(s_wu3_n)
  );



  IDT6168A_20 #(.INIT_FILE("wcs_20D.hex")) CHIP_20D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[47:44]),
      .D_3_0_OUT(s_uua_csbits_out[47:44]),
      .WE_n(s_wu2_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_21D.hex")) CHIP_21D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[43:40]),
      .D_3_0_OUT(s_uua_csbits_out[43:40]),
      .WE_n(s_wu2_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_22D.hex")) CHIP_22D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[39:36]),
      .D_3_0_OUT(s_uua_csbits_out[39:36]),
      .WE_n(s_wu2_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_23D.hex")) CHIP_23D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[35:32]),
      .D_3_0_OUT(s_uua_csbits_out[35:32]),
      .WE_n(s_wu2_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_24D.hex")) CHIP_24D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[31:28]),
      .D_3_0_OUT(s_uua_csbits_out[31:28]),
      .WE_n(s_wu1_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_25D.hex")) CHIP_25D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[27:24]),
      .D_3_0_OUT(s_uua_csbits_out[27:24]),
      .WE_n(s_wu1_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_26D.hex")) CHIP_26D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[23:20]),
      .D_3_0_OUT(s_uua_csbits_out[23:20]),
      .WE_n(s_wu1_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_27D.hex")) CHIP_27D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[19:16]),
      .D_3_0_OUT(s_uua_csbits_out[19:16]),
      .WE_n(s_wu1_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_28D.hex")) CHIP_28D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[15:12]),
      .D_3_0_OUT(s_uua_csbits_out[15:12]),
      .WE_n(s_wu0_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_29D.hex")) CHIP_29D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[11:8]),
      .D_3_0_OUT(s_uua_csbits_out[11:8]),
      .WE_n(s_wu0_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_30D.hex")) CHIP_30D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[7:4]),
      .D_3_0_OUT(s_uua_csbits_out[7:4]),
      .WE_n(s_wu0_n)
  );

  IDT6168A_20 #(.INIT_FILE("wcs_31D.hex")) CHIP_31D (
      .clk(sysclk),
      .reset_n(sys_rst_n),
      .A_11_0(s_uua_address[11:0]),
      .CE_n(s_eupp_n),
      .D_3_0_IN(s_uua_csbits_in[3:0]),
      .D_3_0_OUT(s_uua_csbits_out[3:0]),
      .WE_n(s_wu0_n)
  );

endmodule
